Yorkville CM5-70 High-Performance Mini Ceiling Speaker for Immersive Sound
Upgrade your space with the Yorkville CM5-70! This 30W 5' high performance ceiling mount loudspeaker is a game-changer. It's perfect for creating a captivating audio experience in any background music or paging system where outstanding sound quality is crucial.
Designed for louder club or restaurant/retail environments, it offers built-in 70-volt taps at 5W, 10W or 20W, plus optional 8-ohm (30W) operation. This means it can be driven by virtually any amplification or paging system, like the Coliseum CA1 or CA1T.
Features: - • High-performance flush mount ceiling speaker for immersive sound
- • Selectable 70V or 8-ohms operation for flexibility
- • Power taps at 5W, 10W and 20W for easy setup
- • 30W (8-ohms mode) for powerful audio
- • Open back design for enhanced sound
- • Mounting hardware included for hassle-free installation
Specifications: - • System type: passive ceiling speaker
- • Program Power: 30W
- • Nominal impedance: 8 ohms/ 70V transformer
- • Sensitivity: 91 dB @1W/1m
- • Frequency response (Hz +/- 3dB): 150 - 20k
- • Driver configuration: single 5'
- • HF dispersion: 90° x 90° (°H x °V)
- • Inputs: screw terminal solder lugs
- • Enclosure materials: ABS plastic
- • Grill: perforated metal

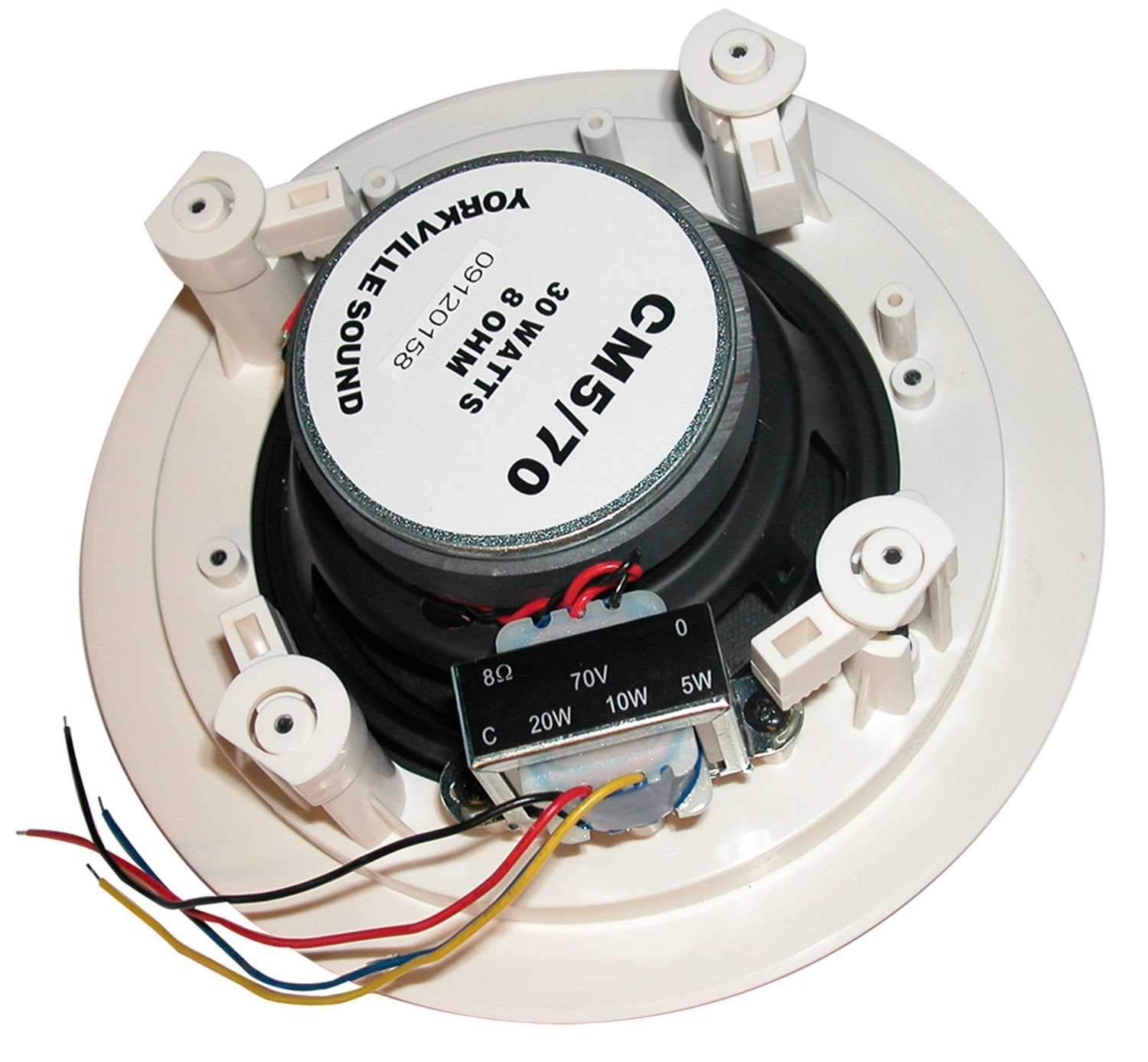

- • Wiring: 5W (blue), 10W (yellow), 20W (red) for 70V operation
- • Dimensions: 8' x 3' / 20 cm x 7.6 cm
- • Weight: 3.0 lbs. / 1.4 kg
The Yorkville CM5-70 is a high-performance ceiling mount speaker perfect for club, restaurant, or retail spaces. It offers 30W of power and selectable 70V or 8-ohm operation. With dimensions of 8' x 3' (20 cm x 7.6 cm) and a weight of 3.0 lbs. (1.4 kg), it's easy to install and use. Ideal for background music or paging systems where great sound matters.
