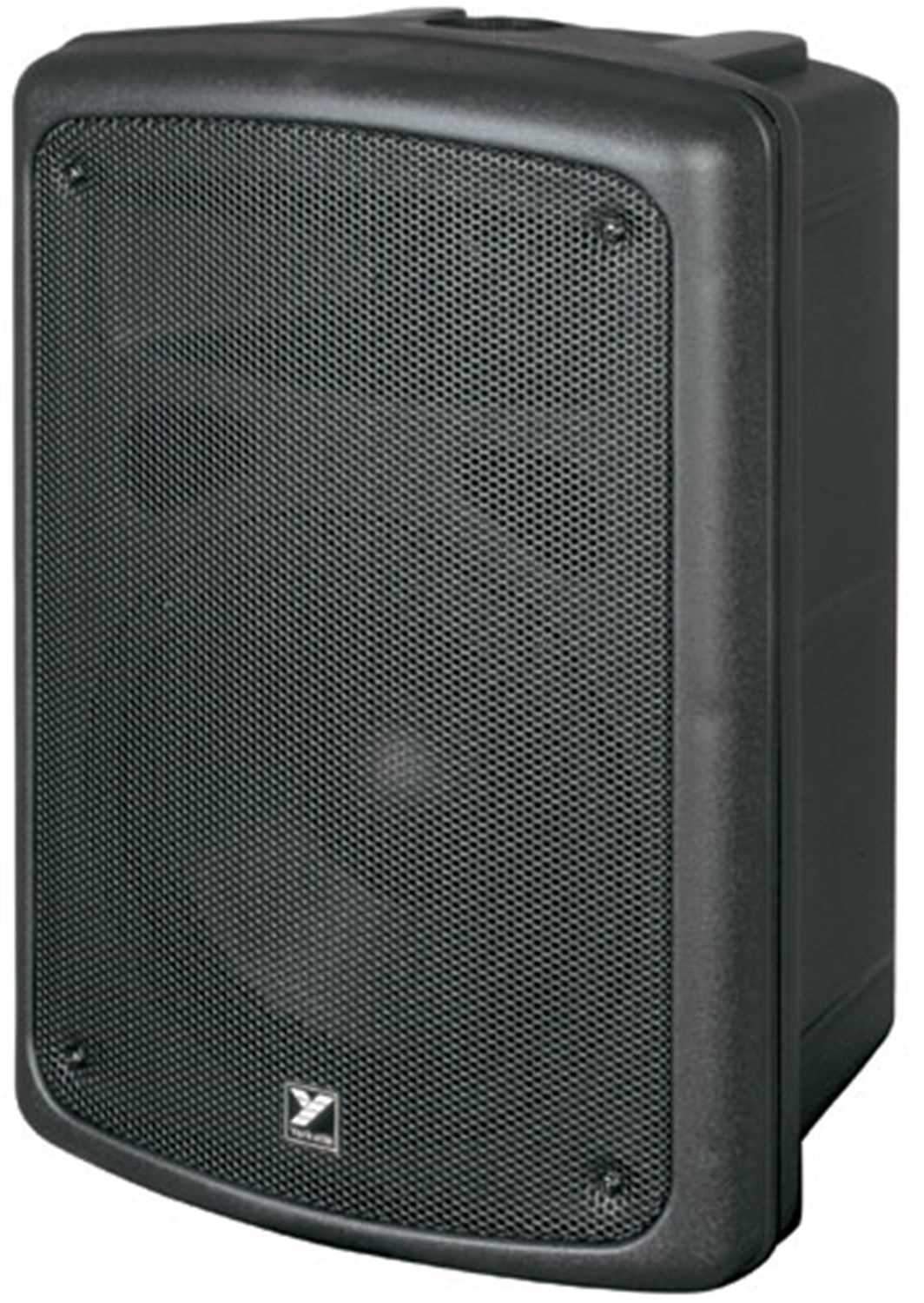

Upgrade your sound experience with the Yorkville C170 8' 100W Passive Speaker+!
• Integrated 70V'matching transformer' for easy connection of multiple speakers without overloading the power amplifier. Choose from three sensitivity settings (6W, 12.5W, 25W or bypass) via a rotary switch on the rear panel for convenient volume adjustment of interconnected cabinets.

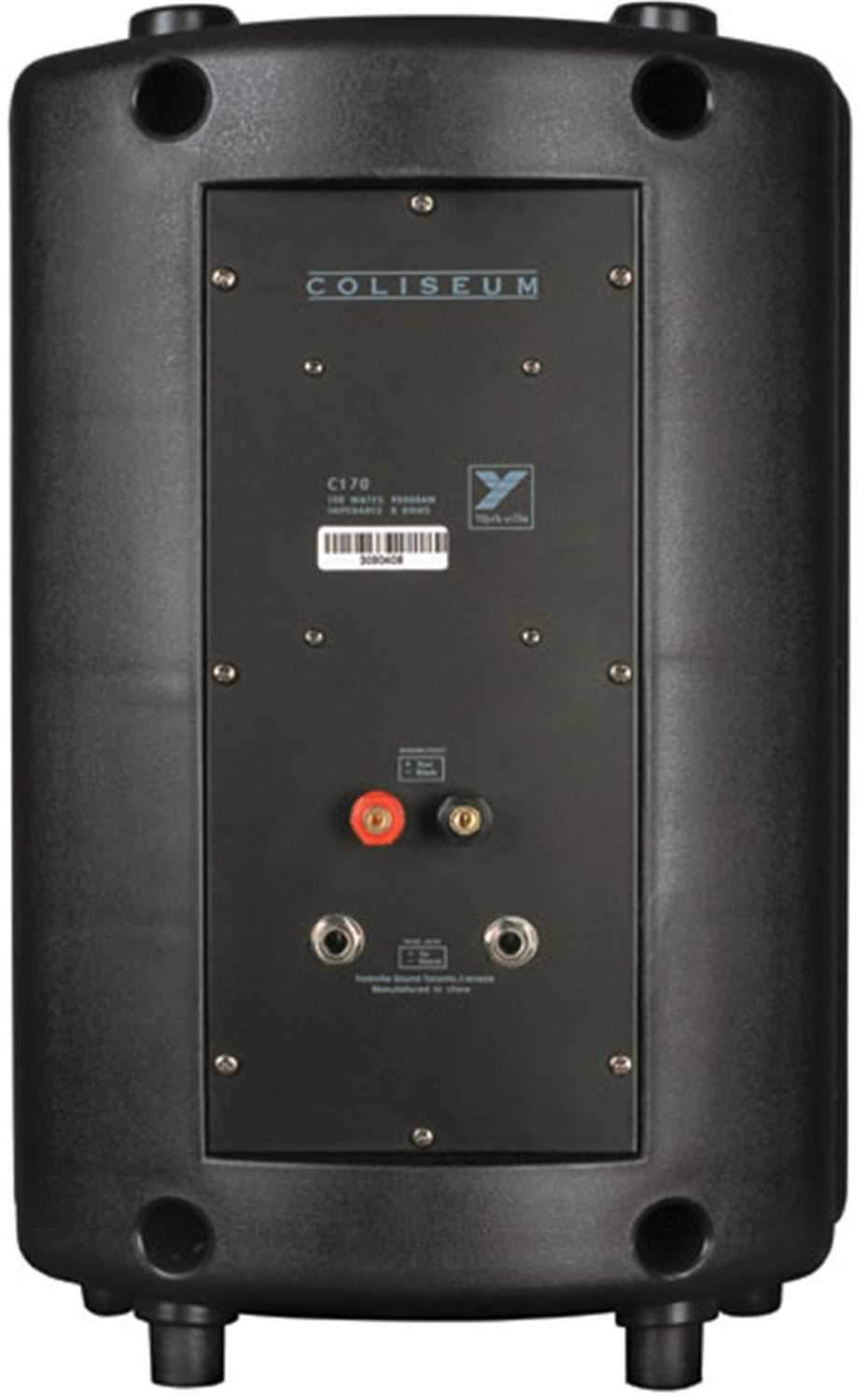

• Based on the popular C110, C120 and C130, the C170 offers great value for fixed installations. Compact 100-watt loudspeaker enclosure made of ABS plastic with an 8-inch driver and 1-inch Mylar tweeter, featuring dual binding posts and 1/4' connectors for maximum versatility.

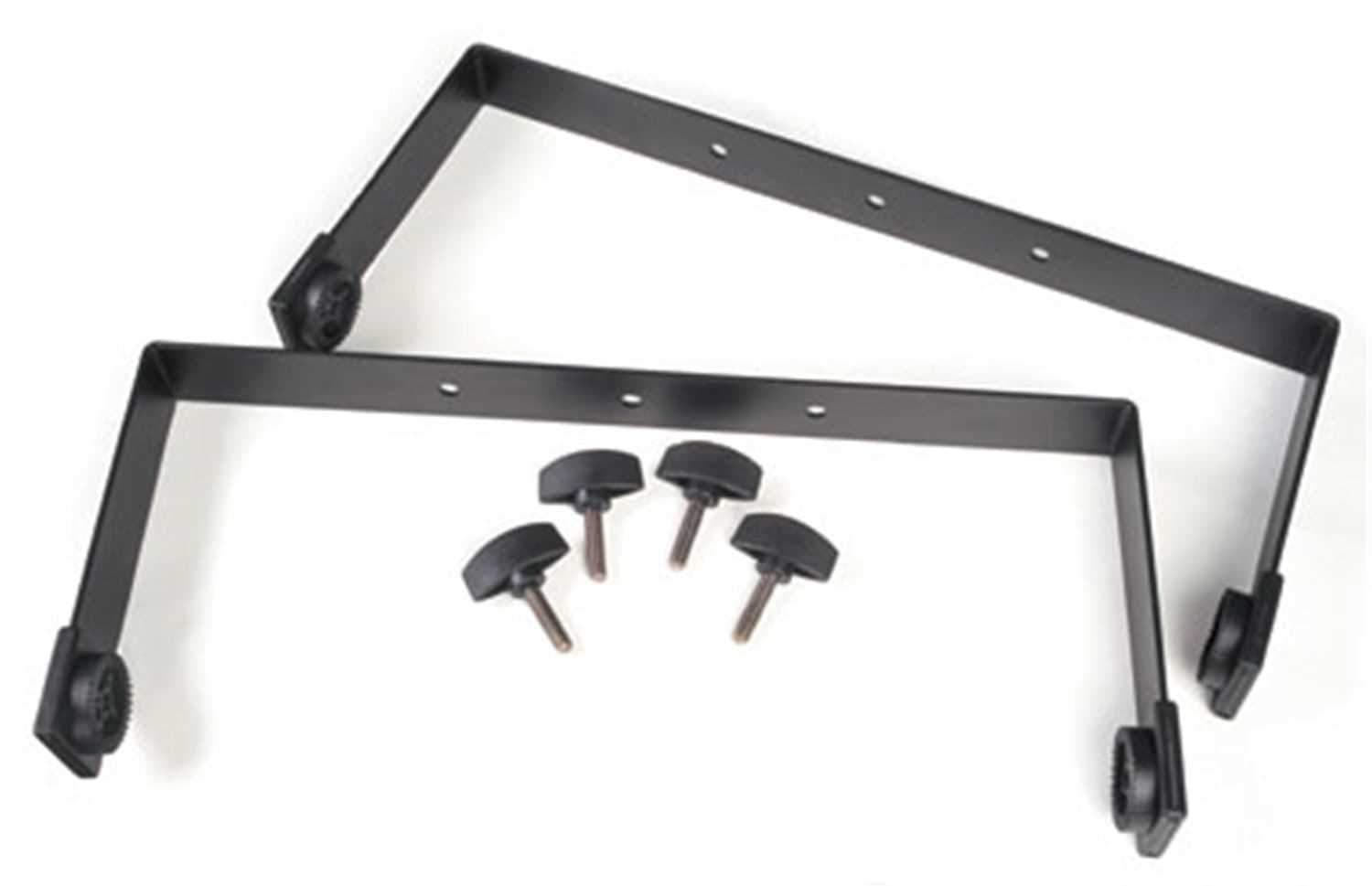

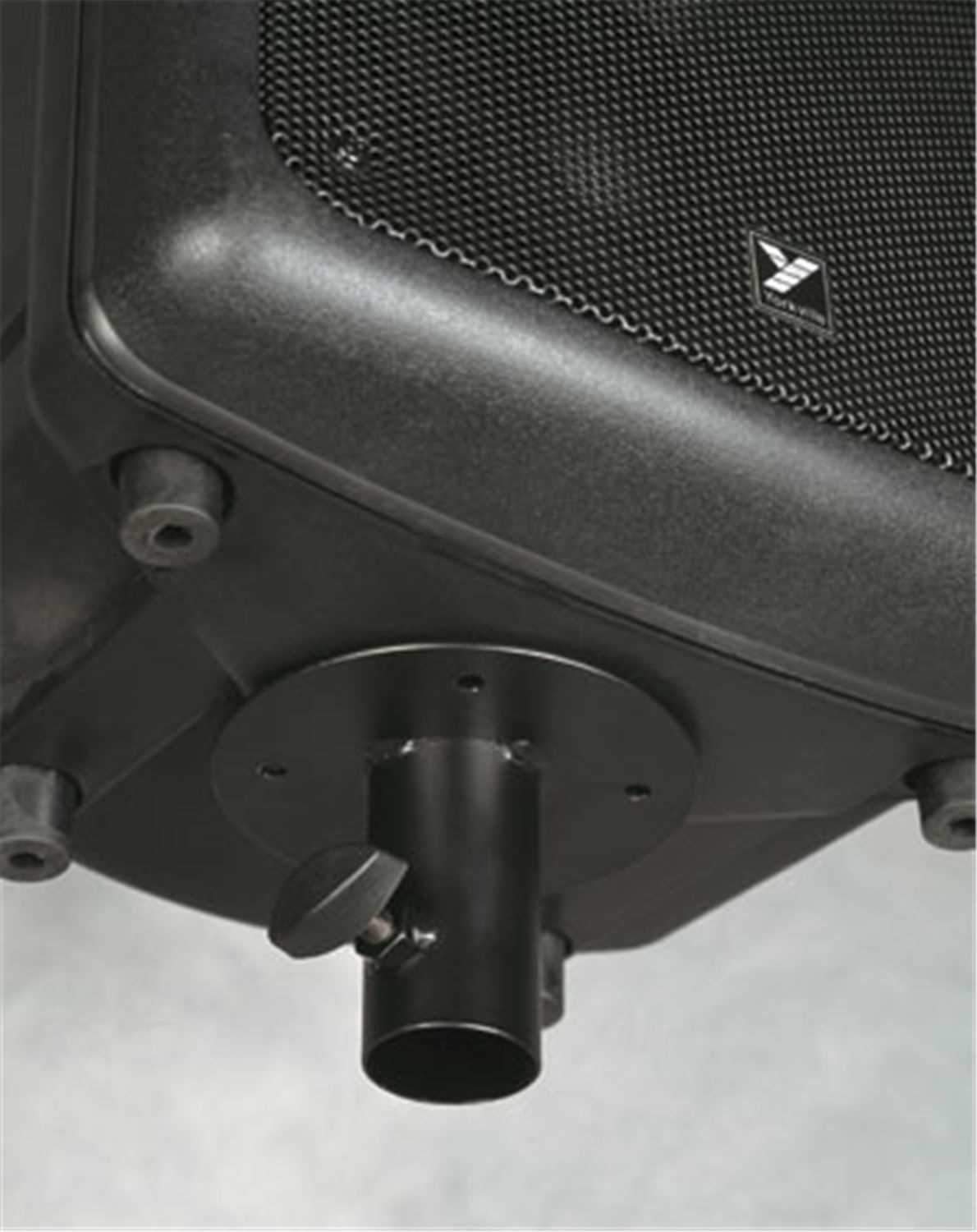

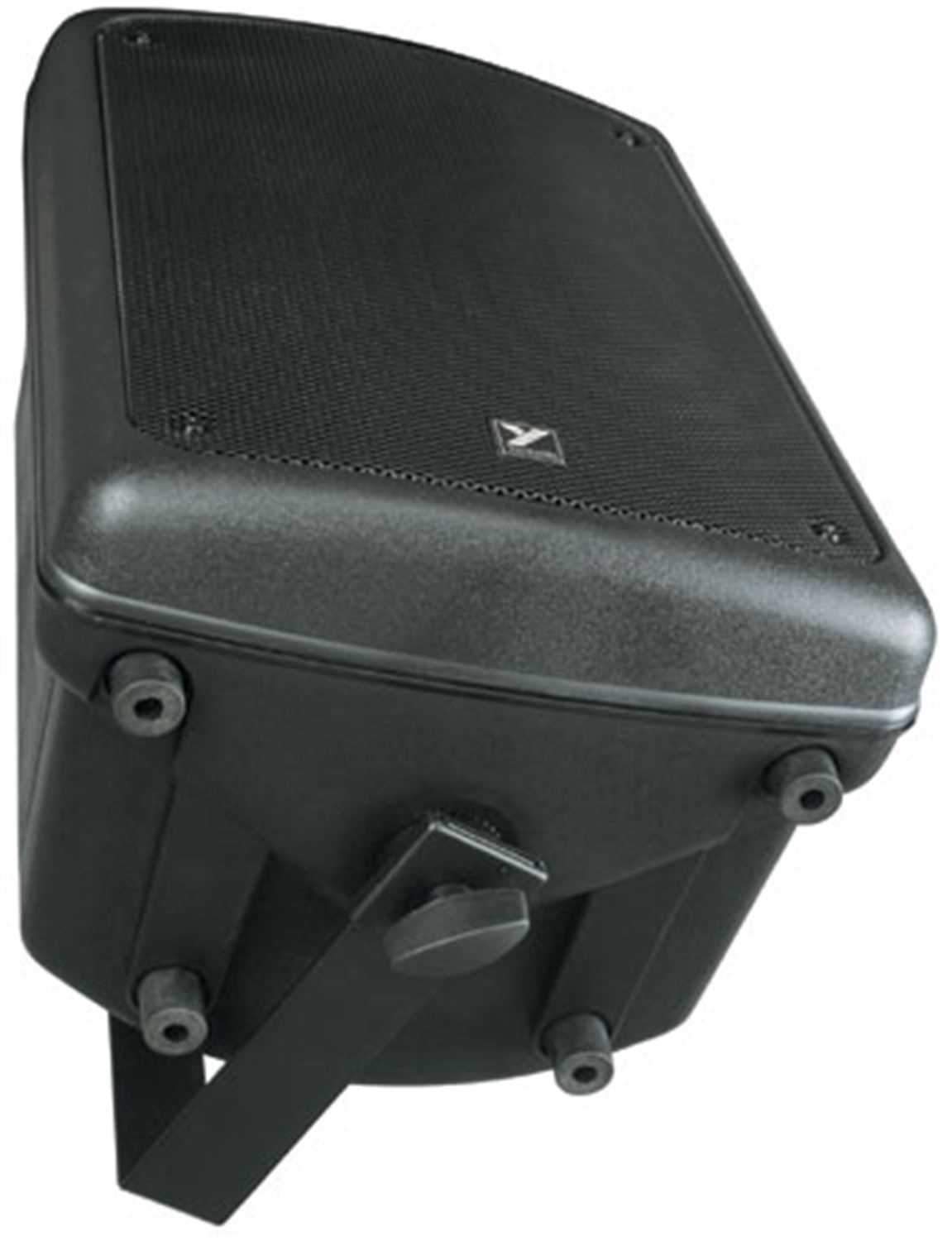

• Trapezoidal shape makes it ideal for install or array mounting in tight spaces. Comes with a rugged U-bracket for wall or ceiling mounting. Optional polemount adapter (C170ADAPT) available for speaker stand use. Also available in white (C170W) for discreet installations.
The C170 is available in both black (C170) and white (C170W) finishes.
Specifications - System Type: 2-Way
- Active or Passive: Passive
- Program Power (Watts): 100
- Biampable: No
- Nominal Impedance (Ohms): 8
- Sensitivity (dB @1Watt/1m): 93
- Max SPL (dB): 113
- Frequency Response (Hz +/- 3db): 60 - 20000
- Driver Configuration: 8 inch / 1 inch dome tweeter
- HF Driver(s): 1 inch Mylar Dome Tweeter
- LF Driver(s): 8 inch
- LF Program Power(Watts): 100
- LF Impedance(Ohms): 8
- Inputs - 1/4' Jacks: 2
- Inputs - Binding Post: Yes
- Feet: Yes
- Included Hardware: Mounting Bracket
- Pole Mount Adapter (1 3/8'-3.5cm): Optional Adapter (C170ADAPT)
- Enclosure Materials: ABS Plastic
- Grille: Perforated Metal
- Optional Covering / Finishes: Available Black or White (C170W)
- Dimensions (DWH xbackW, inches): 11.25 x 9.75 x 16.25 x 9.5
- Dimensions (DWH xbackW, cm): 28.5 x 25 x 42 x 24
- Weight (lbs/kg): 14.5 / 6.6
The Yorkville C170 is a versatile passive speaker perfect for small installations, like cafes or offices, and as a repeater or fill cabinet in larger venues. It's great for sound engineers and venue owners. With dimensions of 11.25 x 9.75 x 16.25 x 9.5 inches (28.5 x 25 x 42 x 24 cm) and weighing 14.5 lbs (6.6 kg), it's easy to install and move around.
