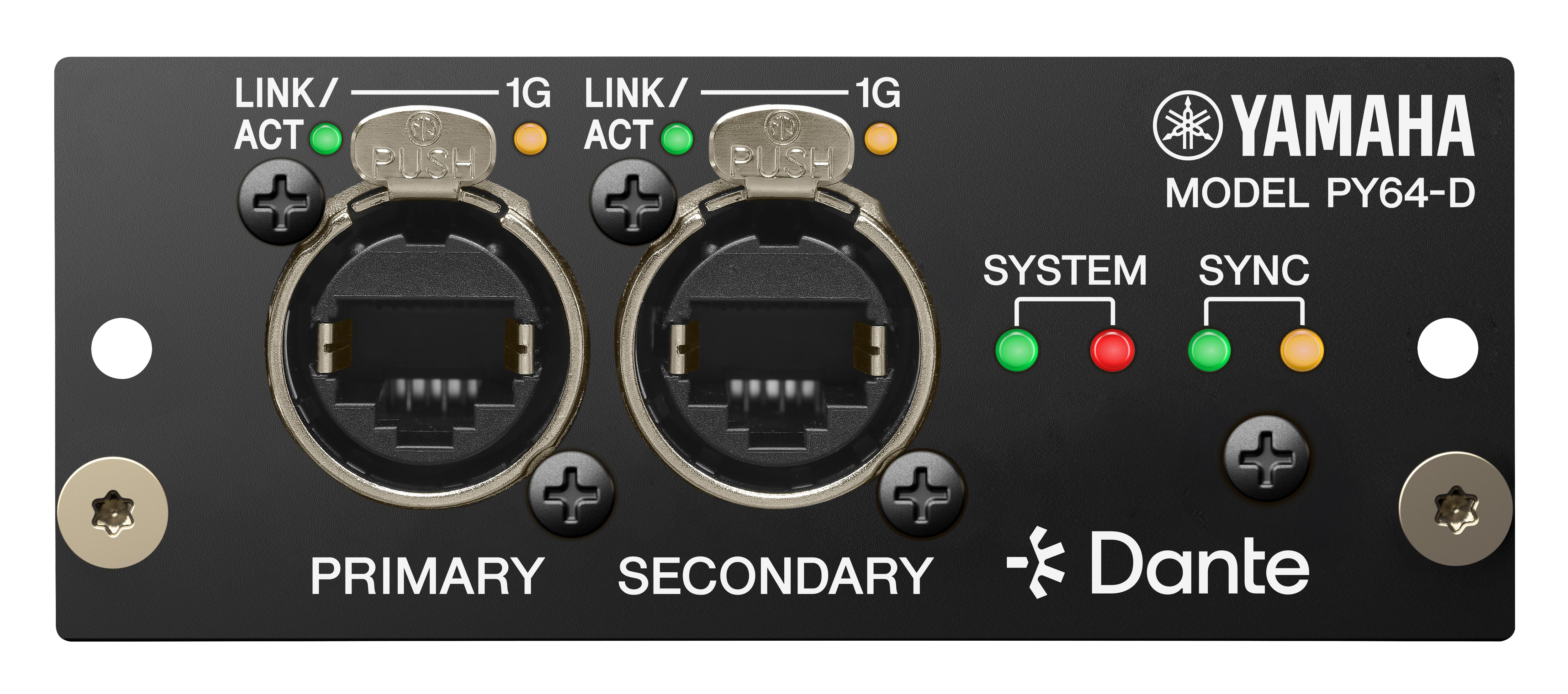

Yamaha PY64-D Dante Interface 64x64 Expansion Card with SRC for DM7 Mixers

Yamaha PY64-D Dante Interface Card with SRC

The PY64-D is a game-changer for expanding the Dante connection on the DM7 Series! It comes with sample rate converter (SRC) functions, making complex system connections a breeze, especially for devices with different sample rates. • Expand Your DM7's Connectivity: Connect the built-in Dante connectors of the DM7 Series and those on the PY64-D card to different Dante networks, and use the DM7 console as a secure bridge. • 64 Inputs and Outputs: Enjoy 64 inputs and 64 outputs at 96 kHz, with both synchronous and asynchronous SRC modes available. • Easy SRC Settings: Adjust the SRC directly from the console GUI. Redundant connections are supported with primary and secondary connectors, and daisy chain connections are also an option.

Features

• • 64in/out at 96kHz with SRC, perfect for seamless audio integration.
• • Synchronous and asynchronous SRC options for compatibility with various devices.
• • SRC settings accessible via the console GUI for hassle-free operation.
• • Redundant connections with primary and secondary connectors for added reliability.
• • Daisy chain connections supported for flexible setup.

PY64-D SPECIFICATIONS

• Dante Clock
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz ( 4%/ 0.1%/+0.1%/+4.167%)
• Sampling Rate Converter
• From 44.1 kHz 4% to 96 kHz +4.167%
• Operating Temperature Range
• 32 to 104 degrees F (0 to 40 degrees C)
• Storage Temperature Range
• -4 to 140 degrees F (-20 to 60 degrees C)
• Terminal
• PRIMARY , SECONDARY
• Format
• Dante
• Data Length
• 24-bit / 32-bit*1
• Level
• 1000BASE-T
• Audio
• 64x64
• Connector
• etherCON CAT5e *2 *3
• Power Consumption
• 5.5 W
• Dimensions (W x H x D)
• 3.94 inches ¡Á 1.57 inches ¡Á 5.31 inches
• Net Weight
• .66 lbs.

*1 Features a sampling rate converter. Supported data length: 24-bit only Supported frequency: From 44.1 kHz 4% to 96 kHz +4.167%

*2 CAT5e or higher cable is used for connection.

*3 STP cable is recommended for connection.

The Yamaha PY64-D Dante Interface 64x64 Expansion Card with SRC for DM7 Mixers is designed for audio professionals and engineers who want to enhance the connectivity of their DM7 mixers. Whether you're working in a recording studio, live event venue, or broadcast facility, this expansion card allows you to easily integrate different Dante networks. It features 64 inputs and 64 outputs at 96 kHz, with both synchronous and asynchronous SRC modes available. The SRC setting can be adjusted directly from the console, and redundant connections are supported with primary and secondary connectors. The card has a compact design, measuring 3.94 inches x 1.57 inches x 5.31 inches and weighing 0.66 lbs. It operates within a temperature range of 32 to 104 degrees F (0 to 40 degrees C) and can be stored between -4 to 140 degrees F (-20 to 60 degrees C).
