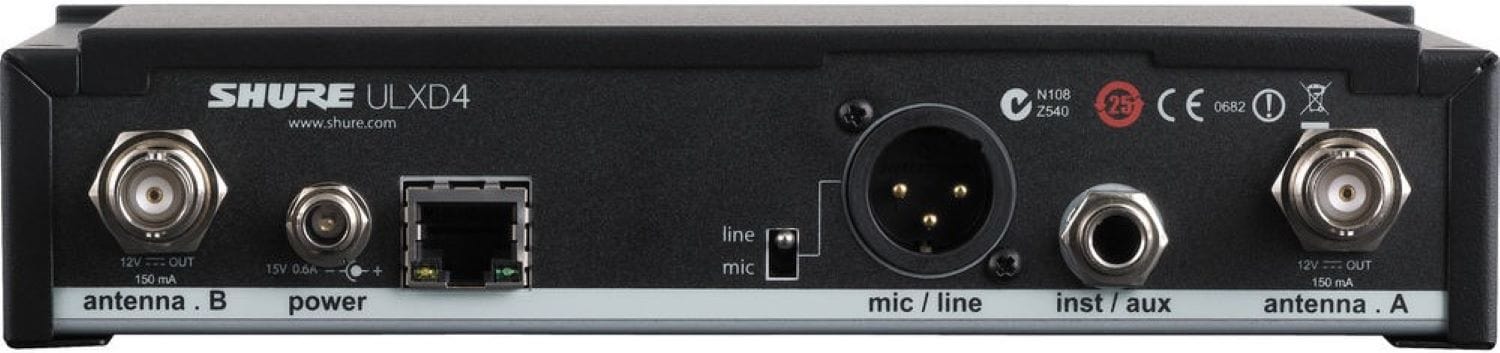

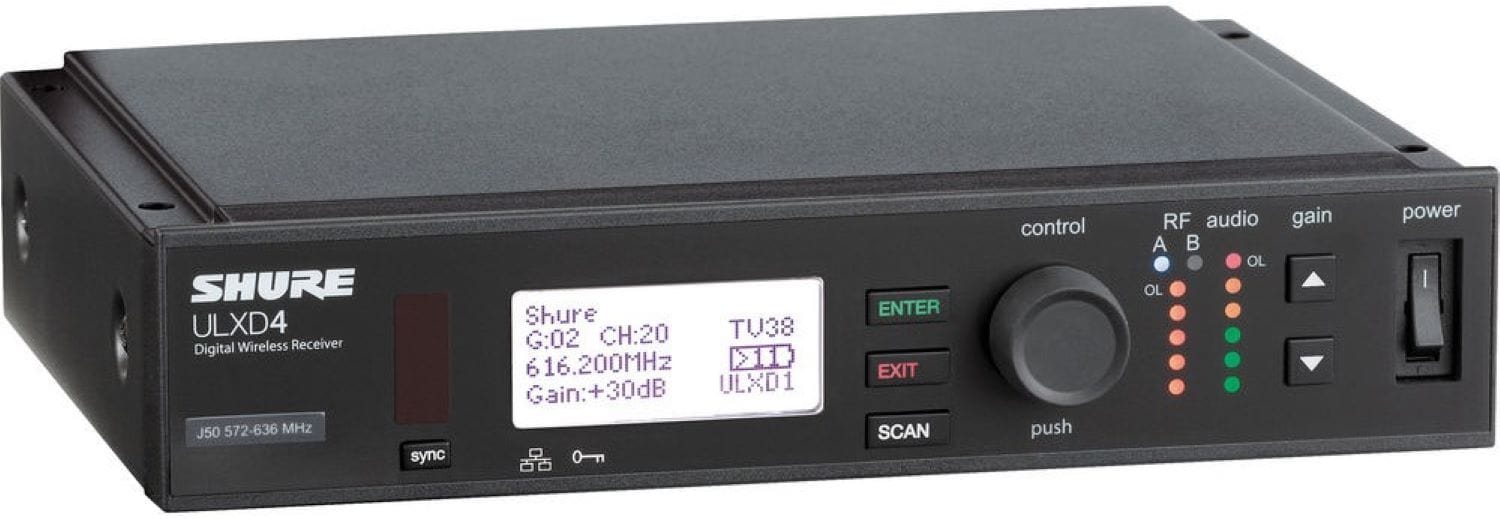

Shure ULXD4 Digital Wireless Receiver - G50 Band

Shure ULXD4 G50 Band Digital Wireless Receiver - Your Ultimate Sound Solution

Upgrade your sound with this amazing digital wireless receiver! Ideal for professional sound reinforcement, it offers a spectrum and RF intelligent option. • Digital Predictive Switching Diversity for seamless audio. • Up to 72 MHz tuning range (region dependent) for flexibility. • AES 256 encryption for secure wireless transmission.

Features:

• Digital Predictive Switching Diversity
• Up to 72 MHz tuning range (region dependent)
• Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
• Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
• Innavidual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
• Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench 6 software for advanced coordination, monitoring, and control
• Compatible with AMX and Crestron control systems
• Interference detection and alerts
• Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
• Removable half wave antennas
• 24 bit / 48 kHz digital audio
• 20 Hz – 20 kHz frequency range with flat response
• Greater than 120 dB dynamic range
• Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
• AES-256 bit encryption equipped for secure wireless transmission

Specifications

• Key Specs:
• Wireless Technology: Digital UHF
• Diversity: Antenna Diversity
• Max Operating Range: 328.1' / 100 m
• Receiver Type: Tabletop
• Number of Audio Channels: 1
• Audio I/O:
  • 1 x XLR 3-Pin Male Balanced Output
  • 1 x 1/4' TRS Female Balanced Output
• Network I/O: 1 x RJ45 (10/100 Mb/s)
• Power Requirements: AC/DC Power Adapter
• Number of RF Channel Frequencies: 2560
• Diversity: Antenna Diversity
• RF Frequency Band:
  • G50: 470 to 534 MHz
• RF Bandwidth: 64 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 328.1' / 100 m
• Max Transmitters per Band: 60
• Timecode Support: No
• Mobile App Compatible:
  • Yes: Android & iOS
  • App Name: ShurePlus Channels
  • Functionality: Remote Control
• OS Compatibility:
  • Windows 10 or Later
  • macOS 10.14 or Later
• Latency: < 2.9 ms
• Modulation: Proprietary
• Receiver:
  • Receiver Type: Tabletop
  • Mounting Options: Rackmount, Tabletop (with Included Hardware)
  • Rackmount Size: 1 RU (1/2 Rack)
  • Antenna: 2 x 1/2 Wave External, BNC (Rear-Mount)
  • Antenna Bias Voltage: 12 to 13 VDC, 150 mA (per Antenna)
  • Number of Audio Channels: 1
  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4' TRS Female Balanced Output
  • Gain Range: -18 to +42 dB (1 dB Steps)
  • Pad: 30 dB
  • Audio Output Level :
    • XLR Output: +18 dBV (Line Level)
    • XLR Output: -12 dBV (Mic Level)
    • 1/4' Output: +12 dBV (Consumer Level, Instrument Level)
  • Phantom Power Protection: On 1/4', XLR Outputs
  • Frequency Response: 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
  • Network I/O: 1 x RJ45 (10/100 Mb/s)
  • Network Protocols: DHCP, Manual IP
  • Standalone Audio Interface Capable: No
  • Impedance:
    • XLR Output: 100 Ohms (Balanced)
  • Approximate RF Sensitivity: -98 dBm
  • Adjacent Channel Isolation: >70 dB
  • Spurious:
    • Rejection: >80 dB
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter: 15 VDC at 600 mA (Included)
  • DC Input Power: 15 VDC at 600mA
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 250 mA
  • Display & Indicators:
    • 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
    • 2 x Multi-Segment LED (AF Level, Output Level, Peak)
  • Housing: Steel
  • Operating Temperature: 0 to 122°F / -17 to 50°C
  • Storage Temperature: -20 to 165°F / -28 to 73°C
  • Dimensions: 6.7 x 1.7 x 7.8' / 171 x 44 x 197 mm
  • Weight: 2 lb / 0.9 kg
• Packaging Info:
  • Package Weight: 6.5 lb
  • Box Dimensions (LxWxH): 18.347 x 14.567 x 3.622'

This Shure ULXD4 Digital Wireless Receiver is perfect for professional sound reinforcement applications. It has a tabletop receiver type with dimensions of 6.7 x 1.7 x 7.8' / 171 x 44 x 197 mm and weighs 2 lb / 0.9 kg. The package weight is 6.5 lb and the box dimensions are 18.347 x 14.567 x 3.622'. It offers features like Digital Predictive Switching Diversity, a wide tuning range, and AES 256 encryption for security. Ideal for anyone in need of high-quality wireless sound solutions.
