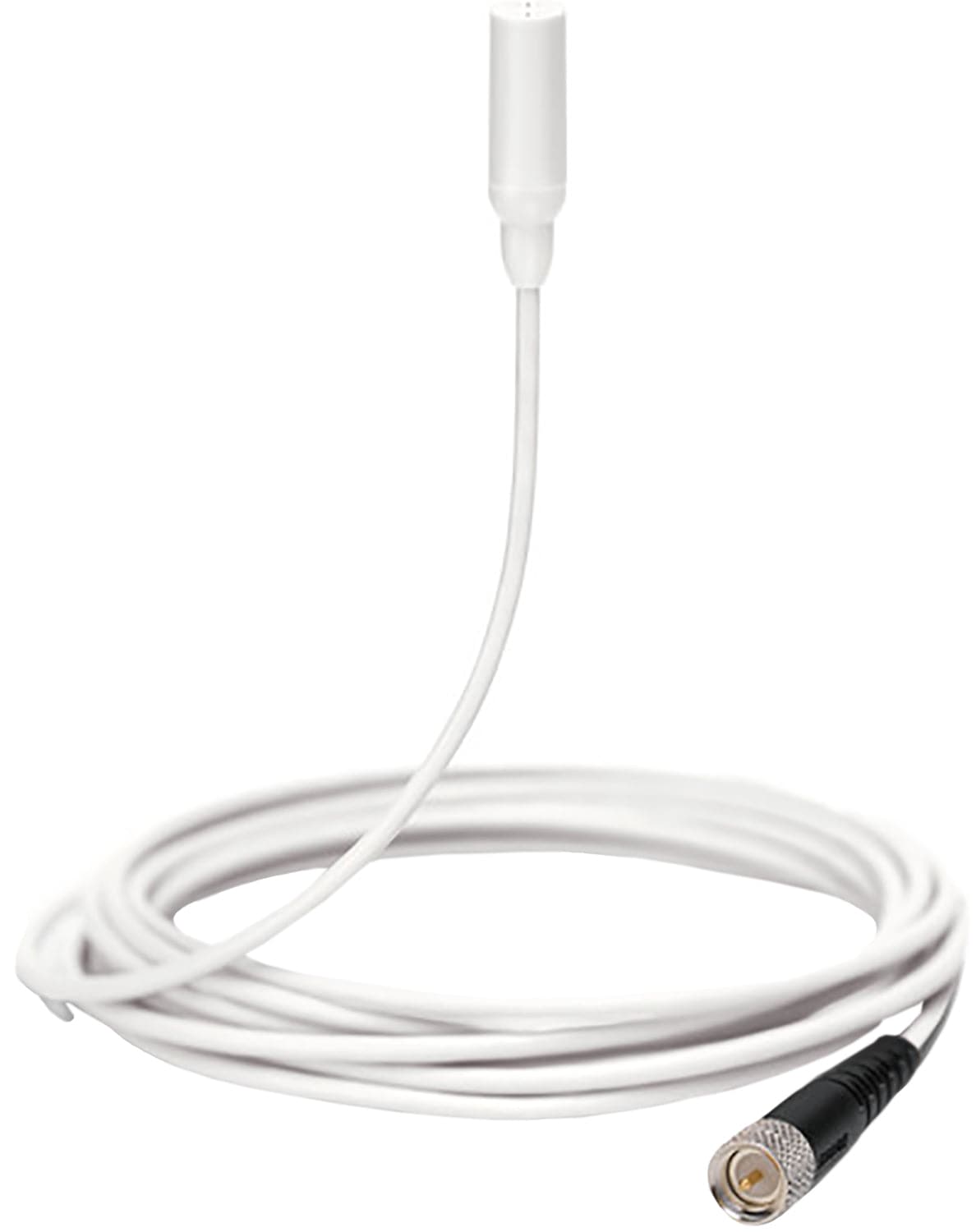

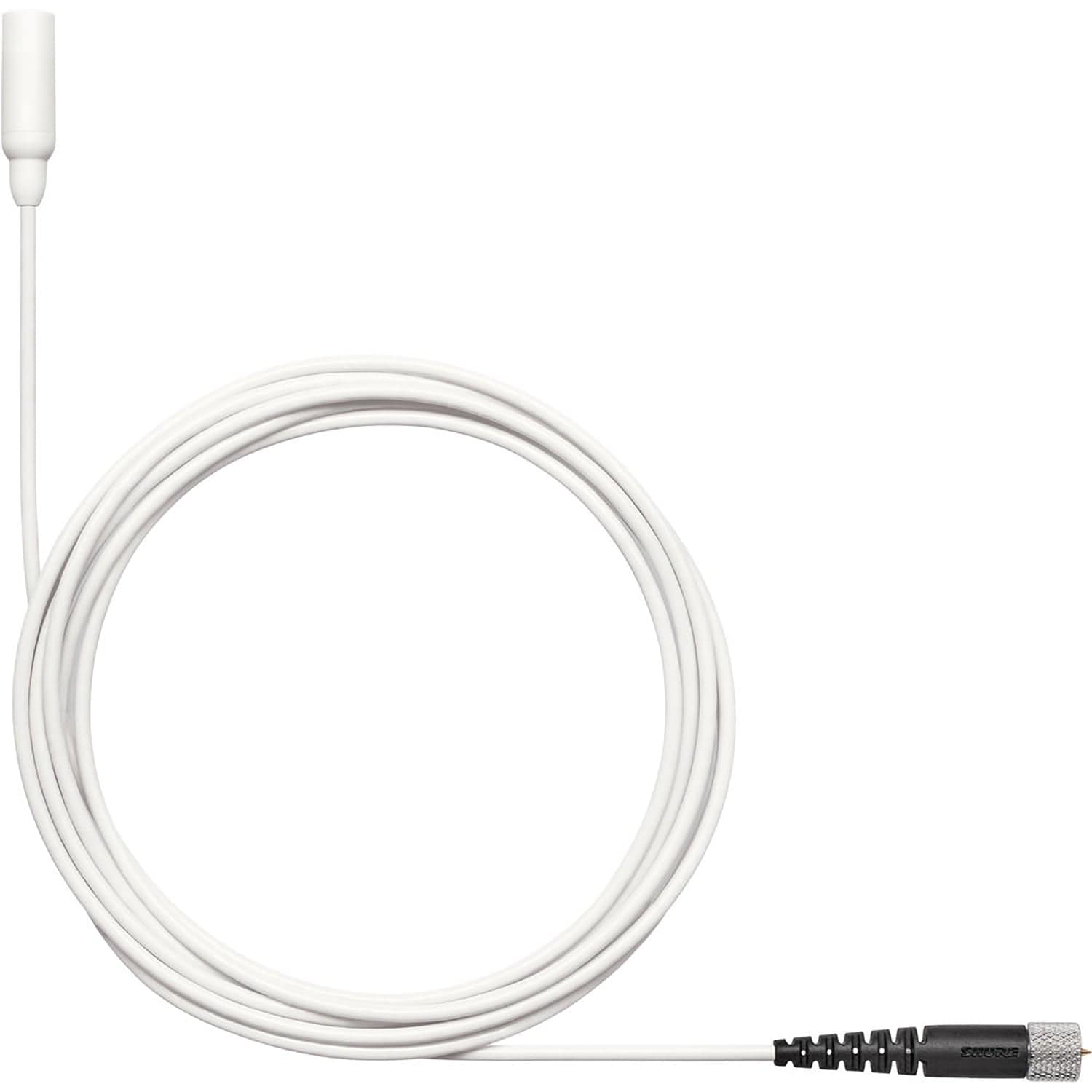

Shure TL48W/O-MDOT-A TwinPlex Omnidirectional Lavalier Microphone - MDOT with Accessories - White

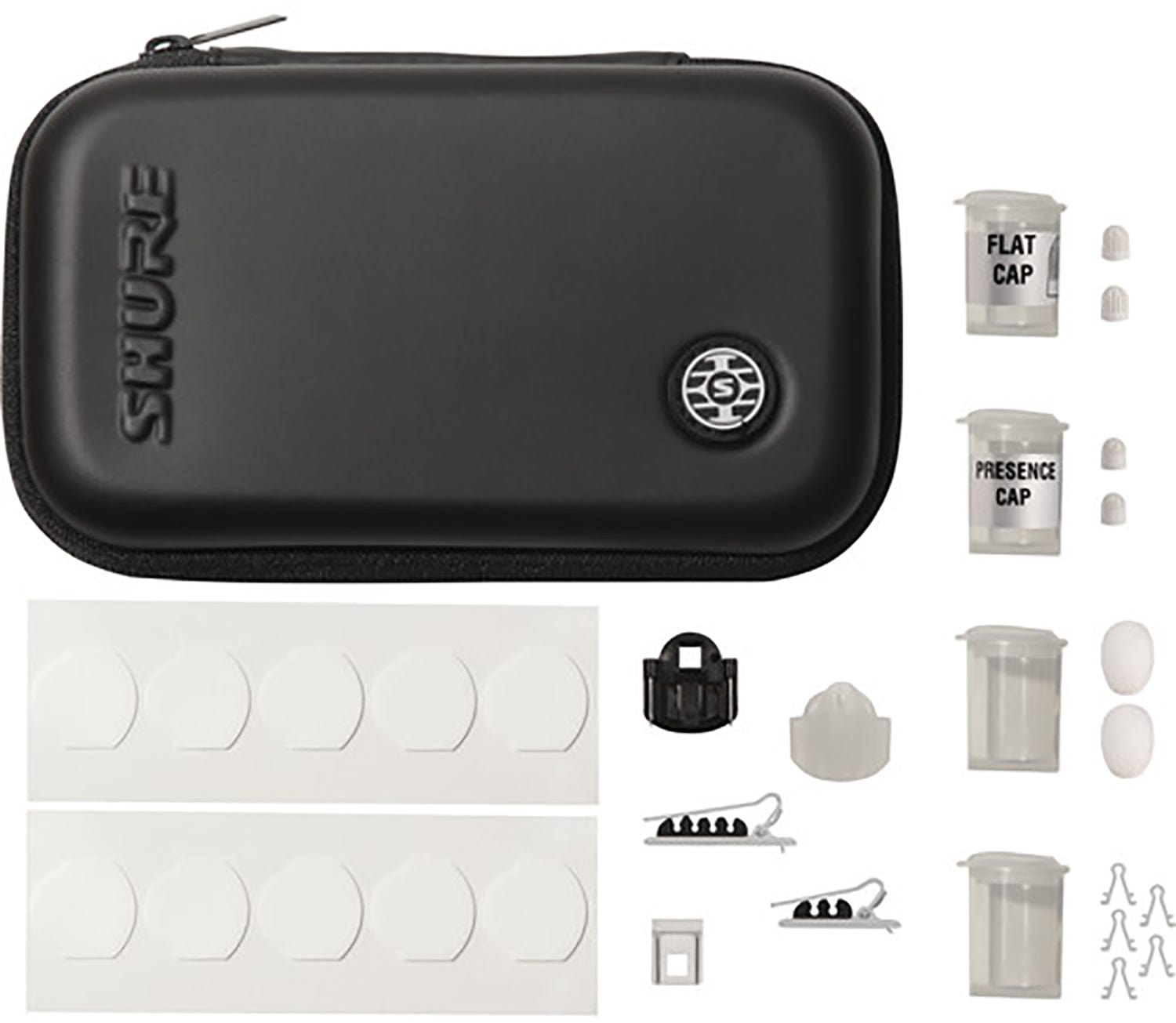

The TwinPlex TL48 is a must-have for film and TV! It offers a tailored response with a mid-range rise, perfect for speech and dialogue. Designed by leading audio pros, it's easy to conceal and comes with extensive accessories.
Features:
- • Ideal for film and TV: The paintable, fixed frequency cap and mid-band boost make it perfect for accentuating dialogue in these applications.
- • Superior sound quality: Thanks to the patent pending dual-diaphragm design, it has improved off-axis consistency and best-in-class low self-noise and dynamic range.
- • User-friendly design: The fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture, and the paintable 1.6 mm cable is immune to memory effect and kinks.
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 19 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
This Shure TL48W/O-MDOT-A microphone is perfect for film and TV professionals. It's great for capturing clear speech and dialogue. It's easy to hide under costumes or against the skin. The microphone has a 19 mm length, 5.6 mm diameter, and weighs 12.0 g with the 66 in. (1.67 m) long 1.6 mm cable.
