Shure BLX4 Wireless Receiver for BLX Wireless System - H9 Band

Shure BLX4 H9 Band Wireless Receiver - Your Ultimate Sound Solution

Upgrade your audio experience with this amazing analog wireless receiver! It offers improved linearity and frequency response, along with group and channel scan for effortless setup. • Effortless Setup: Group and channel scan for easy configuration. • Enhanced Performance: Improved linearity and frequency response. • Visual Indicator: Two-color audio status indicator LED.

Features:

• Perfect for Small Venues and Conference Rooms
• Single-Channel, Portable Tabletop Design - Great for on-the-go use
• 123 Auto-Scan Frequencies - Never worry about frequency issues
• Internal Antenna Diversity - Ensures stable signal reception
• Expandable to 12 Mic Channels/300' Range - Grow your setup as needed

Specifications:

• System:
  • Number of RF Channel Frequencies: 123
  • Diversity: Antenna Diversity
  • RF Frequency Band: H9(512-542 MHz)
  • RF Bandwidth: 24 MHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 300' / 91.4 m
  • Max Transmitters per Band: 12
• Receiver:
  • Receiver Type: Tabletop
  • Antenna: 2 x Internal, Fixed
  • Number of Audio Channels: 1

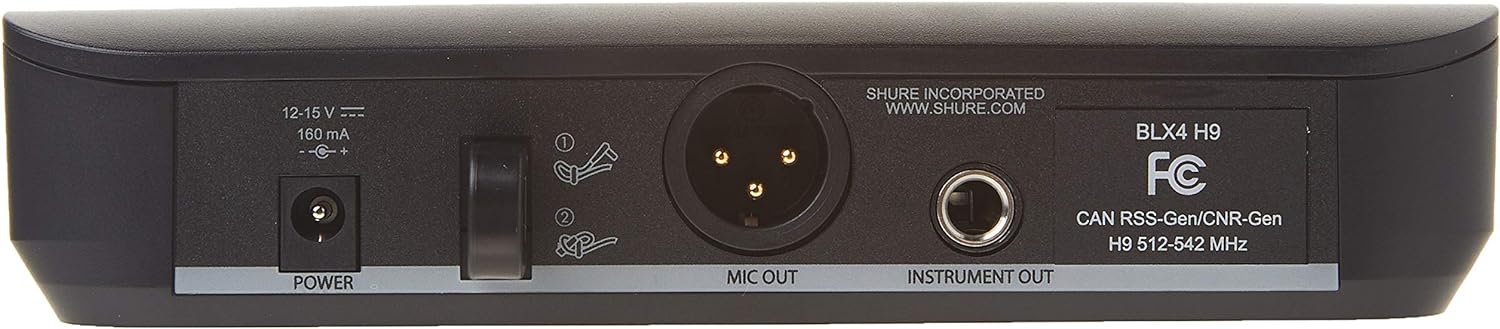

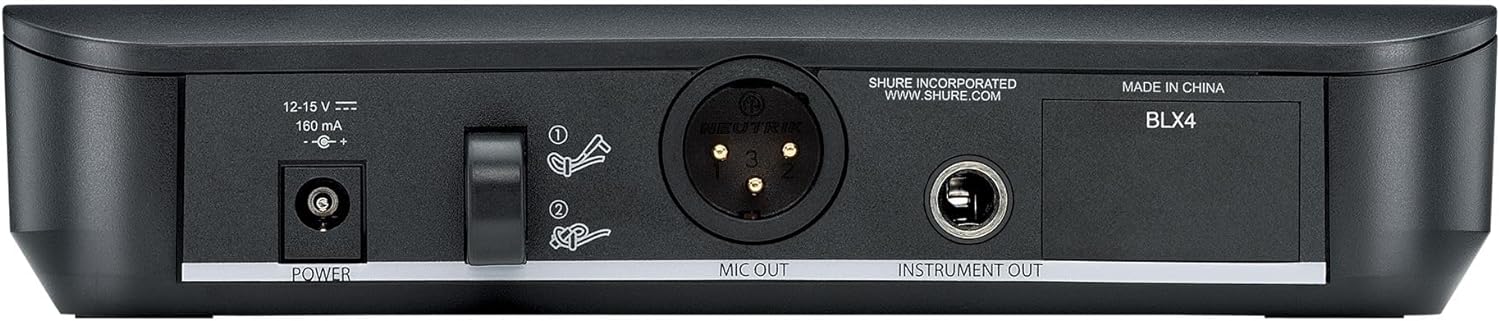

  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4' TS Female Unbalanced Output
  • Audio Output Level:
    • XLR Outputs: -27 dBV (Mic Level)
    • 1/4' Outputs: -13 dBV (Instrument Level)
  • Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
  • Impedance:
    • XLR Outputs: 200 Ohms
    • 1/4' Outputs: 50 Ohms
  • Approximate RF Sensitivity: -105 dBm
  • Adjacent Channel Isolation: >50 dB
  • Power Requirements: AC/DC Power Adapter

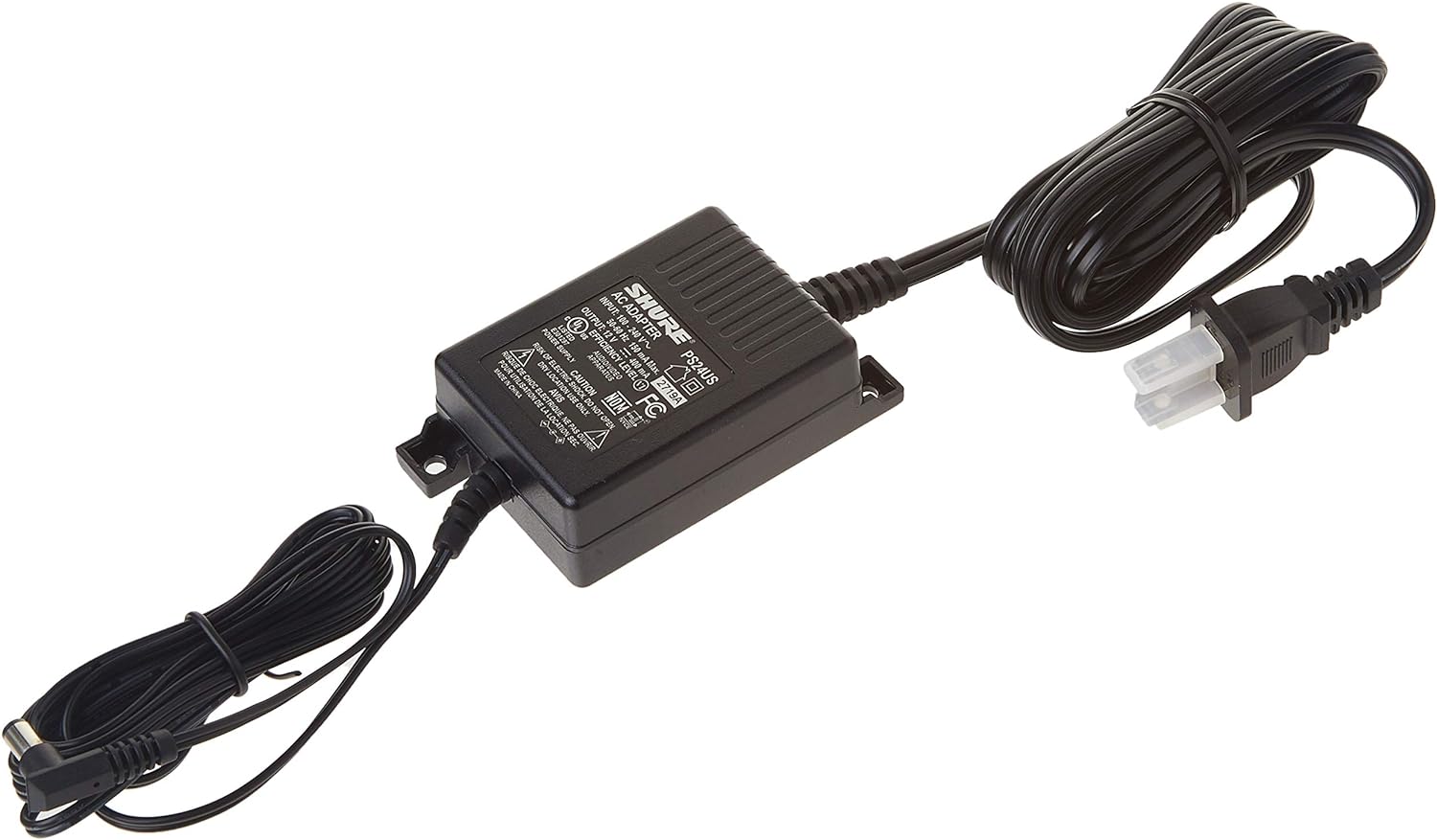

  • AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)

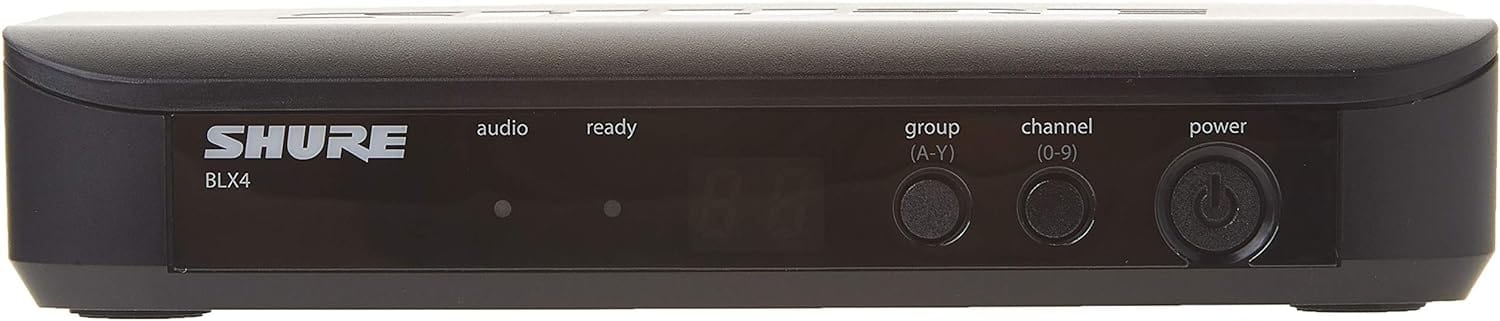

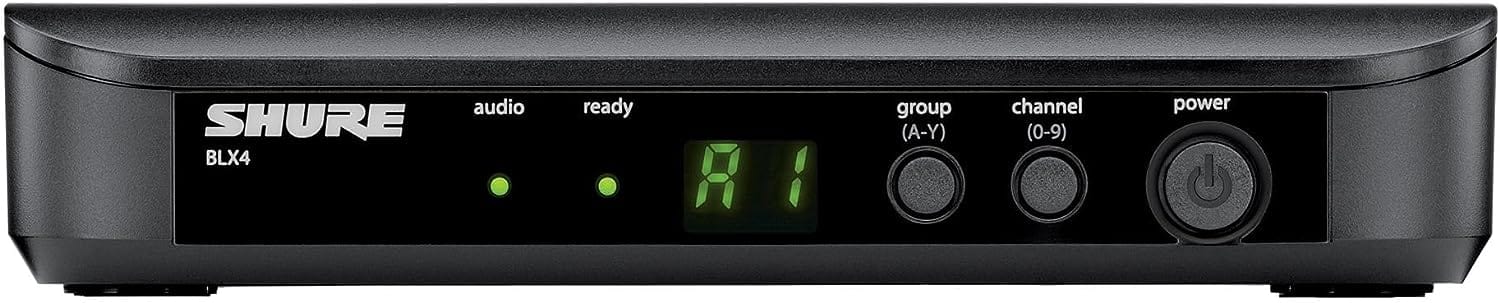

  • Display & Indicators:
    • 1 x Multi-Segment LED (Channel, Group)
    • 2 x LED (AF Level, Sync)
  • Housing: ABS
  • Operating Temperature: 0 to 135°F / -17 to 57°C
  • Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
• Packaging Info:
  • Package Weight: 2.55 lb
  • Box Dimensions (LxWxH): 13.5 x 11.9 x 4'

This Shure BLX4 Wireless Receiver is perfect for small venues and conference rooms. It has a single-channel, portable tabletop design. The dimensions are 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm and it weighs 2.55 lb. It comes with 123 auto-scan frequencies, internal antenna diversity, and can be expanded to 12 mic channels with a 300' range. Setup is easy with group and channel scan. The receiver type is tabletop, it has 2 internal fixed antennas, 1 audio channel, and various audio I/O options. It operates within a temperature range of 0 to 135°F / -17 to 57°C.
