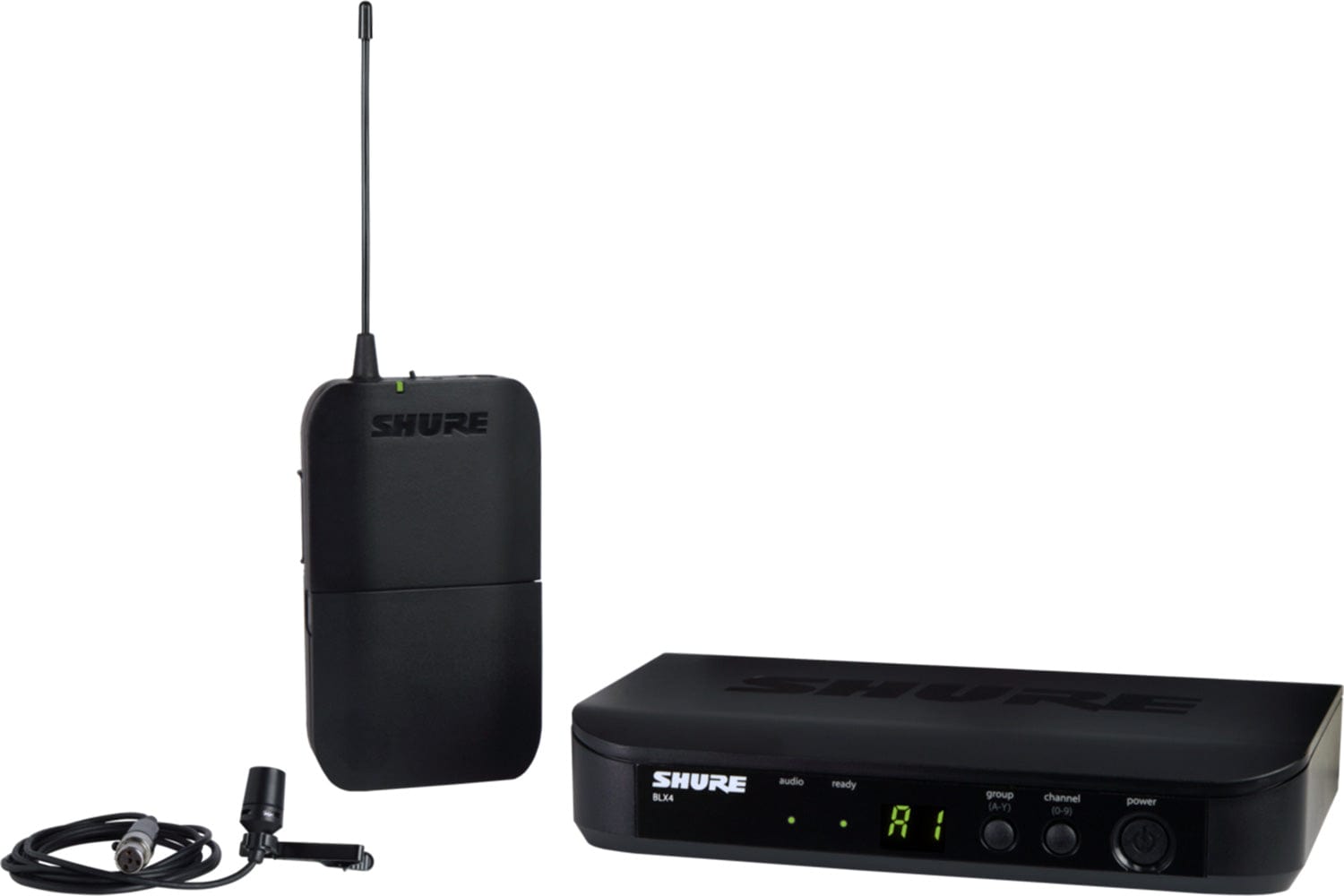

Shure BLX14 CVL Lavalier Wireless System - Own the Stage Effortlessly
Unleash professional-quality sound with Shure BLX Wireless Systems! Effortlessly set up and enjoy an intuitive interface for legendary audio right from the start. Precision-built and versatile, it's your ticket to commanding the stage.
Features:
- • Ideal for Presenters and Lecturers
• CVL Cardioid Lav Mic for crystal-clear sound
• Lightweight Bodypack Transmitter for easy mobility - • Single-Channel Tabletop Receiver for seamless connection
• 123 Auto-Scan Frequencies for interference-free use
• Internal Antenna Diversity for enhanced signal strength - • 14-Hour AA Batteries for long-lasting performance
• Expandable to 12 Mic Channels/300' Range for added flexibility
Specifications:
- System:
- Wireless Technology: Analog UHF
RF Frequency: Band 512 - 542 MHz
RF Bandwidth: 24 MHz
Max Operating Range: 300' / 91.4 m (Line of Sight)
Max Microphones per Band: 12
Dynamic Range: 100 dBA

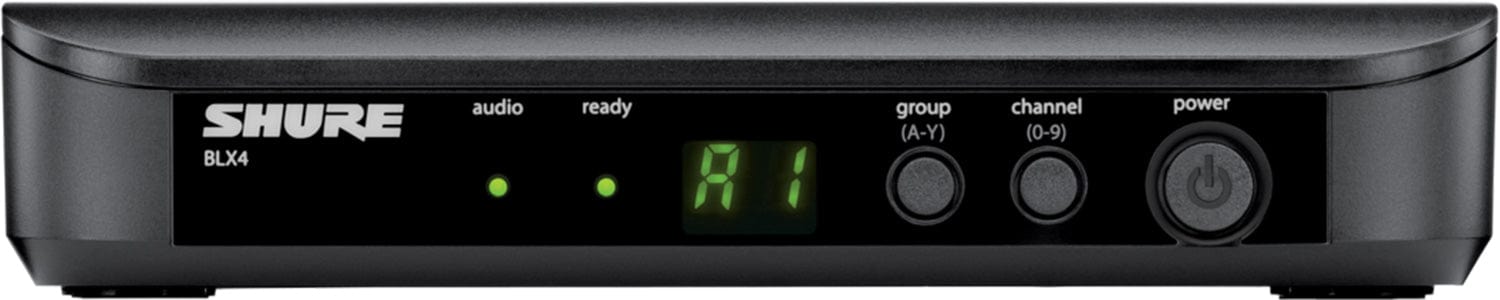

- Receiver:
- Receiver Type: Tabletop
Antenna: 2 x Internal, Fixed
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Output, 1 x 1/4' TS Female Unbalanced Output
Audio Output Level: XLR Output: -27 dBV (Mic Level), 1/4' Output: -13 dBV (Instrument Level)
Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
Impedance: XLR Output: 200 Ohms, 1/4' Output: 50 Ohms
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter :12 to 15 VDC at 160 mA, Center-Positive (Included)
Display & Indicators: 1 x Multi-Segment LED (Channel, Group), 2 x LED (AF Level, Sync)
Housing: ABS
Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
Weight: 8.5 oz / 241 g

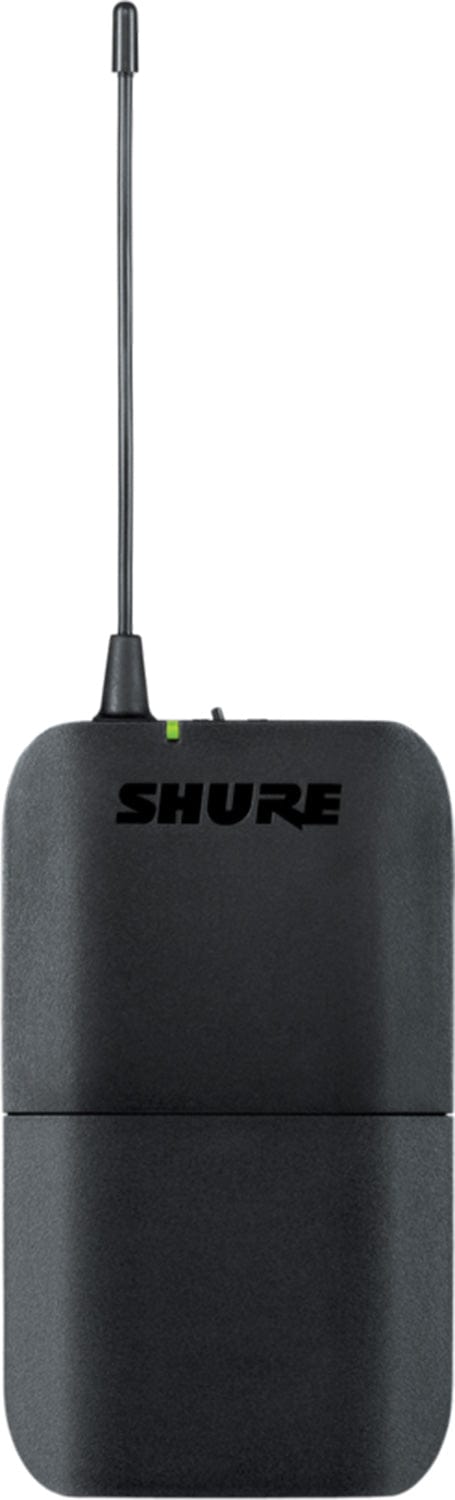

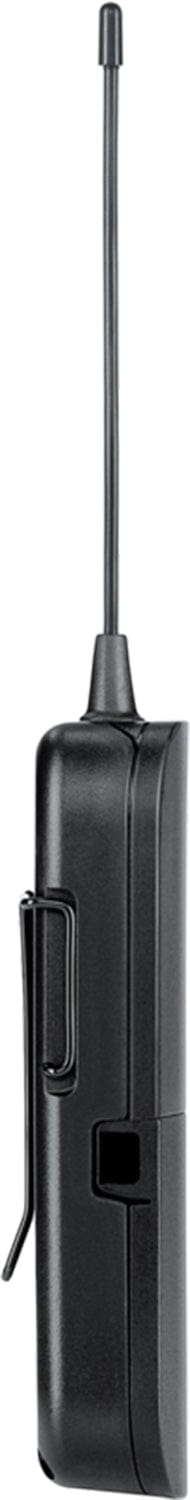

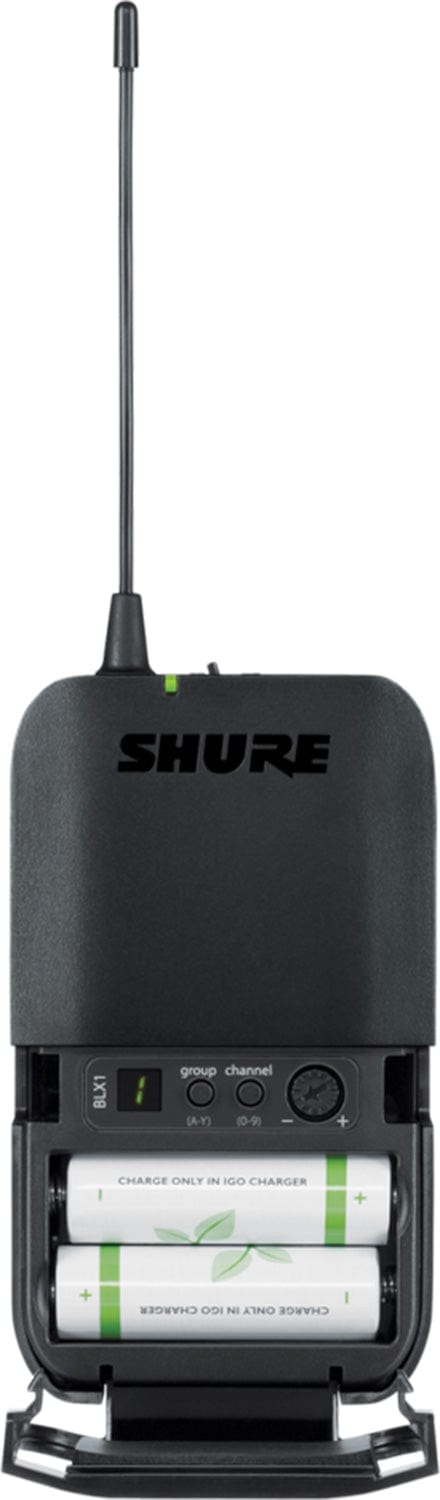

- Transmitter:
- Transmitter Type: Bodypack
RF Output Power: 10 mW
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Muting: Off/On Switch
Auto-Level Control: No
Gain Range: -16 to +10 dB
Sync Method: Manual
Antenna: 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 2 x AA (Included)
Approx. Battery Life: 14 Hours (Alkaline)
Display & Indicators: 1 x Multi-Segment LED (Channel, Group), 1 x LED (Battery Status, Power)
Housing: ABS
Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
Weight: 2.6 oz / 75 g (without Batteries)
- Microphone:
- Microphone Type: Lavalier
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Cardioid
Frequency Range: 50 Hz to 20 kHz
SNR: 72 dB
Equivalent Noise Level: 22 dB
Maximum SPL: 139 dB SPL
Dynamic Range: 117 dB
Output Connectors: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length: 4.27' / 1.3 m
Operating Voltage: 5 V
Weight: 0.88 oz / 25 g
This Shure BLX14 CVL Lavalier Wireless System is perfect for presenters and lecturers. It comes with a CVL Cardioid Lav Mic for great sound. The lightweight bodypack transmitter makes it easy to move around. The single-channel tabletop receiver ensures seamless connection. The system has 123 auto-scan frequencies for interference-free use. It features internal antenna diversity for better signal. The 14-hour AA batteries provide long-lasting power. It can be expanded to 12 mic channels with a 300' range. The receiver has dimensions of 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm and weighs 8.5 oz / 241 g. The transmitter (without batteries) is 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm and weighs 2.6 oz / 75 g. The microphone weighs 0.88 oz / 25 g.
