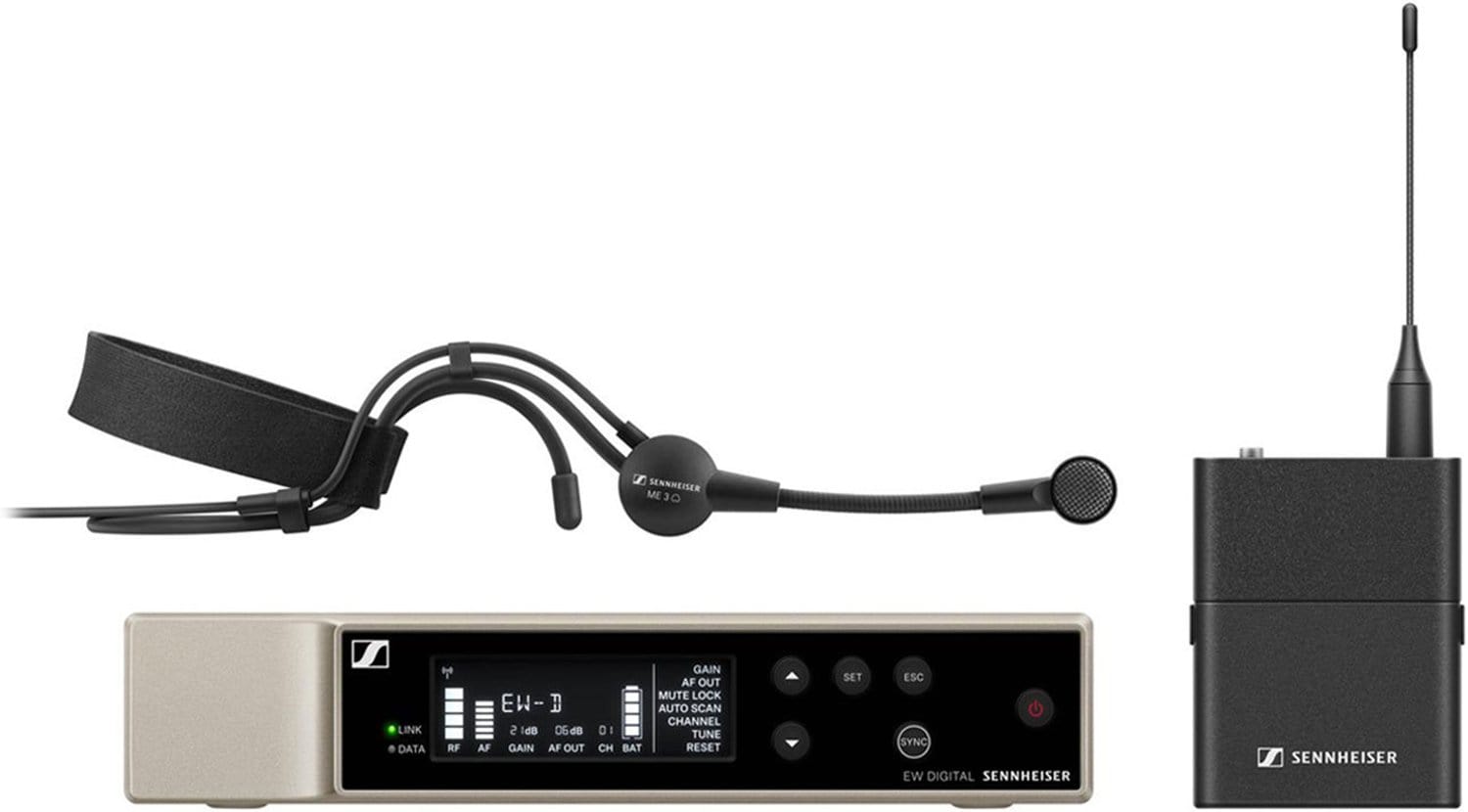

Sennheiser EW-D ME3 Digital Headset System R1
Unleash your potential on stage with this all-in-one digital wireless lavalier set! Ideal for singers and speakers, it features Sennheiser's renowned ME 3 cardioid headset microphone. This versatile and feature-rich digital wireless system makes seamless product pairing and management a breeze via the EW-D Smart Assist App. The robust bodypack transmitter with a metal housing and the unobtrusive clip-on microphone ME 3 (cardioid) offer high speech intelligibility, perfect for daily stage use.
Evolution Wireless Digital stands out by providing more dynamic range than any other wireless system on the market. It secures the most reliable signal automatically in seconds and can scale up to 90 channels thanks to 56 MHz of tuning bandwidth. No wonder it's in a league of its own!
This system features an equidistant tuning grid, previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz. This simplifies frequency coordination for both beginners and pros and contributes to the system's scalability and high channel count.
Take full control with the Sennheiser Smart Assist app using Bluetooth Low Energy. Enjoy a remarkably fast automated setup, mobile access to all system settings, and remote monitoring from your Android or iOS device. Save time, energy, and perform with confidence!
Key Features:
- • Dynamic Digital Transmission: Operating in the UHF spectrum, it enhances range, reliability, and scalability.
- • Smart Assist App: Connects via Bluetooth Low Energy for easy setup and remote operation.
- • Exceptional Audio Quality: 134 dB audio input dynamic range preserves every detail.
Specifications:
- Frequency range: 520 - 576 MHz
- THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Operating relative humidity: 5 - 95 % (non-condensing)
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

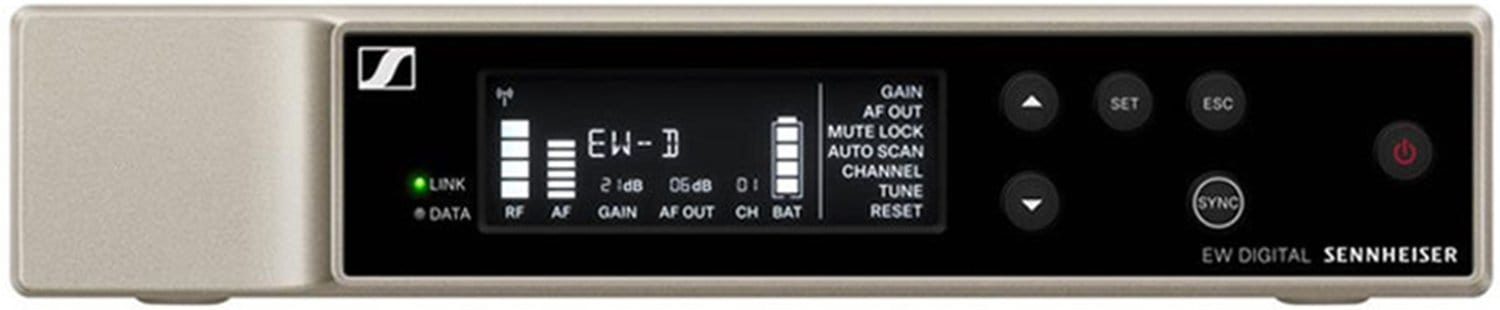

- EW-D EM:
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (without antennas and power supply)
- Current consumption: ≤ 300 mA
- Input voltage range: 11 - 13 V
- Audio output level: 18 dBu max.
- Transmission power: BLE: max. 10 mW EIRP

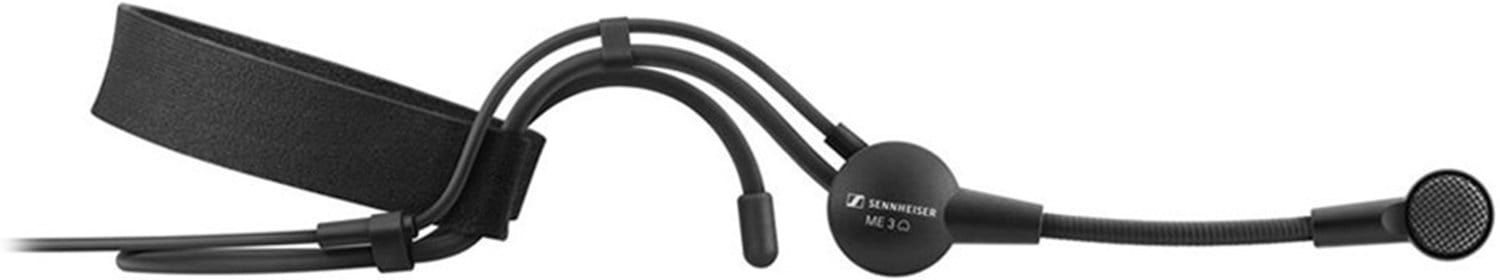

- ME 3:
- Connector: 3.5 mm jack
- Frequency response: 50 to 18,000 Hz
- Max. sound pressure level: 150 dB
- Cable length: approx. 1.60 m
- Pick-up pattern: cardioid
- Sensitivity in free field, no load (1kHz): 1.6 mV/Pa
- Transducer principle: pre-polarized condensor microphone

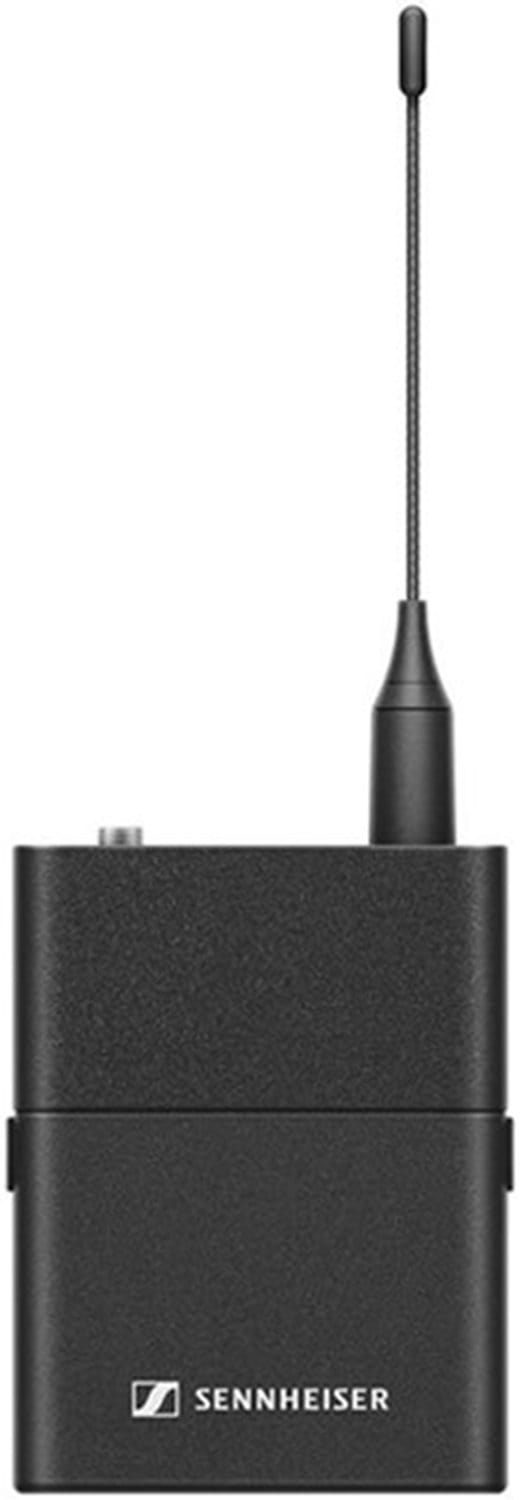

- EW-D SKM-S:
- Dimensions: 63 x 80 x 20 mm (without antenna)
- Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
- Current consumption: < 300 mA
- Input voltage range: 2.0 - 4.35 V
- Transmission power:
- Audio link: 10 mW
- ERP (Range Y1-3: 12 mW ERP)
- BLE: max. 10 mW EIRP
- Weight: approx. 120 g
This Sennheiser EW-D ME3 digital wireless headset system is perfect for singers and speakers on stage. The bodypack transmitter with a metal housing is 212 x 44 x 189 mm in size and weighs about 1000 g (without antennas and power supply). The clip-on microphone ME 3 has a cable length of about 1.60 m. It offers features like easy pairing via the EW-D Smart Assist App, high speech intelligibility, and great audio quality with a 134 dB audio input dynamic range.
