Sennheiser ew 300 G4-ME2-RC Wireless Lavalier AW+
Effortless to use and quick to set up, this mic is a game-changer!
• Ideal for business presentations and educational settings. The G4 300 Series offers an impressive 88 MHz switching bandwidth, ensuring reliable multi-channel operation even in digital environments.
• Comes with a powerful clip-on mic package that's easy to operate and reliable during transmission. The 300 series lavalier mic set enables hands-free operation for long congresses or lectures. A remote mute switch is available for the bodypack transmitter.
What's in the box:- EM 300-500 G4 true naversity receiver
- SK 300 G4 bodypack transmitter
- ME 2 clip-on microphone
- GA 3 rackmount set
- power supply
- 2 AA batteries
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- Super easy to use with a fast setup time
- Integrated network port for control, monitoring, and setup via Sennheiser Control Cockpit and WSM Software
- Versatile for any environment with a wide range of products and existing accessories
- Up to 88 MHz bandwidth and up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 Pro
- RC (remote control) switch for the bodypack transmitter
Specifications:

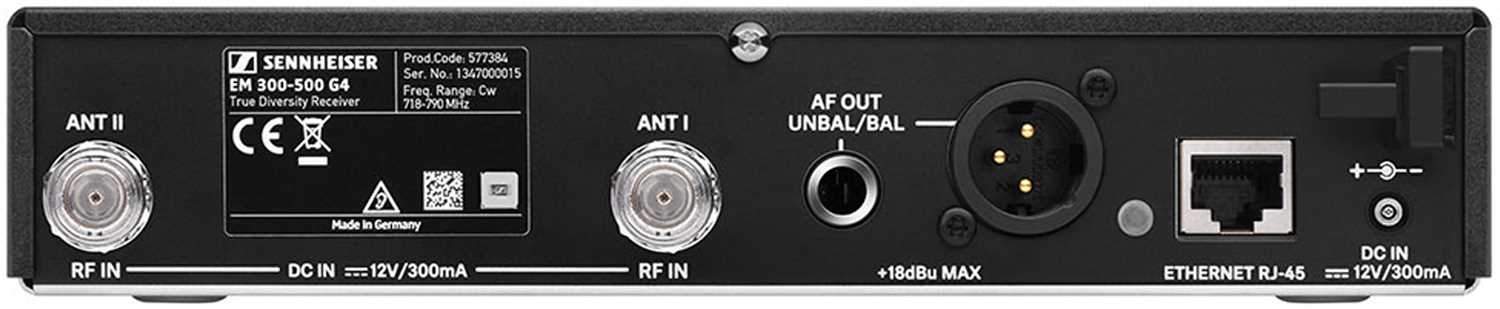

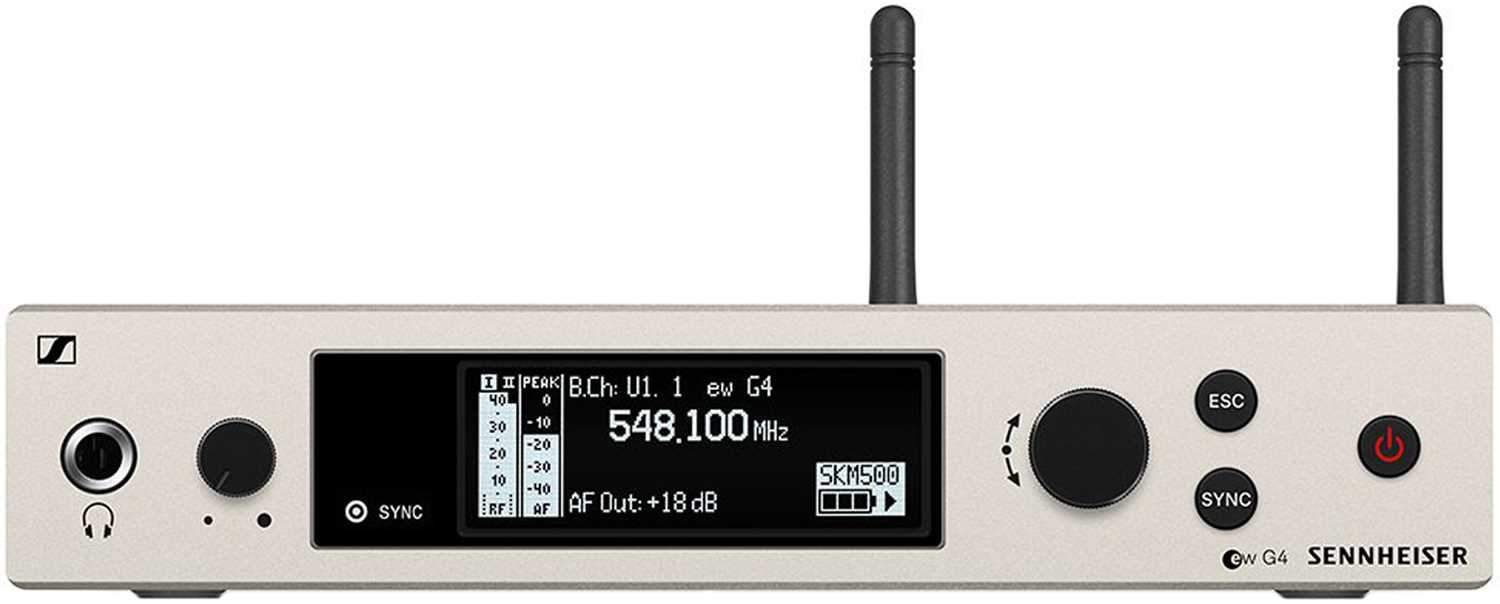

EM 300-500 G4
- Frequency range: 470 - 558 MHz
- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: Approx. 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically 75 dB
- Intermodulation attenuation: Typically 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 2.5 V for 52 dBA eff S/N
- Squelch: 5 to 25 dB V in steps of 2 dB
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range -10 °C to +55 °C
- Receiver Principle True naversity
- Blocking 75 dB
SK 300 G4
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Signal-to-noise ratio: 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 ¦ÌA
- Input impedance: 40 k, unbalanced / 1 M
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
- Temperature Range -10 °C to +55 °C
- Frequency stability ±15 ppm

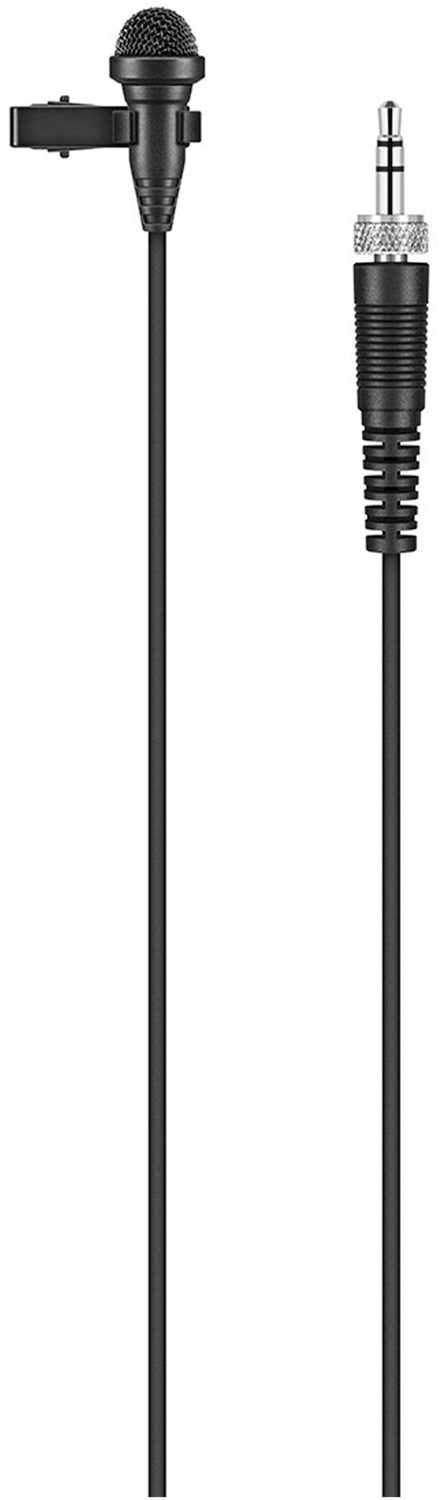

ME 2
- Connector 3.5 mm jack
- Frequency response 50 to 18,000 Hz (ME 2-II)
- Max. sound pressure level 130 dB
- Cable length: approx. 1.60 m
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: omni-directional
- Sensitivity in free field, no load (1kHz): 20 mV/Pa
- Equivalent noise level: 36 dB
The Sennheiser ew 300 G4-ME2-RC is perfect for business presentations and educational settings. It's easy to use and quick to set up. The EM 300-500 G4 receiver has dimensions of approx. 202 x 212 x 43 mm and weighs around 980 g. The SK 300 G4 bodypack transmitter is about 82 x 64 x 24 mm and weighs approximately 160 g (including batteries). The ME 2 clip-on microphone has a cable length of about 1.60 m.
