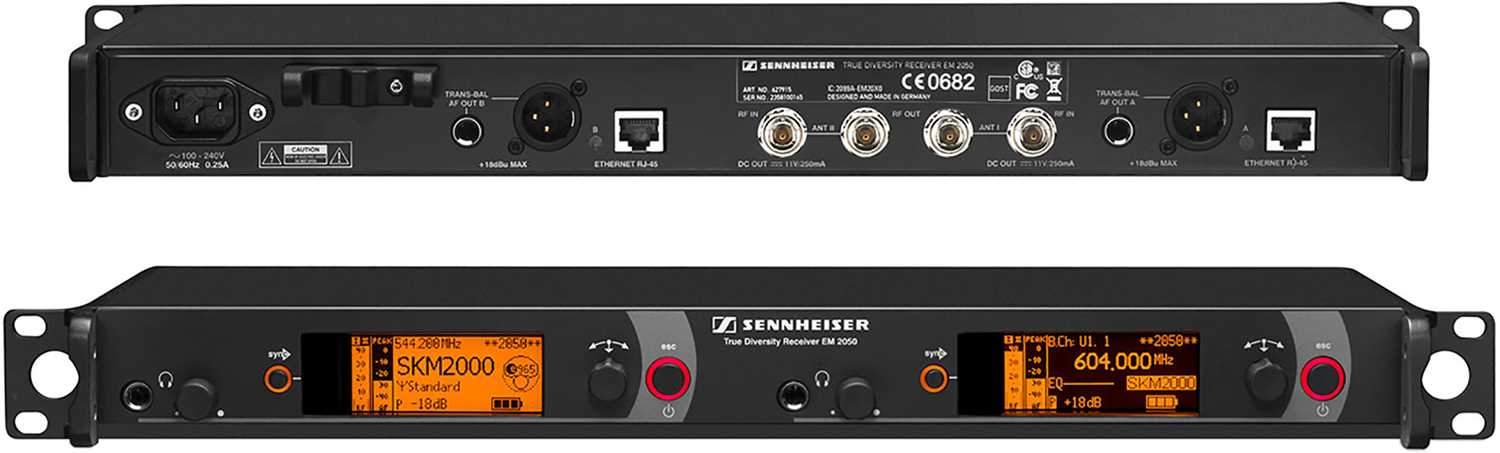

Sennheiser EM-2050-Aw Dual-channel Rack Receiver - Your Ultimate Audio Solution
Get the true naversity twin receiver version of the EM 2000! With an integrated active splitter, loop through the RF signal and set up systems with up to 16 channels without external splitters. It's a breeze!
Equipped with the same features as EM 2000 but designed as a twin receiver, the EM 2050 allows for RF signal looping through an integrated active splitter. Set up up to 16 channels without external splitters. Complete with an integrated equalizer and guitar tuning device.
What's in the box:
- 1 EM 2050 stationary twin receiver
- 3 mains cables (EU, UK, and US)
- 2 rod antennas
- 4 self-adhesive device feet
- 1 instruction manual
- 1 supplementary frequency sheet
- 1 supplementary RF power sheet
Featutres:
- • Rugged 19' all-metal housing with integrated power supply unit for durability
- • Up to 3000 frequencies in up to 75 MHz switching bandwidth for flexibility
- • True naversity technology for best reception quality - don't miss out!
- • Integrated antenna splitter for cascading up to 8 devices without additional splitters
- • Pilot tone squelch for interference-free operation
- • Scan feature within the channel band system
- • Continuous scanning with Sennheiser's Wireless Systems Manager
- • Frequency setting in 25 kHz steps
- • Squelch setting always visible on the display
- • Antenna cables for active antenna supply
- • Transformer-balanced audio outputs
- • HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
- • Ethernet for connecting to a PC
- • Monitoring and control using Sennheiser WSM PC software
- • User-friendly menu interface with two-color backlit graphic display (red as a warning)
- • Transmitters can be configured from the receiver menu
- • Transmitters can be synchronized over the infrared interface
- • 4 selectable equalizer presets
- • Soundcheck mode for monitoring transmission conditions
- • Adjustable headphone connection
Specifications:
- Frequency Band: Aw: 516 - 558MHz
- Dimensions: 217 x 483 x 43 mm
- Compander: HDX
- Presets: max. 64
- Frequency response: 25 - 18000 Hz
- Weight: 2900 g
- Operating temperature: -10 °C ¨¤ +55 °C
- Signal-to-noise ratio: > 120 dB(A)
- RF frequency range: 516...865 MHz
- Peak deviation: +/- 48 kHz
- Power supply: 100 - 240 V AC, 50/60 Hz
- Carrier frequencies: max. 3000
- Squelch threshold: Off, 5 ... 25 dB V Can be set in 2 dB steps
- Intermodulation spacing: 75 dB
- Antenna connector: 2 BNC (50 )
- Cascadable: 2 BNC (50 )
- Gain: 0 dB ±0,5 dB Based on antenna inputs
- Current consumption: max. 0,25 A
- Booster: 12 V DC, 2 x 200 mA Short-circuit proof
The Sennheiser EM-2050-Aw Dual-channel Rack Receiver is a great choice for audio professionals and enthusiasts. It's perfect for setting up high-quality audio systems in venues like concerts, conferences, or recording studios. With its rugged 19' all-metal housing, it can withstand the rigors of daily use. The receiver has dimensions of 217 x 483 x 43 mm and weighs 2900 g. It operates in the temperature range of -10 °C to +55 °C. It comes with features like up to 3000 frequencies in 75 MHz switching bandwidth, allowing for flexible frequency selection. The integrated antenna splitter enables cascading up to 8 devices without additional splitters. Whether you're a seasoned pro or just starting out, this receiver can help you create amazing audio setups.
