RCF MZ 8060: The Ultimate Digital Audio Matrix Mixer for Seamless Sound
The RCF MZ 8060 is a game-changer in the world of audio mixing. Built on a robust DSP platform with advanced electronics, it offers unparalleled versatility and performance.
• 8 Universal Inputs: With 8 MIC-LINE inputs, you can connect a variety of audio sources.
• 6 Outputs: Enjoy 6 outputs, including 4 Euroblocks balanced and 2 RCA plugs, for seamless audio distribution.
• Advanced Processing: Process audio through parametric equalizers, compressors, gates, limiters, delays, duckers, priorities, and an auto-mixer for professional-quality sound.
The Automatic Level Control feature allows for automatic volume adjustments based on environmental noise levels. Simply connect a probe to input 8 and let the mixer do the work.
The MZ 8060 supports up to 10 logic inputs (GPI) and 6 assignable logic outputs (GPO), two of which are relay-operated. It also includes a serial port for controlling the unit via third-party systems like Crestron and AMX.

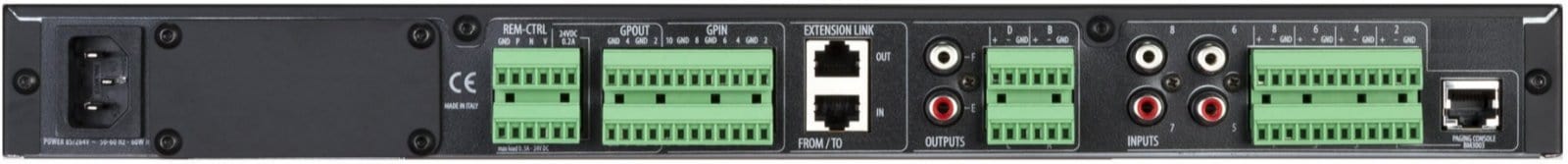

Link two MZ 8060 units in a primary-secondary configuration to create a 16-input, 12-output matrix. Or integrate an optional RCF RDNet module through a rear-panel slot for access via an RDNet control network.

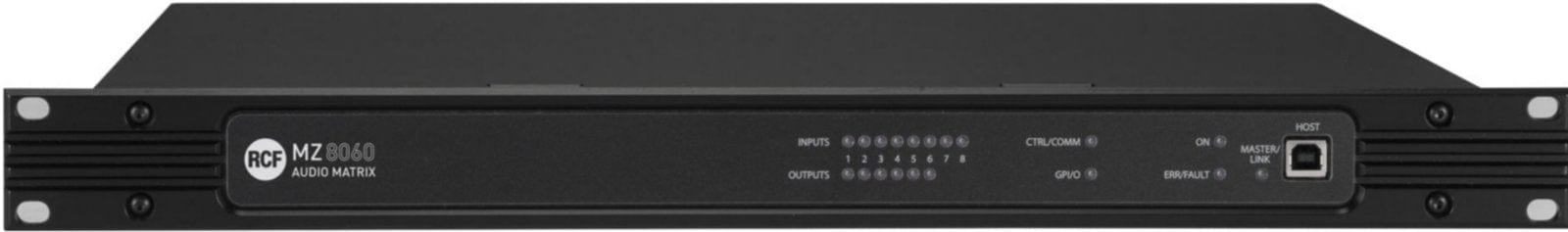

Up to 12 BM 3003 paging consoles can be daisy-chained to the dedicated RJ-45 input, which can also serve as input 1. The front panel features multiple LED indicators for easy monitoring, and dedicated PC Control Software is available within the RDNet environment for setup and management.
Features:
- 40-bit floating point processing DSP and 48kHz 24-bit HI-Q Analogue/Digital Conversion, dynamic range > 112dB.
- 8 universal inputs (48V), 6 outputs - 4 Euroblocks bal., 2 RCA plugs
- 10 programmable logic inputs (GPI), 6 programmable logic outputs (GPO), 2 of which supported by relay.
- Configurable parametric EQs, gates, compressors, limiters, delays, priority levels, automatic gain control, levels, gains on in-out and cross points, auto-mixer operations, filters
- Each unit can work as dual-room combiner with independent auto-mixer facility for each room
- Configurable ALC (Automatic Level Control) facility by using Input 8 to connect a noise detection microphone. The control is then assignable to any output or group of outputs
- USB connectivity for device configuration
- RDNet Networked Control
Specifications:
- Audio performance
- Frequency Response (-3dB): 20Hz - 20kHz
- Distortion (THD+N) @ 1kHz nominal power:
- Dynamic range: >114dB
- Digital audio performance
- Sampling rate: 48
- A/D - D/A converters: 24
- Input section
- Total number of inputs: 9
- Balanced: 9
- Mono: 9
- Mic+Line inputs: 8
- Mic+Line connectors: Euroblock, RCA
- Mic+Line Phantom: 48VDC
- Paging inputs: 1
- Paging connectors: RJ45
- Paging command: Contact
- Output section
- Signal output number: 6
- Signal output connectors: Euroblock, RCA
- General Purpose Outputs (GPO): 10
- Programmable GPO: Yes
- Processing
- DSP: Yes
- EQ Filters: Yes
- Compressors: Yes
- Automatic Gain Control (ACG): Yes
- Controls
- Configuration: PC Software
- Number of programs/presets: 16
- Priority: Yes
- Protocols for system integration: ASCII
- Protections
- Cooling: Convection
- Fuses: Yes
- Power requirement
- Operating voltage: 90-240V~ 50/60Hz V ~ Hz
- Power consumption: 60W
- Standard compliance CE marking: Yes
- Physical specifications
- Cabinet/Case Material: Metal
- Rack mounting: 19', 1U
- Size
- Height: 44mm / 1.73 inches
- Width: 482mm / 18.98 inches
- Depth: 320mm / 12.6 inches
- Weight: 4.5kg / 9.92lbs
- Shipping information
- Package Height: 170mm / 6.69 inches
- Package Width: 575mm / 22.64 inches
- Package Depth: 480mm / 18.9 inches
- Package Weight: 5kg / 11.02lbs
The RCF MZ 8060 Digital Audio Matrix Mixer is perfect for professional audio setups. Whether you're in a small venue or a large event space, this mixer can handle it all. It's designed for sound engineers, event planners, and anyone who needs high-quality audio mixing. With its 19' 1U rack mounting, it's easy to install and takes up minimal space. Measuring 482mm wide, 320mm deep, and 44mm high, it weighs 4.5kg. The package dimensions are 575mm wide, 480mm deep, and 170mm high, weighing 5kg. It operates on 90-240V~ 50/60Hz and consumes 60W of power. Get the RCF MZ 8060 for seamless audio mixing and control.
