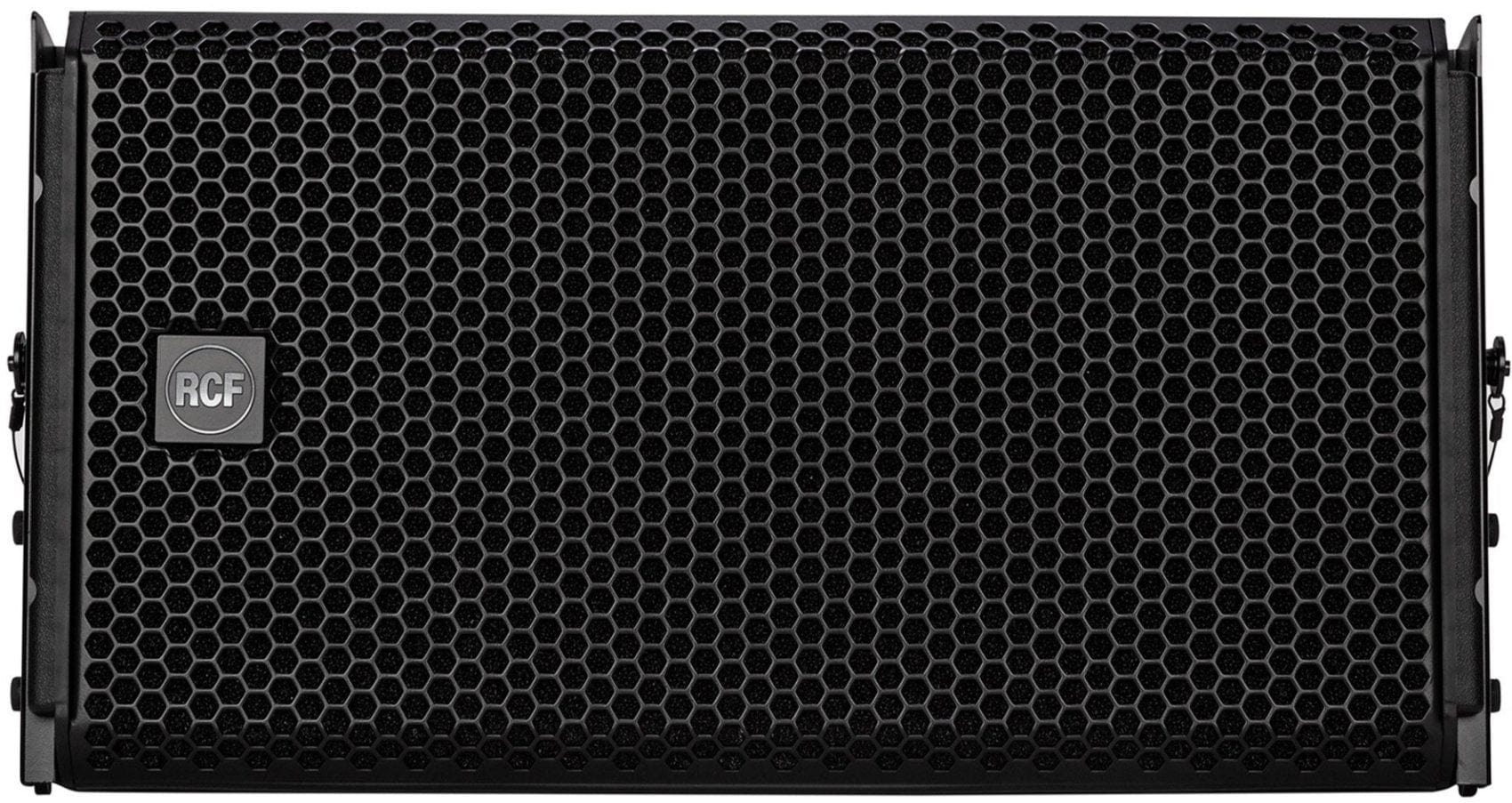

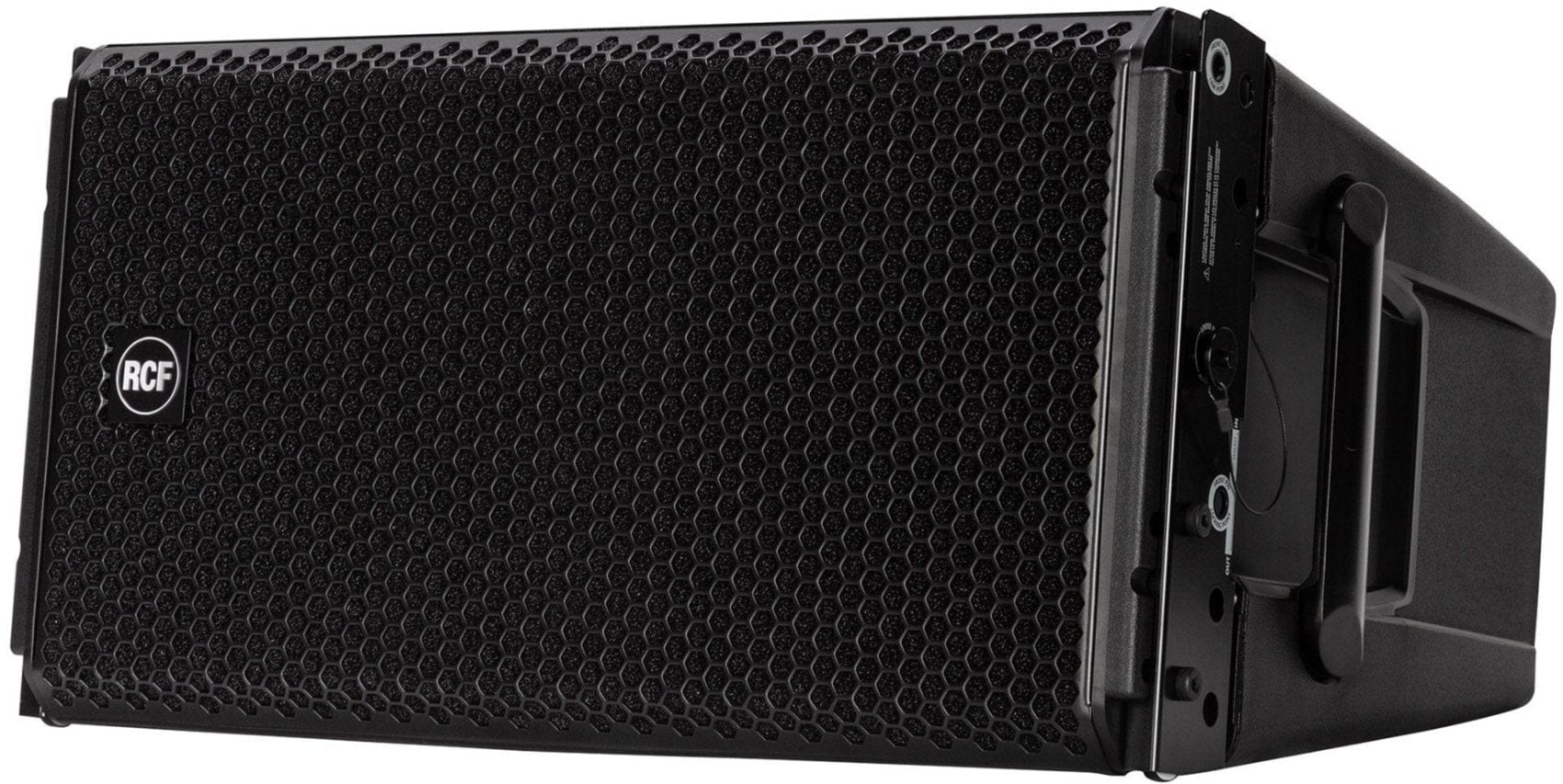

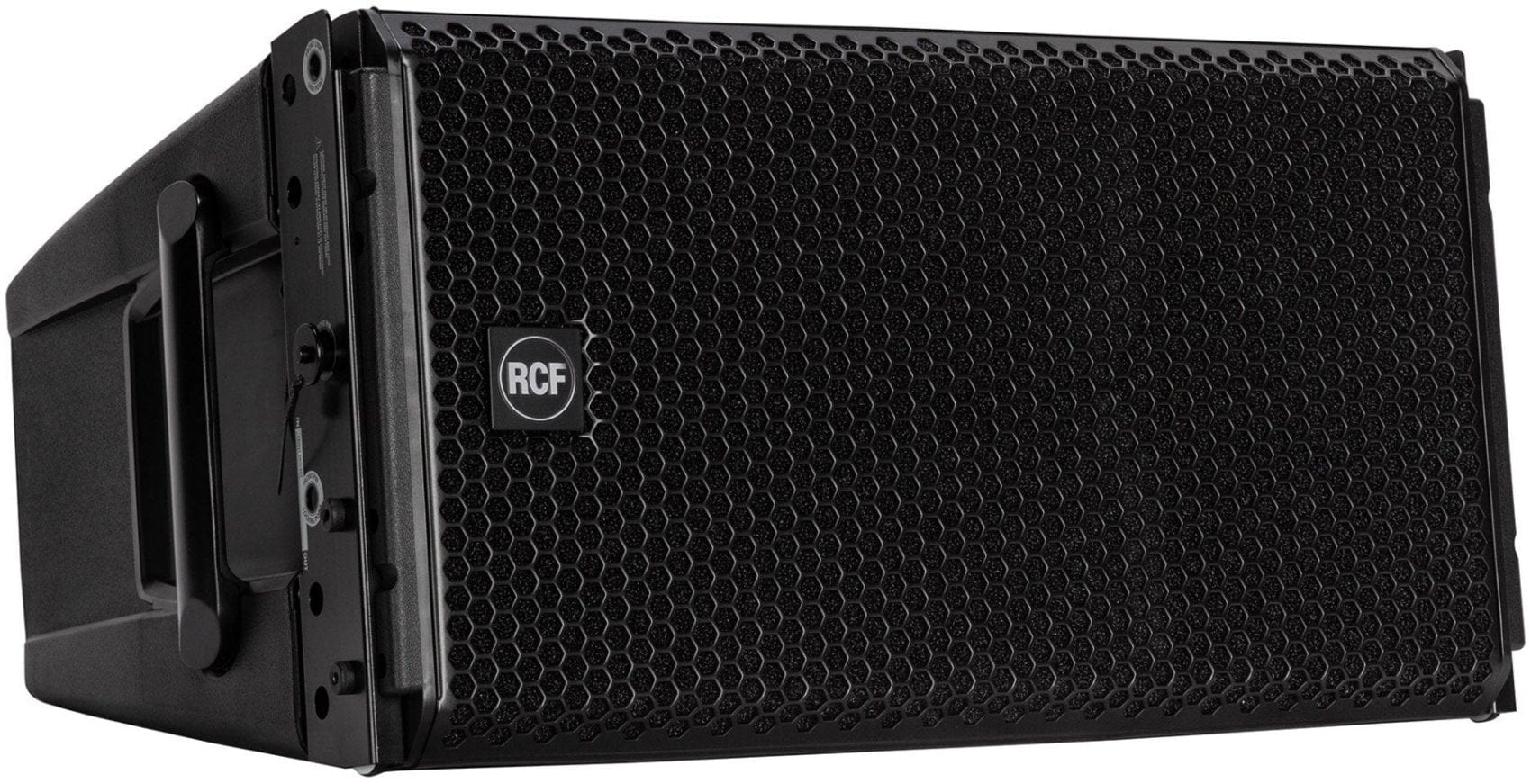

RCF HDL 28-A Active Two-Way Line Array Module - Your Ultimate Sound Solution
Discover the RCF HDL 28-A, a compact bi-amped 2-way active touring system that's perfect for a wide range of indoor and outdoor applications, especially when crystal-clear vocal intelligibility is crucial. • Two 8-inch woofers and a powerful 3-inch titanium compression driver deliver outstanding sound quality. • The time coherent waveguide is the result of in-depth research and design, ensuring top-notch performance. • With a built-in 2200 watt class-D amplifier, enjoy excellent playback clarity and up to 135 decibels SPL max. The RCF HDL28-A features state of the art RCF transducers with lightweight neodymium magnets, making it remarkably lightweight for easy handling and flying. The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.
Features:
- 2200W Two Way Amplifier
- 135 dB Max SPL
- 48 kHz, 32 bit DSP processing
- RDNet Networked Management

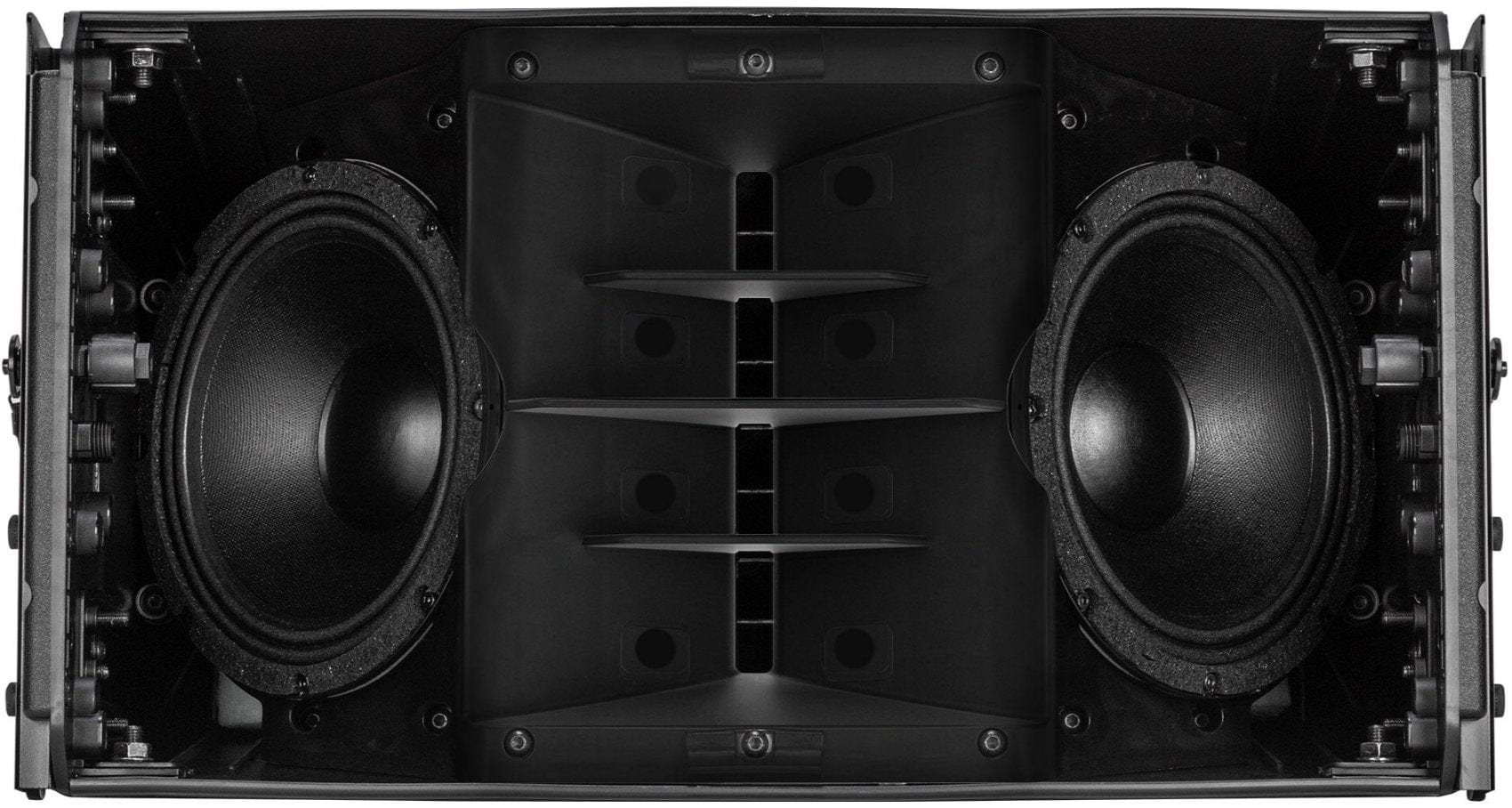

- 2 x 8” Neodymium Woofers, 2.5” voice coil
- 1.4” Titanium Compression Driver, 3.0” voice coil
- Exclusive FiRPHASE technology on-board
- 750 Hz Crossover Point
Specifications:
- Acoustic:
- Frequency Response: 50 Hz ¡ 20000 Hz
- Max SPL @ 1m: 135 dB
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 15°
- Transducers:
- Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
- Woofer: 2 x 8'' neo, 2.5'' v.c

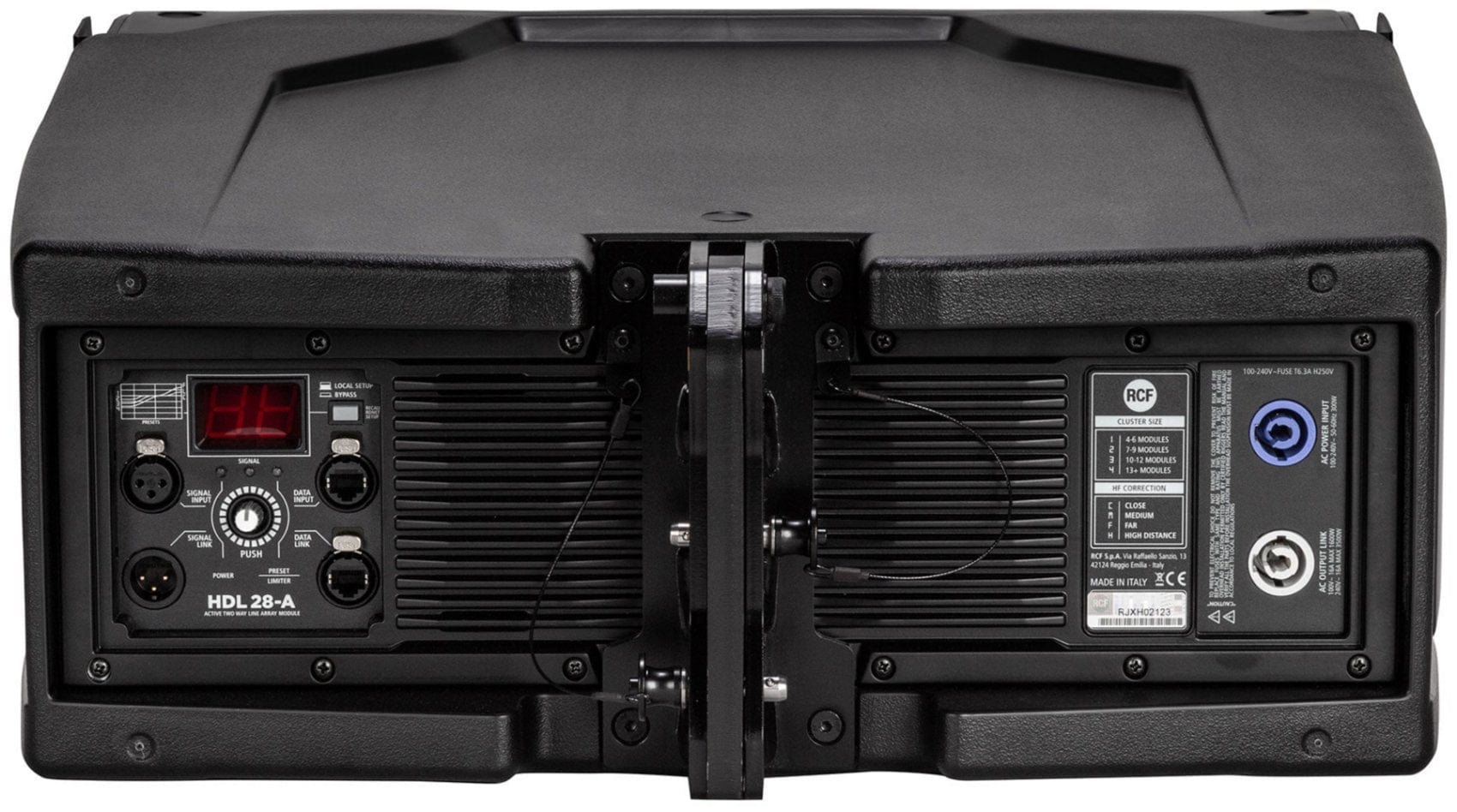

- Input/Output Section:
- Input Signal: bal/unbal
- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Input Sensitivity: +4 dBu
- Physical:
- Cabinet/Case Material: PP Composite

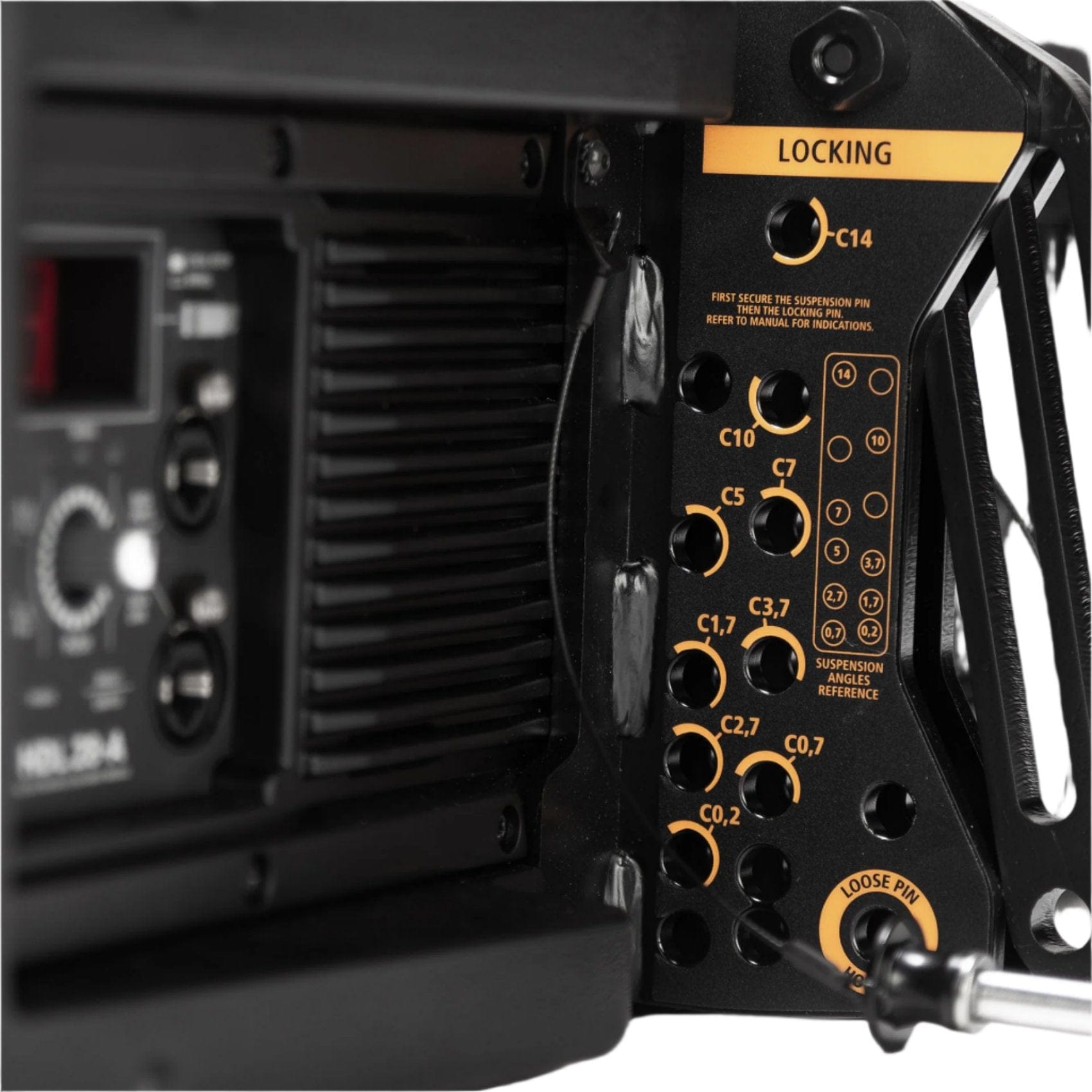

- Hardware: Array fittings

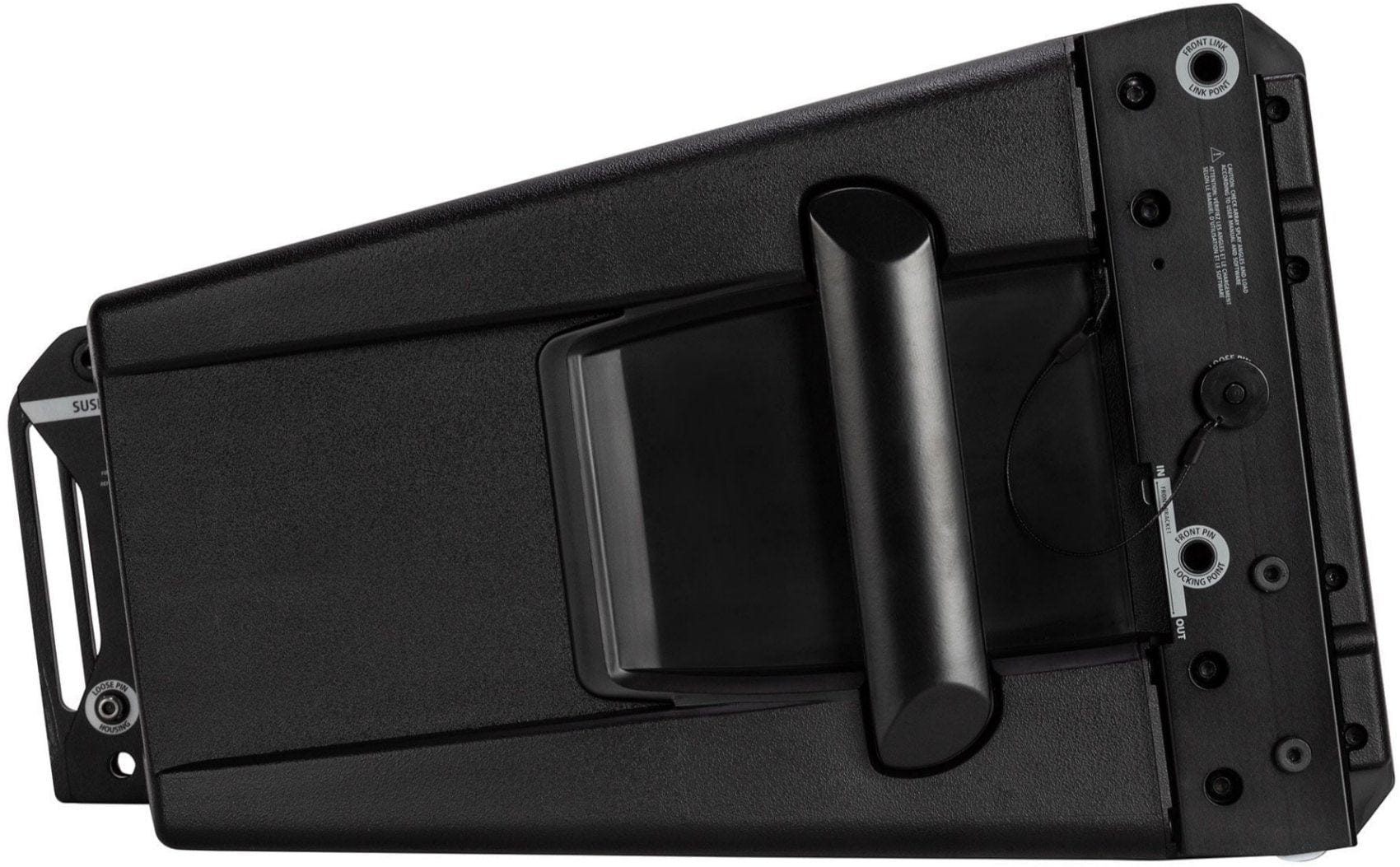

- Handles: 2 Side
- Grille: Steel
- Color: Black
- Size:
- Height: 294 mm / 11.57 inches
- Width: 569 mm / 22.4 inches
- Depth: 491 mm / 19.33 inches
- Weight: 20.6 kg / 45.42 lbs
The RCF HDL 28-A is a great choice for event organizers, venues, and musicians looking for a high-quality sound system. Its compact size and lightweight design make it easy to transport and set up, while its powerful features ensure a great sound experience. Measuring 294 mm in height, 569 mm in width, and 491 mm in depth, weighing 20.6 kg, this module is suitable for a variety of indoor and outdoor applications where you need excellent sound quality, especially for vocals. It's designed to be user-friendly and deliver top-notch performance in any setting.
