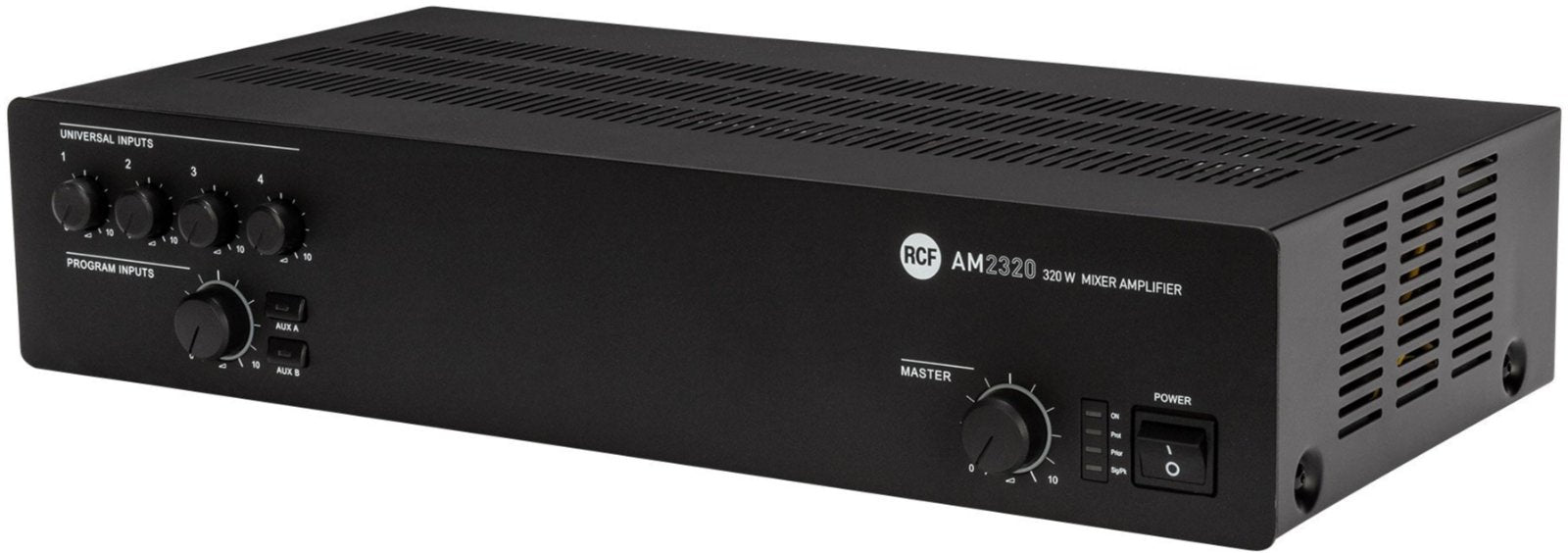

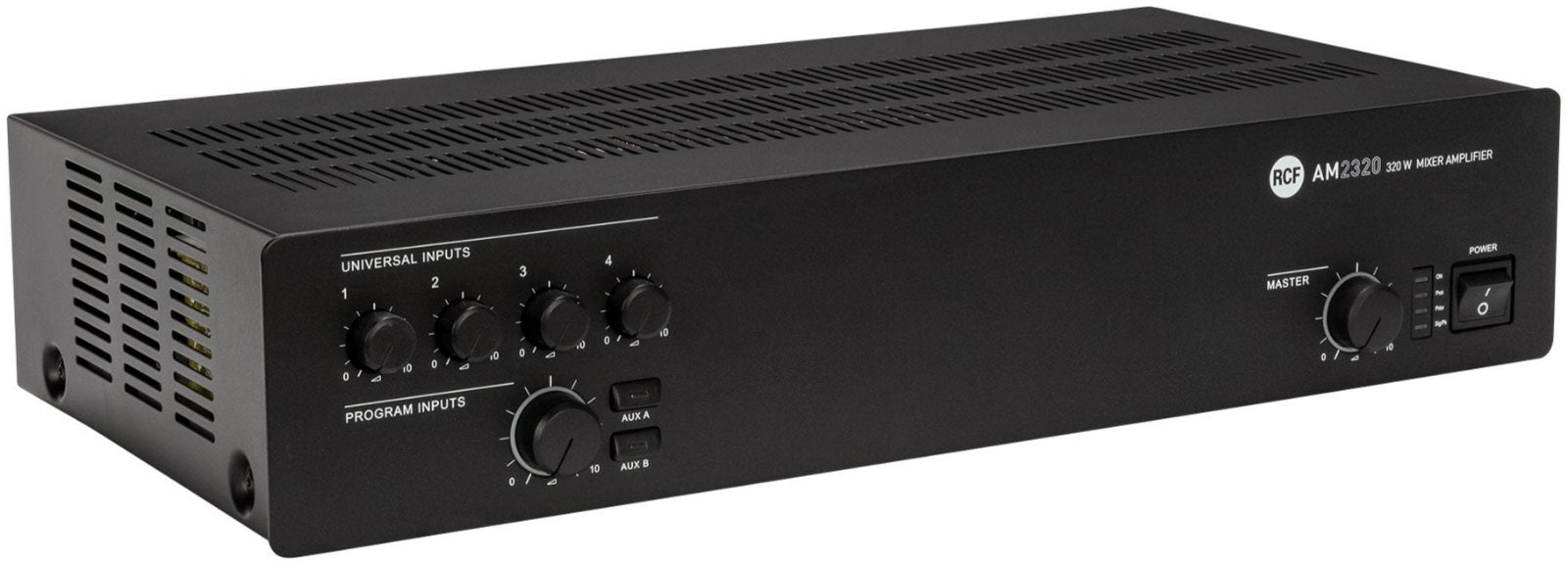

RCF AM 2320: The Ultimate 320 Watt RMS Digital Mixer/Amplifier
Unleash the power of sound with the RCF AM 2320! This robust 320W mixer - amplifier is a game - changer for versatile audio setups. • It has 4 audio inputs on removable connectors, perfect for connecting various devices. • With two aux inputs for music sources like CD players, MP3 players, and tuners, and an XLR socket on the first input, you're ready to rock. • Supports both low impedance loudspeakers and a 100 - 70V constant voltage line, giving you high - performance flexibility.
Features:
- 320 W nominal output power for low impedance loudspeakers or 100 - 70V constant voltage line - Get powerful sound delivery.
- Full digital technology Mixer Amplifier with 320 W RMS output - Enjoy high - quality audio processing.
- Compatible with 100 V - 70 V and 4 Ohm outputs - Versatile connectivity options.

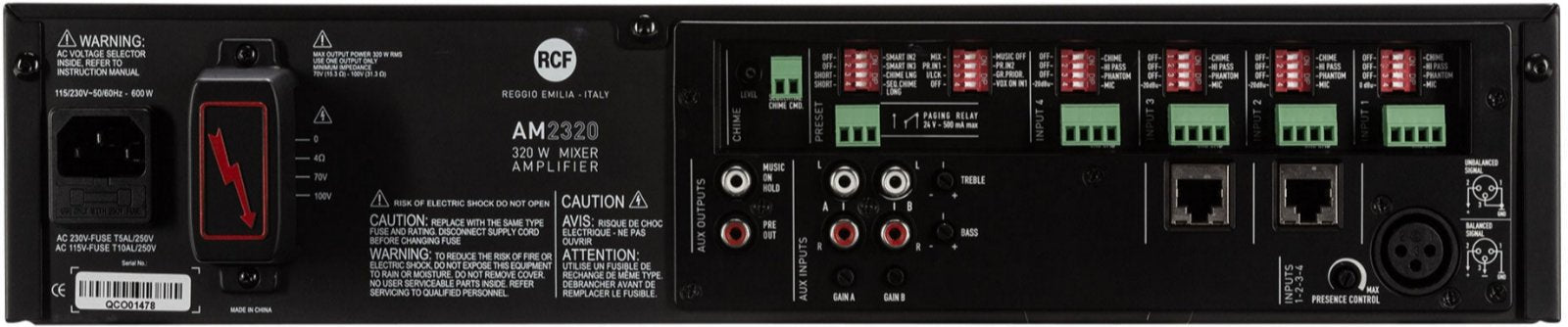

- 4 universal inputs with phantom power on screw terminal connections - Easy and convenient input setup.
- Presence control and per - channel High - Pass filters - Fine - tune your sound.
- XLR connector on input 1 - Professional audio input.
- RJ45 connectors on inputs 2 and 3 for connection to BM 3001 microphone - Seamless microphone integration.
- Configurable Priority settings with VOX facility on input 1 - Customize your audio priorities.

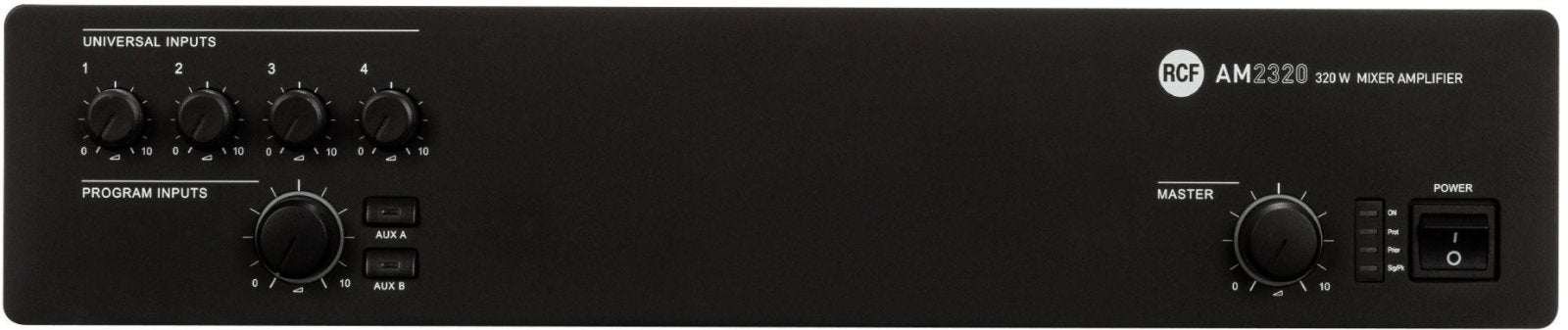

- Selectable aux inputs with front panel controls for music source selection - Effortless music source switching.
- Aux inputs include volume and tone controls - Tailor your music listening experience.
- Music On Hold and PRE outputs - Additional functionality for your audio needs.
- Microprocessor controlled - Precise and reliable operation.
- Built - in digital chime and siren generator - Useful for various applications.
- 24 VDC / 0.5 A priority relay output - Enhanced control capabilities.
Specifications:
- Amplifier:
- Form Factor/Type: Tabletop - Compact and easy to place.
- Number of Channels: 4 - Multiple audio sources in one unit.
- Amplifier Power Rating: 320 W RMS - Powerful amplification.
- Load Impedance / Voltage: 4 Ohms, 100 / 70 V - Wide range of speaker compatibility.
- Performance:
- Protections: Overload, Thermal, Short Circuit, AC Fuse - Keep your device safe.
- Frequency Response: 50 Hz to 20 kHz - Excellent audio frequency range.
- Input Sensitivity:
- Mic: - 56 dBu, - 28 dBu (with Phantom) - Suitable for different microphone types.
- Line: - 7 dBu to + 19 dBu - Flexible line input sensitivity.
- Aux: - 4 dBu to + 15 dBu - Ideal for auxillary devices.
- I/O Impedance:
- Mic Input: 10 Kilohms, 5 Kilohms (Phantom On) - Compatible with various microphones.
- Line Input: 10 Kilohms - Standard line input impedance.
- Aux Input: 10 Kilohms - Consistent aux input impedance.
- Output: 600 Ohms - Matches common output requirements.
- Output Level: - 1 dBu - Optimal output level for audio systems.
- SNR:
- Mic Input: > 60 dB - Clear microphone input signal.
- Aux Input: > 80 dB - High - quality aux input signal.
- Distortion: < 3% - Minimized audio distortion.
- Crosstalk:
- Mic: > 60 dB - Reduced crosstalk between channels.
- Aux: > 80 dB - Clear aux channel separation.
- Signal Processing:
- EQ:
- Bass: ±8 dB at 80 Hz - Adjust the bass for a rich sound.
- Treble: ±8 dB at 13 kHz - Fine - tune the treble for clarity.
- Presence Boost: + 10 dB at 2.1 kHz - Enhance the presence of your audio.
- Filters:
- High - Pass: 150 Hz - Eliminate unwanted low - frequency noise.
- Connectivity:
- Phantom Power: 32 VDC / 18 mA - Power your microphones easily.
- Power:
- AC Input Power:
- 110 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V) - Compatible with different power supplies.
- 220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
- Power Consumption: 440 W - Understand your power usage.
- Physical:
- Dimensions: 17.4 x 3.5 x 9.1' / 442.0 x 88.0 x 230.0 mm - Compact size for easy installation.
- Weight: 12 lb / 6 kg - Lightweight and portable.
The RCF AM 2320 is a great choice for anyone looking to enhance their audio setup. Whether you're setting up a small venue, a classroom, or a home audio system, this mixer - amplifier has you covered. It's designed for professionals and enthusiasts alike. With a tabletop form factor, it's easy to place and integrate into your space. Measuring 17.4 x 3.5 x 9.1 inches (442.0 x 88.0 x 230.0 mm) and weighing 12 pounds (6 kg), it's compact and lightweight. It has 4 channels, a 320W RMS power rating, and is compatible with 4 Ohm and 100 - 70V speakers. The 4 universal inputs with phantom power make it simple to connect microphones and other audio sources. You can enjoy high - quality sound with its digital technology, adjustable EQ, and low distortion levels.
