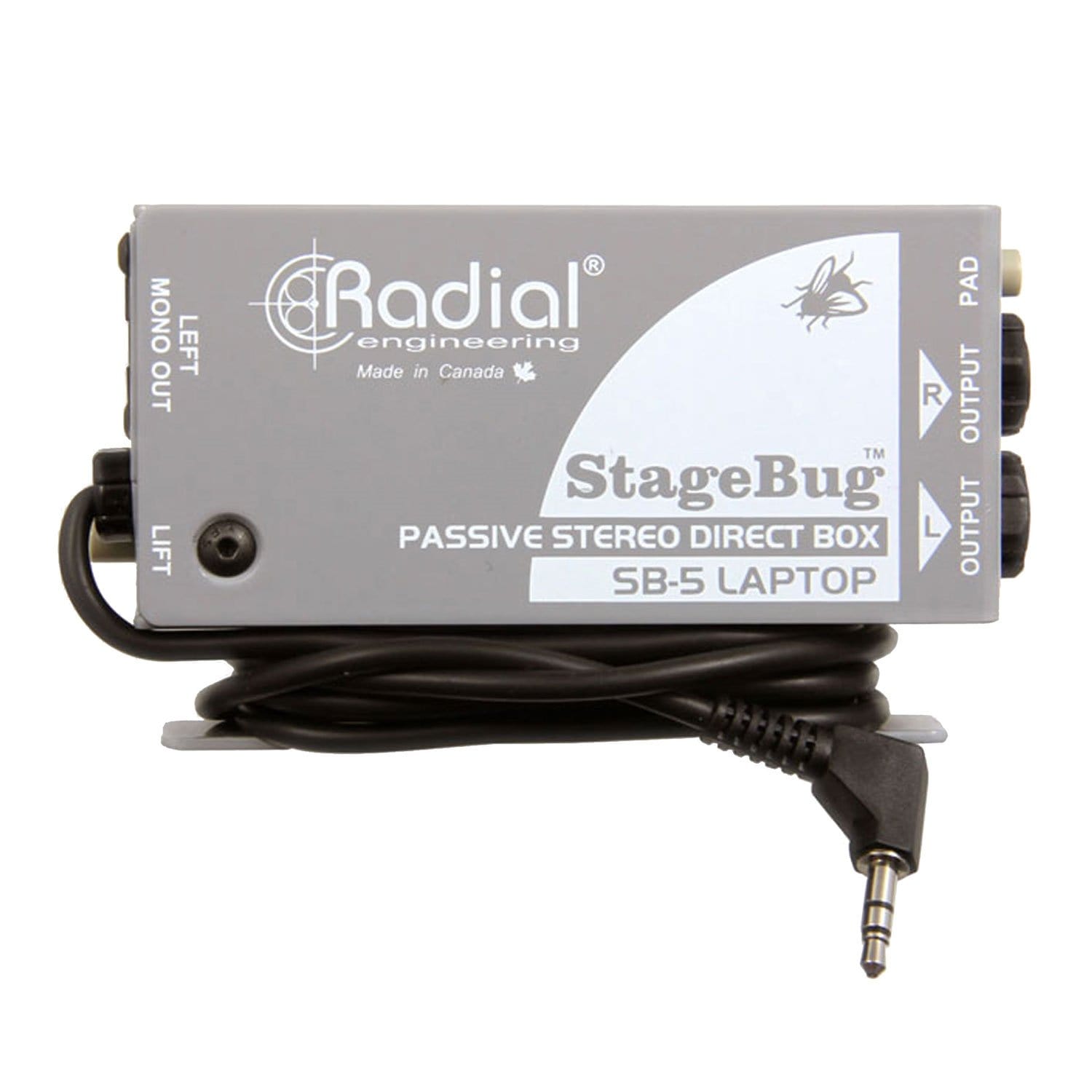

Radial SB-5 Laptop-Ready Stereo DI Box - Your Portable Audio Solution
The Radial Stage Bug SB-5 is a compact stereo direct box that's perfect for amplifying signals from laptops, tablets, and other consumer audio products through a PA system. It's a must-have for AV technicians, media managers, and traveling musicians with a computer.
• Compact Design: Small and lightweight, making it easy to carry and use on the go.
• High-Quality Sound: Delivers clear, balanced audio with low distortion.
• Versatile Outputs: Choose between stereo TRS jacks or an XLR out for mono operation.

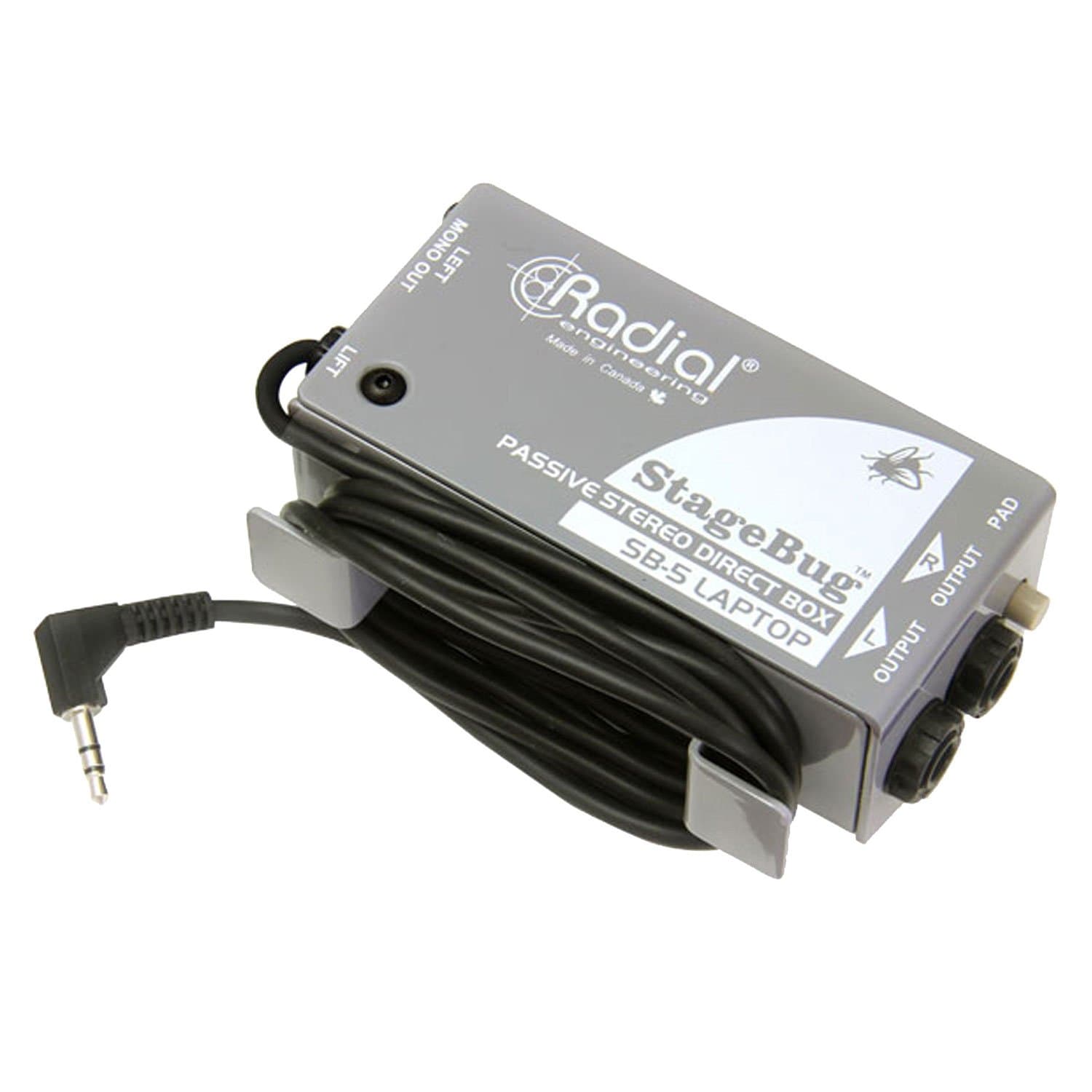

The SB-5 features a passive design with an integrated input cable that connects to the headphone out via a flexible 1.5m cable terminated with a standard 3.5mm stereo connector. The cable is secured with a clamping strain relief and wrapped using the sidewinder cleat for easy storage. Inside, the unbalanced stereo signal is sent to a pair of custom wound transformers that balance the signals for long cable runs (up to 100 meters) without noise. The transformers also isolate the computer from the PA system to eliminate hum and buzz caused by ground loops, and a ground lift switch further reduces ground contamination. An -15dB input pad can be engaged to reduce sensitivity and connect high-output sources without distortion.
Features:
- Transformer: Custom design
- Input pad: -10dB
- Auto Merge: Sums left & right sources to mono at XLR
- Ground lift: Disconnects pin-1 at 1/4' TRS outputs
- XLR configuration: AES standard (pin-2 hot)
- Input connector: 3.5mm (1/8') integrated 1.5m (5') cable

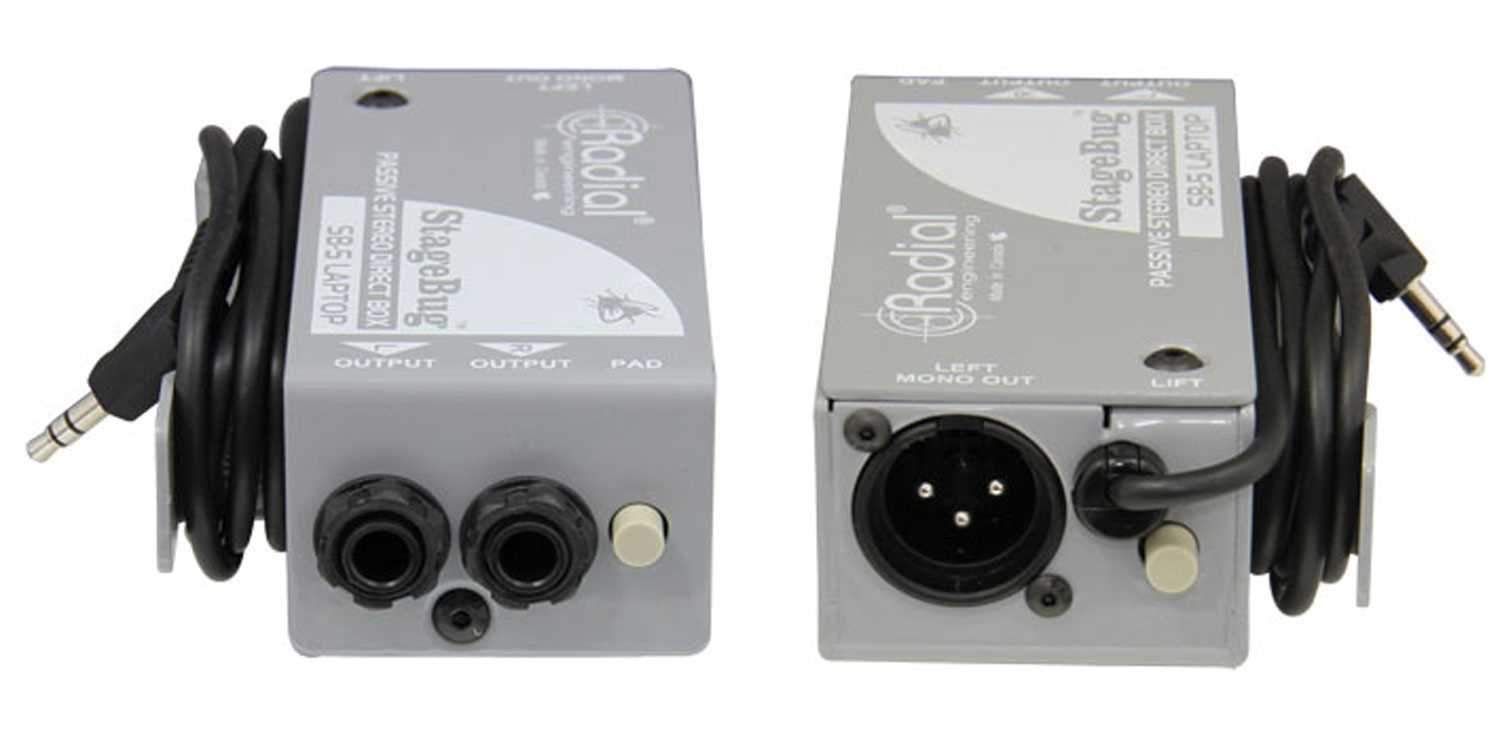

- Output connectors: 1/4' TRS stereo / XLR-M mono merge
- Construction: 14 gauge steel chassis & outer shell
- Finish: Durable powder coat
- Size: (L x W x D) 4.5' x 1,85' x 1.35' (114mm x 47mm x 34mm)
- Weight: 0.55 lbs (250 grams)
- Shipping size: (L x W x D): 8' x 5' x 3' (203mm x 127mm x 76mm)
- Shipping weight: 0.8 lbs (365 grams)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
Specifications:
- Audio circuit type: Passive, transformer based
- Number of channels: Two channels, mono or stereo outputs
- Frequency response: 20Hz ~ 20KHz (± 1dB)
- Dynamic range: 100dB
- Maximum input: +20dB
- Total harmonic distortion: 0.01% @ 1kHz
- Phase deviation: 2° @ 100Hz; 5° @ 50Hz
- Input impedance: 40k Ohms, unbalanced
- Output impedance: 2.8k Ohms, balanced
The Radial SB-5 Stereo DI Box is a great tool for AV technicians, media managers, and traveling musicians. It's designed to work with laptops, tablets, and other consumer audio products, allowing you to easily amplify their signals through a PA system. The box features a compact design, making it easy to carry around, and a passive design that requires no power. It also has a variety of features, such as a custom-designed transformer, an input pad, and ground lift switch, to help you get the best sound quality possible. The SB-5 measures 4.5' x 1,85' x 1.35' (114mm x 47mm x 34mm) and weighs 0.55 lbs (250 grams), making it easy to transport. It comes with a 3-year, transferable warranty and is designed for use in dry locations only between 5°C and 40°C.
