Radial JS3 Passive Mic Splitter - Your Ultimate Audio Splitting Solution
Passive 3-way Microphone Splitter

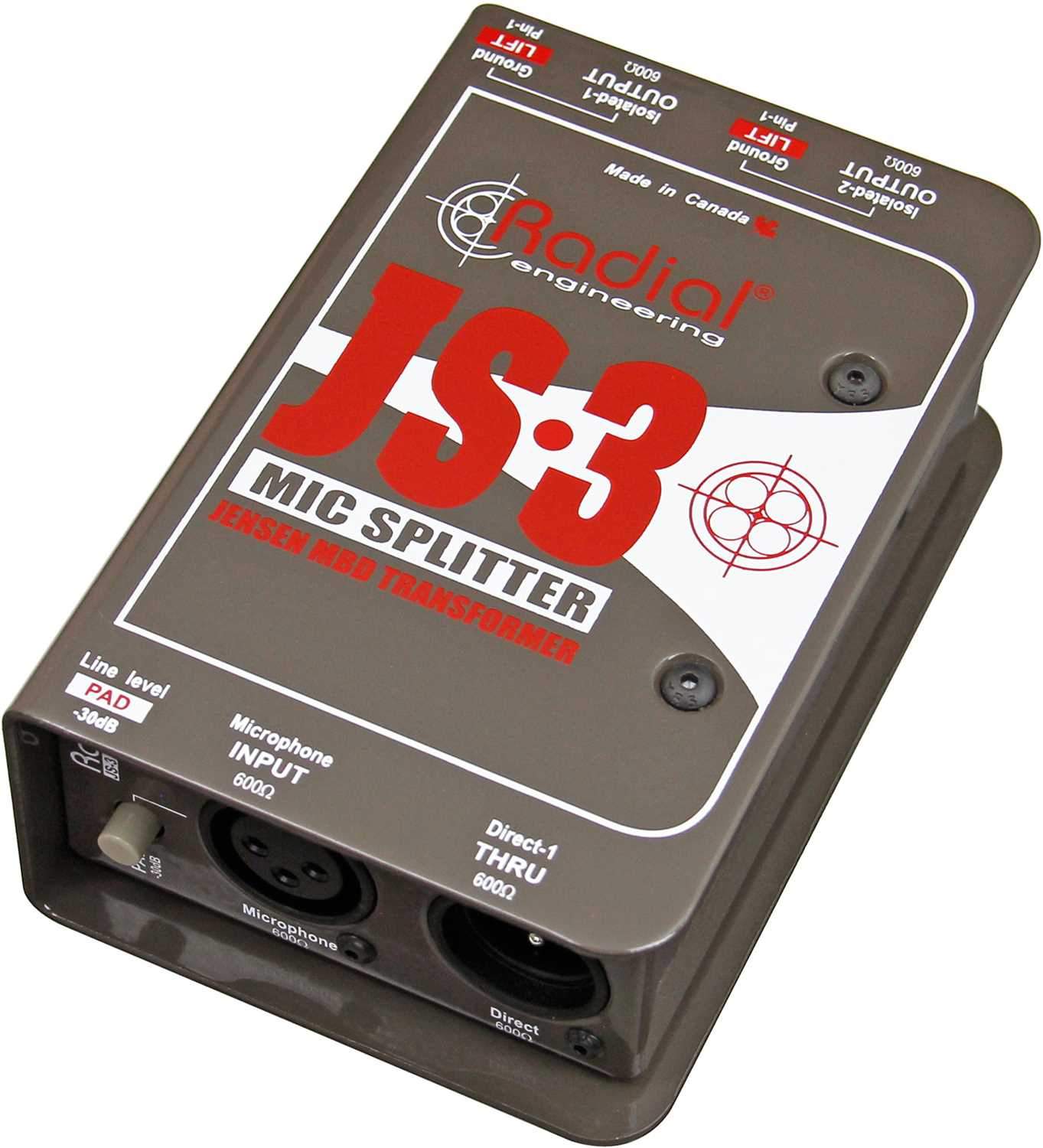

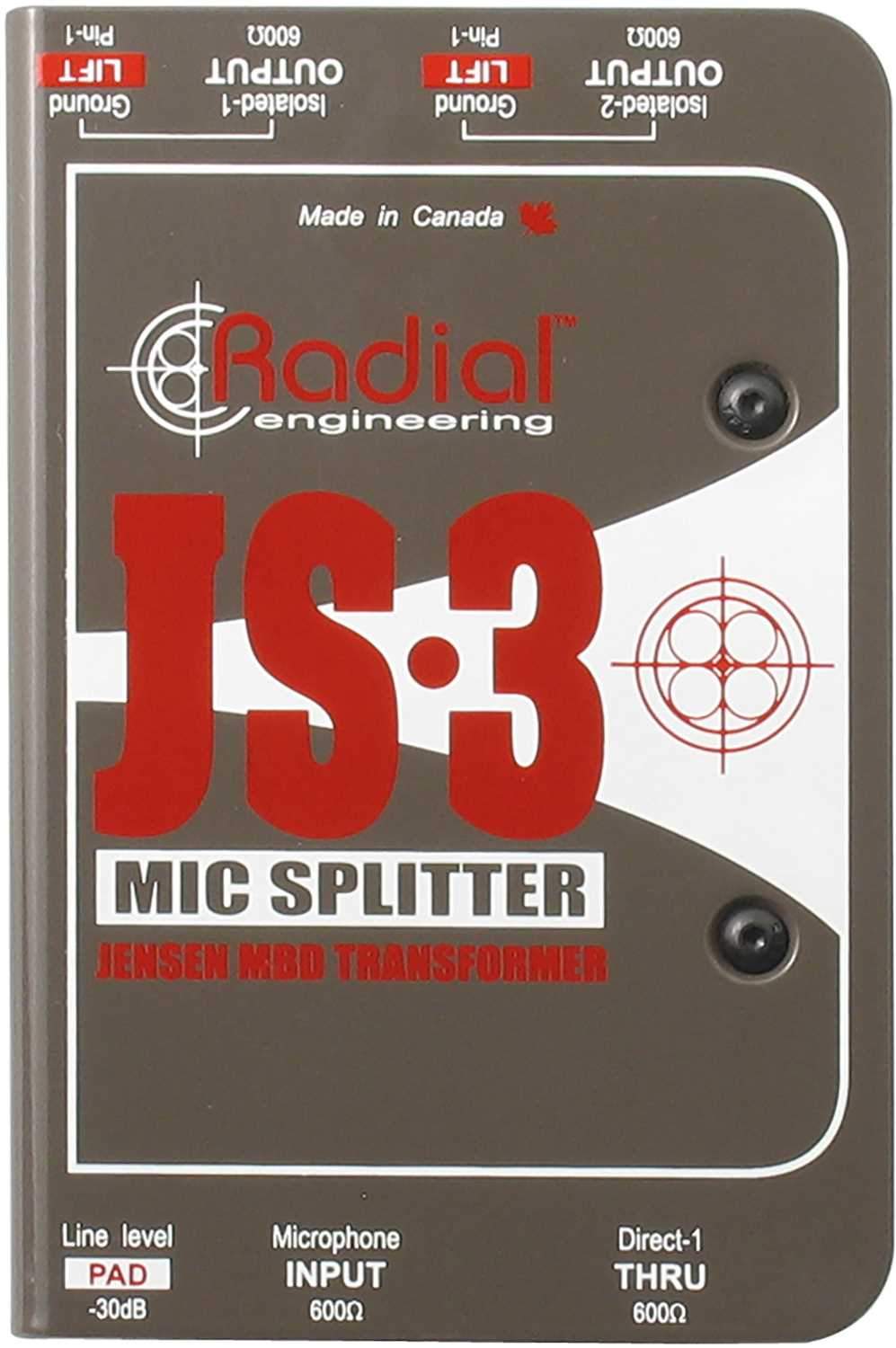

The JS3 is a high performance balanced mic-level splitter that lets you send a signal to multiple destinations simultaneously. It features two transformer-isolated outputs and one direct output, ensuring top-notch audio quality.
Portable and Versatile for Stage and Studio
The JS3 is the go-to professional mic splitter for splitting a single source to multiple destinations without any signal degradation or noise. Inside, a premium Jensen transformer provides galvanic isolation, getting rid of buzz and hum from ground loops. It also offers an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs further reduce noise, and the input pad allows line-level sources to be connected too. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
JS3 Applications
Feeding Three Mixers with Ease

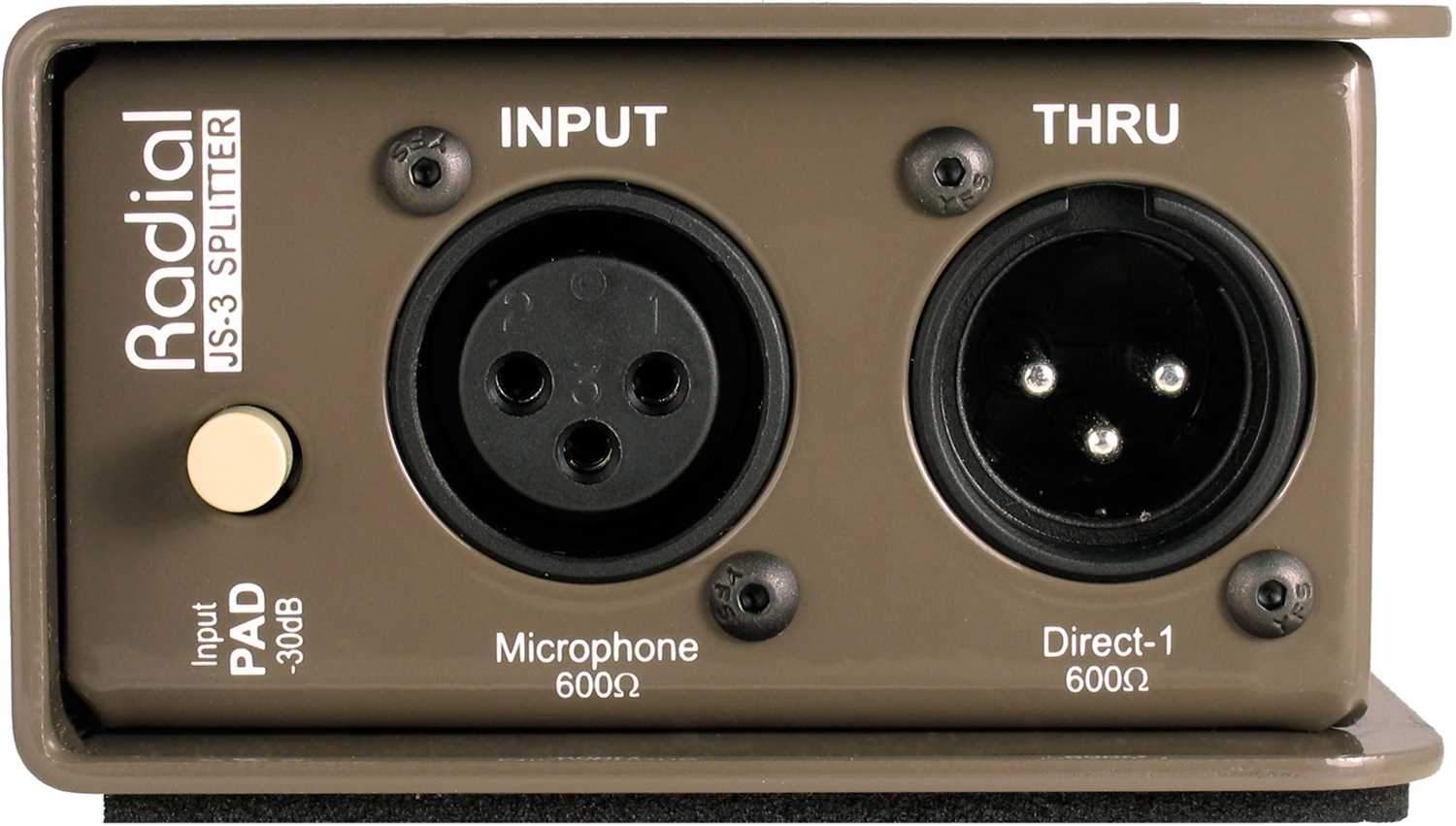

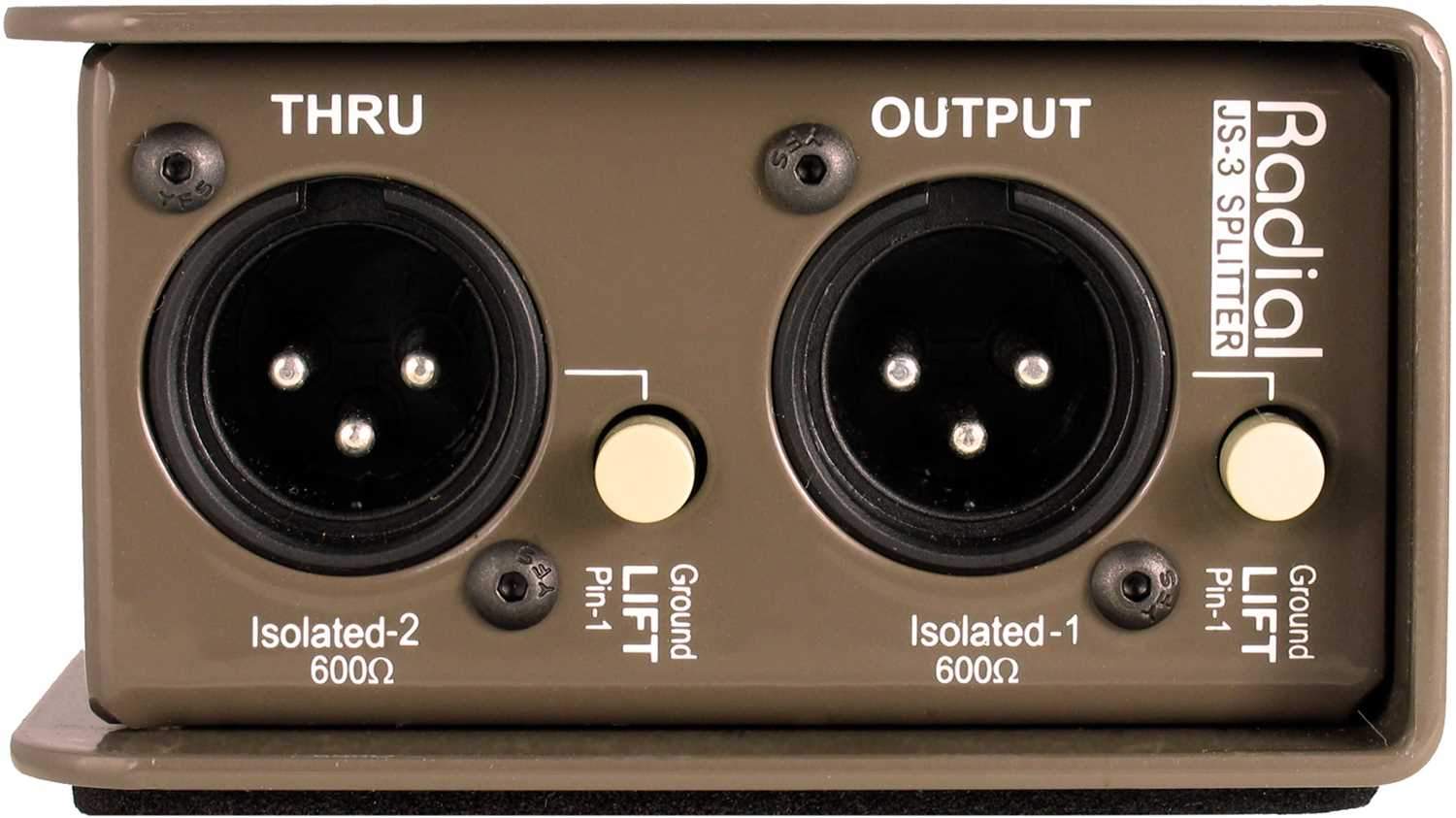

When you need to feed the main mixer, stage monitors, and a recorder all at once, the JS3 makes it a breeze. With its XLR input, direct out, and two isolated outputs, it eliminates ground loops when connecting multiple mixers simultaneously.
Key Features:
- • Split One Microphone Signal to Three Destinations Instantly
- • Jensen Transformer for Exceptional Audio Quality
- • Eliminates Ground Loop Noise
Technical Specifications:
- • Audio circuit type: Passive mic/line splitter, transformer based
- • Transformer: JT-MB-DPC, 1:1:1 ratio
- • Number of channels: Three-way splitter (one in/three out)
- • Frequency response: 20Hz ~ 20KHz (+0dB/ -2dB)
- • Dynamic range:140dB
- • Total harmonic distortion:0.0005% @ 1kHz
- • Phase Deviation: 0.7° @ 100Hz; 2.8° @ 20Hz
- • Input Impedance: 2.4k Ohms, unbalanced
- • Output Impedance: 2.4k Ohms, unbalanced
- • Maximum Input:+25dBu @ 1kHz
- • Input pad, Ground lift
- • Input Connectors:XLR-F in
- • Output Connectors:Two isolated outputs
- • Construction: 14-gauge steel chassis & outer shell
- • Size (L x W x D): 3.3' x 5.0' x 2' (84 x 127 x 48mm)
- • Weight:1.55lb (0.7kg)
- • Shipping size (L x W x D):4' x 3' x 6.5' (102 x 76 x 165mm)
- • Shipping weight: 1.92lb (0.87kg)
- • Power: Passive, no power required
- • Conditions:For use in dry locations only between 5°C and 40°C
The Radial JS3 Passive Mic Splitter is perfect for musicians, sound engineers, and anyone who needs to split microphone signals. Whether you're on stage or in the studio, this splitter allows you to send one microphone signal to three destinations simultaneously. It's easy to use and provides exceptional audio quality. With its compact size of 3.3' x 5.0' x 2' (84 x 127 x 48mm) and weight of 1.55lb (0.7kg), it's portable and convenient. It works in dry locations between 5°C and 40°C and doesn't require any power as it's passive.
