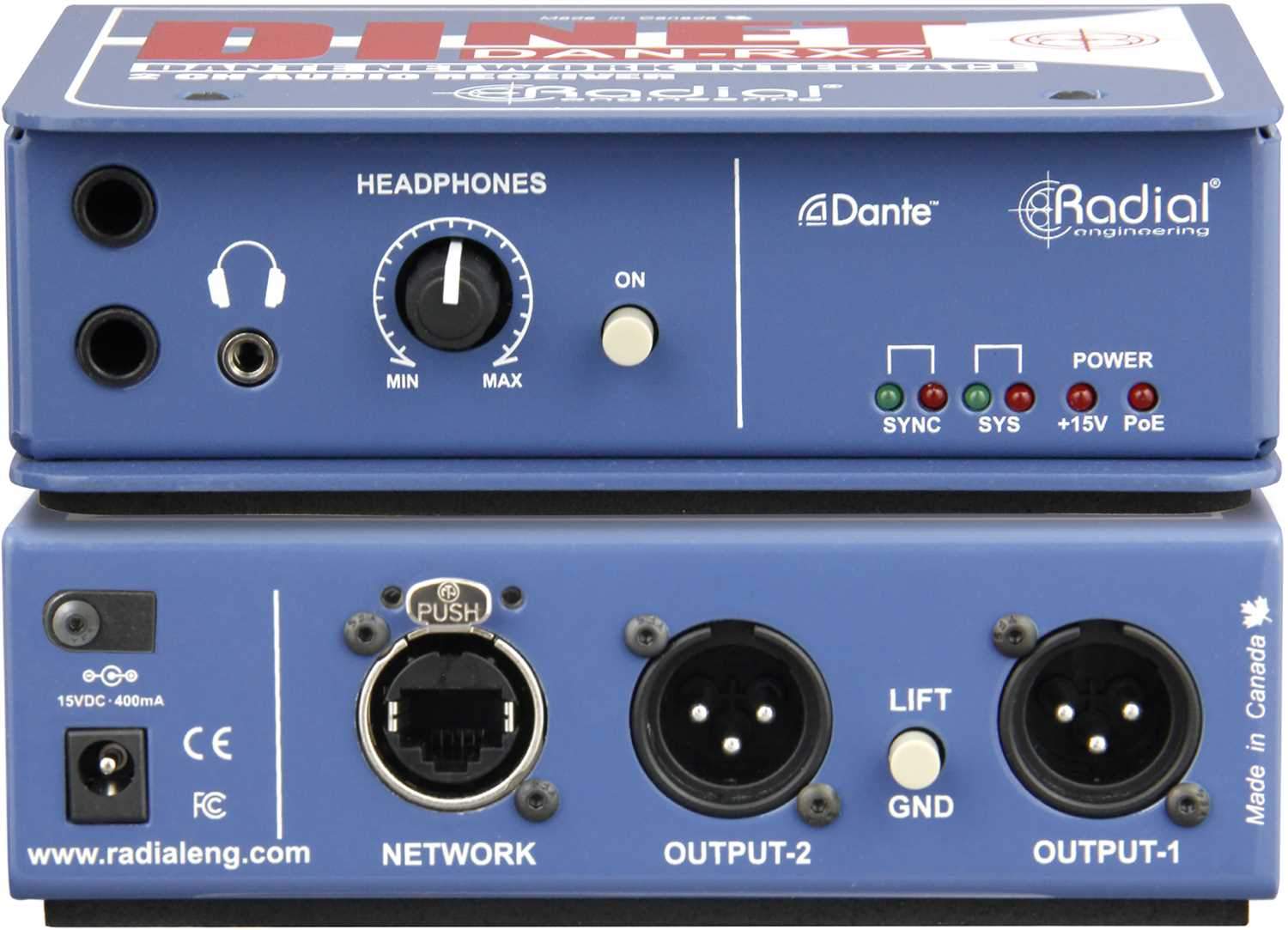

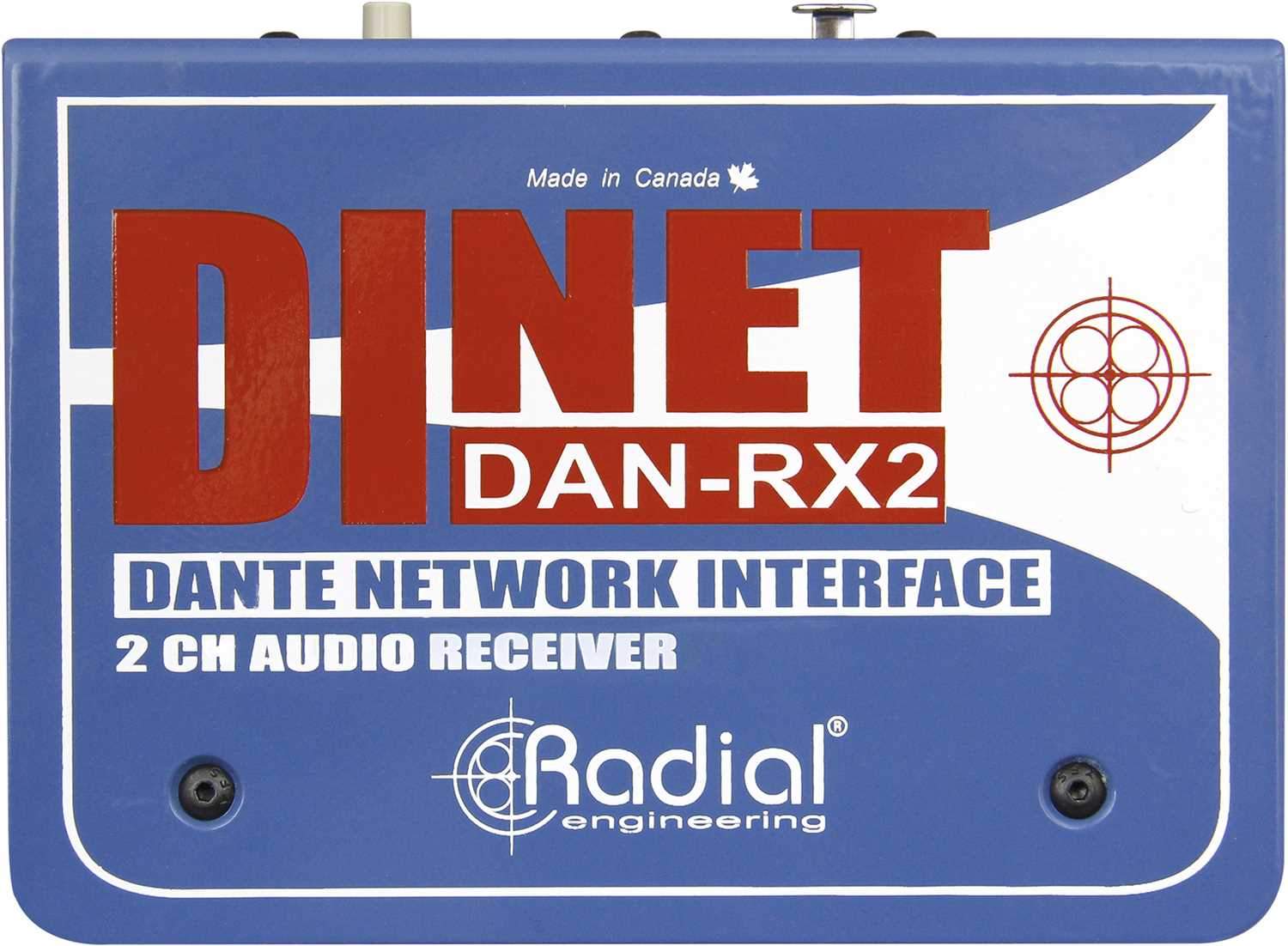

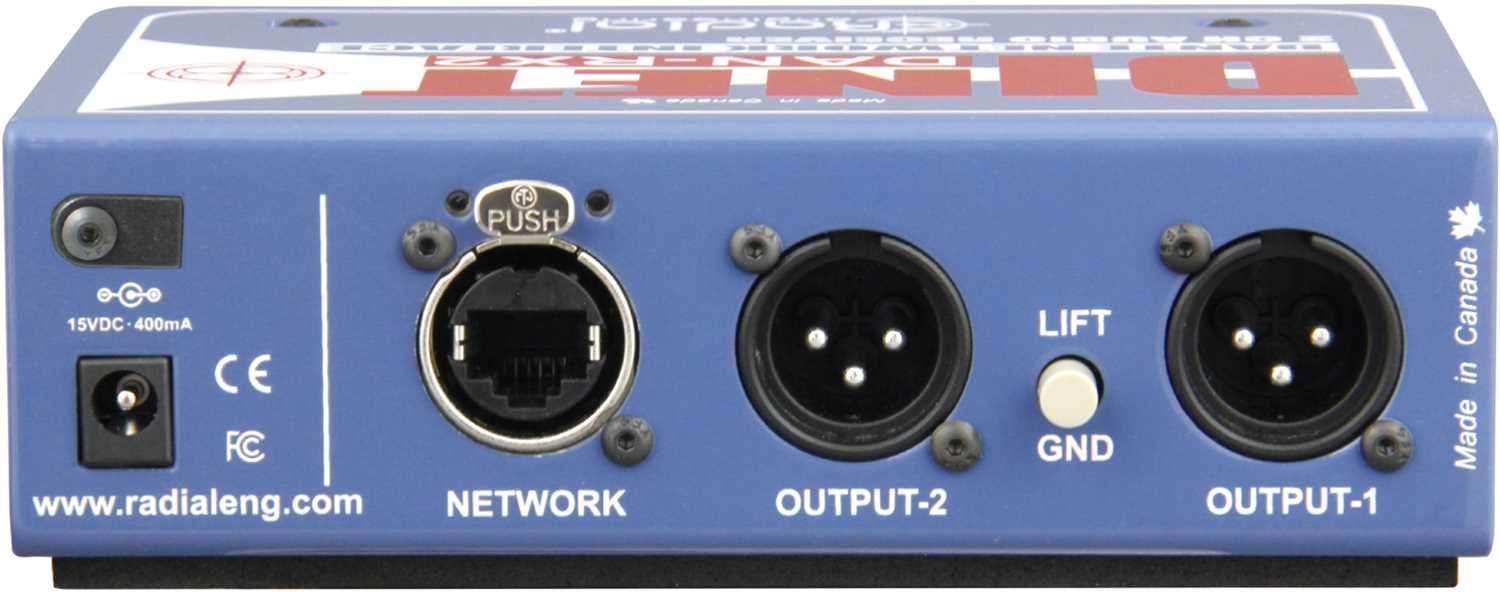

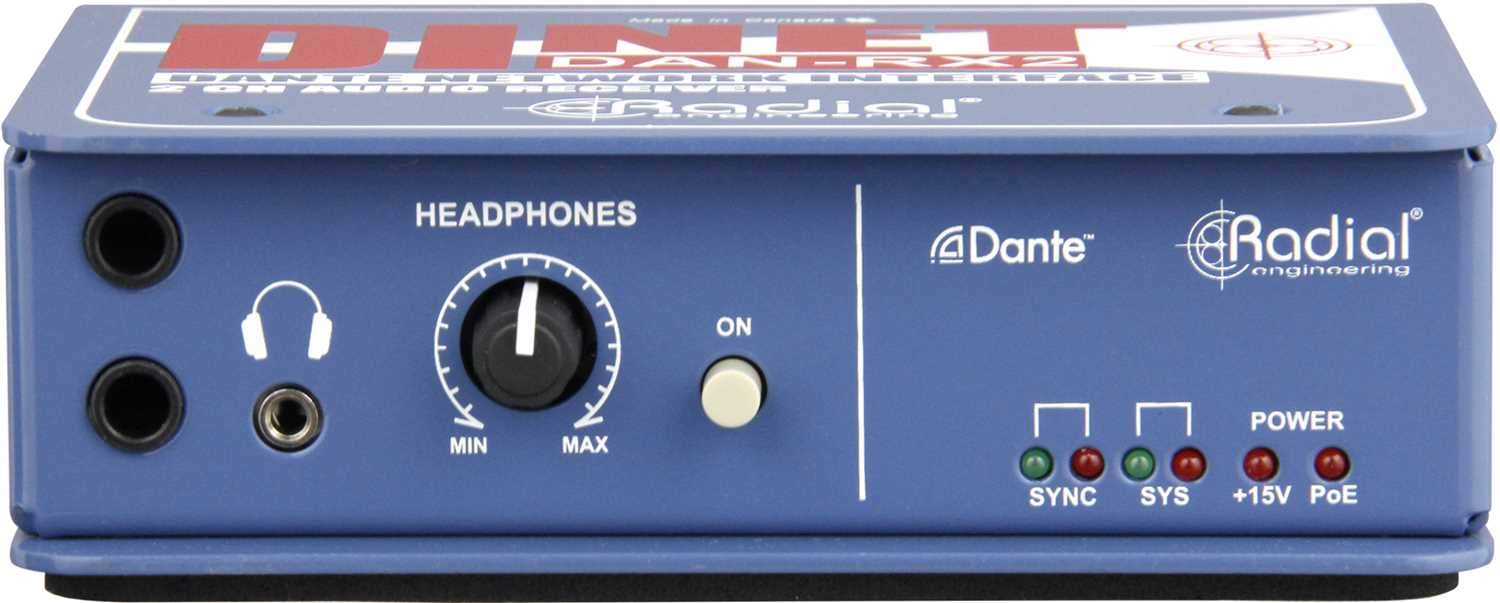

Radial DiNet DAN-RX2 Dante Network Receiver

Radial DiNet DAN-RX2: The Ultimate Dante Network Receiver for Superior Audio Output

Dual Output Dante Endpoint
The DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint that allows you to output audio from a Dante or AES67-compliant network for connection to professional audio systems. It's a game-changer for seamless audio distribution.

Robust digital audio distribution
The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location from a Dante or AES-67 compliant network. With balanced XLR outputs, a ground lift, and a separate headphone amp with its own level control, it's perfect for local testing or personal monitoring. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and it can be mounted in 19' equipment racks with the optional SA series rackmount adaptor kit.

Features:

• • Stereo analog output for Dante networks - Get high-quality audio output from your network.
• • Balanced XLR outputs for flexible connection - Connect at mic or line level with ease.
• • Built-in headphone amplifier for personal monitoring - Enjoy crystal-clear audio privately.
• • 24bit/96kHz digital to analog conversion - Experience top-notch sound quality.
• • Compliant to AES67 specifications - Ensure seamless compatibility.
• • Headphone Outputs: 3.5mm TRS and 1/4' TRS - Work with earbuds and standard headphones.
• • Headphone Level: Adjust the output level of the headphone amplifier.
• • Sync LED: Red for power, green for Ethernet connection, flashing for master clock mode, solid for slave mode.
• • Sys LED: Red at power-on, green when Dante processor is active.
• • +15V LED: Lights up when receiving power via DC adapter.
• • PoE LED: Lights up when receiving Power over Ethernet (PoE).

Specifications:

• Audio circuit type: High current balanced active output device
• Number of channels: 2
• Frequency response: 20Hz-20kHz
• Dynamic range: >100dB
• Gain: +18dBu max @ 0dBFS
• Total harmonic distortion: 0.007% @ -6dBFS
• Output Impedance: 150
• Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz
• Features
• Input Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4' headphone out
• Output Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4' headphone out
• Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >75dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af

General

• Construction: 14-gauge steel
• Finish: Durable powder coat
• Size (L x W x D): 4.5' x 2' x 6' (121 x 6 x 147mm)
• Power: 15VDC 400mA (included) or PoE
• Conditions: For use in dry locations only between 5°C and 40°C
• Warranty: Radial 3-year, transferable

The Radial DiNet DAN-RX2 Dante Network Receiver is designed for professional audio setups. It's perfect for sound engineers and installers who want to distribute high-quality audio. With its dual output, it can connect to professional audio systems from a Dante or AES67-compliant network. It features balanced XLR outputs, a headphone amp, and compatibility with Neutrik etherCON connectors. The receiver is made of 14-gauge steel with a durable powder coat finish. It measures 4.5' x 2' x 6' (121 x 6 x 147mm) and can be powered by 15VDC 400mA or PoE. It's suitable for use in dry locations between 5°C and 40°C and comes with a 3-year transferable warranty.
