Radial Catapult TX4M 4ch Transmitter Mic-level
Mix & Match for Transformer Isolation
All Radial Catapult modules are compatible and sold individually. You can pick the perfect combination for your needs. The Catapult RX4 and TX4 can work together as a 4-channel audio snake. Need transformer isolation? Two more models are available. The TX4L and RX4L have line level isolation transformers for playback or amp rack outputs, while the TX4M and RX4M are for splitting mic signals on stage. Combine these six models with the compact Catapult Mini RX and TX for a custom snake.

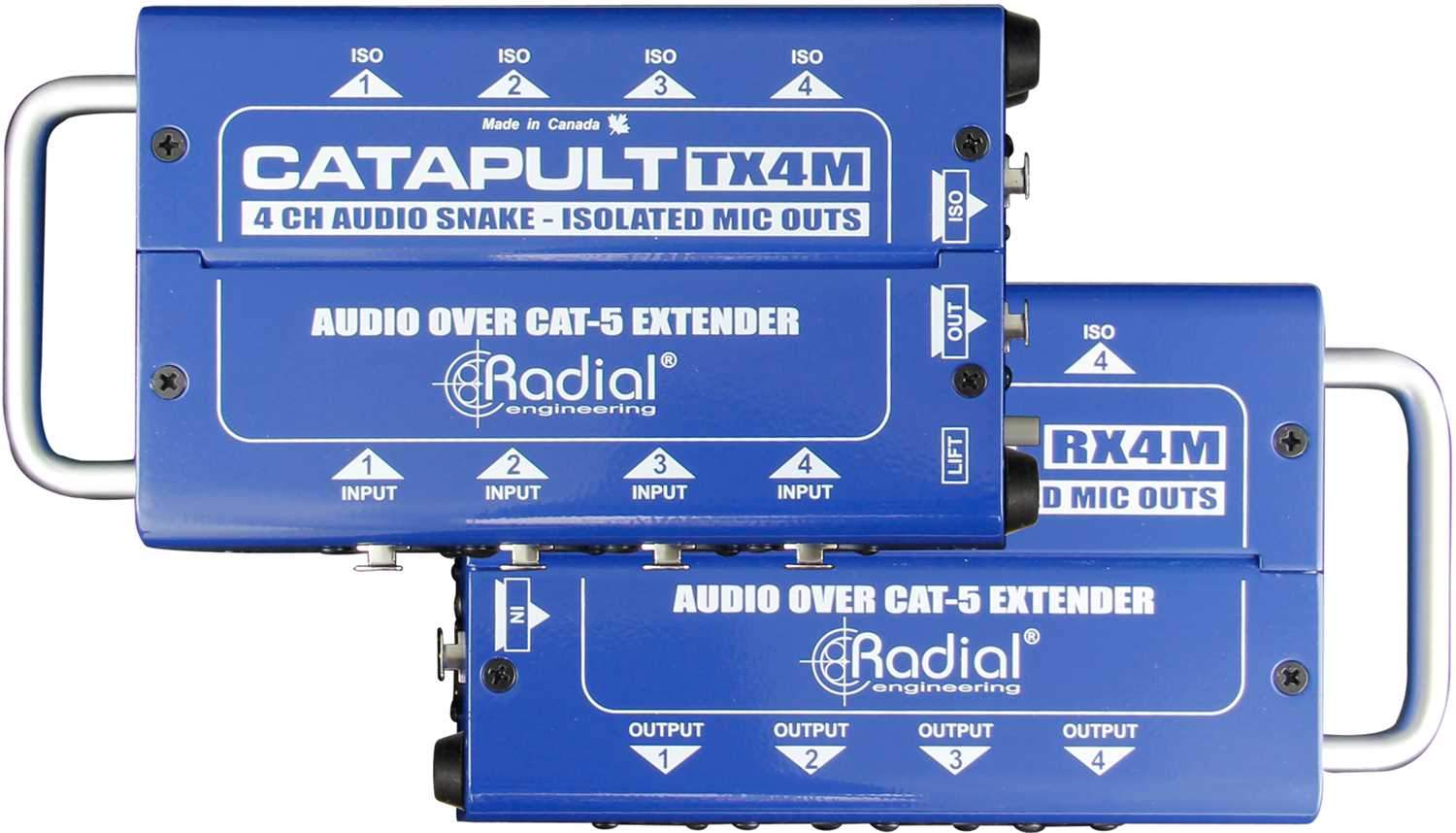

The Catapult TX4M and RX4M are four-channel mic level splitters and isolators. Split four mic feeds and send them over a single cat5 shielded cable to three locations like FOH, monitors, and recording. Mic level isolation transformers keep destinations isolated, avoiding ground loop problems. The TX4M has four XLR-F inputs and four isolated XLR-M outputs, and the RX4M has four direct and four isolated XLR-M outputs. Both units have RJ45 Ethercon connections with ground lift switches. Phantom power can be provided via direct outputs with a shielded Cat 5 cable.
Features:
- Ground lift for a clean signal
- Input & Output Connectors: XLR & RJ45
- 3-year, transferable warranty
Specifications:
- Audio circuit type: Passive mic splitter with transformer
- Frequency response: 7Hz - 20KHz
- Dynamic range: 140dB
- Total harmonic distortion: 0.001%
- Common Mode Rejection Ratio: >113dB
- Maximum Input: +35dBu
- General
- 14 gauge steel chassis & outer shell
- Size (L x W x D): 8 1/8 x 4 1/8 x 2 inches
- Weight: 2.6 LBS
- Shipping size (L x W x D): 11 x 5 x 2.75 inches
- Shipping weight: 2.9 LBS
- Passive, no power needed
- For dry locations, 5°C - 40°C
The Radial Catapult TX4M is a must-have for audio professionals. Use it to split mic signals on stage and send them to different locations like front-of-house, monitors, and recording devices. With features like ground lift, XLR and RJ45 connectors, and a 3-year warranty, it's perfect for your needs. Its compact size (8 1/8 x 4 1/8 x 2 inches) and lightweight (2.6 LBS) make it easy to use and transport. Works in dry locations between 5°C and 40°C.
