Q-SYS JSD-60D Digital Cinema Audio Processor: Unleash Stunning Sound
Get ready to immerse yourself in an unparalleled audio experience with the Q-SYS JSD-60D Digital Cinema Audio Processor. Engineered for digital cinema applications, this processor delivers exceptional performance with low noise and low distortion 96 kHz processing.
• Six standard formats plus user-configurable buttons for a variety of formats. Simplify volume changes between content types with duplicate format options at different fader levels.
• Front panel display shows fader level, format name, and audio level on each output. Built-in bypass circuitry ensures seamless presentations even in case of system failure.
• Automation-friendly with standard DB25 parallel, RS-232, and Ethernet interfaces. Ethernet accepts 5 simultaneous TCP connections for control and monitoring.
• Graphical user interface simplifies installation with sound pressure level measurement and automatic equalization. Monitor, control, and update firmware via a standard web browser.
• Precision 1/3 octave RTA and sound pressure measurements using ANSI standards. Manually or automatically equalize the auditorium with auto-EQ feature.
• Diagnostic-friendly system logs 15,000 events to internal flash memory. Review log data on GUI or web interface. Check operational status on GUI, web interface, or SNMP.
Choose from various processing and output options, including Dolby Digital and DTS decoding, and different analog and digital output configurations.
Features:
- 96 kHz digital processing for crystal-clear sound
- Multiple input options, including 8-channel AES/EBU, coax, TOSLINK, and analog, with optional decoding
- Flexible output options, such as 8-channel analog, AES/EBU, and BLU link, plus HI/VI-N balanced outputs
Specifications:
- General:
- Dimensions (HxWxD): 1.75'(1 RU) x 19' x 10.375'
- Line voltage requirements: 100 VAC – 240 VAC, 50/60 Hz, 30 watts
- Front Panel Controls and Indicators:
- Main Fader: Rotary encoder
- Digital Input Select Buttons: Coax, Toslink, Digital 8CH, Option
- Analog Input Select Buttons: Analog 6CH, non-sync, Mic
- Master Mute: Push button
- Power On Switch: Rocker Switch
- Power Supply status: Five LED indicators
- USB Type B port: Config and management interface
- Display: Fader level, format, audio output level

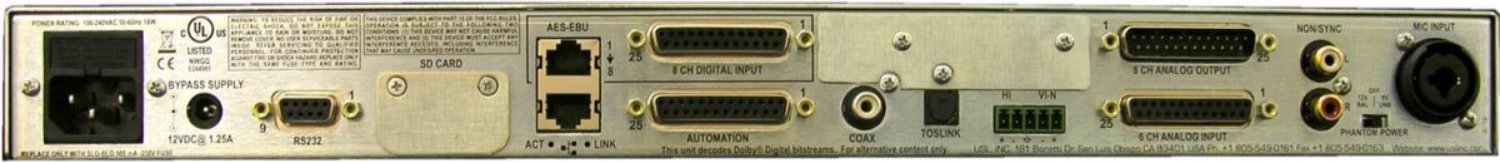

- Rear Panel Connectors:
- PA/Calibration Microphone: XLR / ” phone jack
- Six Channel Analog: DB25F
- Non/Sync: 2 x RCA
- Hearing Impaired and Visually Impaired - Narrative: Phoenix connector
- Coaxial RCA with transformer input
- TOSLINK Optical
- 8 Channel Digital AES/EBU: DB25F and RJ45
- Removable Memory Card: SD compatible
- Serial Control: RS-232 on DB9F
- Pulse Automation: DB25F
- 10/100M Ethernet: RJ-45
- DC 12V Power Connector: 5mm with 2.5mm pin
- AC Power: IEC socket, 100-240VAC, 50/60Hz, 18W typ.
- Eight Channel Audio Output: DB25M
- Crossover Audio Output: DB25M
- BLU link Audio Output: 2 x RJ45 connectors (BLU link option only)
- Audio Performance:
- A/D conversion: 96 kHz
- Frequency response: 20 Hz to 20 kHz (+- .5dB)
- Dynamic Range: 105 dB (typ.)
The Q-SYS JSD-60D Digital Cinema Audio Processor is designed for digital cinema applications. It's perfect for professionals in the entertainment industry who want to enhance the audio experience in theaters. With dimensions of 1.75'(1 RU) x 19' x 10.375' and line voltage requirements of 100 VAC – 240 VAC, 50/60 Hz, 30 watts, it's a reliable choice for delivering high-quality sound.
