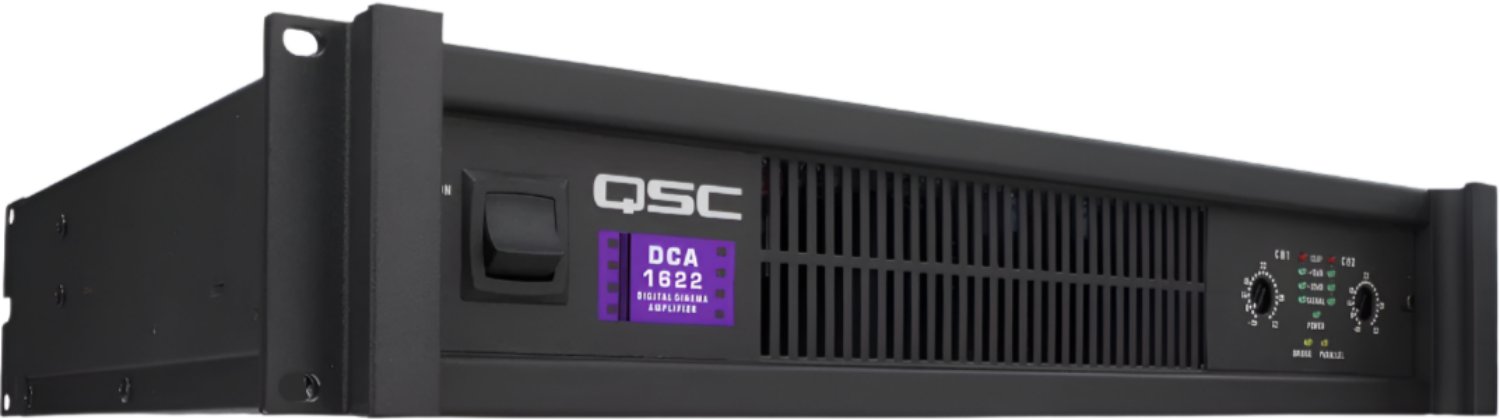

Q-SYS DCA1622 2-Channel Digital Cinema Audio Amplifier

Q-SYS DCA1622: The Ultimate 2-Channel Digital Cinema Audio Amplifier

Features:

• • Active Inrush Limiting - Never worry about blown circuit breakers at turn-on!
• • Both speaker and monitor panel outputs for versatile setup
• • Exclusive PowerLight power supply for booming bass
• • A hum-free noise floor and ultra-low distortion for crystal-clear sound
• • Only 3.5 inches high - Build powerful systems with just one rack!
• • DataPort interface for seamless connection to DCP Digital Cinema Processors and DCM Digital Cinema Monitors
• • Patented Output Averaging for reliable short circuit protection
• • 14-inch deep - Works with standard depth racks for cost-effective and space-saving setup
• • Only 21 pounds, easy to rack and ship - No need to remove amps before shipping!
• • Gain control security cover protects against tampering and misadjustment
• • Variable-speed fan cooling and back-to-front air flow for optimal performance
• • Neutrik Speakon and safety-shrouded barrier strip output connectors for secure connections
• • LED indicators for easy metering, status, and operating mode monitoring

Specifications:

• 8Ω, 20 Hz–20 kHz, 0.03% THD: 300 W
• 4Ω, 20 Hz–20 kHz 0.05% THD: 500 W
• EIA: 1 kHz, 1% THD @:
  • 8Ω: 350 W
  • 4Ω: 600 W
  • 2Ω: 800 W
• Bridged Mono Mode:
  • 16Ω, 20 Hz–20 kHz, 0.1% THD: 600 W
  • 8Ω, 20 Hz–20 kHz, 0.1% THD: 1100 W
  • 4Ω, 1 kHz, 1% THD: 1600 W
  • Signal to Noise 20 Hz–20 kHz, unweighted: > 107 dB
  • Input Sensitivity full rated power @ 8 ohms: 1.2 V rms +3.9 dBu
  • Input Sensitivity full rated power @ 4 ohms: 1.1 V rms +3.2 dBu
  • Output Circuitry Class Type: AB
  • Distortion (SMPTE-IM): < 0.01%
• Distortion (Typical):
  • 20 Hz–20 kHz: 10 dB below rated power
  • 1.0 kHz and below: full rated power
  • Less than 0.01% THD @ 8 and 4 ohms
• Frequency Response (LF filter switched off):
  • 20 Hz–20 kHz, ± 0.2 dB
  • 8 Hz–50 kHz, + 0/-3 dB
• Damping Factor (1 kHz and below): Greater than 500
• Input Impedance:
  • 10 kΩ unbalanced
  • 20 kΩ balanced
• Input Clipping: 10 V rms (+22 dBu)
• Cooling: Variable-speed fan, rear-to-front air flow
• Connectors, each channel:
  • Input: 1/4' TRS, 3-pin XLR & 3-pin detachable terminal block
  • Output: Neutrik Speakon and safety-shrouded barrier strip, including Monitor output
  • DataPort: One HD15
• Voltage Gain at 8 ohms: 40x (32 dB)
• Controls:
  • Front: AC switch, Ch. 1 and Ch. 1 recessed gain knobs
  • Rear: DIP switch (Clip Limiter on/off, each channel; LF Filter on/off, each channel; LF Filter Freq select 30 or 50 Hz, each channel; Inputs Parallel or Stereo; Bridge Mode)
• Indicators:
  • CLIP/PROT: Red LED
  • LEVEL -10 dB: Green LED
  • LEVEL -20 dB: Green LED
  • SIGNAL -35 dB: Green LED
  • BRIDGED: Yellow LED
  • PARALLEL INPUTS: Yellow LED
  • POWER: Green LED
• Amplifier Protection:
  • Full short circuit, open circuit, thermal, ultrasonic, and RF protection
  • Stable into reactive or mismatched loads
• Load Protection: On/off muting, DC-fault power supply shutdown
• Dimensions (HWD):
  • Inches: 3.5 x 19 x 14
  • Millimeters: 89 x 483 x 356
• Weight: 21 lb (9.5 kg) net

The Q-SYS DCA1622 is a 2-channel digital cinema audio amplifier designed for professional audio setups. It's perfect for installers, sound engineers, and anyone looking to enhance their audio systems. With its compact size (3.5 x 19 x 14 inches) and lightweight (21 lb), it's easy to install and transport. Enjoy powerful sound with features like Active Inrush Limiting, exclusive PowerLight power supply, and ultra-low distortion. Connect seamlessly to DCP Digital Cinema Processors and DCM Digital Cinema Monitors using the DataPort interface. The DCA1622 offers versatile outputs, including both speaker and monitor panel outputs, along with Neutrik Speakon and safety-shrouded barrier strip connectors for secure connections. Experience reliable short circuit protection with patented Output Averaging and variable-speed fan cooling for optimal performance.
