| Configuration | Direct radiating, active subwoofer |
| LF Transducer | 460 mm (18-inch), cone |
| Frequency Response (-6 dB) | 41 Hz - 98 Hz |
| Frequency Range (-10 dB) | 35 Hz - 111 Hz |
| Nominal Coverage Angle | Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units) |
| Maximum Rated SPL (peak) | 138 dB @1 m |
| Amplifier (peak) | Class D, 4000 W |
| Cooling | Low noise, variable speed fan |
| Controls | Rotary push encoder
2 x Push buttons (Menu, ID) |
| Display Screen | 61 mm (2.4-inch) Full color display area (240 x 320 pixels) |
| Indicators | Power LED
Limiter active LED
Standby active LED
2 x Signal LED |

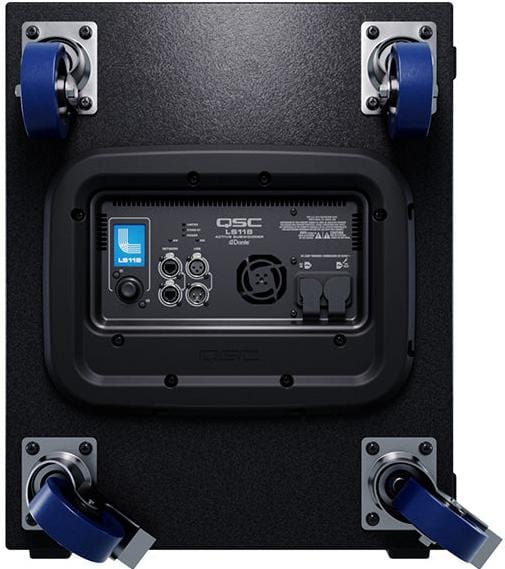

| Connectors | XLR Female (Analog In)
XLR Male (Analog Thru)
2 x RJ45 EtherCON (Dante and QSC SysNav In/Thru)
2 x PowerCON TRUE1 (AC Power Inlet/Outlet) |
| AC Power Input | Universal power supply 100–240 VAC, 50–60 Hz |
| AC Power Consumption | 100 VAC, 3.6 A / 120 VAC, 3.0 A / 230 VAC, 1.7 A |
| Enclosure Material | 15 mm birch plywood with Polyurea coating |
| Attachment Points | 8 x M10 (for innavidual vertical or horizontal suspension/flying)
2 x M20 (for vertical or horizontal loudspeaker pole or ground-stack deployments) |
| Color | Black (RAL 9011) |
| Grille | 16 GA Powder coated steel |
| Dimensions (H ¡Á W ¡Á D) | 640 ¡Á 520 ¡Á 790 mm
25.2 ¡Á 20.5 ¡Á 31.1 inches |
| Net Weight | 50 kg / 110 lb (including casters) |
| Shipping Weight | 62.6 kg / 138 lb |
| Included Accessories | 4 x Heavy-duty, low noise 4-inch casters, 1 x PowerCON TRUE1 power cable |
| Regulatory | UL, CE, FCC Class B |
