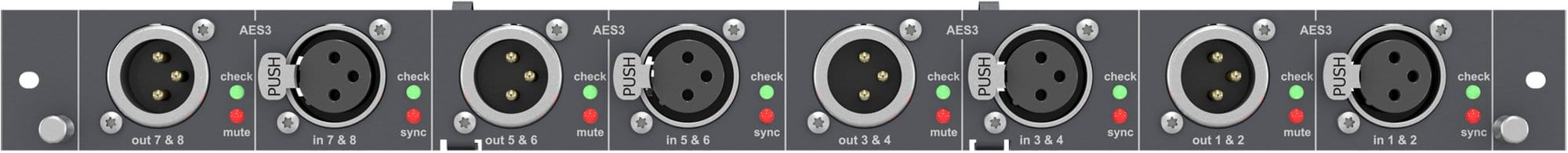

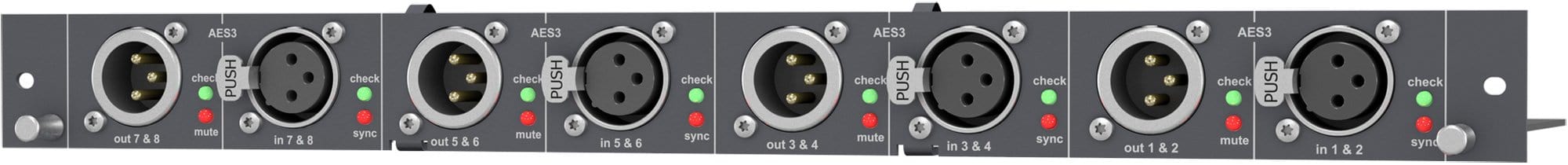

Midas Pro Series' 8x8 AES3 Card - The DL452
Unleash your audio potential with the DL452! This modular card offers 8 channels of digital AES3 (AES/EBU) input and output, perfect for MIDAS PRO Series control centers and modular I/O boxes. It's a game-changer for audio professionals.
Features:
- • Effortless 8-channel operation with sample rate conversion for both inputs and outputs
- • External clock synchronization for input channels for precise timing
- • Word length and clock source options for outputs, offering flexibility
Benefits:
- • Seamlessly interface with equipment operating at 48 kHz and 96 kHz
- • Automatic output mute when the audio signal path is muted via the PRO Series control center
- • Compatible with Midas XL8, PRO3, PRO6, PRO9, PRO X, DL351, and DL451
Specifications:
- • Sample rate: 32 kHz - 96 kHz (via SRC)
- • Digital inputs: 4 (8 channels)
- • Connector: 3-pin XLR Balanced
- • Output impedance: 110 ohm
- • Digital interface: Conforms to AES3-2009
- • Digital outputs: 4 (8 channels)
The DL452 is a modular 8-channel digital AES3 card designed for MIDAS PRO Series control centers and modular I/O boxes. It's ideal for audio engineers and professionals looking to enhance their audio setups. With features like sample rate conversion, external clock synchronization, and flexible output options, it's a must-have. It can interface with 48 kHz and 96 kHz equipment. Sample rate ranges from 32 kHz - 96 kHz (via SRC). It has 4 digital inputs (8 channels) with 3-pin XLR Balanced connectors, output impedance of 110 ohm, and conforms to AES3-2009. It also has 4 digital outputs (8 channels).
