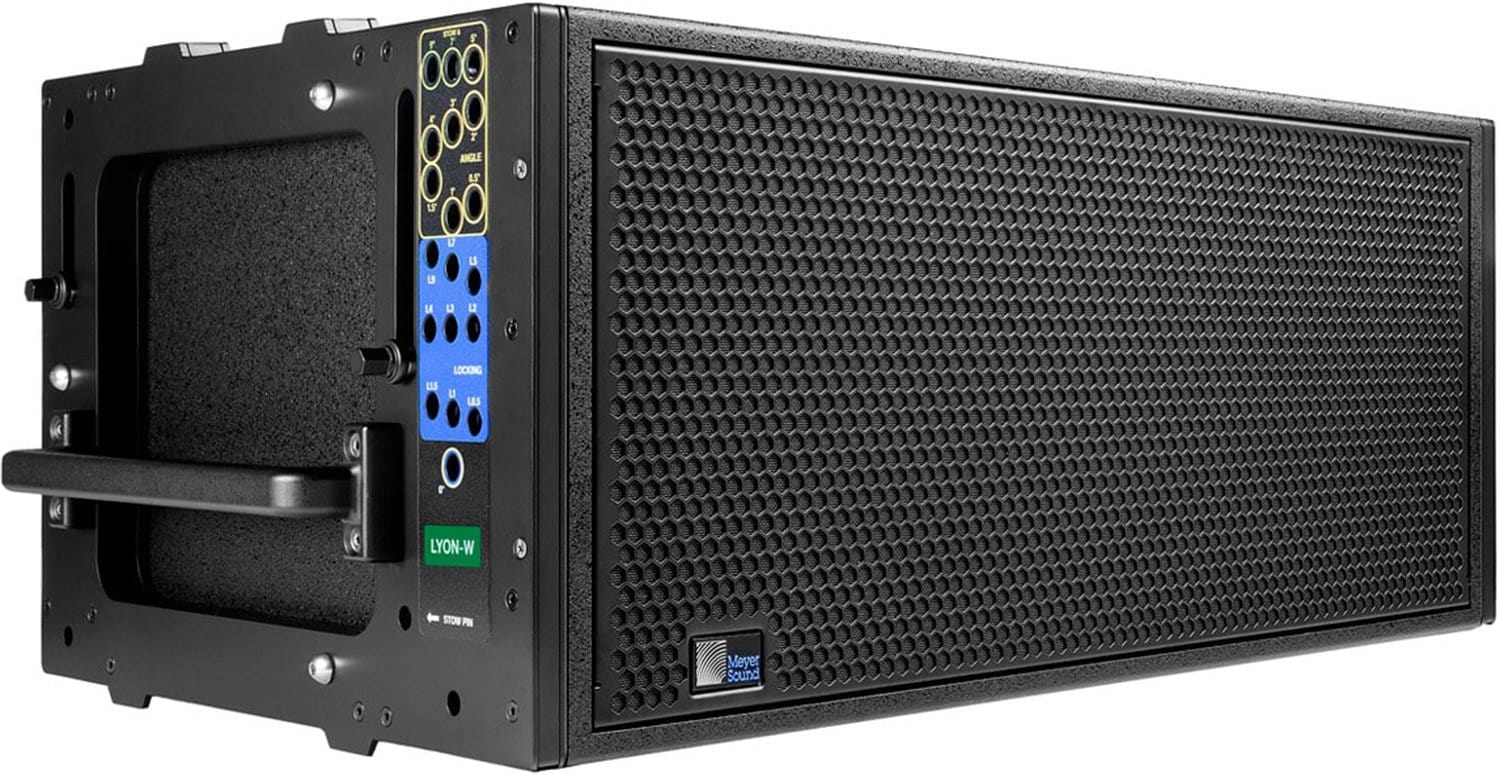

Meyer Sound LYONW Wide Line Array Powered Speaker

Meyer Sound LYONW Wide Line Array Powered Loudspeaker - Unleash Exceptional Audio Power

Get ready to experience audio like never before with the Meyer Sound LYONW! This self-powered linear line array loudspeaker is a part of the renowned LEO family, delivering outstanding audio reproduction with incredible power and crystal-clear clarity. Whether you're at a live concert, a large event, or a professional venue, the LYONW ensures your sound is heard loud and clear, without any distortion, even at maximum volume.

Key Features:

• • Seamless integration with Meyer Sound's LEO-M line array loudspeakers and low frequency control elements for a unified audio experience.
• • High peak power output with exceptional linearity and transient reproduction at any operating level, ensuring your sound is always on point.
• • Simplified setup and increased reliability with its self-powered design, saving you time and effort.

Technical Specs:

• ACOUSTICAL
  • Operating Frequency Range: 55 Hz – 16.5 kHz
  • Phase Response: 80 Hz – 16 kHz ±30°
  • Linear Peak SPL:
    • 143.5 dB with crest factor
    • >17.5 dB (M-noise), 136.5 dB (Pink noise), 138.5 dB (B-noise)
• COVERAGE
  • Horizontal Coverage: 110°
  • Vertical Coverage: Varies, depending on array length and configuration; LYON-WXT has extended vertical coverage.
• TRANSDUCERS
  • Low Frequency: Two 12-inch long-excursion cone drivers; 4 nominal impedance
  • High Frequency: Two 3-inch diaphragm compression drivers coupled to a constant-directivity horn through a patented REM manifold; 16 nominal impedance
• AUDIO INPUT
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
  • Connectors: XLR 5-pin female input with male loop output; XLR 3-pin female connectors available to accommodate only balanced audio (no RMS signals)
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 1 k, 1000 pF, 15 V clamped network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal -
    • Pin 4: RMS
    • Pin 5: RMS
    • Case: Earth ground and chassis
  • Nominal Input Sensitivity: 0 dBV (1 V rms) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 50 to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
• AMPLIFIERS
  • Type: 3-channel complementary MOSFET output stages (class AB/H bridged)
  • Total Output Power: 8500 W peak
  • THD, IM, TIM: < 0.02%
  • Cooling: Two ultra high-speed primary fans; two ultra high-speed reserve fans
• AC POWER
  • Connector: powerCON 32
  • Automatic Voltage Selection: 95–125 V AC, 50–60 Hz; 208–235 V AC, 50–60 Hz
  • Safety Rated Voltage Range: 100-240 V AC, 50–60 Hz
  • Turn-on and Turn-off Points: Turn-on: 85 V AC; Turn-off: 134 V AC; Turn-on: 165 V AC; Turn-off: 264 V AC
• CURRENT DRAW
  • Idle Current: 1.2 A rms (115 V AC); 0.6 A rms (230 V AC); 0.7 A rms (208 V AC)
  • Max Long-Term Continuous Current (>10 sec): 11.2 A rms (115 V AC); 5.6 A rms (230 V AC); 6.2 A rms (208 V AC)
  • Burst Current (<1 sec): 15.4 A rms (115 V AC); 7.5 A rms (230 V AC); 8.2 A rms (208 V AC)
  • Maximum Instantaneous Peak Current: 45 A peak (115 V AC); 23 A peak (230 V AC); 25 A peak (208 V AC)
  • Inrush Current: < 15 A peak
• RMS NETWORK
  • Equipped with two-conductor, twisted-pair network; reports all amplifier operating parameters to host computers
• PHYSICAL
  • Dimensions: W: 38.15 in (969 mm) x H: 14.85 in (377 mm) x D: 21.00 in (533 mm)
  • Weight: 199 lbs. (90.3 kg)
  • Enclosure: Premium multi-ply birch, slightly textured black finish
  • Protective Grille: Powder-coated, hex-stamped steel with acoustical black mesh
  • Rigging: End frames with captive GuideALinks secured with 0.4375 in x 0.090 in quick-release pins that allow 0.5°–9° splay angles; Detachable side handles

The Meyer Sound LYONW is a powerful self-powered loudspeaker designed for live concerts, large events, and professional venues. Its compact size (W: 38.15 in x H: 14.85 in x D: 21.00 in) and lightweight (199 lbs.) make it easy to transport and install. Ideal for sound engineers, event organizers, and musicians who demand high-quality audio performance. With its seamless integration, high power output, and simplified setup, the LYONW is the perfect choice for delivering exceptional sound in any setting.
