MA Lighting grandMA3 Compact XT Lighting Console

MA Lighting grandMA3 Compact XT: Your Ultimate Lighting Control Console

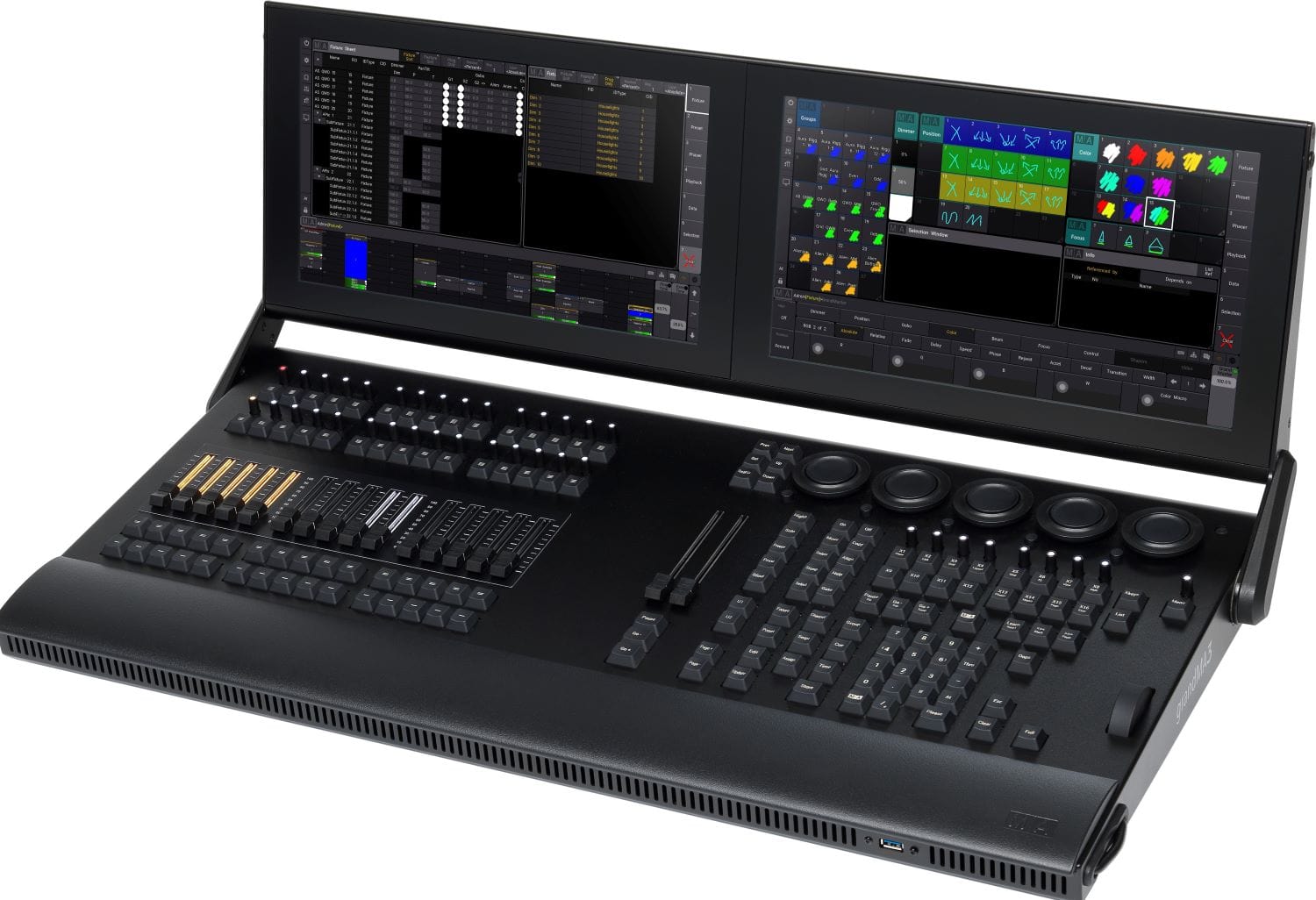

The grandMA3 compact XT console is the larger of the two compact models, offering the full system benefits of the grandMA3 system, housed in a compact and lightweight format. Easy to transport, it's perfect for owner/operators and the go-to choice for tech-desk duties.

• Compact and Lightweight: Effortlessly transportable for on-the-go use.

• Full System Benefits: Enjoy all the features of the grandMA3 system.

• Ideal for Multiple Roles: Suitable for owner/operators and tech-desk tasks.

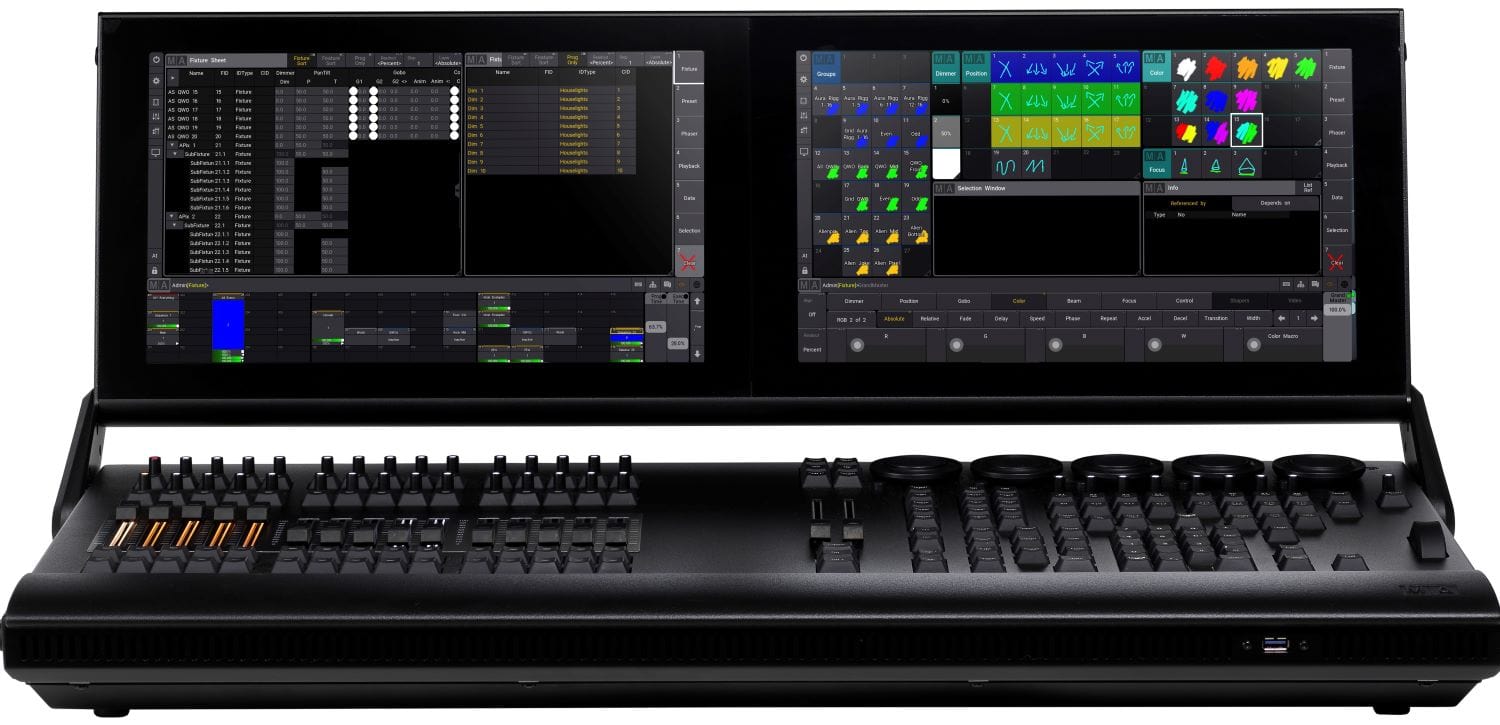

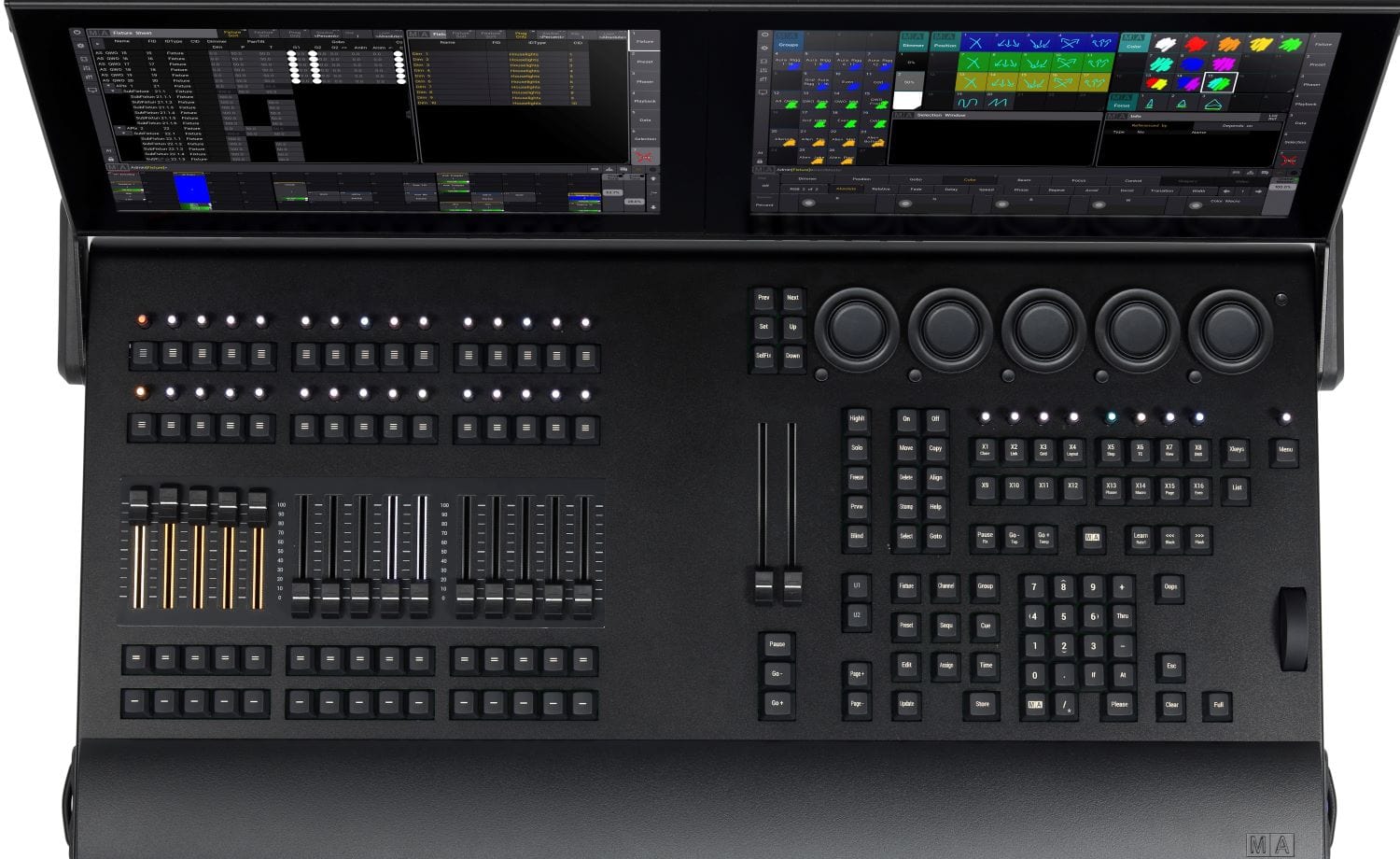

The compact XT console features 2 huge multi-touch monitors, 5 dual encoders and a complete command area almost identical to the larger models.

With 60 physical playbacks, 16 assignable x-keys and a dedicated master area the grandMA3 compact XT console provides plenty of playback options.

The grandMA3 compact XT console includes 8 192 control parameters as standard, making it an ideal choice for small and medium-sized professional entertainment lighting applications. The system size is scalable to 250,000 parameters with the use of additional grandMA3 processing units.

The grandMA3 compact XT is compatible with grandMA2 and grandMA3 software.

Features:

• Real-time control for up to 250,000 parameters per session in connection with grandMA3 processing units

• 6 DMX outputs, 1 DMX input
• 2 internal foldable monitor multi-touch screens
• 1 external multi-touch screen can be connected
• 39 rotary RGB backlit encoder
• 5 dual encoders
• 15 backlit motorized 60 mm faders
• 60 separate playbacks
• 16 assignable x-keys
• 3 etherCON connectors, 5 USB connectors
• 2 backlit motorized A/B faders 100 mm
• Innavidually backlit and dimmable silent (clickless) keys
• MA4010505

Specifications:

• Parameters: 4 096 (HTP/LTP)
• Parameters Mode2: 4 096 (HTP/LTP)
• Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
• Power: max. 250 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions:
  • 845 x 429 x 160 mm / 34 x 17 x 7 in (width x depth x height, folded)
  • 845 x 563 x 325 (max. 410) mm / 34 x 23 x 13 (max. 17) in (width x depth x height, unfolded)
• Net weight: 20 kg / 45 lbs

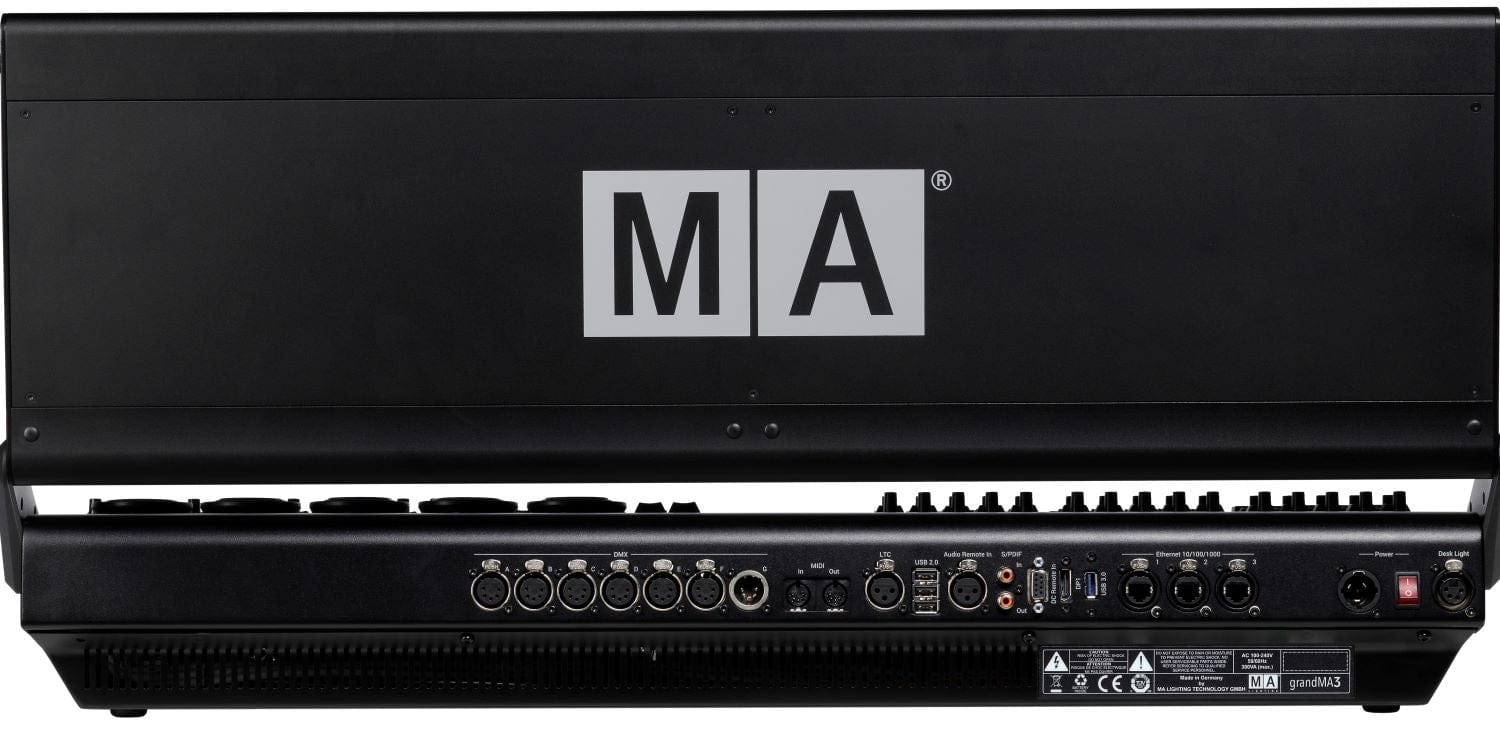

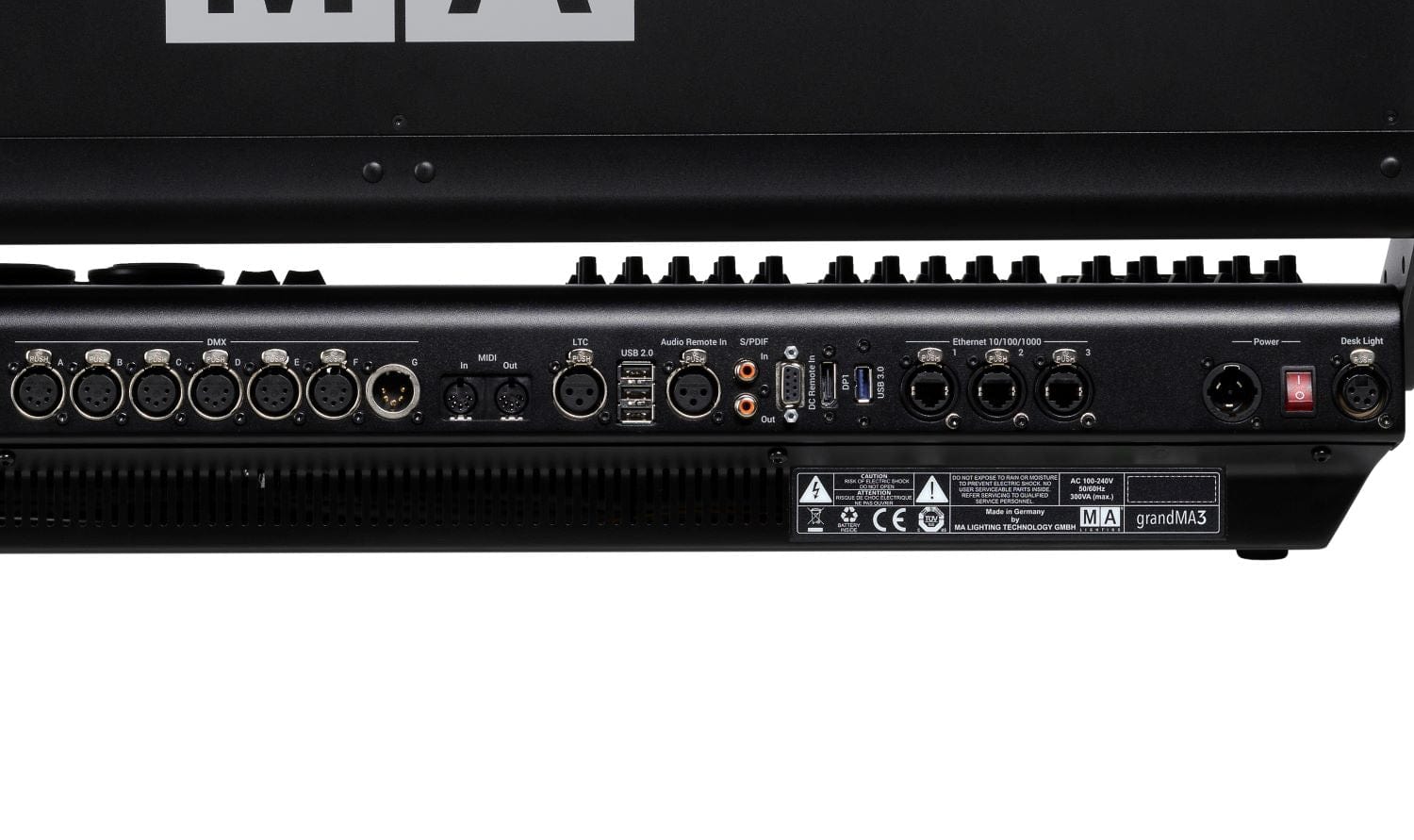

• Connectors:
  • 1 x powerCON TRUE1
  • 3 x etherCON/RJ45
  • 6 x DMX512-A Out (5pin XLR female)
  • 1 x DMX512-A In (5pin XLR male)
  • 1 x MIDI In (5pin DIN female)
  • 1 x MIDI Out (5pin DIN female)
  • 1 x Linear Timecode (3pin XLR female)
  • 1 x Audio In (3pin XLR female)
  • 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
  • 1 x DisplayPort 1.2 for external screens
  • 2 x S/PDIF In and Out
  • 3 x USB 2.0 (type A)
  • 2 x USB 3.0 (type A)
  • 1 x LED desk light (4pin XLR female)

The MA Lighting grandMA3 Compact XT is a must-have for lighting control. It's great for owner/operators and tech-desk duties. Compact and lightweight, it's easy to transport. Dimensions: folded - 845 x 429 x 160 mm (34 x 17 x 7 in), unfolded - 845 x 563 x 325 (max. 410) mm (34 x 23 x 13 (max. 17) in). Net weight: 20 kg (45 lbs). Ideal for small and medium-sized professional entertainment lighting applications.
