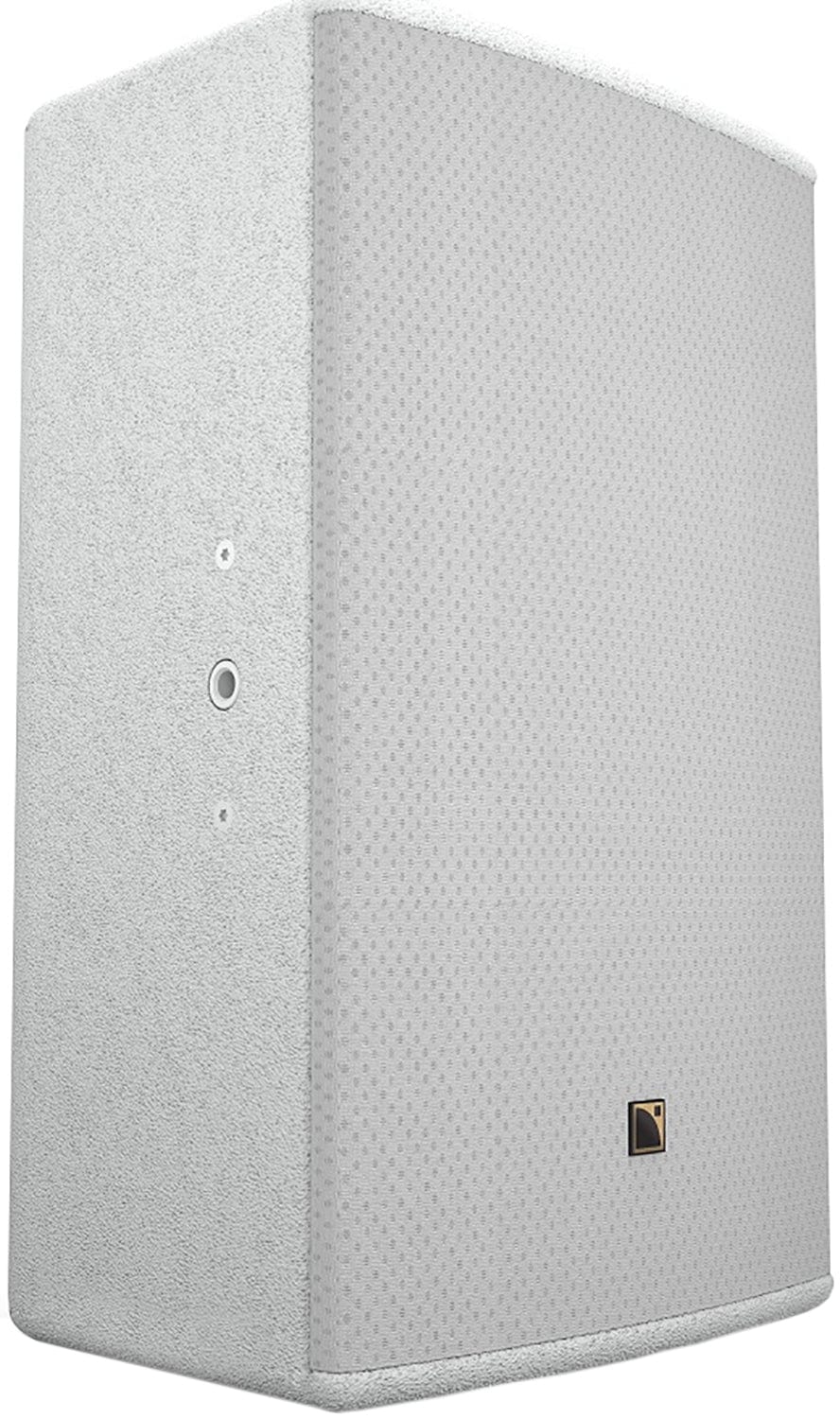

L-Acoustics X8WWR Weather-Resistant White Passive 2-Way Coaxial Speaker - Immerse in Superior Sound
Get ready to experience outstanding sound quality! This 2-way passive speaker offers:
- Pristine Studio Sound: Enjoy the signature L-Acoustics sonic quality for an immersive audio experience.
- Compact & Extended Bandwidth: Despite its compact size, it delivers an extended frequency range.
- COAXIAL Technology: Ensures a smooth off-axis response for consistent sound.
It has a 1.5 in diaphragm compression driver coaxially loaded by an 8 in low-mid frequency transducer in a bass-reflex cabinet. The cabinet is made of premium grade Baltic beech and birch plywood, with a coated steel grill and acoustically transparent fabric for protection. It features an ergonomic handle, a 35 mm pole mount socket, and a 35-degree angle setting for stage monitoring. Dedicated accessories allow for wall-mount, ceiling-mount, and flown configurations in both vertical and horizontal orientations. It also has four M10 threaded inserts for external rigging and a DIN580-compatible M8 threaded insert for safety, and is driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- Pristine studio sound quality with L-Acoustics sonic signature
- Extended bandwidth in compact format
- Smooth off-axis response with COAXIAL technology
- Clear low-frequency power with L-VENTS
Specifications:
- Coverage (-6 dB):
- Nominal directivity: 100° axisymmetric
- Monitoring angle: 35°
- Transducers:
- LF transducer: 8' cone driver
- HF transducer: 1.5' diaphragm compression driver
- Acoustics:
- Nominal impedance: 8
- Usable bandwidth: 60 Hz - 20 kHz (-10 dB), 65 Hz - 20 kHz (-6 dB), 70 Hz - 20 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 211 W
- Maximum SPL: 129 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic beech and birch plywood
- Dimensions (W, H, D): 250 mm, 424 mm, 264 mm / 9.8 in, 16.7 in, 10.4 in
- Weight (net): 12 kg / 26.5 lb
- Connectors: 2 ¡Á 4-point speakON
- IP: IP43
This L-Acoustics X8WWR speaker is perfect for stage monitoring. Musicians, sound engineers, and event organizers will find it a great choice. Its dimensions are 250 mm (W) x 424 mm (H) x 264 mm (D) / 9.8 in (W) x 16.7 in (H) x 10.4 in (D), and it weighs 12 kg / 26.5 lb. It offers a nominal directivity of 100° axisymmetric and a monitoring angle of 35°. With features like pristine sound quality, extended bandwidth in a compact size, and smooth off-axis response, it's a top pick for delivering great audio in various setups.
