L-Acoustics SB6r-InWall Dual 6.5 Inch Ultra-Shallow Subwoofer - Recessed for for Walls

L-Acoustics SB6r-InWall Dual 6.5 Inch Ultra-Shallow Wall-Recessed Subwoofer

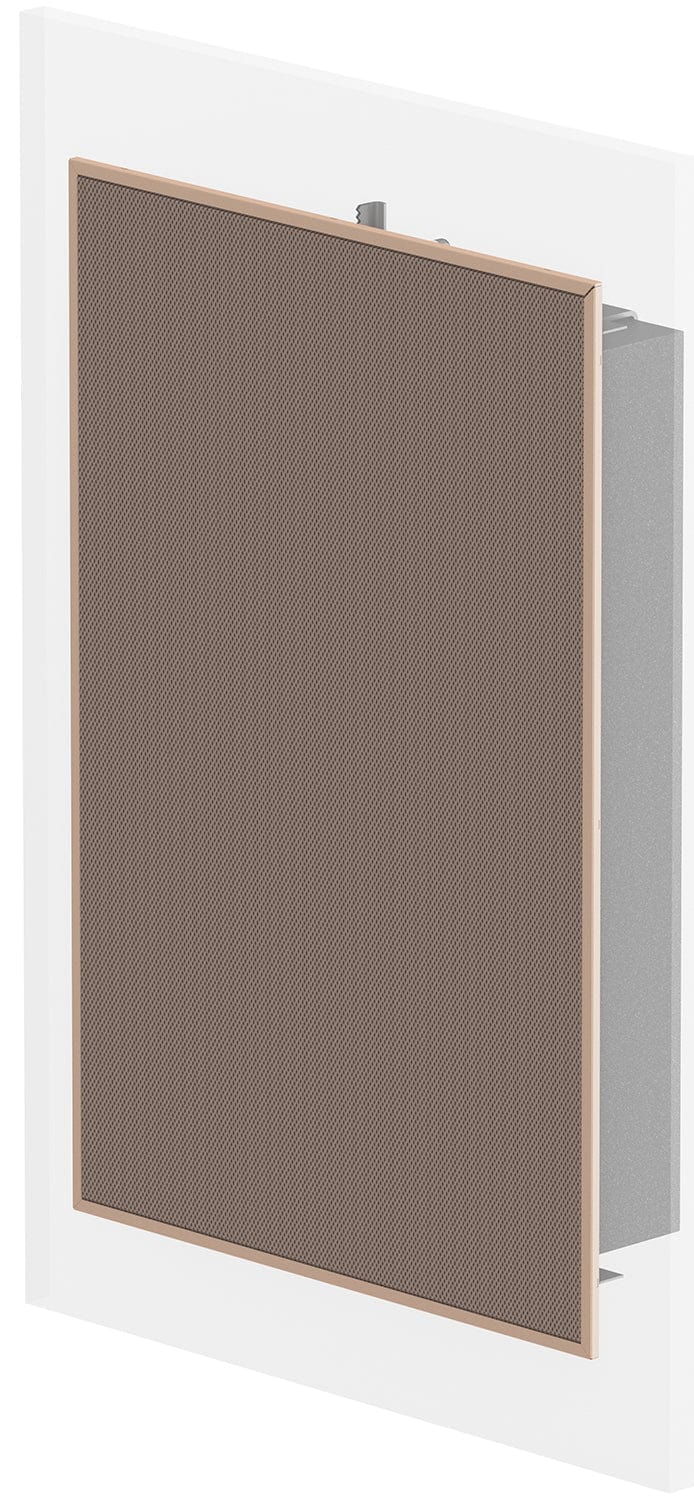

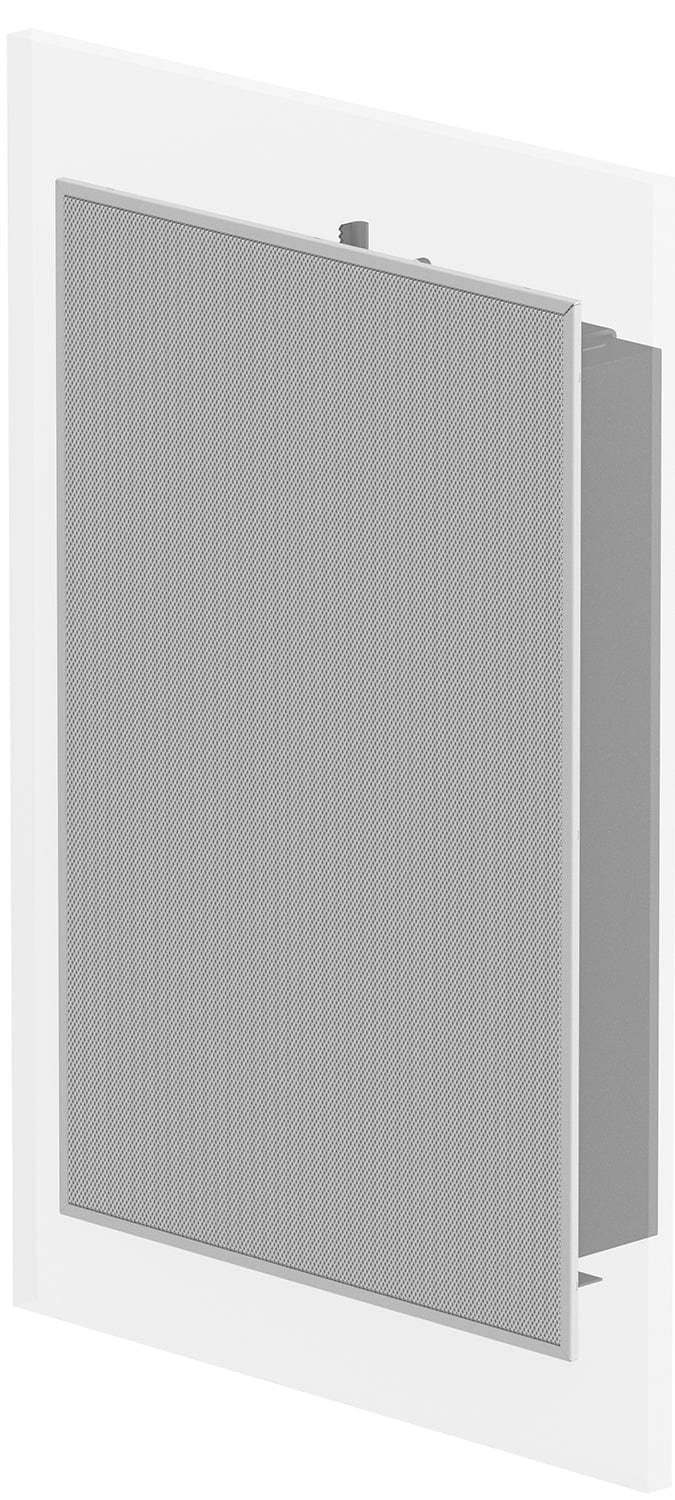

Get immersive bass with this ultra-shallow passive subwoofer! It features two 6.5-inch transducers in a bass-reflex enclosure with laminar vents for great LF efficiency. The cabinet is made of premium Baltic beech and birch plywood. The transducer front is protected by a coated steel grill and an acoustically transparent fabric. Dedicated accessories offer various mounting options like on-wall, on-ceiling, in-wall, and in-ceiling. The inserts and connectors are all on one enclosure panel. It's exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Features:

• • Ultra-thin design for easy wall installation (less than 10 cm / 4 in)
• • Among the most powerful ultracompact subwoofers out there
• • Clear low-frequency power with L-VENTS

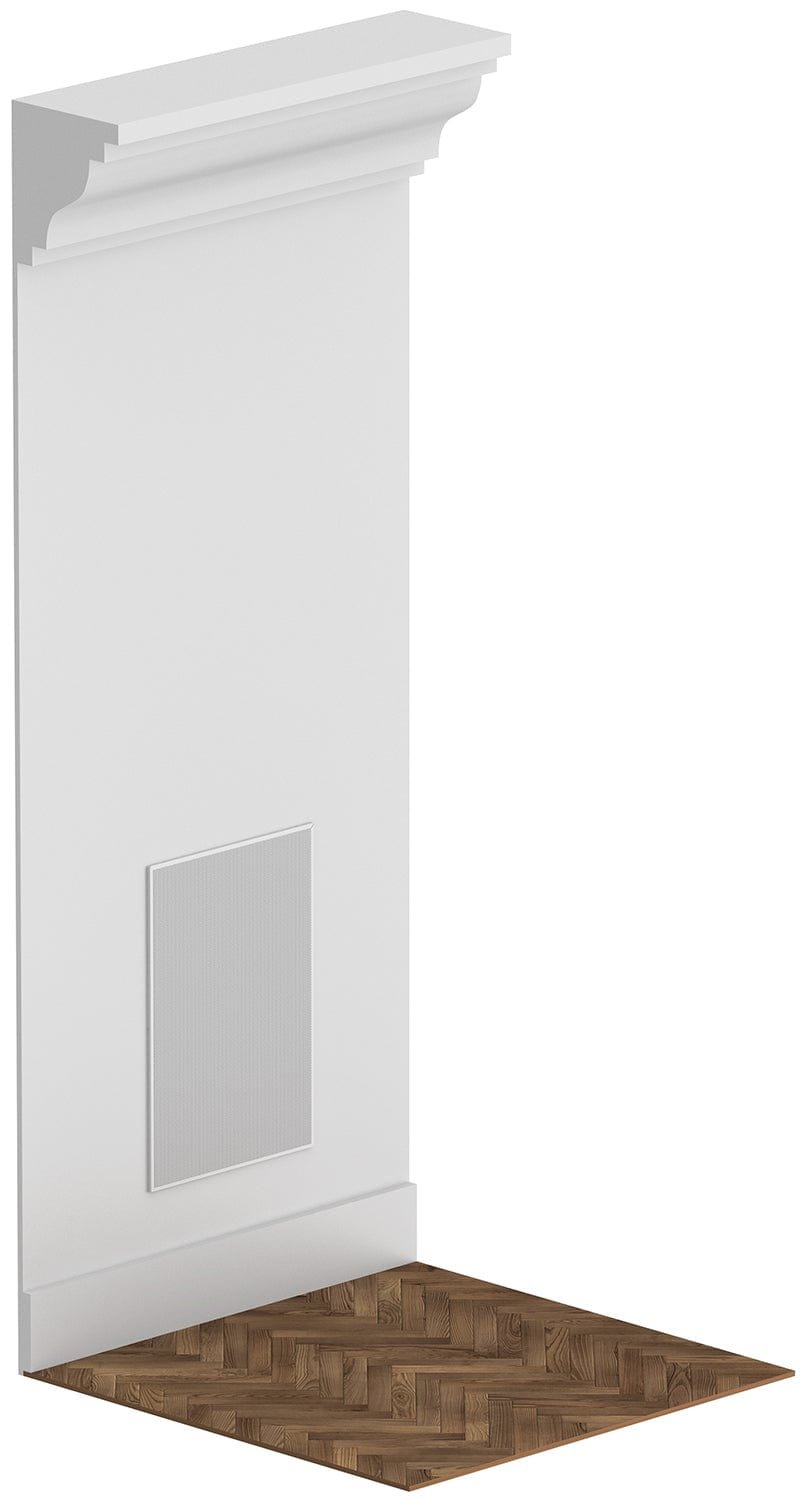

• • Designed to blend seamlessly into any venue decor

Specifications:

• Coverage:
  • Enclosure directivity: standard (omnidirectional)
• Transducers:
  • LF transducers: 2 x 6.5' neodymium cone driver
• Acoustics:
  • Nominal impedance: 4 Ω
• Usable bandwidth:
  • Preset 1: 29 - 107 Hz (-10 dB), 32 – 90 Hz (-6 dB), 34 – 75 Hz (-3 dB)
  • Preset 2: 29 - 150 Hz (-10 dB), 31 – 120 Hz (-6 dB), 35 - 100 Hz (-3 dB)
  • Preset 3: 32 - 300 Hz (-10 dB), 35 - 250 Hz (-6 dB), 40 - 200 Hz (-3 dB)
• RMS power handling (calculated using the mean impedance measured on the usable bandwidth): 85 W
• Maximum SPL (peak level at 1 m under half space conditions using pink noise with crest factor 4):
  • Preset 1: 112 dB
  • Preset 2: 113 dB
  • Preset 3: 117 dB
• Physical data:
  • Acoustical load: bass-reflex
  • Cabinet: premium grade Baltic beech and birch plywood
  • Finish: Dark grey brown Pantone 426 C
  • Dimensions (W, H, D): 360 mm, 532 mm, 99 mm / 14.2 in, 20.9 in, 3.9 in
  • Weight (net): 9 kg / 20 lb
  • Connectors: 1 × 4-point terminal block with push-in connection
  • IP: IP55

This L-Acoustics SB6r-InWall subwoofer is perfect for venues like theaters, clubs, and auditoriums. It's great for audio engineers, installers, and anyone looking to enhance their sound system. With dimensions of 360 mm (W) x 532 mm (H) x 99 mm (D) and a net weight of 9 kg, it's easy to install. The subwoofer offers three preset options for different frequency ranges and maximum SPL levels. It has a bass-reflex enclosure, two 6.5-inch neodymium cone drivers, and a nominal impedance of 4 ohms.
