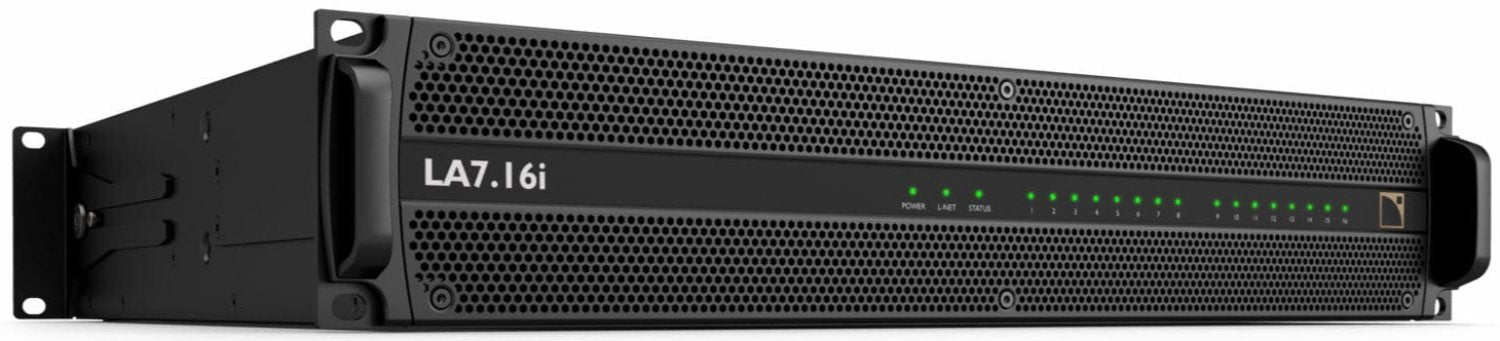

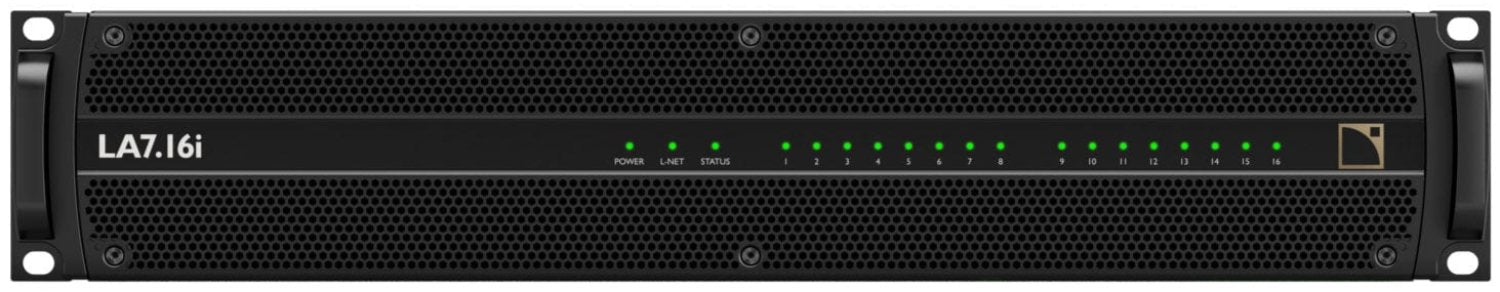

L-Acoustics LA7-16I-US Install Amplified Controller - 16x 1300 Watt at 8 Ohms - US Version

L-Acoustics LA7-16I-US: The Ultimate Install Amplified Controller for Stunning Sound

Upgrade your sound system with the LA7.16i! This 16-channel amplified controller is perfect for permanent installations. It features L-SMART power management technology for dynamic matching of your loudspeaker system's real-time needs. • Ideal for multichannel setups, distributed systems, or line sources • Streamlined 2U chassis houses a powerful DSP engine • Supports AVB inputs, AES/EBU, and analog connections

SPECIFICATIONS

• Amplification and power supply
• Output power, all channels loaded
• Peak output power 12 dB Crest Factor, sine burst, 1 kHz, 2 ms
• 16 channels at 4 Ω: 1100 W
• 16 channels at 8 Ω: 1300 W
• 16 channels at 16 Ω: 700 W
• Output power, CEA-2006 / 490A, sine burst, 1 kHz, 20 ms, < 1 % THD
• 16 channels at 4 Ω: 1000 W
• 16 channels at 8 Ω: 920 W
• 16 channels at 16 Ω: 580 W
• Amplification class
• High efficiency class D
• Power supply model
• Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
• External DSP backup voltage input
• 24 V DC (+/- 15%) 0.8 A
• Mains rating
• 100 V - 240 V ~ ±10%, 50-60 Hz
• Audio specifications
• Frequency response (20 Hz - 20 kHz, 8 Ω load, 60 W output power
• ± 0.05 dB
• Distortion THD+N (20 Hz - 20 kHz, 8 Ω load, 60 W output power)
• < 0.1%
• Output dynamic range (20 Hz - 20 kHz, 8 Ω, A-weighted, Digital input)
• > 119 dB
• Noise level (20 Hz - 20 kHz, 8 Ω, A-weighted, Digital input)
• < - 79 dBV
• DSP
• Digital Signal Processor (DSP)
• Gen.5 Dual SHARC 32-bit, floating point, 96 kHz sampling rate
• I/O routing
• 16 x 16 routing and summation matrix
• Per output channel
• Built-in EQ station with 8 IIR, 4 FIR EQ filters
• Array morphing (LF contour, zoom factor), Air absorption compensation filters
• Internal IIR and FIR EQ algorithms for speaker phase linearization and improved impulse responses
• Output delay from 0 to 1000 ms
• Technologies
• Loudspeaker Management
• L-DRIVE advanced system protection (excursion, temperature and over-voltage)
• Power Management
• L-SMART adaptive power management
• Circuits protection
• Mains and power supply
• Over and under voltage / over temperature / overcurrent / inrush current protection
• Power outputs
• Over current limiting / DC / short circuit / over temperature

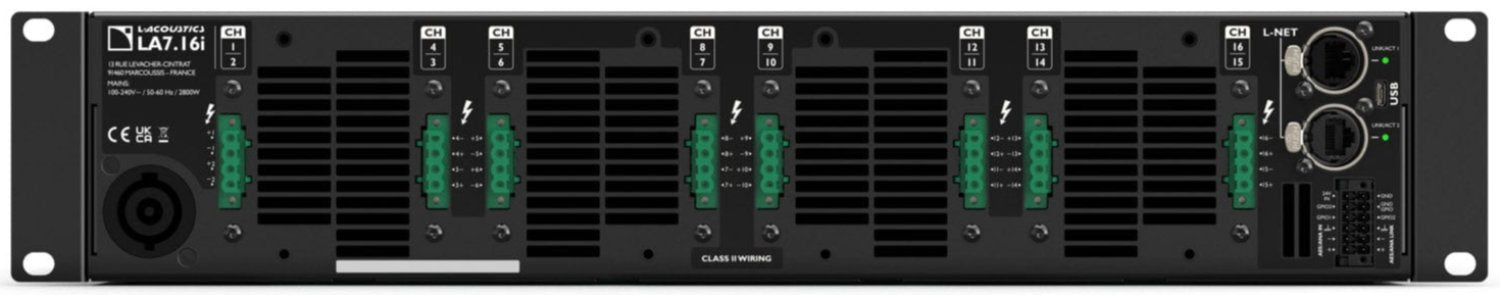

• Inputs / Outputs
• AVB input with support of Milan seamless dual networking
• 16 channels 48kHz / 96 kHz from 16 streams of up to 8 channels
• Alternative network protocols
• AES67 - ready (with a future firmware update)
• AES/EBU input (shared connectors with Analog)
• 2 channels (1 x AES/EBU, 44.1 - 192 kHz sampling rate) With active link and bypass relay
• Analog input (shared connectors with AES/EBU)
• 1 channel, link output
• Loudspeaker output
• 8 female 4-point terminal blocks
• Control and monitoring
• Network connection
• Dual-port Ethernet Gigabit interface etherCONTM I/O
• General Purpose Inputs / Outputs (GPIO)
• 3 GPIO, isolated optocoupler inputs, isolated relays contacts
• Third-party control solutions
• Q-SYS / Crestron
• Operating conditions
• Temperature
• Room temperature from -5o C / 23o F to +50o C / 122o F
• Physical data
• Dimensions W x H x D
• 483 x 88 (2U) x 411 mm / 19 x 3.5 (2U) x 16.2 in
• Weight
• 14.5 kg / 32 lb

The L-Acoustics LA7-16I-US Install Amplified Controller is a must-have for those looking to enhance their sound systems. Ideal for professional installers and audio enthusiasts, this controller offers seamless integration and powerful performance. With its compact 483 x 88 (2U) x 411 mm / 19 x 3.5 (2U) x 16.2 in design and 14.5 kg / 32 lb weight, it's easy to install and manage. Enjoy crystal-clear sound with its high-quality audio specifications and advanced DSP technology.
