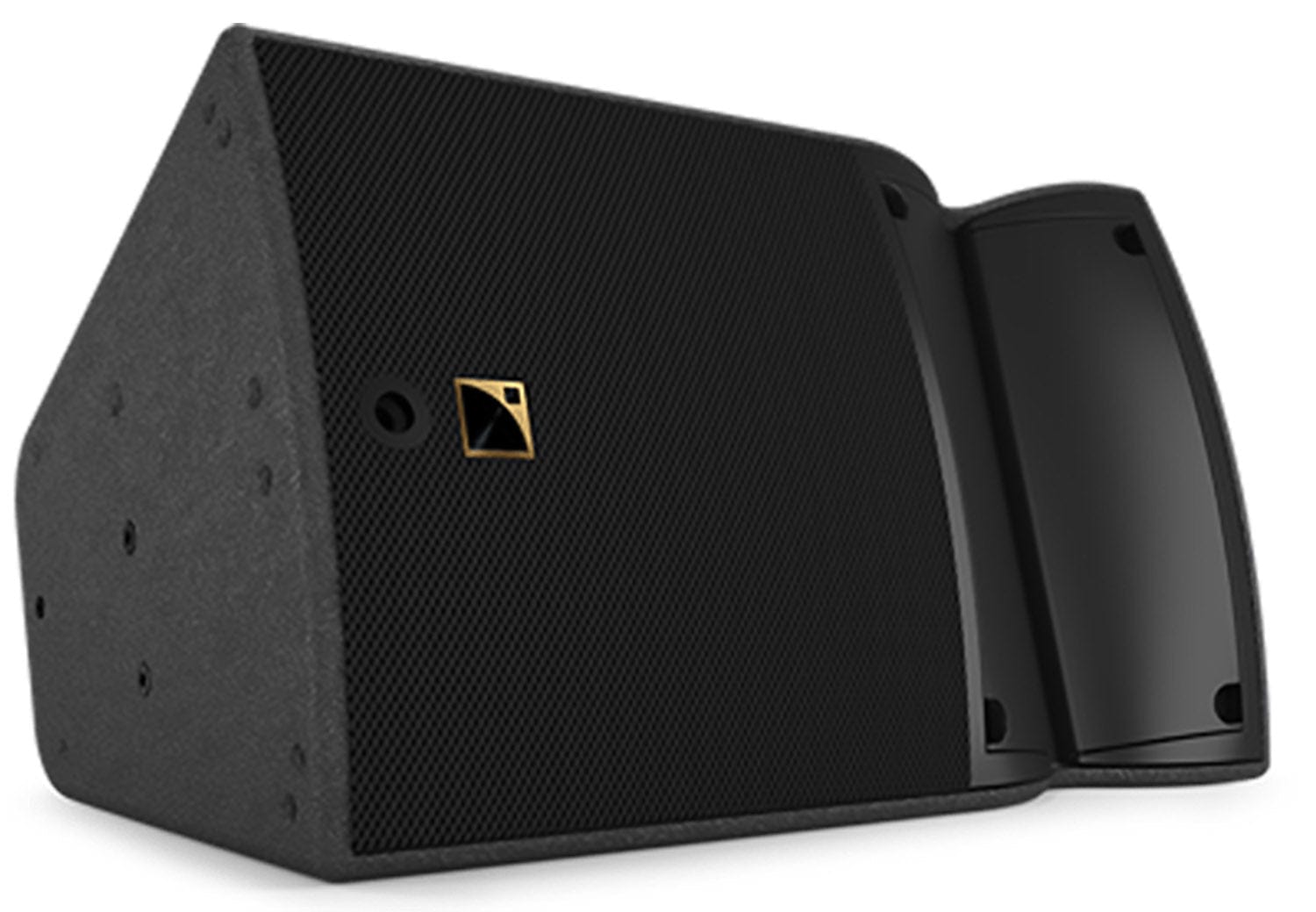

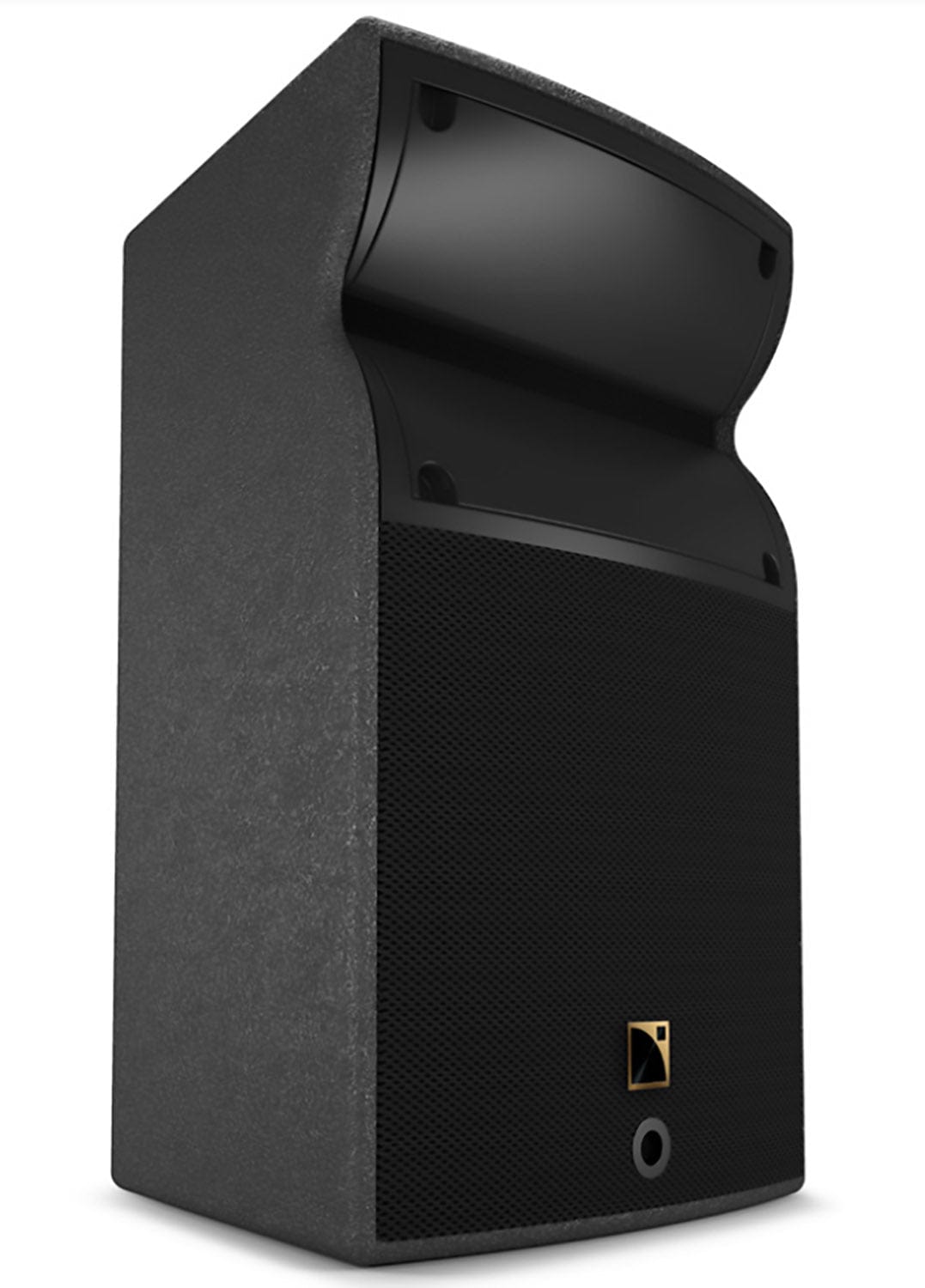

L-Acoustics A10i WIDE 10-Inch 2-Way Passive Speaker - Installation Version

L-Acoustics A10i WIDE 10-Inch 2-Way Passive Speaker - The Ultimate Installation Solution

Discover the A10i Wide, the installation version of the A10 Wide, perfect for medium throw installation applications. It offers sleek design, streamlined mounting hardware, and identical sonic performance to its touring counterpart.

Key Features:

• • Compact 30° enclosure for expansive coverage and preserved sightlines
• • Panflex for adaptable directivity and stable frequency response
• • Versatile for various applications like mains, fills, and delays

The A10i Wide is a discreet and compact solution with a wide range of install-specific accessories. Ideal for theaters, houses of worship, clubs, educational facilities, and sports venues.

SPECIFICATIONS

• Description
• 2-way passive constant curvature WST 30°, amplified by LA2Xi2 / LA4X / LA8 / LA12X
• Usable bandwidth (-10 dB)
• 67 Hz - 20 kHz ([A10i])
• Maximum SPL[1],[2]
• 137 dB ([A10i])
• Nominal directivity
• Enclosure: 30°
• L-Fins: 70° / 110° symmetric or 90° asymmetric
• Transducers
• LF: 1 × 10'' cone driver
• HF: 1 × 2.5'' diaphragm neodymium compression driver
• Acoustical load
• LF: bass-reflex, L-Vents
• HF: DOSC waveguide, L-Fins
• Nominal impedance
• 8 Ω
• Connectors
• 4-point terminal block with push-in connection
• Connector sealing plate with cable gland
• Rigging and handling
• external rigging kits
• M6 inserts for rigging plates and accessories
• M8 inserts for A-U10i
• Safety
• 1 DIN580-compatible M8 threaded insert
• Weight (net)
• 18 kg / 40 lb
• Cabinet
• Premium grade Baltic beech and birch plywood
• Front
• Coated steel grill
• Acoustically neutral 3D fabric
• Finish
• Dark grey brown Pantone 426 C
• Pure white RAL 9010
• Custom RAL code on special order
• IP
• IP55

[1] Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

[2] For Max SPL values using LA2Xi, refer to LA2Xi system specification sheet.

The L-Acoustics A10i WIDE 10-Inch 2-Way Passive Speaker is designed for medium throw installation applications. It's great for theaters, houses of worship, clubs, educational facilities, and sports venues. The speaker weighs 18 kg (40 lb). With its 30° enclosure, it provides expansive coverage while preserving sightlines. It can be used for mains, fills, or delays, and has a wide range of accessories for easy integration.
