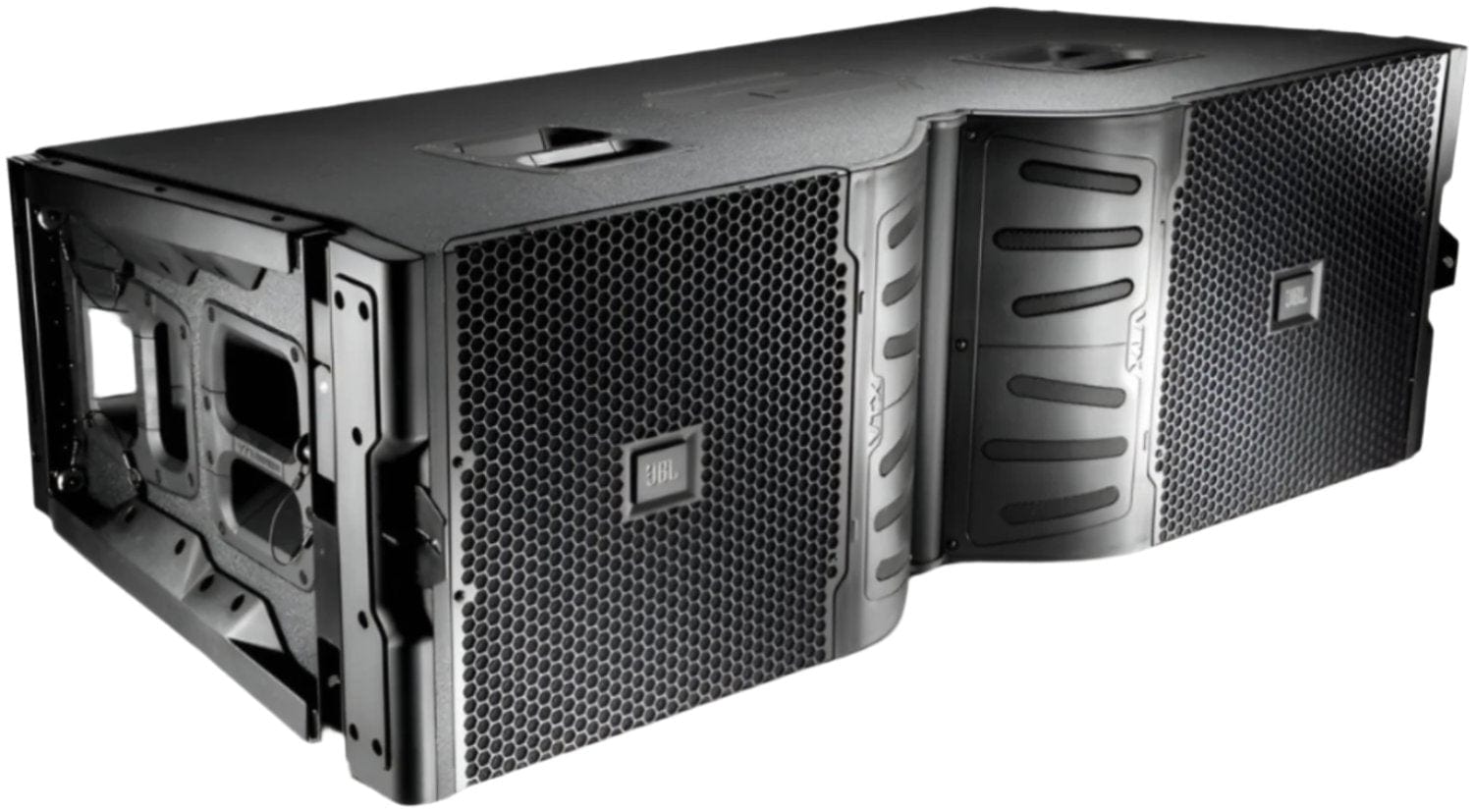

JBL VTX-V25-II Dual 15-Inch Line Array Speaker - Powerful and Versatile Sound Solution
The JBL VTX-V25-II is a top-notch 3-way high-directivity line array speaker that's perfect for delivering exceptional sound in various settings. With its new 4th generation waveguide, it offers improved long throw performance and wavefront control. It's also an excellent power match for the Crown IT4x3500HD.
Features:
- • New 4th Generation HF Waveguide technology for enhanced performance
- • Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver for outstanding sound
- • JBL's patented RBI (Radiation Boundary Integrator ) for precise sound projection
Specifications:
- System Type: Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
- Frequency Range: (-10dB): 35Hz - 18 kHz (Preset: VTX V25-II)
- Horizontal Coverage: (-6 dB): 90 degrees nominal (200 Hz - 16 kHz)
- Maximum Peak Output:
- LF: 141 dB
- MF: 140.5 dB
- HF: 149.5 dB
- System Amplification: Crown Audio I-Tech HD
- Nominal Impedance:
- LF: 2x 8 ohms
- MF: 8 ohms
- HF: 8 ohms

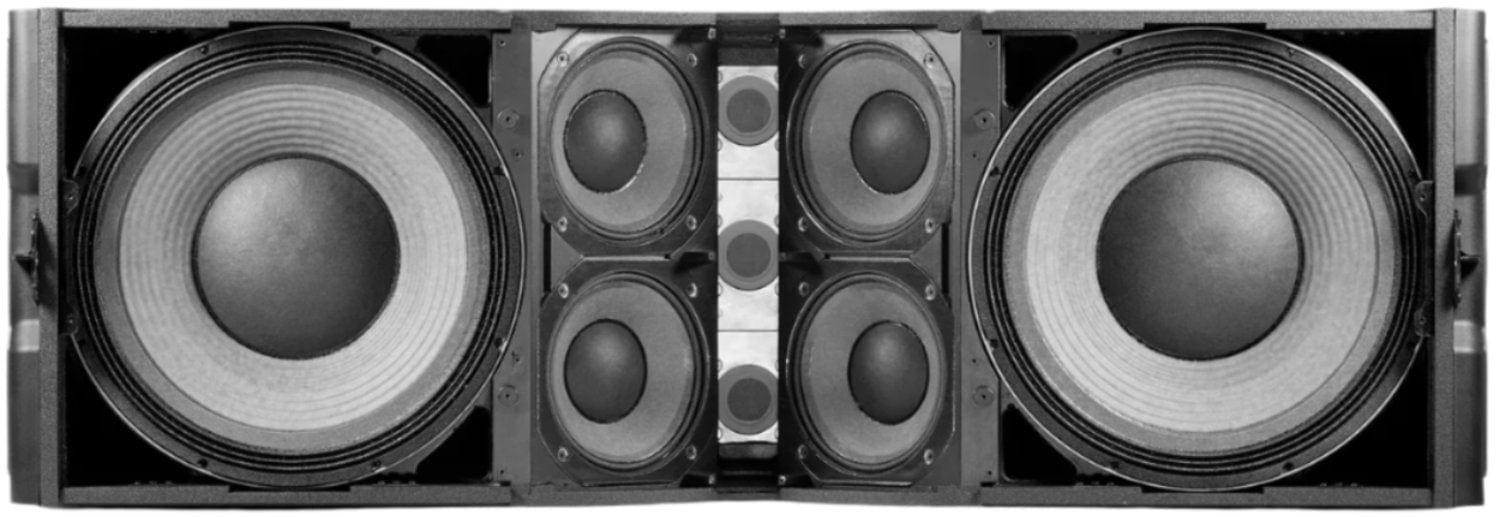

- LF Driver: (2) JBL 2267H 15-inch woofer
- MF Driver: (4) JBL 2168H 8-inch mid-frequency driver
- HF Driver: (3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver

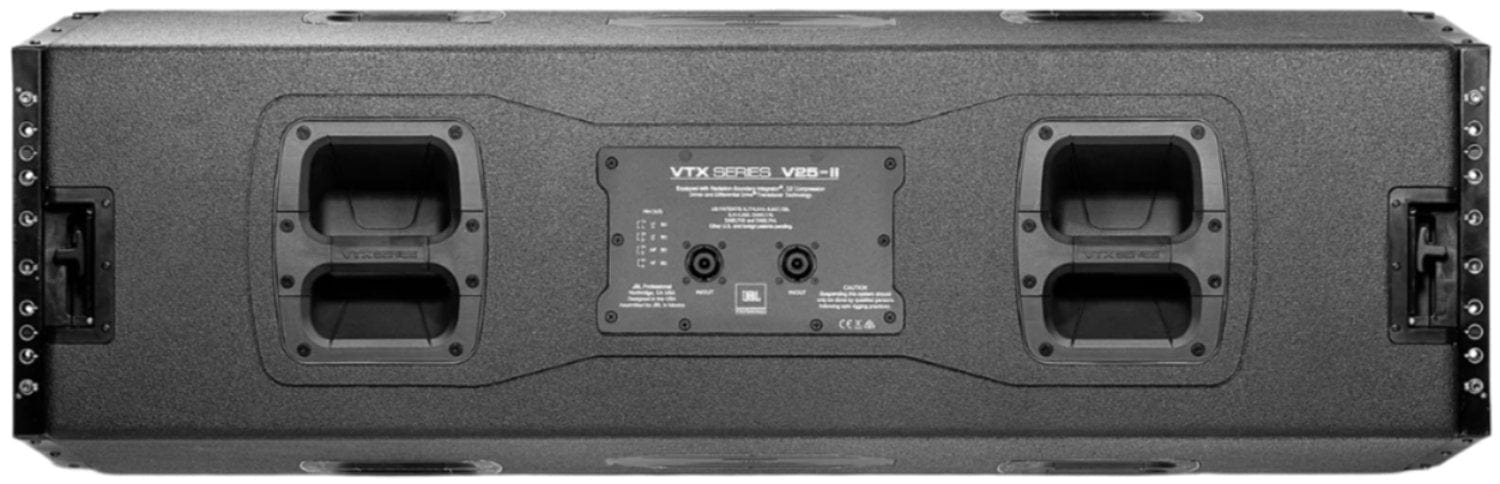

- Enclosure: Cast aluminum front baffle, Finnish birch plywood, black DuraFlex finish; four integral recessed handles
- Inter-enclosure Angle: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
- Dimensions (H x W x D): 414 mm x 1223 mm x 614 mm (16.3 in x 48.2 in x 24.2 in)
- Net Weight (each): 82.6 kg (182 lb)
The JBL VTX-V25-II is perfect for live events, concerts, and large venues. It's designed for sound engineers, event organizers, and anyone who needs high-quality sound. With dimensions of 414 mm x 1223 mm x 614 mm and a net weight of 82.6 kg, it's easy to transport and set up.
