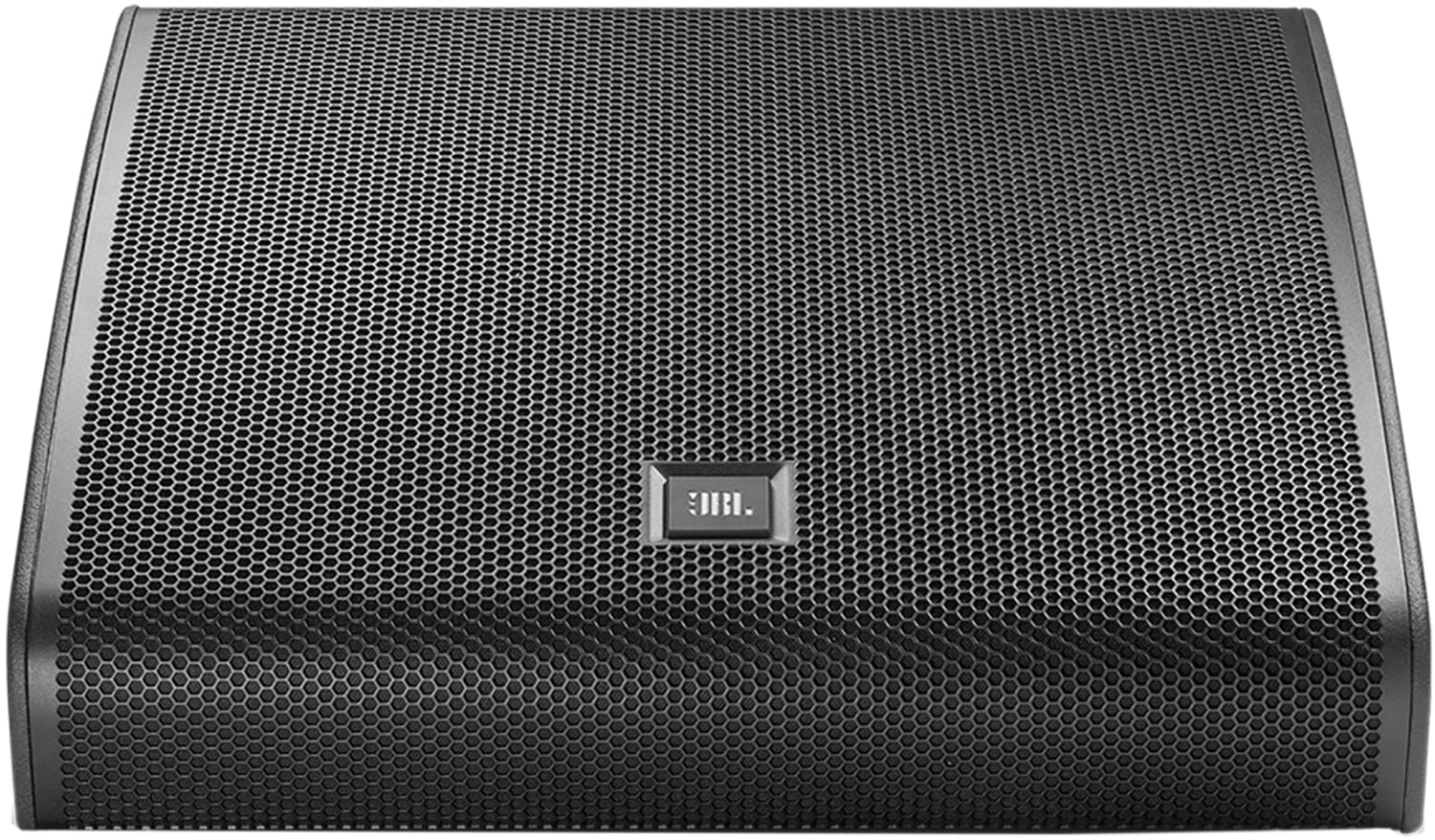

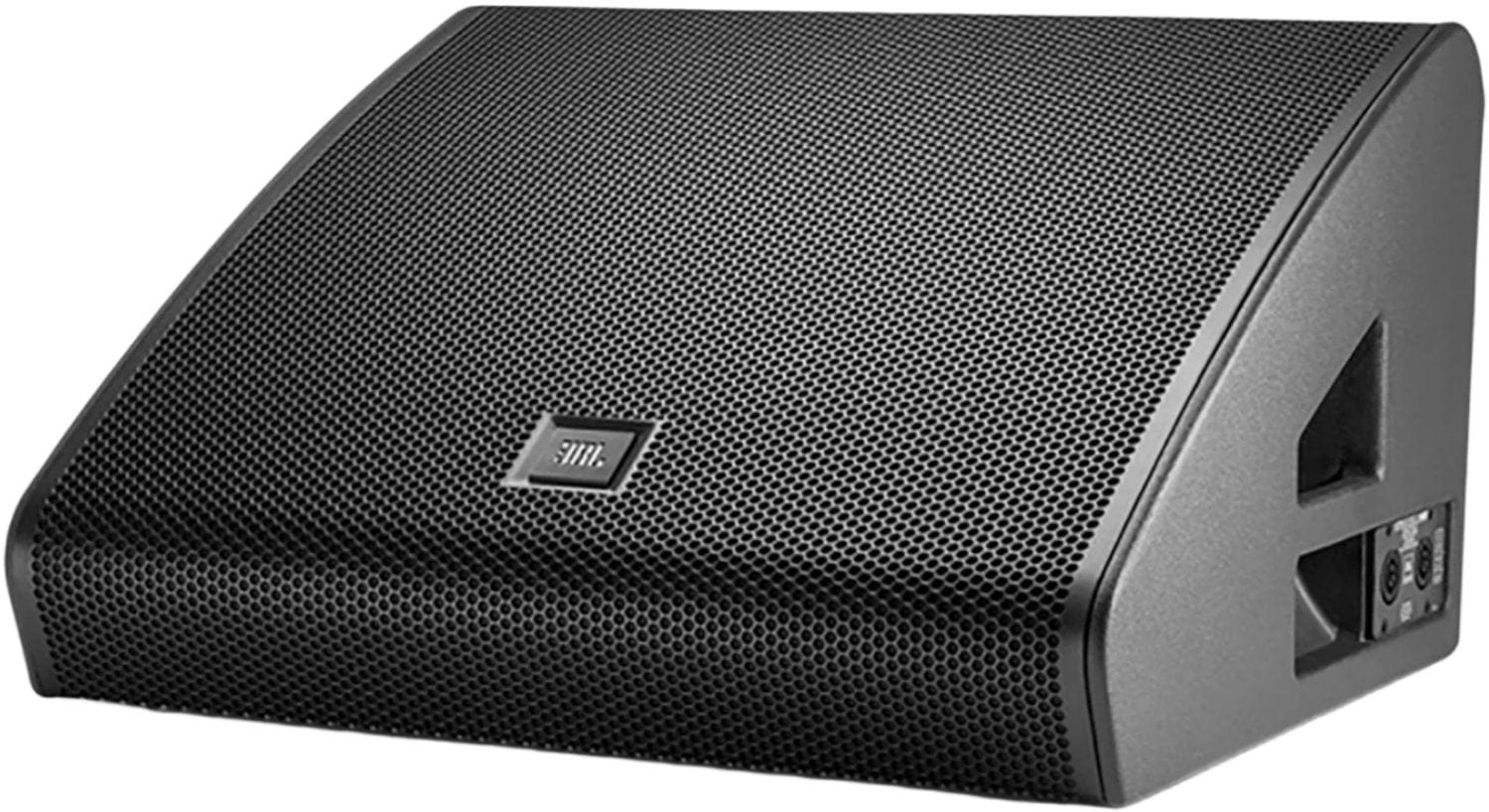

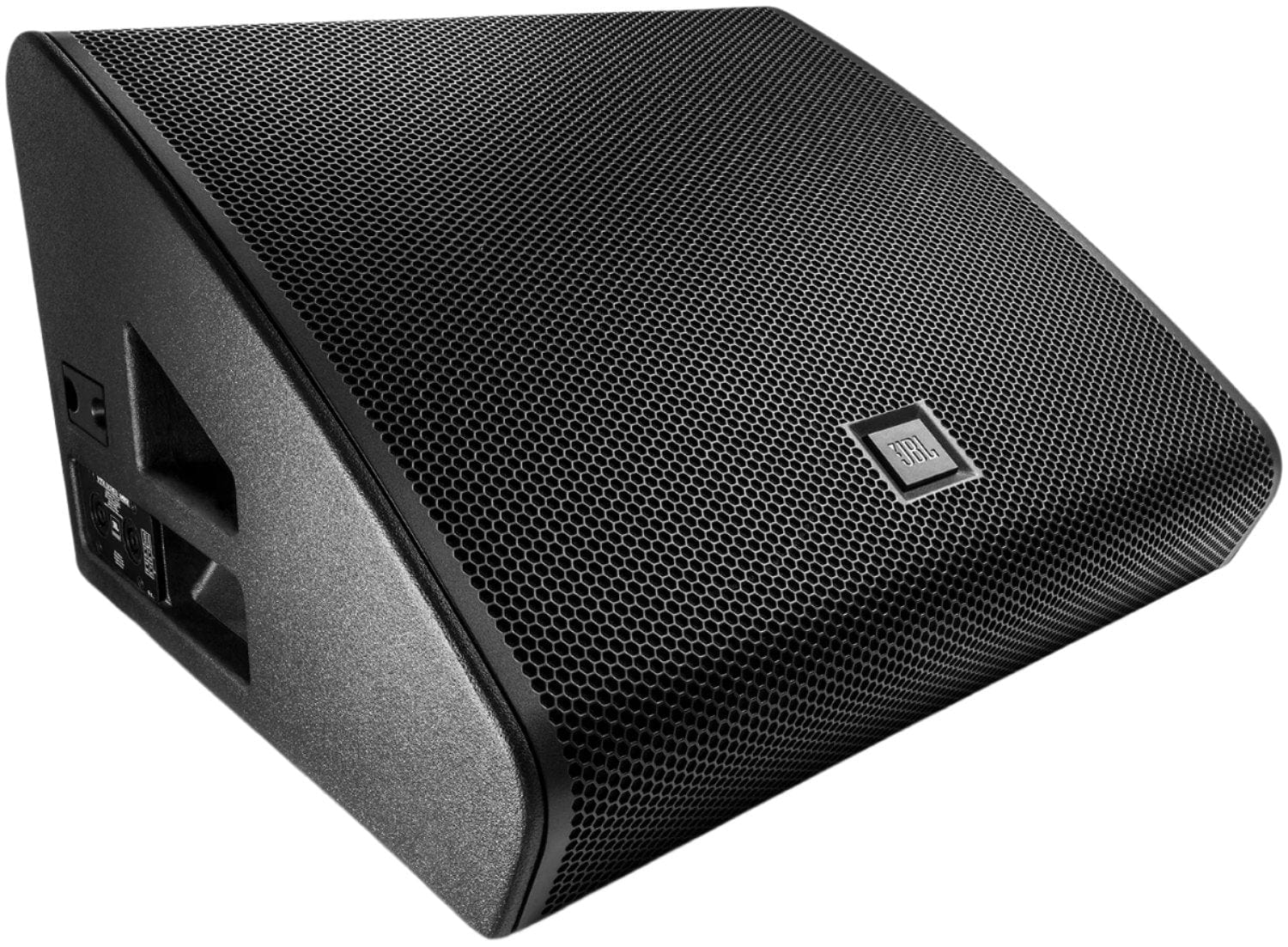

JBL VTX-M22 Dual 12-Inch Stage Monitor: The Ultimate Sound Companion for High-Profile Events
Get ready to elevate your stage performances with the JBL VTX-M22 dual 12' professional stage monitor. This monitor is a game-changer, offering exceptional sound quality and versatility. Here's why:
- High-Performance Transducers: Equipped with a high-performance differential drive woofer and the large-format D2 dual-diaphragm dual voice-coil high-frequency driver, the JBL VTX-M22 delivers powerful and precise sound.
- Flexible Operation Modes: Choose between Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes to suit your application. With no compromise in output power or performance, you can configure the system to meet your specific needs.
- Advanced Waveguide Technology: The VTX M Series HF waveguide features Image Control Waveguide Technology, providing a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. This ensures clear and consistent sound projection.
In addition to its outstanding features, the JBL VTX-M22 is enclosed in a modern, low-profile design that is lightweight, ergonomic, and ready for even the most high-profile concerts or broadcast events. And because it's part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.
Features:
- Elegant, low-profile, compact design suitable for touring and high-profile broadcast applications
- State-of-the-art JBL transducers, including Differential Drive cone transducers and D2 dual diaphragm dual voice coil compression driver
- 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Specifications:
- Frequency Range (-10 dB): 45 Hz - 19.5 kHz
- Coverage Pattern (-6 dB): Horizontal: 60; Vertical: 60
- System Input Power Rating: Passive: 1500 W Continuous (IEC / 100 hour); Active: LF: 1500 W Continuous (IEC / 100 hour); HF: 100 W Continuous (IEC / 100 hour)
- Maximum Peak Output: 138 dB (Preset: VTX M22 FR)
- System Latency: 3.33ms
- System Processing: Crown Audio I-Tech HD Series; Crown Audio I-Tech 4x3500HD
- System Impedance: Passive: 4 ohms; Active: LF: 4 ohms, HF: 8 ohms

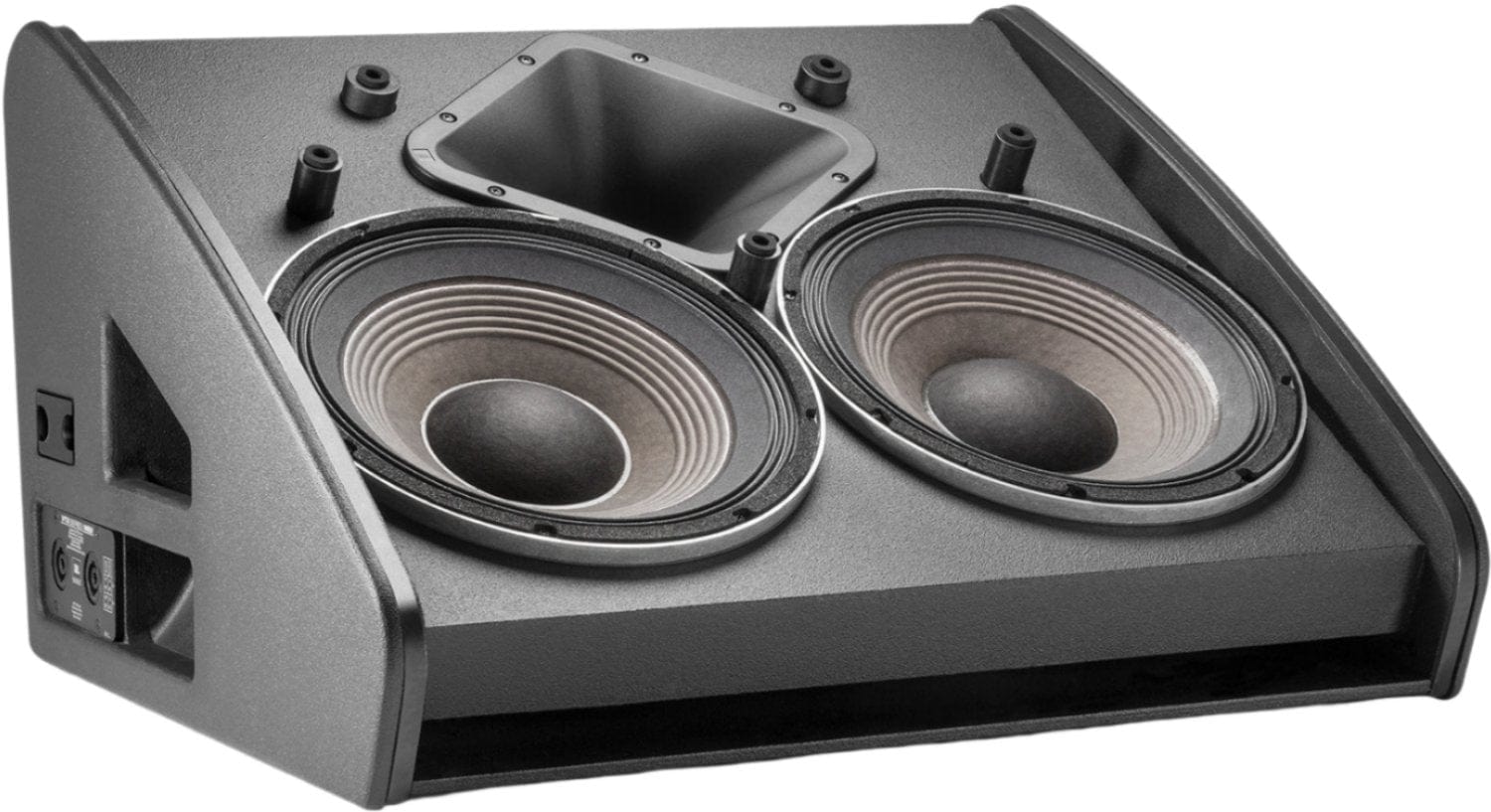

- Low Frequency Transducer: 2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled
- High Frequency Transducer: 1 x D2430H, D2 dual diaphragm, dual 76 mm (3 in) diameter voice coil
- Monitor Angle: 30 degrees
- Construction: 11-ply Finnish birch plywood
- Grille: Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

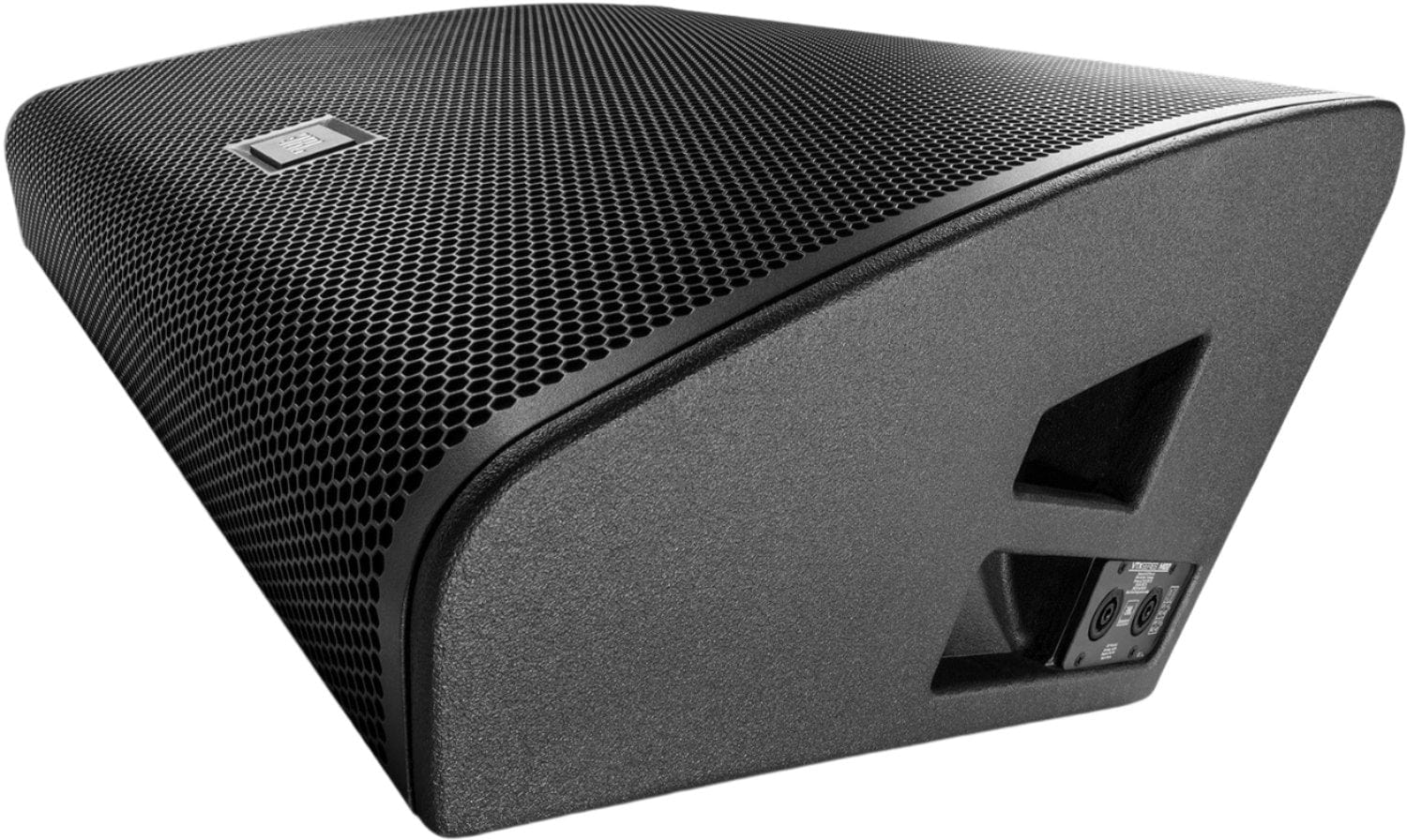

- Input Connectors: Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± ; Active: Neutrik Speakon NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
- Dimensions (H x W x D): 380.1 mm x 670.8 mm x 555.0 mm (15.0 in x 26.4 in x 21.8 in)
- Net Weight: 27 kg (60 lbs)
The JBL VTX-M22 is a professional stage monitor designed for touring and high-profile broadcast applications. Its modern, low-profile design makes it easy to transport and set up, while its high-performance transducers deliver exceptional sound quality. Here are the key features and specifications:• Dimensions: 380.1 mm x 670.8 mm x 555.0 mm (15.0 in x 26.4 in x 21.8 in)• Net Weight: 27 kg (60 lbs)• Frequency Range: 45 Hz - 19.5 kHzWhether you're a professional musician, sound engineer, or event organizer, the JBL VTX-M22 is the perfect choice for delivering high-quality sound on stage or in the studio.
