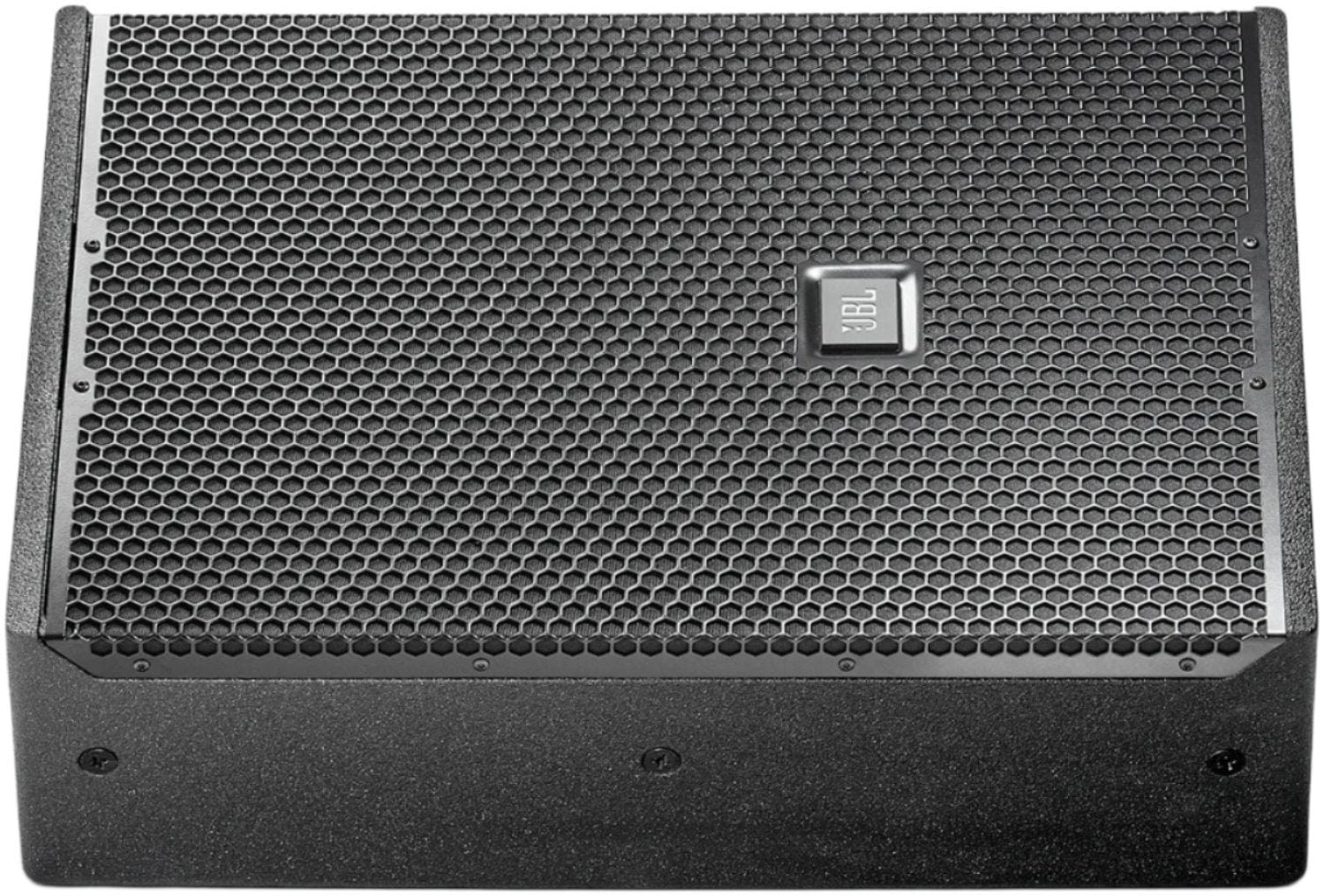

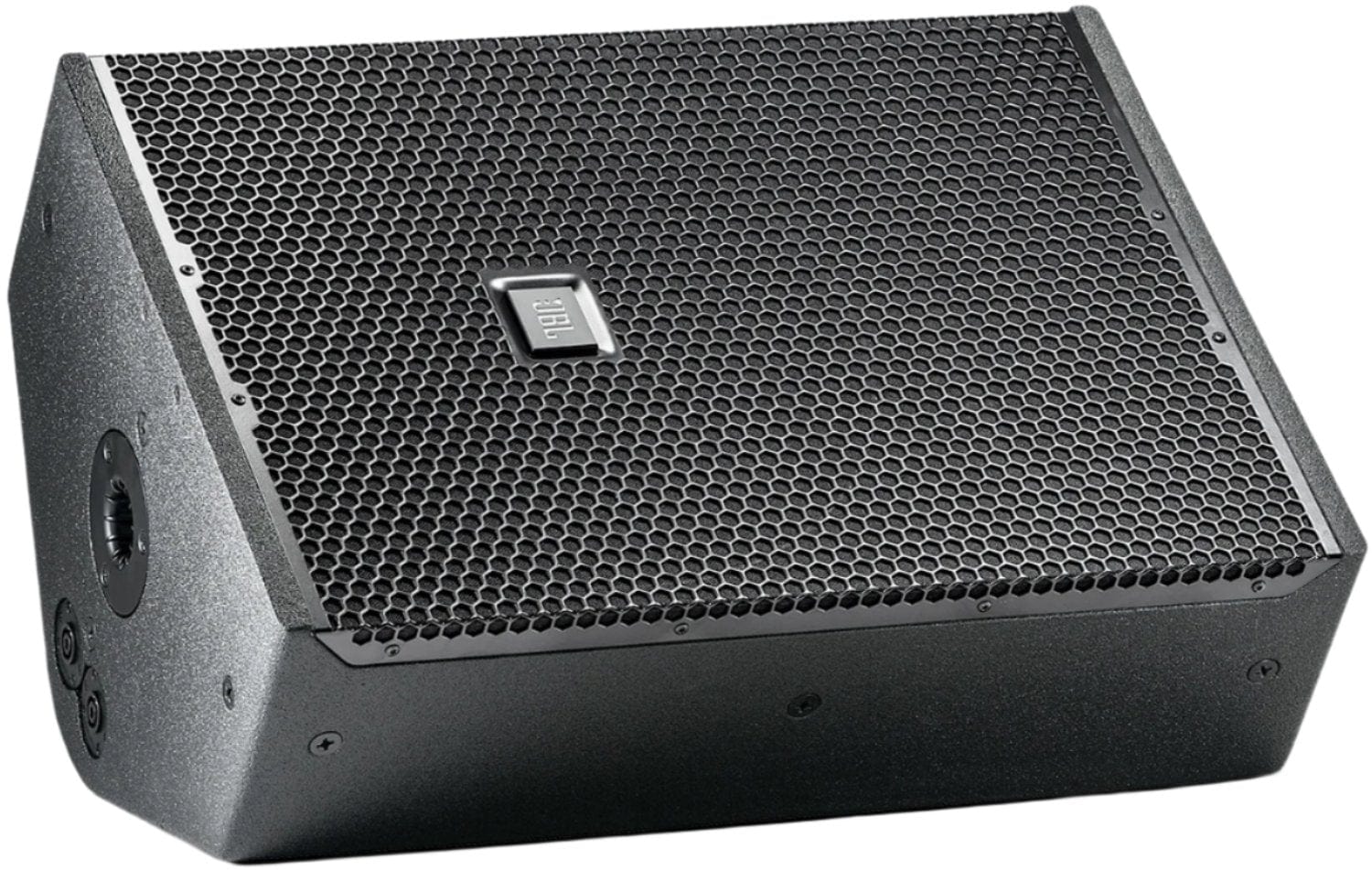

JBL VTX F15: The Ultimate 15-Inch Multi-Purpose Loudspeaker
Discover the JBL VTX F15, a game-changer in the world of sound. This multi-purpose loudspeaker is a must-have for sound production companies seeking top-notch audio solutions. Whether you need a stand-alone FOH system, a satellite and subwoofer setup, or a floor monitor, the VTX F15 delivers exceptional sound quality and flexibility.
Key Features:
- • High-quality sound production for immersive experiences
- • Versatile design for various audio setups
- • Advanced technology for optimal performance
Benefits:
- • Enjoy crystal-clear audio with the D2430K D2 Dual Diaphragm Dual Driver
- • Achieve precise coverage with the Progressive Transition Waveguide (90° x 50°)
- • Experience seamless integration with Crown ITechHD and Crown VRack
Specifications:

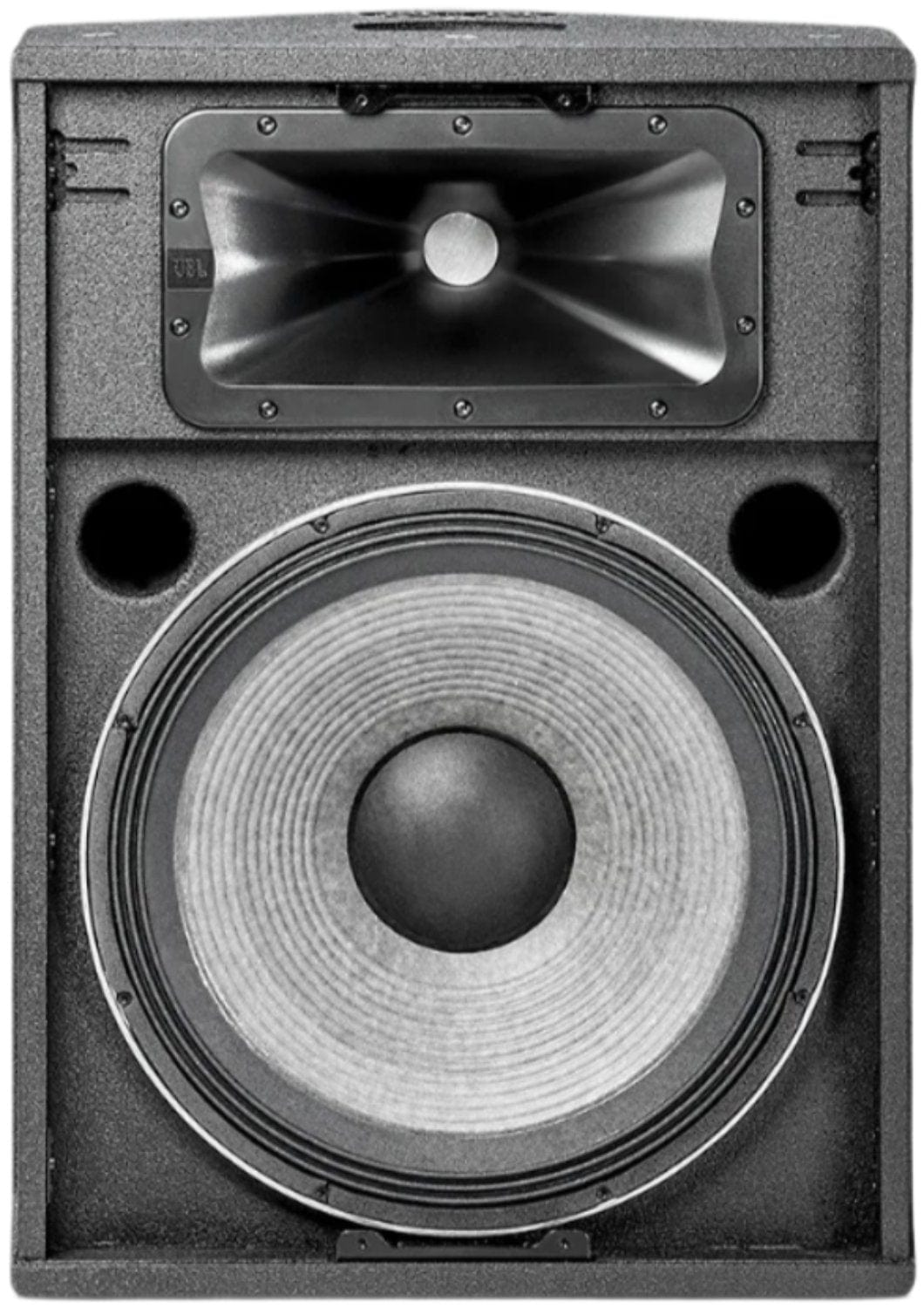

- System Type: 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive Woofer and D2 Dual Driver
- Components: 1 x 2265H 15' Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer; 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
- Coverage Pattern: 90 x 50 degrees
- Frequency Range (-10dB): 43 Hz - 21.5 kHz (short throw mode, free field); 42 Hz - 21.5 kHz (monitor mode, half-space)
- Frequency Response (±3 dB): 59 Hz - 20 kHz (short throw mode, free field); 58 Hz - 20 kHz (monitor mode, half-space)
- Sensitivity: 98 dB LF, 108 dB HF
- Nominal Impedance: LF = 8 ohms; HF = 20 ohms
- Transducer Power Rating (AES 2 hour): 1000W LF, 200W HF continuous; 4000W LF, 800W HF peak
- Dimensions (H x W x D): 640.1 mm x 457.2 mm x 327.7 mm (25.2 in x 18 in x 12.9 in)
- Net Weight (each): 22.9 kg (50.5 lbs)
- Maximum Peak Output: 134 dB (Preset: VTX F15 80)
- LF Driver: 1 x 15' Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer
- HF Driver: 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver

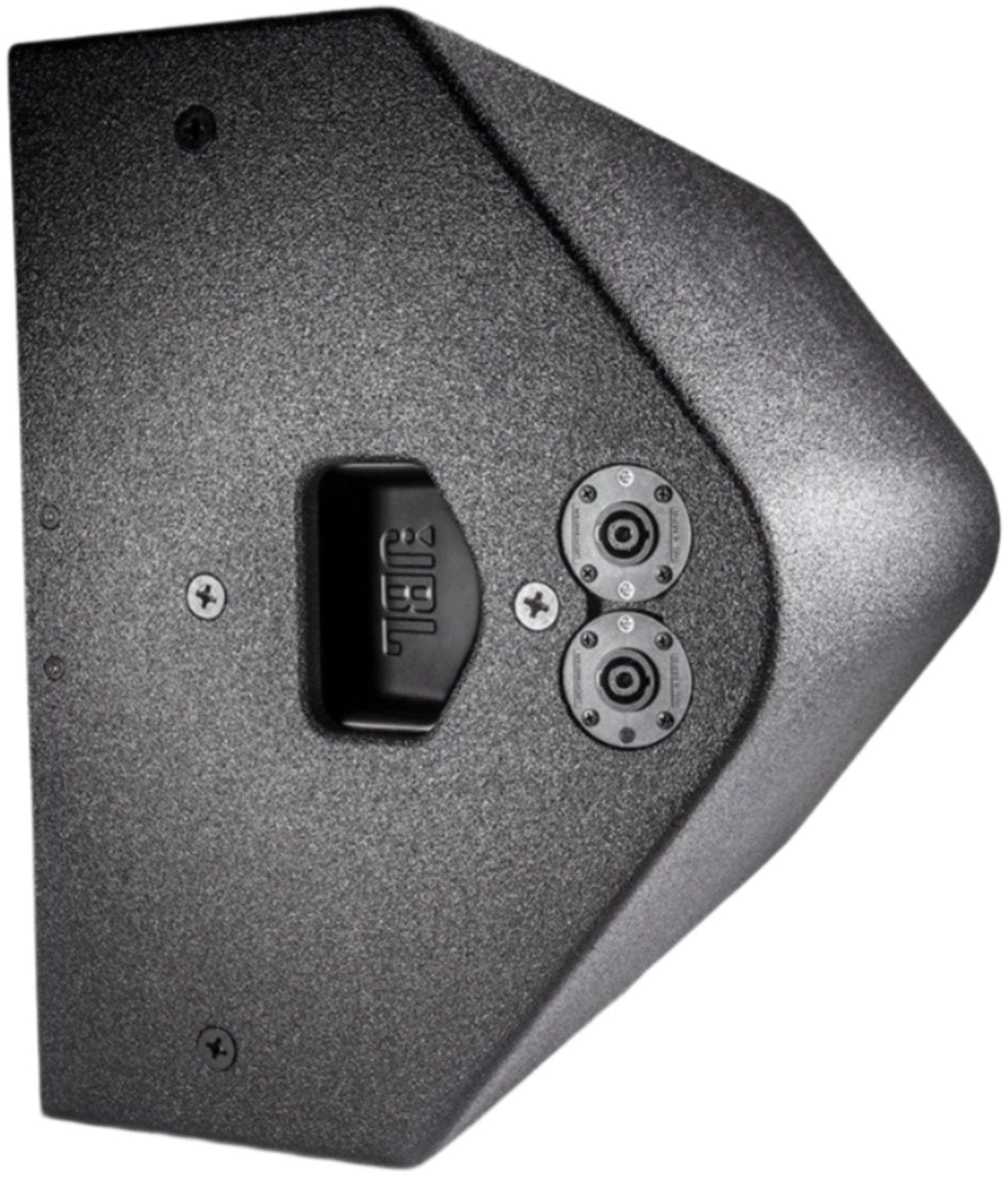

- Enclosure: Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex finish; integral recessed handle
- Suspension / Mounting: Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available
The JBL VTX F15 is a 15-inch multi-purpose loudspeaker designed for sound production companies. It can be used as a stand-alone FOH system, a satellite and subwoofer system, or an on-stage floor monitor. With dimensions of 640.1 mm x 457.2 mm x 327.7 mm (25.2 in x 18 in x 12.9 in) and a net weight of 22.9 kg (50.5 lbs), it offers flexibility and portability. The speaker features a 2-way premium multi-purpose design with a 15” Differential Drive Woofer and D2 Dual Driver, providing high-quality sound across a frequency range of 42 - 21.5 kHz (monitor mode, half-space) and 43 - 21.5 kHz (short throw mode, free field). Its coverage pattern of 90 x 50 degrees ensures wide and even sound distribution.
