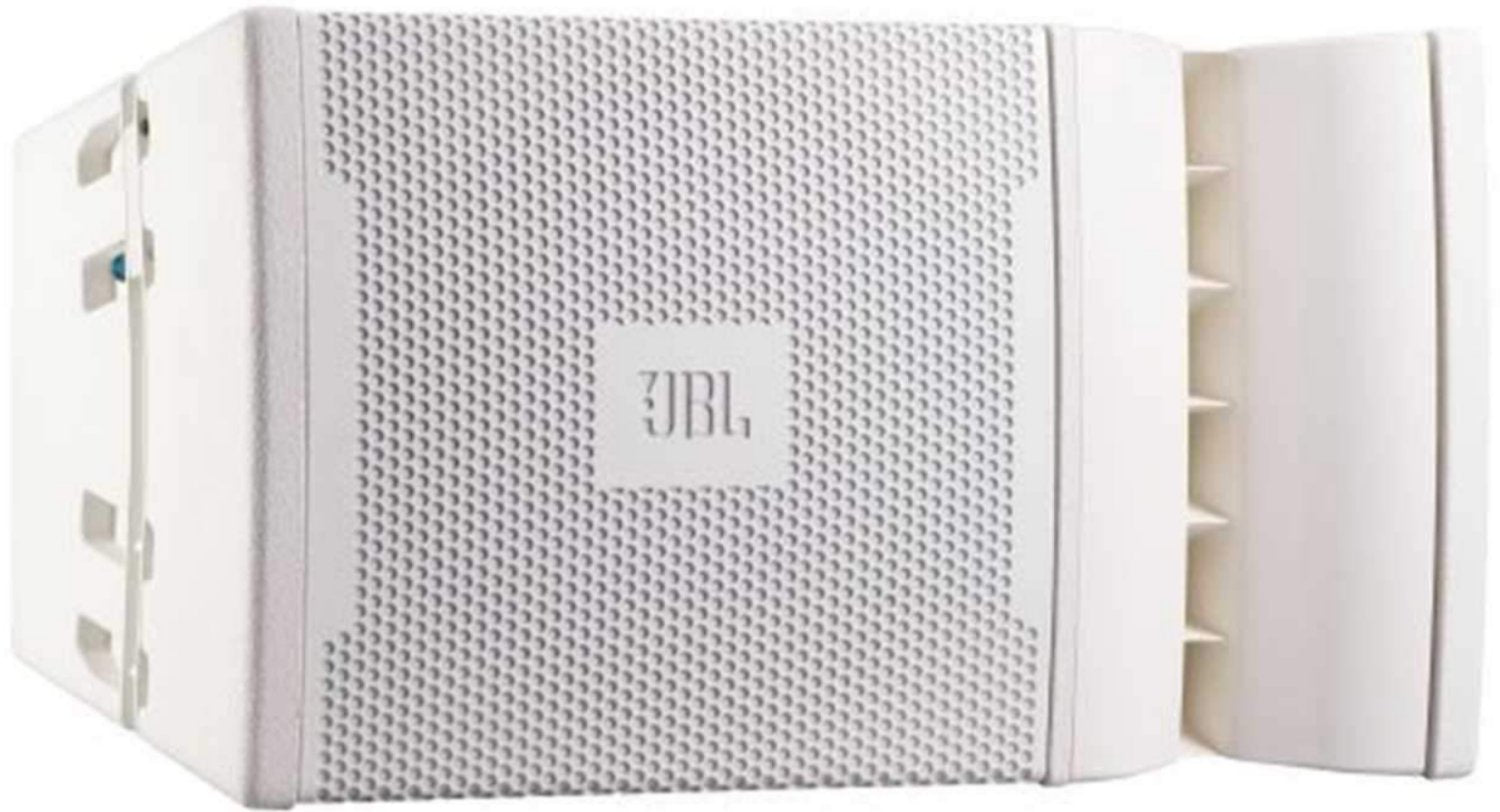

JBL VRX932LA-1WH 12' Line Array Speaker - The Ultimate Sound Solution
Discover the JBL VRX932LA-1WH, a lightweight (46 lb / 21 kg) compact 12' two-way line array speaker system perfect for arrays of up to six units. Ideal for live events and installations, this speaker delivers exceptional sound quality.
Features: - • High-power capacity and lightweight with JBL's exclusive neodymium magnet Differential Drive woofer.
- • 3 x 2408J Annular Ring Diaphragm HF drivers for top-notch sound.
- • Constant Curvature waveguide for enhanced array coherence.
Specifications: - Power Rating : 800 W / 1600 W / 3200 W
- Frequency Range : 57 Hz - 20 kHz (-10 dB)
- Dimensions (H x W x D) : 343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in)
- Frequency Response : 75 Hz - 20 Hz (+/-3db)
- Coverage Pattern : 100 x 15 nominal

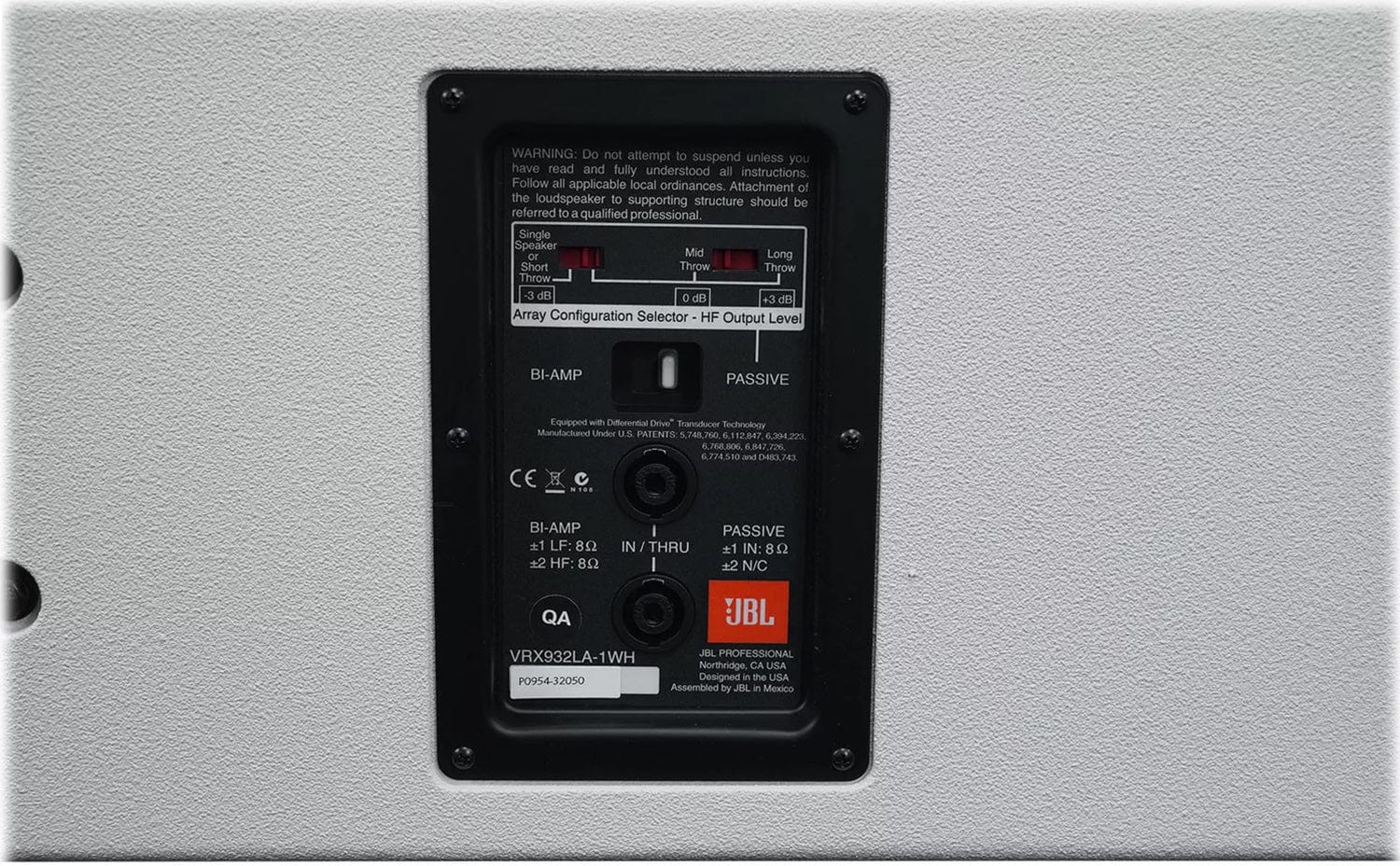

- Crossover Modes : Bi-amp / passive, externally switchable
- Crossover Frequency : 132 dB SPL peak 1.2 kHz
- System Maximum SPL : Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
- System Sensitivity (1w @ 1m) : Passive: 95 dB SPL, Bi-amp LF: 95 dB SPL, Bi-amp HF: 114 dB SPL
- LF Driver : 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
- HF Driver : 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
- Nominal Impedance : Passive: 8 ohm, Bi-amp LF: 8 ohm, Bi-amp HF: 8 ohm
- Enclosure : 18 mm, 11-ply birch plywood
- Suspension / Mounting : Optional VRX932LA-AF line array frame kit
- Finish : Black DuraFlex finish
- Grille : Power coated, black, 16-guage perforated steel with with acoustically transparent foam
- Input Connectors : Neutrik Speakon NL-4 (x2)
- Net Weight : 21 kg (46 lb)
The JBL VRX932LA-1WH 12' Line Array Speaker is designed for live events and installations. It's lightweight, weighing only 46 lb (21 kg), with dimensions of 13.5 in x 23.5 in x 14.8 in (343 mm x 597 mm x 376 mm). This speaker is perfect for those seeking high-quality sound solutions for their events or installations.
