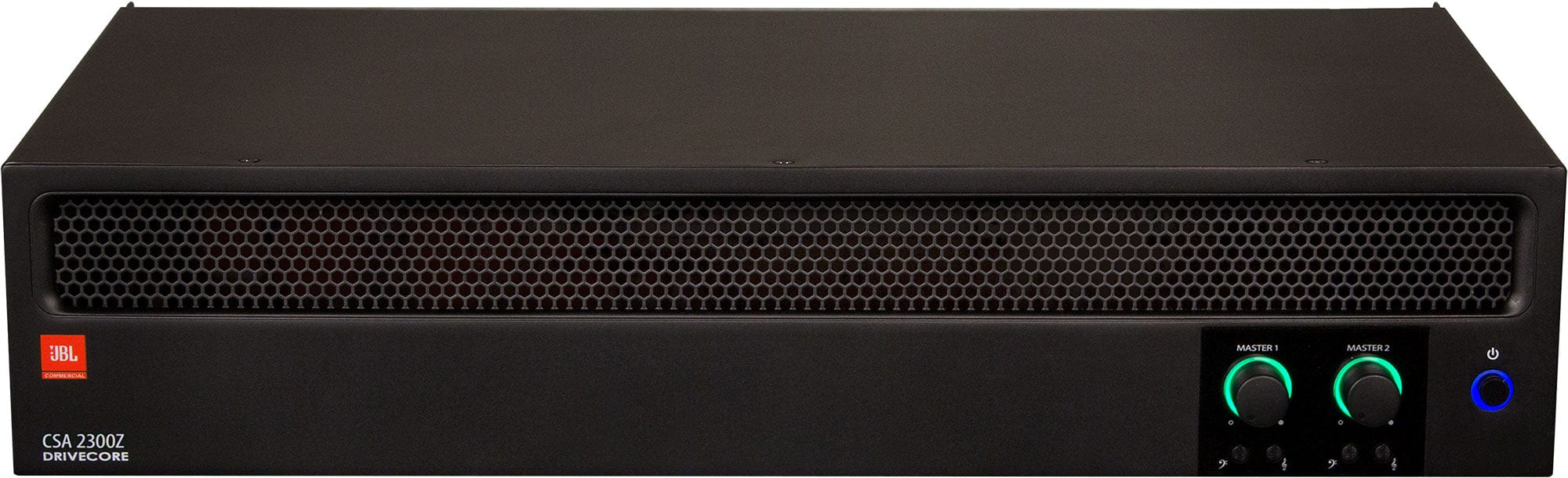

JBL NCSA2300Z-0 2x300 Watt DriveCore Amplifier

JBL High-Power DriveCore Amplifier - 2x300 Watts

Upgrade your sound system with this amazing JBL amplifier! It's perfect for installed sound applications. Here's why:

• • High - Power Performance: Delivers a whopping 300W per channel, giving you powerful sound that fills the space.
• • Easy Setup: Simple to configure, it provides a great sound solution with reduced part count for reliability.
• • Versatile Outputs: Offers amplification with choices of low impedance, 70V or 100V outputs.

This amp also comes with a rack mounting kit for cabinet installations and a RJ45 connector for optional remote volume control using JBL's CSR - V control module. Some other great features include independent bass and treble controls for each output channel, remote volume control via JBL's CSR - V module, a space - saving 2 RU design, RS232 control capabilities, and more. It's energy - efficient and has a sleek look with illuminated rings for easy knob use.

Specifications:

• General Specs:
  • Number of Channels: 2
  • Power Rating: 4 Ohms / 8 Ohms: 300 W (1 kHz, 0.5% THD)
  • Load Impedance / Voltage: 4 Ohms (Minimum) 70 / 100 V
• Performance:
  • Frequency Response: 20 Hz to 20 kHz ±1 dB (8 Ohms)
  • Input Sensitivity: Line: 775 mVrms (Balanced, at 8 Ohms) RCA: 300 mV (at 8 Ohms)
  • Input Impedance: Euroblock: 20 Kilohms (Balanced) RCA: 10 Kilohms
  • SNR: > 97 dBA
  • THD: < 0.5% (Full Range, at Rated Power)
  • Crosstalk: < -70 dBA (1 kHz)
• Signal Processing:
  • EQ: 2 - Band

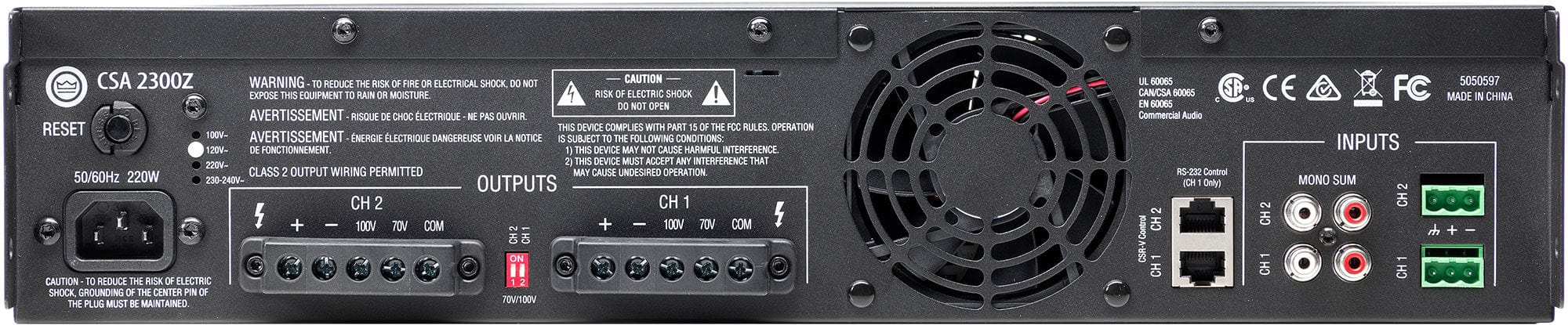

• Connectivity:
  • I/O:
  • Block Balanced/Unbalanced Input
  • 2 RCA Summed - Mono Input
  • Block Output
• Power:
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Physical:
  • Operating Temperature: 32 to 95°F / 0 to 35°C
  • Storage Temperature: -4 to 185°F / -20 to 85°C
  • Dimensions: 17.0 x 11.0 x 3.5' / 43.0 x 27.0 x 8.9 cm
  • Weight: 17.8 lb / 8.1 kg
• Packaging Info:
  • Package Weight: 20 lb
  • Box Dimensions (LxWxH): 22 x 15 x 6'

This JBL amplifier is designed for installed sound applications in commercial and industrial settings. It has two channels with 300W output each. It comes with a rack mounting kit. The dimensions are 17.0 x 11.0 x 3.5' (43.0 x 27.0 x 8.9 cm) and it weighs 17.8 lb (8.1 kg). The operating temperature range is 32 to 95°F (0 to 35°C) and storage temperature is -4 to 185°F (-20 to 85°C). It's a great choice for those looking to enhance their sound systems in these environments.
