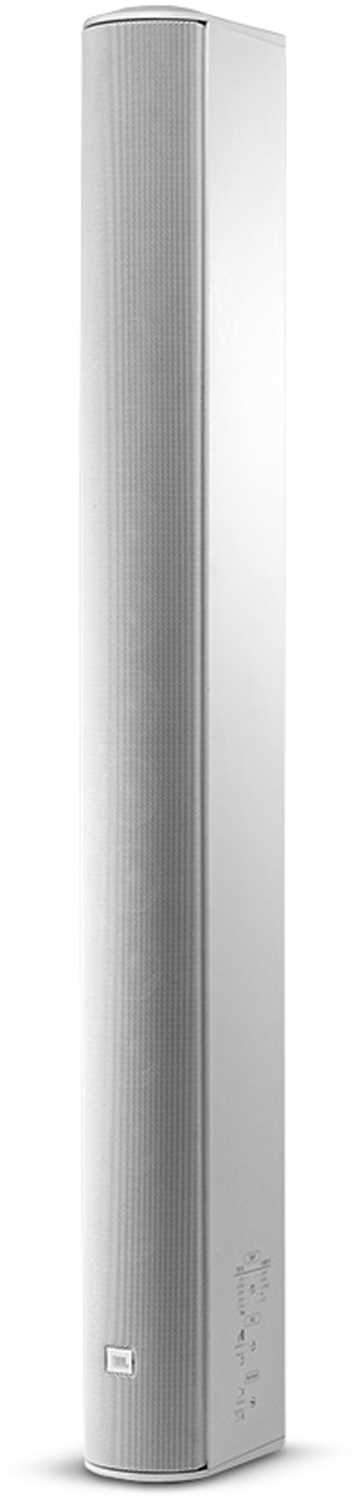

JBL CBT100LA-1 White Line Array Column Loudspeaker - Superior Sound Coverage
• Constant Beamwidth Technology for consistent pattern control
• Sixteen 50 mm (2 in) drivers for great sound
• Improved mounting bracket for flexible aiming
The JBL CBT 100LA-1, with its innovative Constant Beamwidth Technology, offers a revolutionary approach to pattern control. By using complex analog delay beam-forming and amplitude tapering, it provides superior, consistent vertical coverage without the typical narrow vertical beaming and out-of-coverage lobing of straight form-factor column speakers.
Features:
- Patent-pending Constant Beamwidth Technology ensures constant directivity up to high frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage is switchable between 40° for medium-throw and 15° for long-throw applications.
- Switchable voicing gives a flat response in music mode or a mid-range presence peak in speech mode.
- Dynamic SonicGuard provides overload protection.
- Comes with a swivel (pan)/tilt wall bracket.
- Built-in 70V/100V transformer and 8 ohm direct capability.
Specifications:
- Components: Sixteen 50 mm (2 in) Full-Range
- Frequency Range (-10 dB): 80 Hz – 20 kHz
- Vertical Coverage: Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
- Sensitivity (2.83V@ 1m): Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz)
- Nominal Impedance: 8 ohms (in Thru mode)
- Power Capacity (8 ohm setting): 325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
- Max SPL: Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
- 70V/100V Transformer Taps: 120W, 60W, 30W (15W at 70V only), and 8 thru, via switch
- Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
- Outdoor CapabilityIP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
- Colors: White (-WH)
- Insert Points: 18 M6 insert points on back panel.
- Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Dimensions (H x W x D): 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
- Weight: 7.2 kg (15.8 lbs.)
- Included Accessories: Swivel (pan) / tilt wall bracket
The JBL CBT100LA-1 White Line Array Column Loudspeaker is perfect for a variety of indoor and outdoor applications. It's great for venues like concerts, conferences, and public spaces. Targeted at event organizers, sound engineers, and anyone looking for high-quality sound coverage. With dimensions of 1000 x 98.5 x 153 mm (39.4 in x 3.8 in x 6.0 in) and weighing 7.2 kg (15.8 lbs.), it's easy to install and move around.
