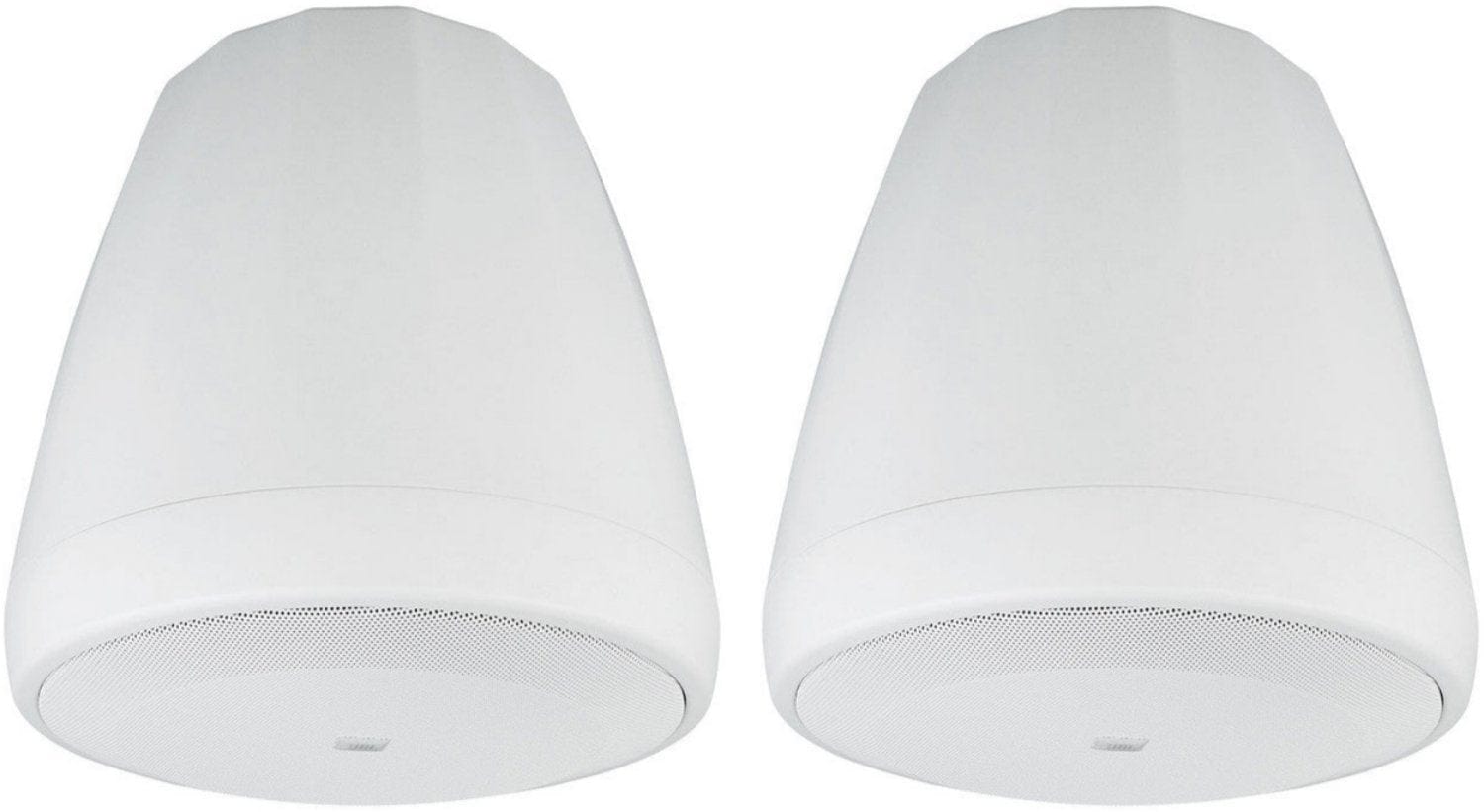

JBL Control 6-Inch Pendant Speaker Pair - Immerse in High-Fidelity Sound
Experience outstanding audio with the JBL Control 6-Inch Pendant Speaker Pair. These speakers are perfect for venues seeking top-notch sound quality.
Features:
- • RBI Radiation Boundary Integrator Technology for precise sound projection
- • 120° conical coverage for wide sound spread
- • 6.5' (165 mm) low-frequency with silk-dome tweeter for rich, high-fidelity sound
- • 75 Watts, 8 ohms and 60W multi-tap transformer for reliable power
- • Sleek white design
Specifications:
- Frequency Range (-10 dB): 58 Hz – 18 kHz
- Frequency Response (±3 dB): 78 Hz – 16 kHz
- Power Rating:
- 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
- 150 Watts Continuous Program Power
- Nominal Sensitivity: 90 dB
- Coverage Angle: 120° conical
- Directivity Factor (Q): 5.7
- Directivity Index (DI): 7.5 dB
- Maximum SPL (1m):
- 109 dB continuous pink noise
- 115 dB peak
- Impedance: 8 ohms
- Transformer Taps:
- 70V: 60W, 30W, 15W & 7.5W
- 100V: 60W, 30W, 15W
- Transformer Insertion Loss:
- 0.5 dB @ 7.5 W
- 0.5 dB @ 15 W
- 0.6 dB @ 30 W
- 0.7 dB @ 60 W
- Drivers:
- LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
- HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
- Enclosure: High impact polystyrene
- Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Outdoor Capability:
- Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV
- IP44 capability per IEC 529 – splashproof rating

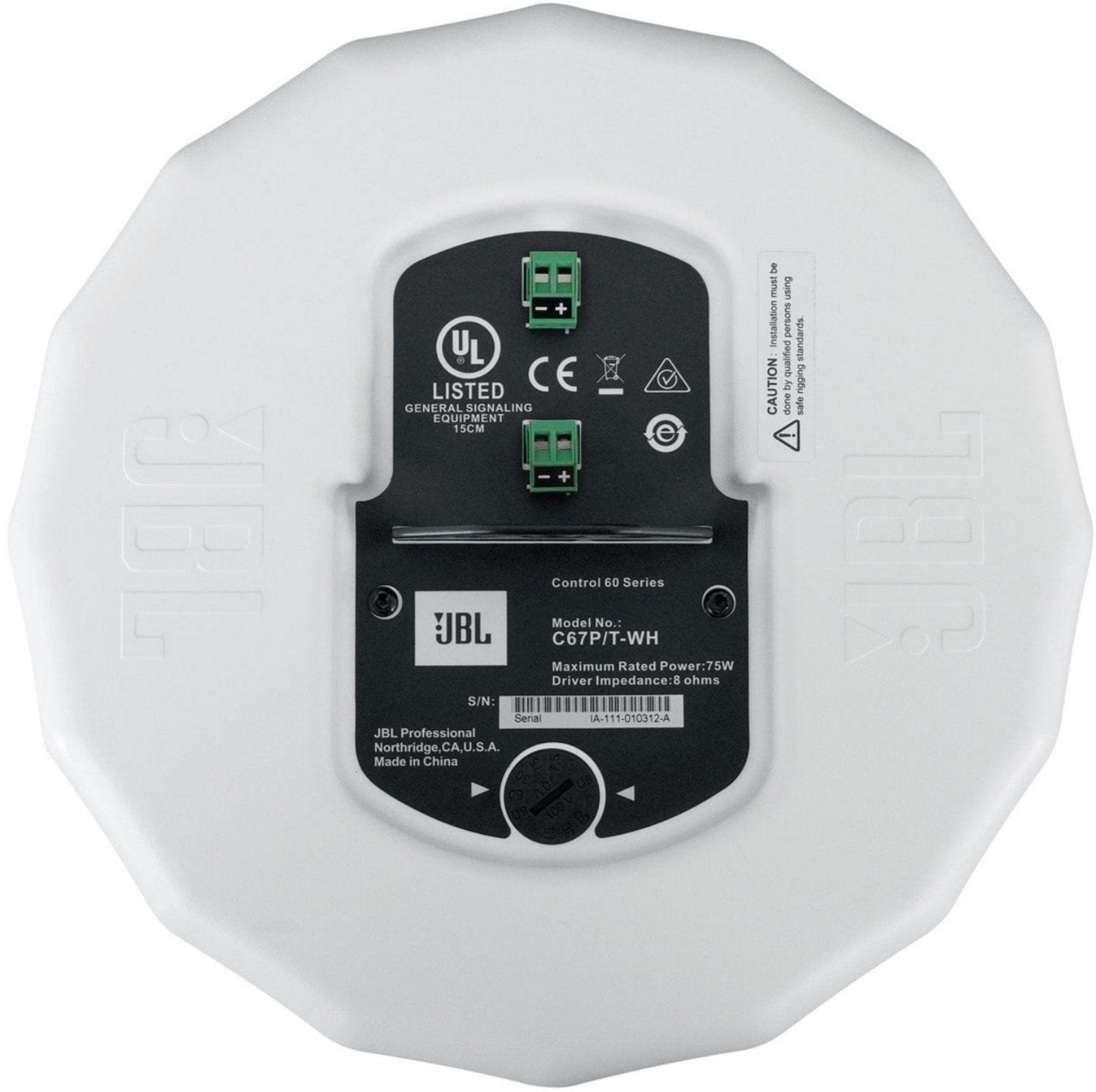

- Input Connectors:
- Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire
- Connectors paralleled for input and loop-thru
- Max. wire 12 AWG (2.5 mm2)
- Rubber terminal covers included
- Suspension:
- Two identical suspension systems (one as main suspension cable and the other as safety cable)
- Each system consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket
- Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb)
- Safety Agency:
- Speaker listed per UL1480
- Transformer registered per UL1876
- In accordance with IEC60849/EN60849
- Suspension system and Gripple -brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81
- Dimensions (H x W x D):
- 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet
- 350 mm (13.8 in) to top of suspension bracket
- Net Weight (each): 5.2 kg (11.5 lbs)
- Shipping Weight (pair): 12.3 kg (27 lbs)
- Included Accessories:
- Two suspension cable systems (see ¡°Suspension”, above)
- Two 2-pin removable locking euro-block connectors
- Two rubber covers for euro-block connectors
- Optional Accessories: MTC-PC60 top panel / terminal cover
- Colors: Available in white (-WH). Paintable
These JBL Control 6-Inch Pendant Speakers are ideal for venues looking to enhance their audio experience. With a diameter of 312 mm (12.3 in) and a height of 330 mm (13.0 in) to the top of the cabinet (350 mm/13.8 in to the top of the suspension bracket), they're a great fit. Each speaker weighs 5.2 kg (11.5 lbs), and a pair has a shipping weight of 12.3 kg (27 lbs). They come with two suspension cable systems, two 2-pin removable locking euro-block connectors, and two rubber covers for the connectors.
