JBL AWC82-BK All-Weather 8-Inch Coaxial Speaker - The Ultimate Outdoor Audio Solution
Get ready to elevate your outdoor audio experience with the JBL AWC82-BK All-Weather 8-Inch Coaxial Speaker. This compact 2-way coaxial loudspeaker is designed to deliver exceptional sound quality even in the harshest weather conditions.
Features:
- • Weather-resistant IP56 rating for year-round use
- • Consistent 120° x 120° broadband pattern control for wide coverage

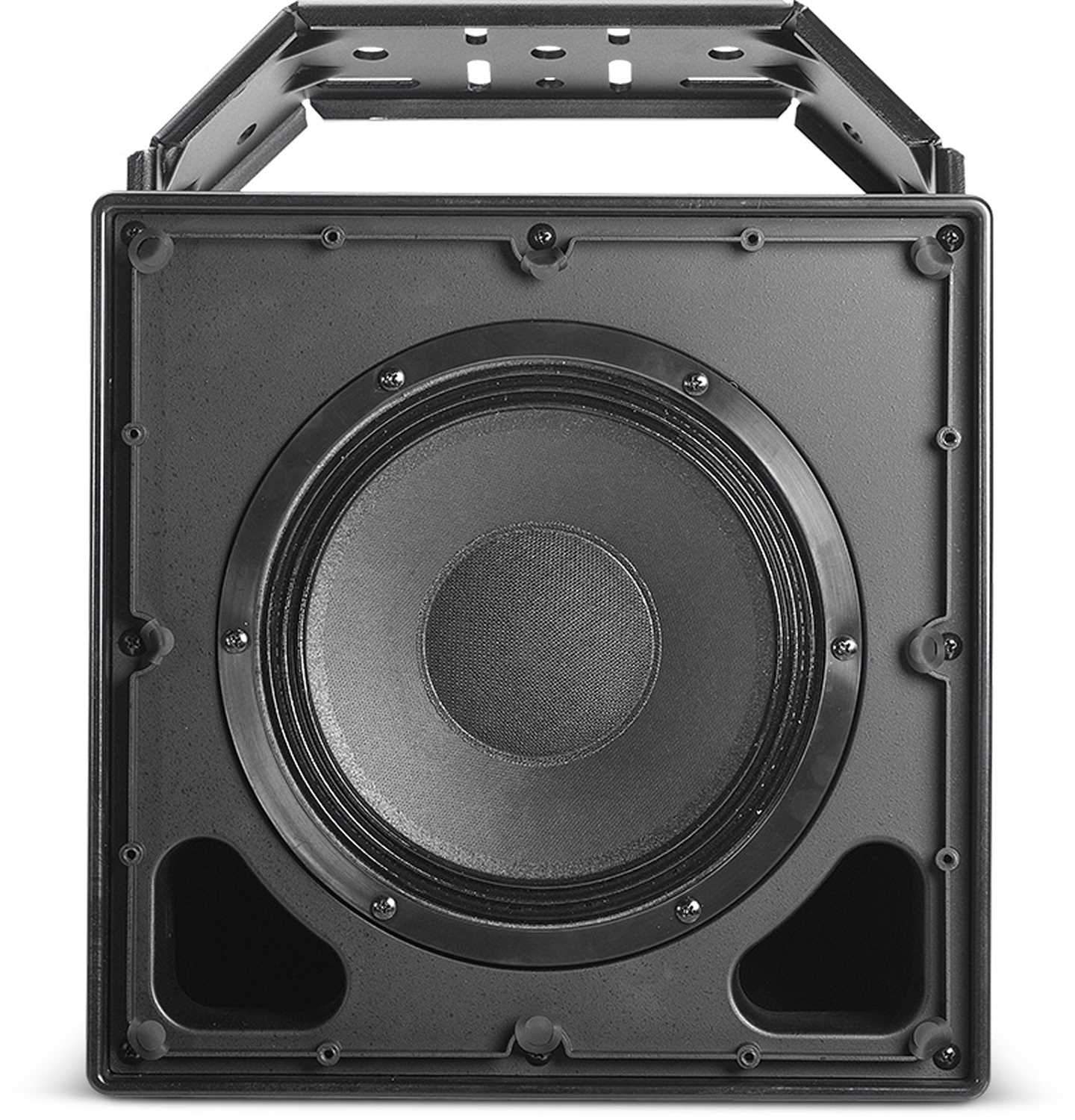

- • Components: 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil, 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm for crystal-clear sound
- • Exceptional clarity for speech and extended frequency response for music
- • 250 Watt power handling (average continuous pink noise) with high sensitivity for high SPL capability
- • High-power passive crossover network for enhanced sound
- • Overload protection for long-lasting performance
- • 80 Hz – 20 kHz frequency response for a wide range of sound
- • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8 ohm low-impedance for versatile connectivity
Specifications:
- Frequency Range (-10 dB): 80 Hz – 20 kHz
- Frequency Response (±3 dB): 100 Hz – 20 kHz
- Coverage Pattern: 120° x 120°
- Directivity Factor (Q): 8.1 (1 k – 16 kHz)
- Directivity Index (DI): 8.4 dB (1 k – 16 kHz)
- Long-Term System Power Rating (IEC): 250 W 2 hrs. 200 W 100 hrs
- Sensitivity (2.83V @ 1m): 94 dB (Ave. 100 Hz – 20 kHz)
- Maximum SPL: Direct 8 : 118 dB (peaks of 124 dB) 200 W Tap: 117 dB
- Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Nominal Impedance: 8 ohms
- Transformer Taps: 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
- Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
- High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
- HF Driver Protection: Minimum audibility SonicGuard HF overload protection
- Enclosure: ABS with Glass enclosure, heavily braced

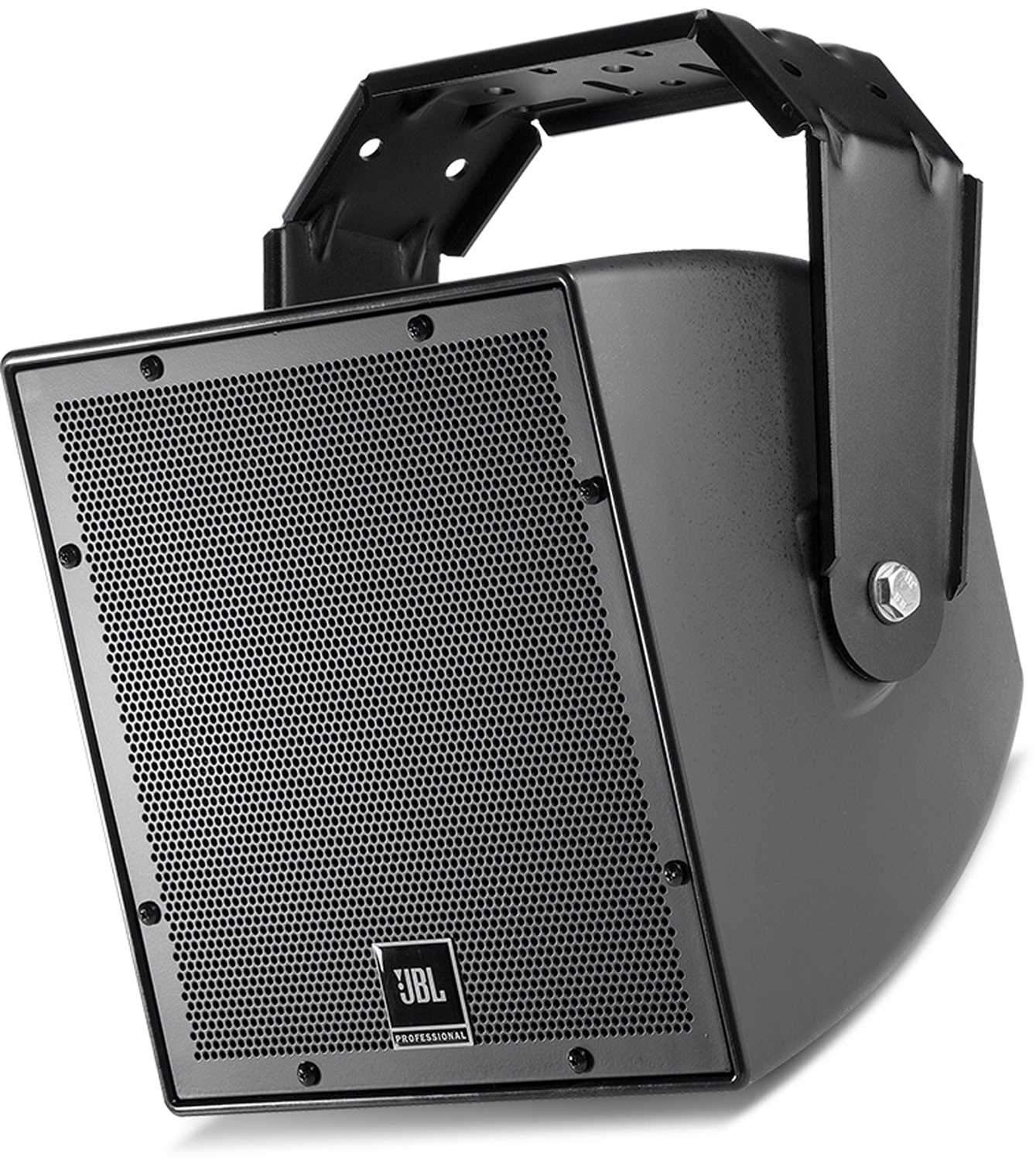

- Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
- Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

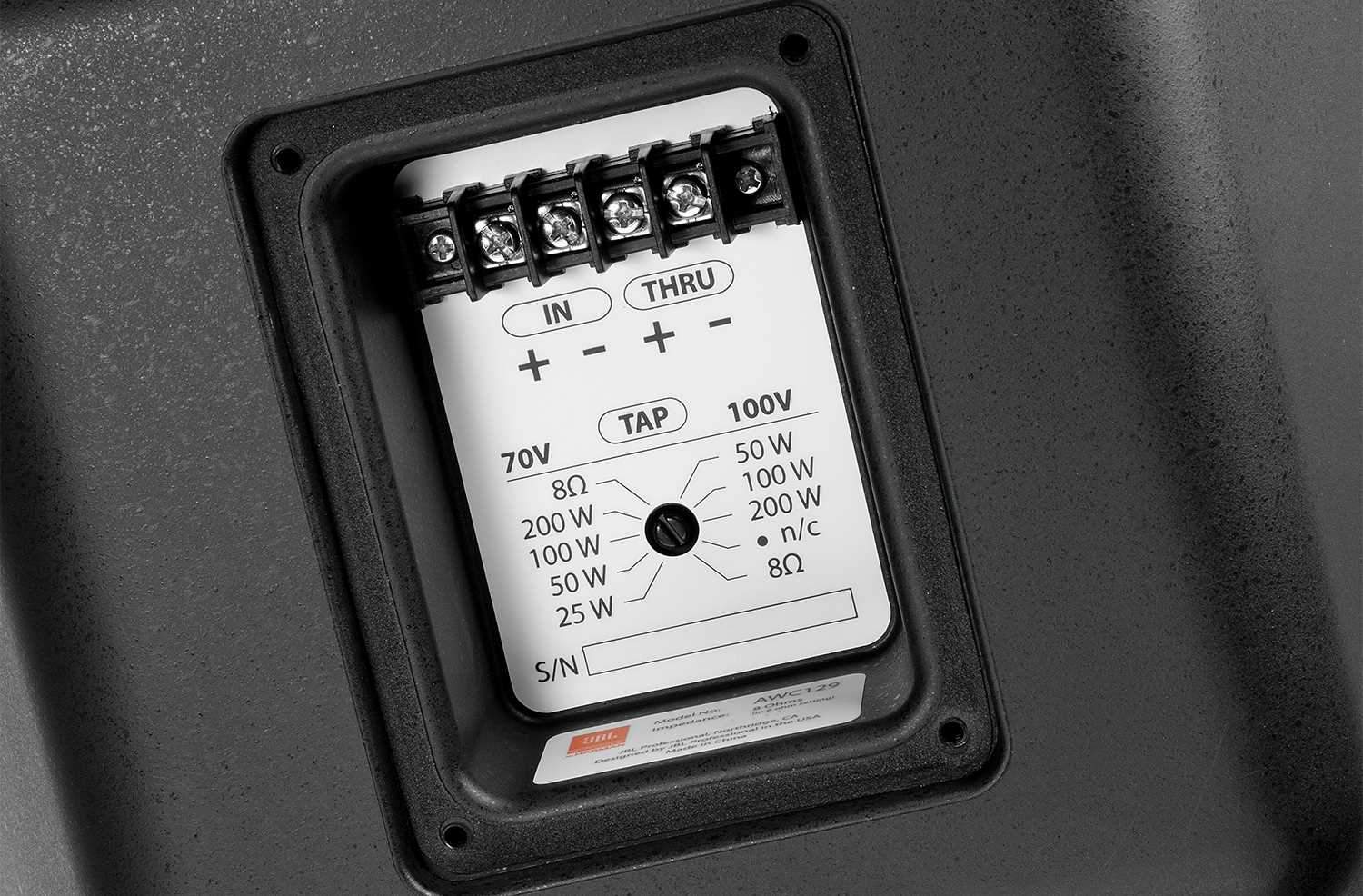

- Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16') and 9.0 mm (0.36')
- Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
- Dimensions: 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
- Colors: Available in gray (similar to Pantone 420C) and black (-BK)
- Net Weight: 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
- Shipping Weight: 14.1 kg (31.0 lb)
- Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
The JBL AWC82-BK All-Weather 8-Inch Coaxial Speaker is perfect for outdoor enthusiasts who want to enjoy high-quality sound in any weather. With its weather-resistant design and powerful sound, this speaker is ideal for use at the beach, by the pool, or in your backyard. It features a 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil, as well as a 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm for crystal-clear sound. The speaker has a frequency response of 80 Hz – 20 kHz and a sensitivity of 94 dB (Ave. 100 Hz – 20 kHz), making it capable of delivering high-quality sound even at low volumes. It also has a power handling of 250 Watt (average continuous pink noise) with high sensitivity for high SPL capability. The speaker is 300 x 300 x305 mm (11.8 x 11.8 x 12.0) in size and weighs 9.8 kg (21.5 lb), making it easy to install and move around. It comes with a U-bracket for easy mounting and is available in gray (similar to Pantone 420C) and black (-BK) colors.
