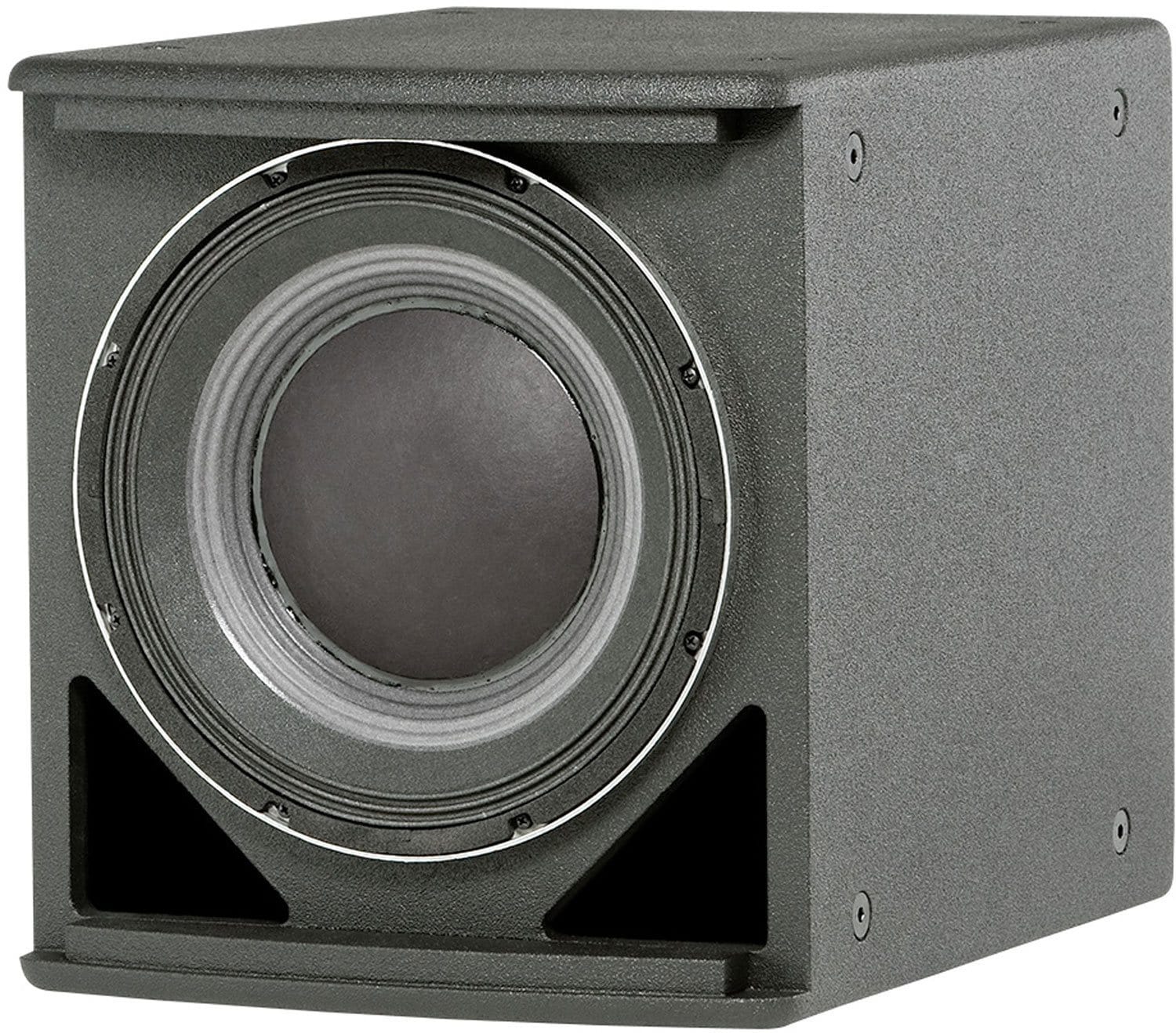

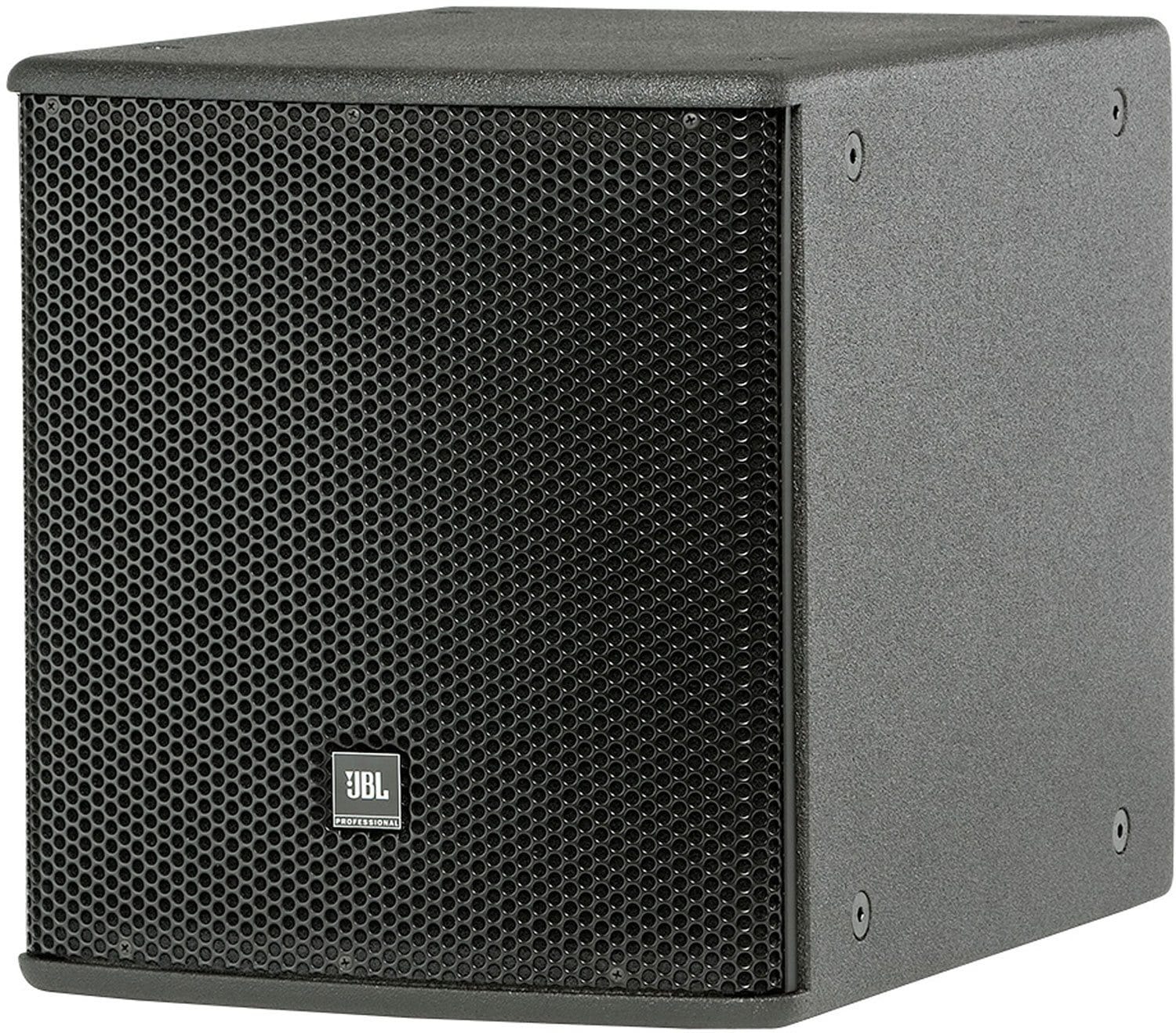

JBL ASB6115 High-Power 15-Inch Subwoofer - The Ultimate Bass Machine
Get ready to experience thunderous bass like never before with the JBL ASB6115. This high-powered subwoofer is a game-changer for music lovers, DJs, and audiophiles alike.
Key Features:
- • High power and lightweight design for easy setup and portability
- • Equipped with JBL's 2265H-1 Differential Drive dual voice coil dual gap 15' woofer for exceptional sound quality
- • Neodymium magnet and ultra-robust cone for long-lasting performance
Technical Specifications:
- • Frequency Range (-10 dB): 32 Hz - 1 kHz
- • Frequency Response (± 3 dB): 42 Hz - 1 kHz
- • Transducer Power Rating: 800 W (3200 W peak), 2 hrs.
- • Long-Term System Power Rating: 675 W (2700 W peak), 100 hrs.
- • Maximum SPL (1m): 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
- • System Sensitivity: 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
- • Nominal Impedance: 8 ohms
- • Low Frequency Driver: 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver
- • Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- • Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
- • Finish: Black DuraFlex finish. White available upon request.
- • Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- • Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
- • Dimensions (H x W x D in vertical cabinet orientation): 483 x 419 x 597 mm (19.0 x 16.5 x 23.5 in)
- • Net Weight: 20.6 kg (45.5 lb)
- • Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
The JBL ASB6115 is a high-powered 15-inch subwoofer designed for music lovers, DJs, and audiophiles. It features a lightweight design for easy setup and portability, and is equipped with JBL's 2265H-1 Differential Drive dual voice coil dual gap 15' woofer for exceptional sound quality. The subwoofer has a frequency range of 32 Hz - 1 kHz (-10 dB) and 42 Hz - 1 kHz (± 3 dB), and a maximum SPL of 126 dB-SPL cont avg (132 dB peak) at 35 Hz - 400 Hz. It has a nominal impedance of 8 ohms and a net weight of 20.6 kg (45.5 lb). The enclosure is made of 16 mm (5/8 in) exterior grade 11-ply birch plywood and has a black DuraFlex finish. The grille is powder coated 14 gauge perforated steel with acoustically transparent black foam backing. The input connector is NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. The subwoofer is suitable for ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products. Optional accessories include M10 x 35 mm forged shoulder eyebolts with washers.
