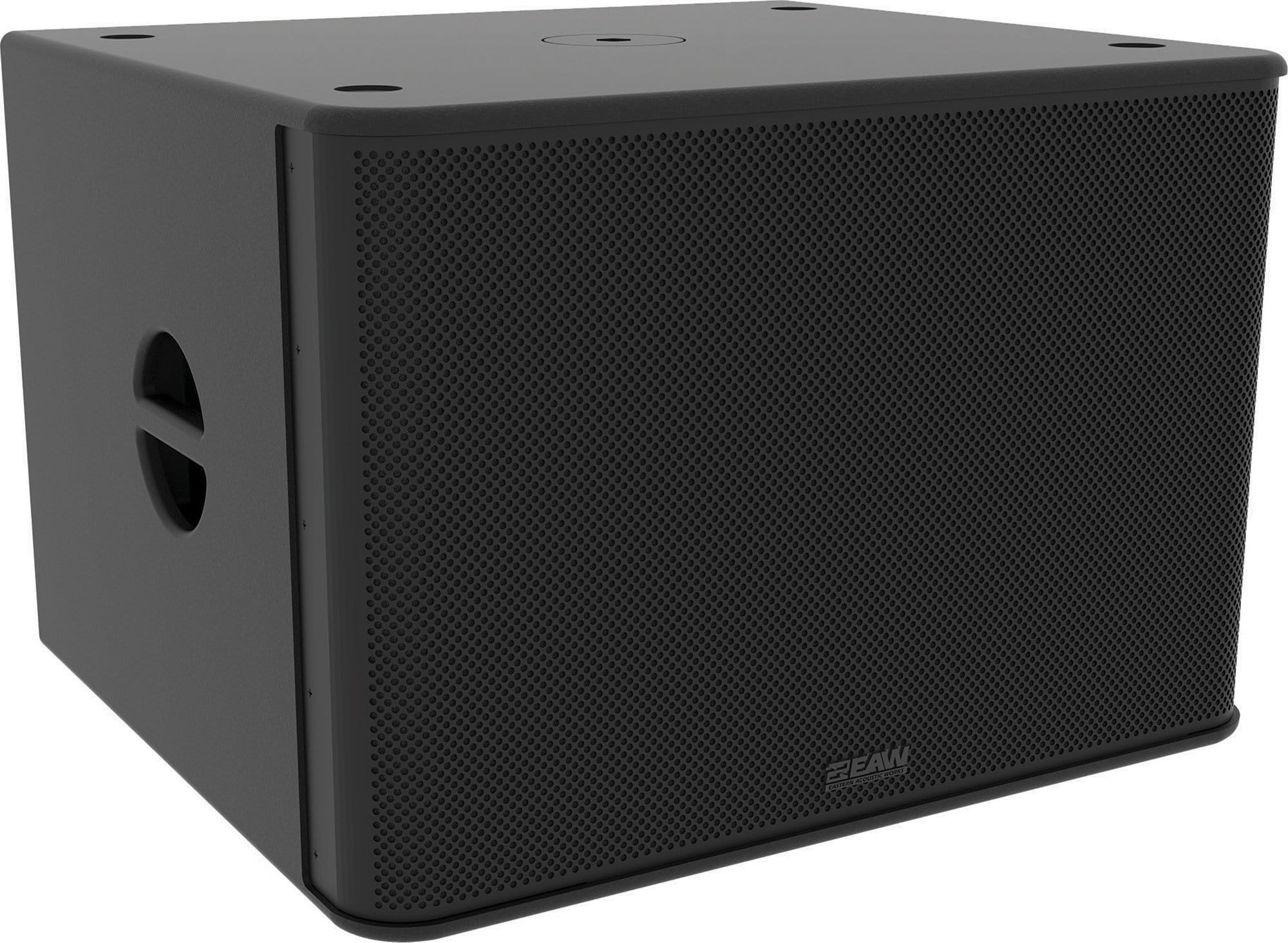

EAW RS118 1500-Watt RS Series Self Powered Subwoofer
The RS Series low frequency enclosures are a must-have for professionals seeking top-notch performance in a portable and lightweight package. • They feature premium transducers and signature EAW DynO dynamic optimization processing for outstanding sound quality. • With 1500 or 2500 watts of Class-D Power Factor Corrected amplification, they deliver powerful audio. • The cardioid pattern can be easily generated with a simple button press, adding versatility.
The RS Series also offers meticulously tuned vented enclosures and EAW signature DynO algorithms to optimize power transfer, ensuring great headroom and sound integrity at maximum output. Their Resolution software platform is a great simulation tool for predicting performance in venues.
Applications
- Concerts
- Corporate AV
- Live Clubs
- Concert Halls
- Theaters
- Auditoriums
- Houses of Worship
- Festivals
Accessories
- Caster Kit
- Soft Cover
- M20 Positive Threaded Wicked Secure Pole
Features:
- Premium transducers and signature EAW DynO dynamic optimization processing
- 1500 or 2500 watts of Class-D Power Factor Corrected amplification
- Cardioid pattern can be generated quickly with a button press
- Ergonomic handles, rugged grille, RoadCoat enclosure, pole cup, and optional casters
- Companion products RS and LA Series loudspeakers
Specifications:
Performance:
- Max SPL: 135dB (peak, half space)
- Operating range: 27 Hz to 125 kHz
- Nominal Beamwidth:
- Horizontal 360°
- Vertical 360°
Configuration
- Subsystem: Loading
- LF Transducer, Loading: 18in Cone, 3in Voice Coil, Vented
- Operating Mode: VLF
- Signal processing: DSP with DynO
- Modes: 80 Hz/ 110Hz/ Polarity
Electrical performance
- Input: Electronically Balanced XLR (stereo)
- Loop: Electronically Balanced XLR (stereo)
- Amplifier:
- Type Class – D
- Max Output LF/HF (Peak) – 2500W
- AC Mains (nominal):
- Connector – IEC Connector
- Input – 100-120V or 200-240V, 50-60Hz
Weight & Dimensions
- Dimensions (HxWxD)*: 20.5″ x 30.0″ x 26.8″ (521mm x 762mm x 681mm)
- Net Weight*: 99lb (45kg)
This EAW RS118 subwoofer is perfect for professionals in the concert, corporate AV, and live club scenes. It has dimensions of 20.5″ x 30.0″ x 26.8″ (521mm x 762mm x 681mm) and a net weight of 99lb (45kg). Use it in concert halls, theaters, auditoriums, houses of worship, and festivals for amazing sound experiences.
