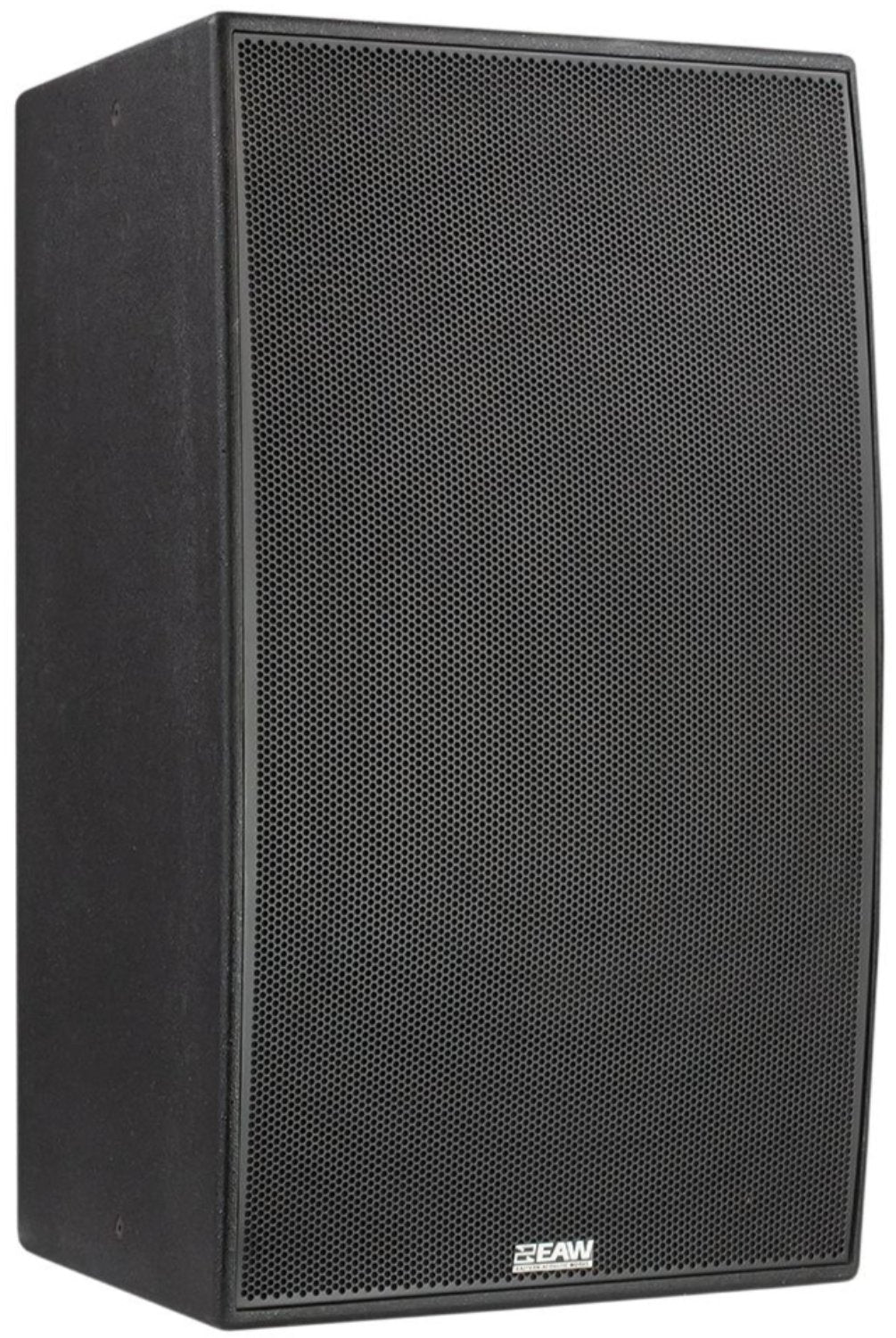

EAW MKD1544 3-Way Full-Range Loudspeaker - The Ultimate Sound Solution for Any Venue
The MKD installation loudspeaker series is designed to provide high output, precise pattern control, and exceptional sound quality for a variety of real-world applications, from stadiums to intimate music clubs.
Built on EAW's long history of excellence in installation loudspeakers, developed in partnership with consultants and integrators worldwide, the MKD series offers a compact and durable Baltic birch enclosure with multiple M10 mounting points for easy installation. Weather protection options, custom colors, and a gently curved front allow for seamless integration in even the most sensitive environments.
The MKD series leverages the design principles and core technologies of the QX series, featuring a pair of spaced low frequency transducers centered around a large format rotatable horn.
Features:
- High output bi-amplified two-way performance for powerful sound
- High performance coaxial compression driver with extended bandwidth for clear audio
- Precision EAW signature broadband pattern control for focused sound projection
- Flexible mounting, weather protection, and color options for versatile use
Specifications:
- Beamwidth (H x V): 45° x 45°
- Frequency Response: 45Hz – 18kHz
- Max SPL: 148dB
- Operating Mode: Bi-Amp
- Subsystem:
- LF Transducer, Loading: 2 x 15in Cone, 4in Voice Coil
- MF Transducer, Loading: 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
- HF Transducer, Loading: 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
- Power Handling:
- LF: 1600W @ 4ohms
- MF/HF: 250W @ 8ohms
- Connections: Terminal block
- Dimensions:
- Height: 37H (935mm)
- Width: 23W (580mm)
- Depth: 24D (600mm)
- Weight: 130lbs (59kg)
The EAW MKD1544 3-Way Full-Range Loudspeaker is a versatile sound solution suitable for a wide range of venues, from large stadiums to small music clubs. Its compact size and multiple mounting points make it easy to install, while its weather protection and custom color options allow for seamless integration in any environment. With a beamwidth of 45° x 45°, a frequency response of 45Hz – 18kHz, and a max SPL of 148dB, this loudspeaker delivers powerful and clear sound. It weighs 130lbs (59kg) and has dimensions of 37H (935mm) x 23W (580mm) x 24D (600mm).
