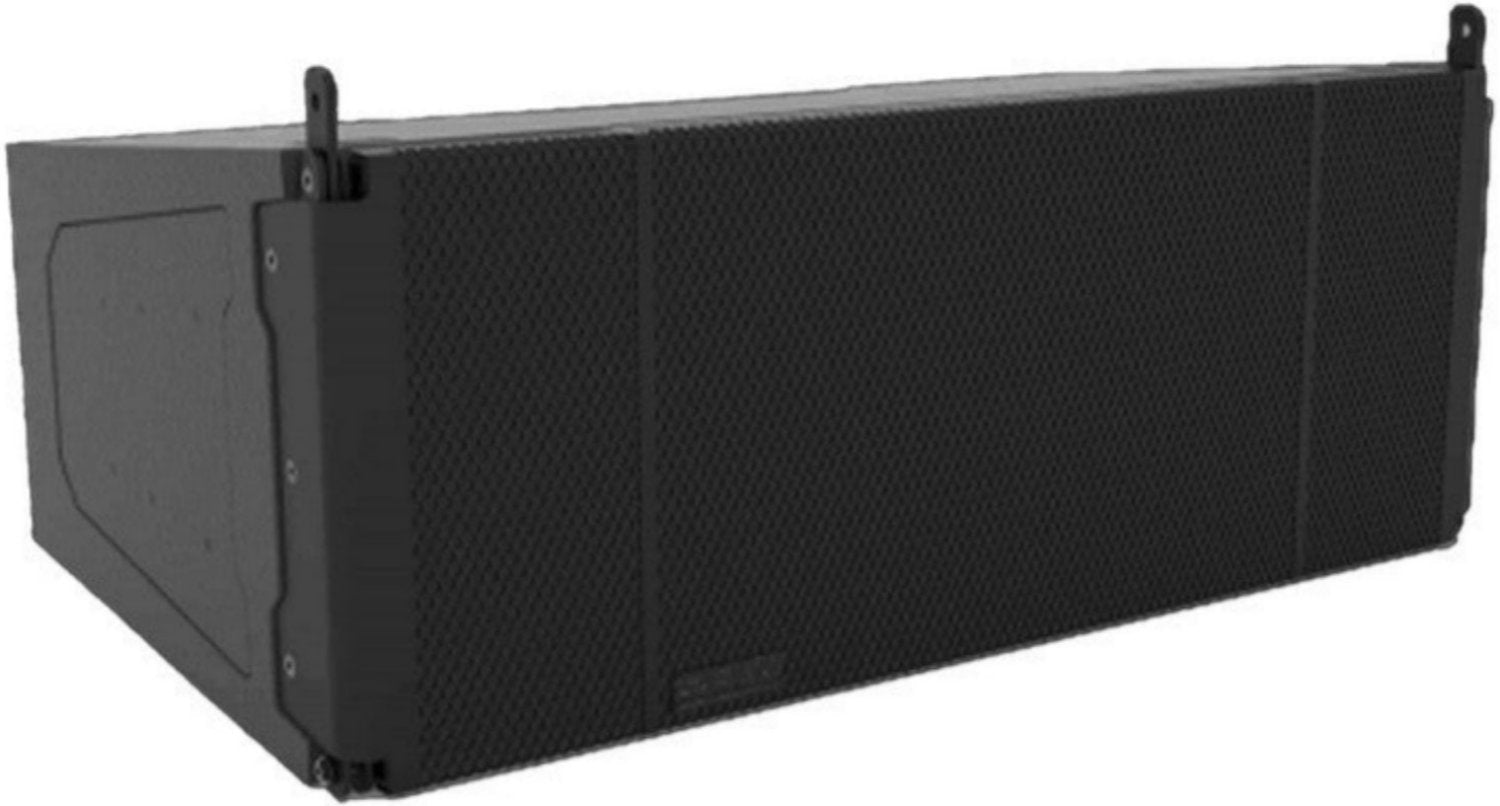

EAW KF810P 110° Line Array Speaker - Black
• Best-in-class output for an immersive audio experience.
• True broadband pattern control for precise sound projection.
• Integrated 3-way performance for rich, detailed sound. These are the hallmarks of the legendary KF series.
The EAW KF810P is tailored for the installation market. It offers a sleek look in black or white, invisible wiring, and concealed 3-point rigging. The weather-rated option means it's perfect for long-term permanent installation in tough environments, backed by EAW's full warranty.
Engineered for various applications, the compact KF810 module has dual 3in voice coil high frequency compression drivers, four 5in mid-frequency transducers, and two 3in voice coil high power 10in LF drivers. Their output combines through an integrated horn on the speaker enclosure, delivering up to 145dB with accurate pattern control to 250Hz, ideal for challenging acoustic spaces.
Features:
- Best in Class Acoustic Performance
- Optional 80° or 110° Dispersion
- Ultra-Clean Look
- Concealed Wiring and Rigging
Specifications:
- Frequency Response: 50 Hz to 20 kHz
- Max SPL: 145dB
- Operating Mode: Bi-amp LF, MF / HF, DSP w/EAW Focusing
- Subsystem: LF 2X 10in, 3.0in VC, MF 4X 5in, 1.7in VC, HF 2X 1.4in exit, 3in VC
- Nominal Beamwidth: Horizontal - 110°, Vertical - 10°
- Power Handling: LF 1000W @ 8ohms, MF/HF 500W @ 8ohms
- Connections: Barrier Strip
- Color: Black
- Height: 12.6 in (320 mm)
- Width: 32.9 in (835 mm)
- Depth: 17.4 in (443 mm)
- Weight: 88lbs (40 kg)
The EAW KF810P 110-Degree Line Array Speaker is perfect for venues like concerts, theaters, and large events. It's designed for sound engineers and event organizers who want top-notch audio. With a height of 12.6 in (320 mm), width of 32.9 in (835 mm), depth of 17.4 in (443 mm), and weight of 88lbs (40 kg), it's easy to install and manage.
