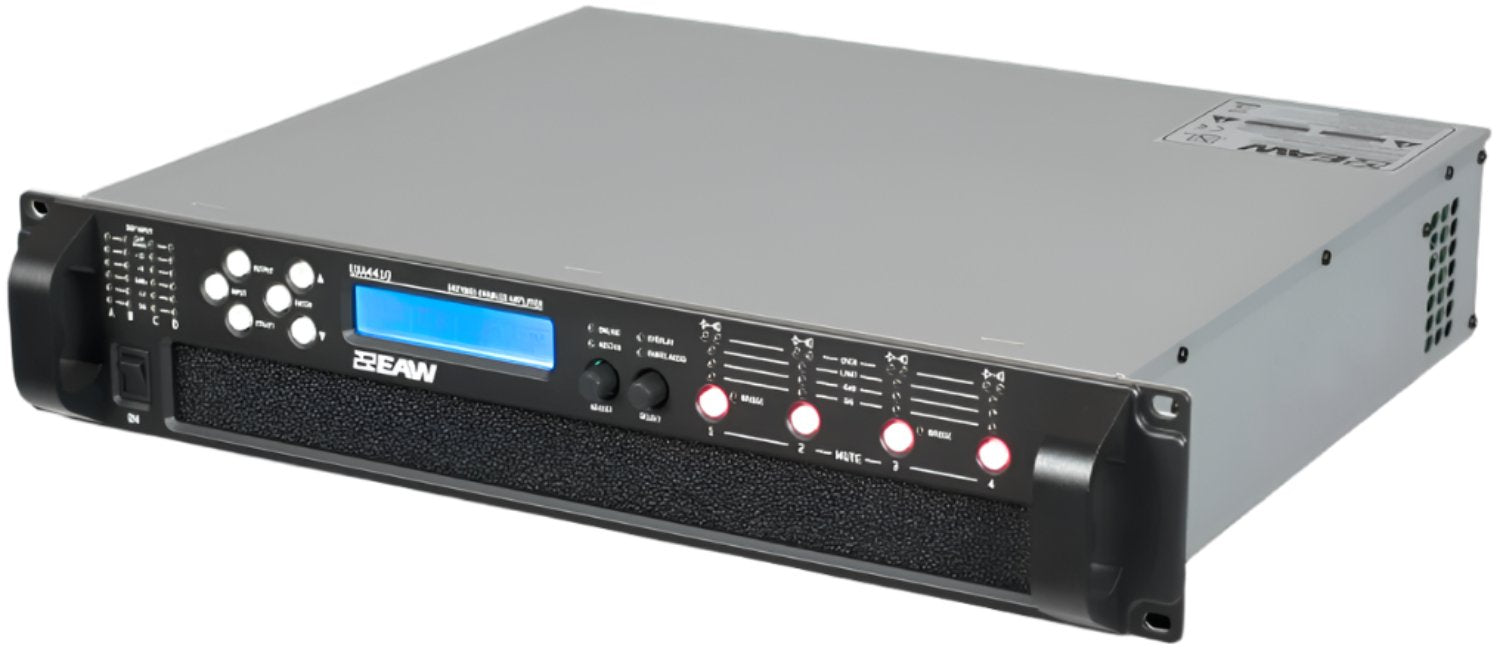

EAW 2050001 UXA4410 2500-Watt per Channel 4-Channel Professional Amplifier

EAW UXA4410 Professional Amplifier - 2500 Watts per Channel

The UXA Series of amplifiers with Greybox technology is a dream come true for audio professionals. It's engineered to pair seamlessly with EAW loudspeakers, offering high - performance amplification, DSP, and Dante networking in a compact rackmount unit. Multiple power levels and channel counts are available for various applications.

Features:

• • High - performance amplification for powerful sound
• • DSP with Focusing and DynO for enhanced audio quality
• • Dante networking for seamless integration

Specifications:

• Physical Specifications:
  • Dimensions (inches/millimeters):
    • Height: 3.46 / 88
    • Width: 19 / 488
    • Depth: 14 / 357
  • Weight (pounds/kilograms):
    • 27.55 / 12.5
• Performance Specifications:
  • Amplifier Gain: 32dB
  • Output Dynamic Range: 113dB (A - weighted)
  • Frequency Response: 7Hz - 24kHz, -2.5/+0dB with 4Ω load
  • Total Harmonic Distortion (THD): <0.05% typical with 4Ω load
  • Inter - channel Crosstalk: >-85dB @ 1kHz (worst case combination)

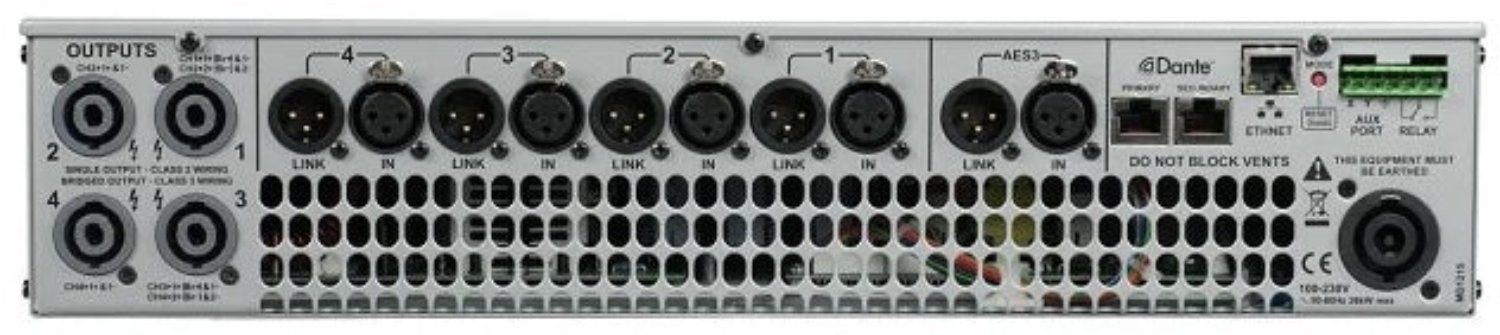

  • Analog Input:
    • +20dBu max input
    • 20kΩ, electronically balanced XLR
  • AES Input:
    • Transformer isolated with unique active cable equalization for extended range
    • Active AES3 signal regeneration for AES link
    • Automatic direct bypass to the AES3 input allowing audio signal to flow even when the amplifier is powered down
    • 24 - 192kHz sampling rates supported
  • Dante Input:
    • Primary and Secondary RJ45 connectors
    • 4 channel input
  • Mains Inrush Current (max for <10ms):
    • 6A at 115V
    • 12A at 230V
  • Power Consumption:
    • Idle - 200W
    • 1/8th power - 900W
    • 1/3rd power - 1600W
    • Maximum draw - 3000W

This EAW UXA4410 amplifier is perfect for professional audio setups like concerts, clubs, and theaters. It's designed for audio engineers and technicians who demand high - quality sound. With dimensions of 3.46 inches (88 mm) in height, 19 inches (488 mm) in width, and 14 inches (357 mm) in depth, weighing 27.55 pounds (12.5 kg), it's compact yet powerful. It offers 2500W per channel with a 4Ω nominal load and 5000W/bridged ch - pair with the same load. It has AES3 and Dante inputs and a universal mains input (85 - 240VAC, 50 - 60Hz).
