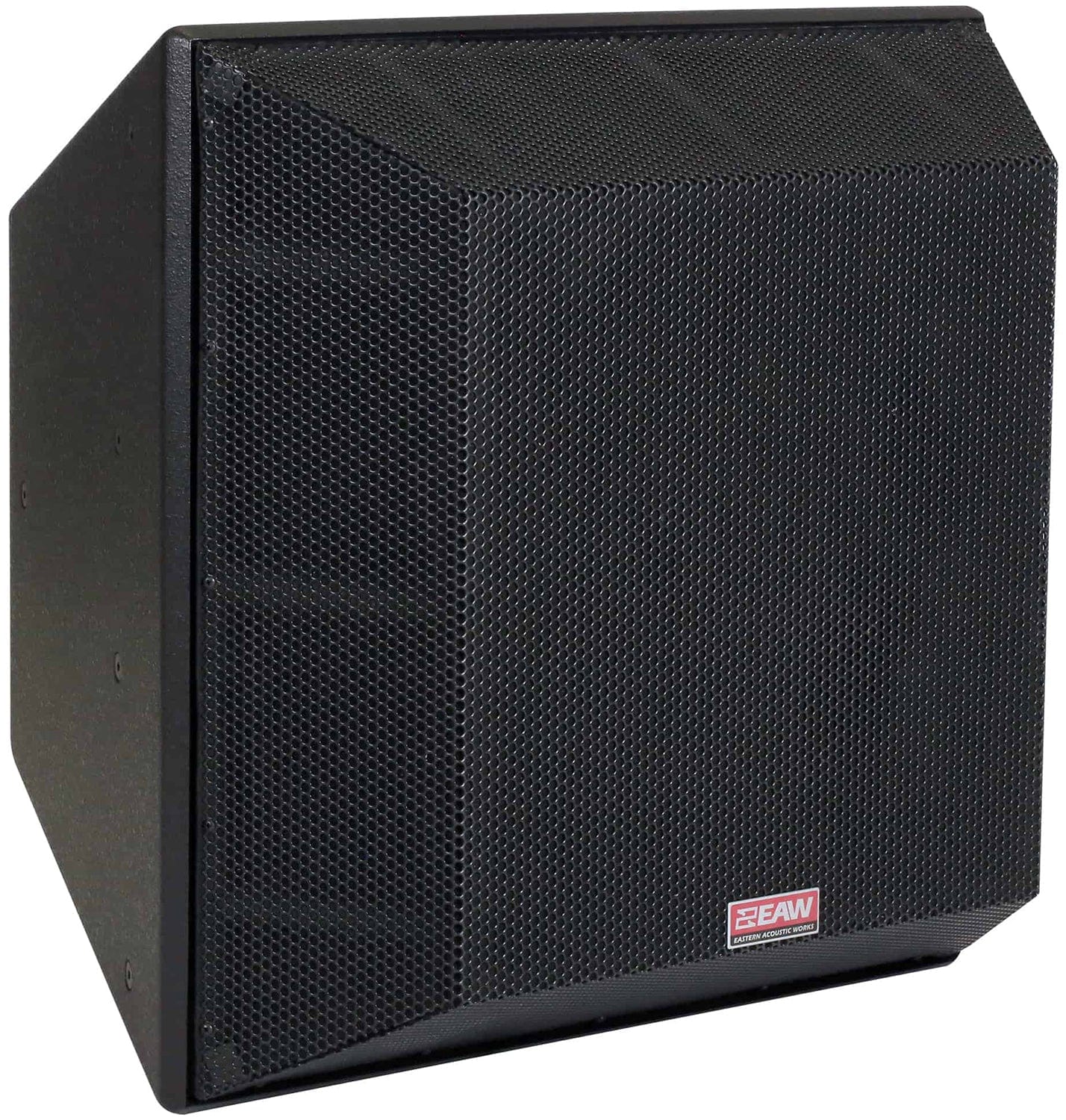

EAW QX544i-WP Weather Protected 3-Way Speaker - Your Ultimate Sound Solution
• High Output: Enjoy powerful sound with this high-output, bi-amplified, three-way speaker.
• Ultra-Efficient Design: Benefit from the ultra-efficient, coaxial MF/HF compression driver for top-notch performance.
• Versatile Pattern Control: Achieve broadband pattern control for excellent sound dispersion.
The QX544i features a 45° (h) x 45° (v) constant directivity horn loaded with an ultra-efficient mid/high compression driver. Four Phase Aligned 12-in low frequency transducers arranged as vertical and horizontal pairs work together to extend pattern control deep into the low frequency range. With four low frequency transducers symmetrically surrounding the coaxial mid/high compression driver in both horizontal and vertical planes, the full frequency spectrum response seems to come from a single point in space, enabling idealized summation of the three frequency sections and eliminating anomalies.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55 Hz – 20 kHz
- Max SPL: 147 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP with EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit, 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in. compression driver
- Nominal Beamwidth:
- Horizontal: 45°
- Vertical: 45°
- Power Handling:
- LF: 2000W @ 2 ohms (single amp), 1000W @ 4 ohms (2x pairs)
- Passive MF/HF: 175W @ 8 ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
- color: black
This EAW QX544i-WP speaker is perfect for various outdoor sound needs. Ideal for events like concerts, festivals, or outdoor gatherings. Suitable for audio professionals and anyone looking for high-quality outdoor sound. It has a height of 28 in (710 mm), width of 28 in (710 mm), depth of 23.8 in (605 mm), and weighs 149 lbs (68 kg).
