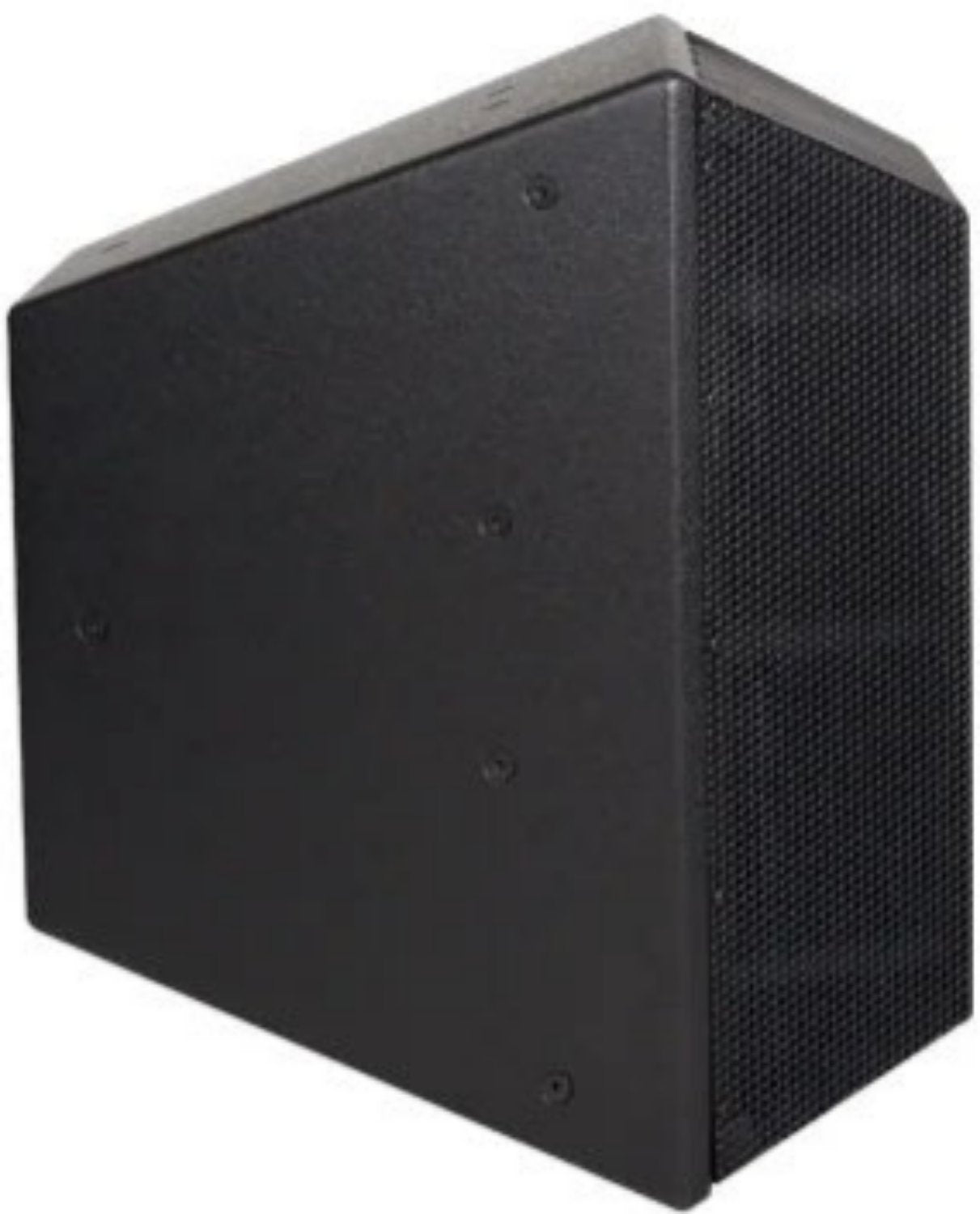

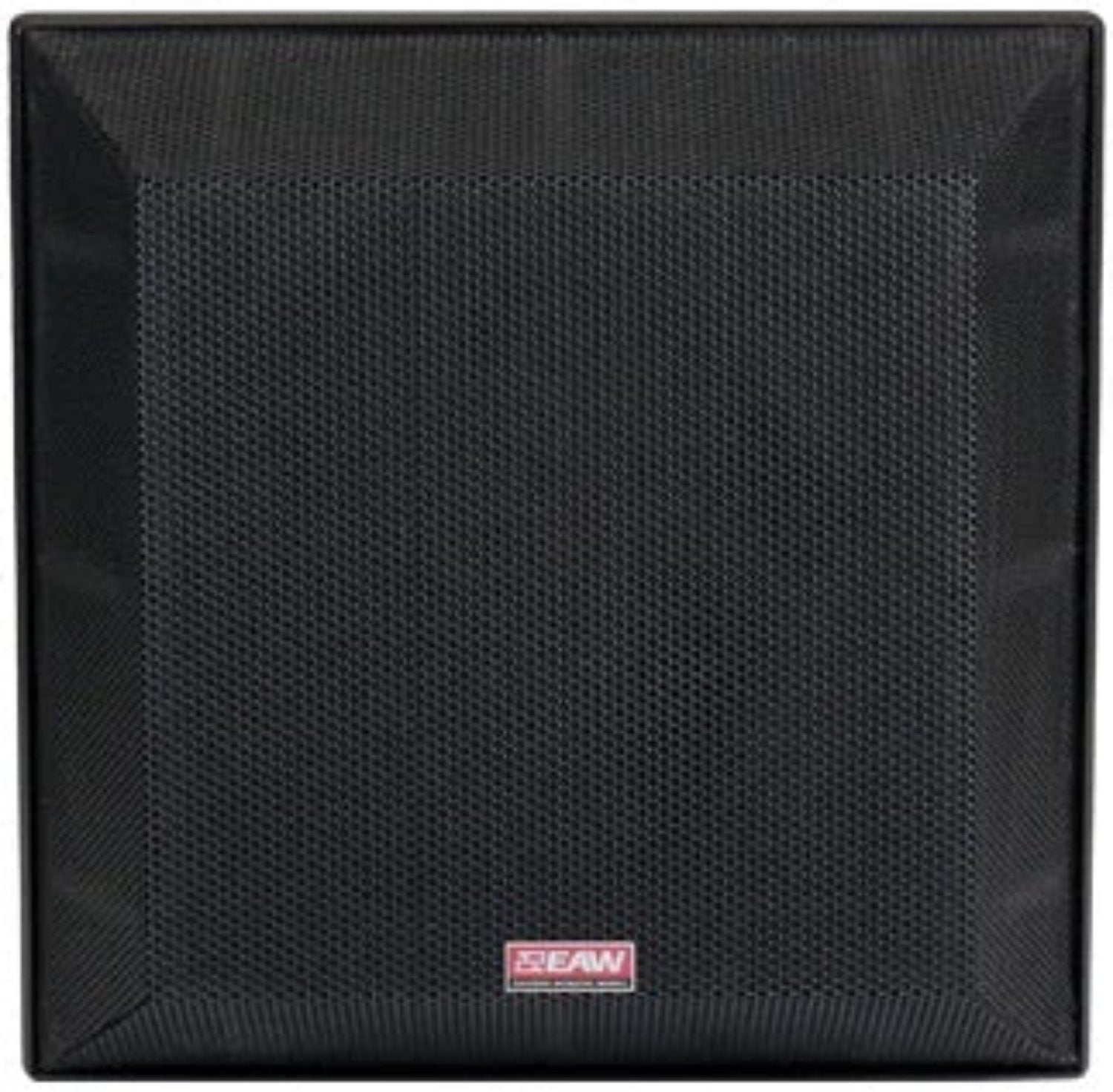

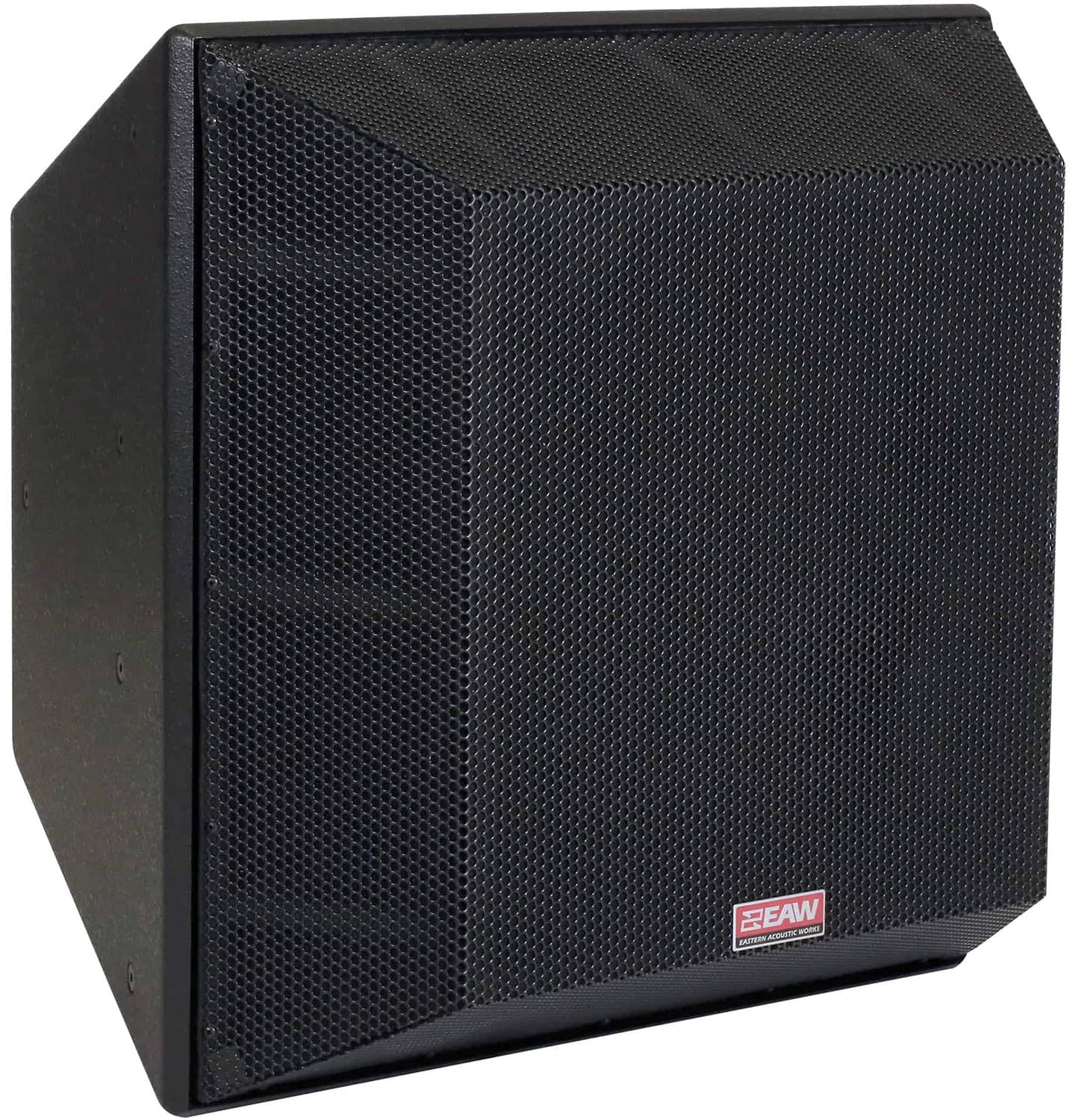

EAW QX566i 3-Way Trapezoidal Enclosure Speaker - The Ultimate Sound Solution
Get ready to experience unparalleled sound quality with the new QX Series! Whether you're filling a large arena, a stadium, or a high-energy live music venue, these speakers deliver high output, broadband pattern control, and exceptional fidelity.
• High Output: Perfect for long throws in arenas and stadiums or high-energy applications like live music venues and dance clubs.
• Broadband Pattern Control: Tame hostile acoustical environments in cathedrals or highly reverberant public spaces.
• Exceptional Fidelity: Delight the most critical listeners in concert halls and performing arts centers.
The QX566i in black features an ultra-efficient mid/high compression driver with a 60° (h) x 60° (v) constant directivity horn. Four Phase Aligned 12-in low frequency transducers arranged as vertical and horizontal pairs ensure excellent pattern control even in the low frequency range.
Thanks to the symmetrical arrangement of the four low frequency transducers around the coaxial mid/high compression driver, the response across the full frequency spectrum appears to originate from a single point in space. This design eliminates anomalies and provides idealized coherence in both horizontal and vertical planes throughout the coverage area.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55hz – 20khz
- Max SPL: 146 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in compression driver
- Nominal Beamwidth:
- Horizontal: 60
- Vertical: 60
- Power Handling:
- LF: 2000W @ 2ohms (single amp), 1000W @ 4ohms (2x pairs)
- Passive MF/HF: 175W @ 8ohms

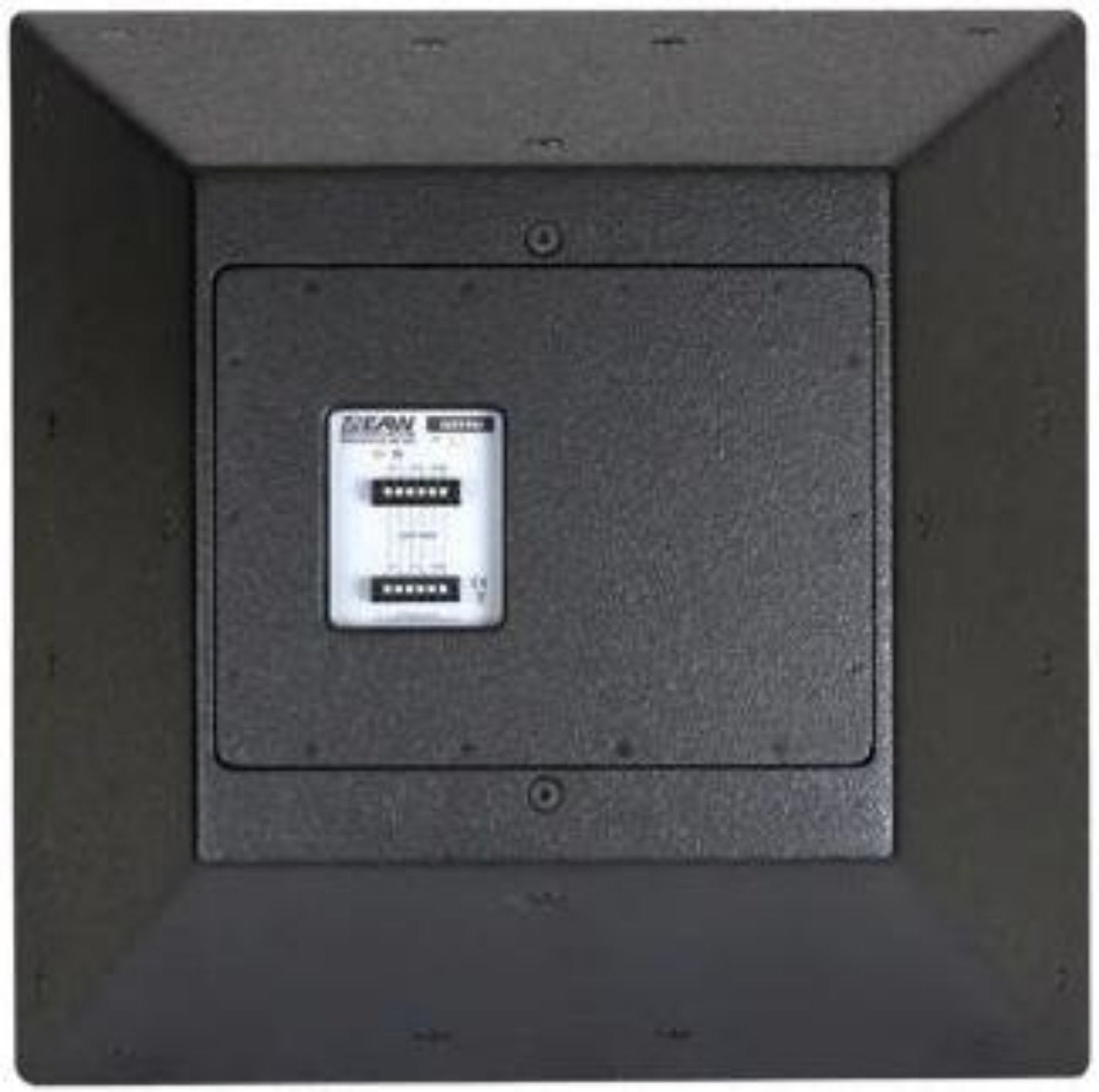

- Connections: Barrier Strip
- Color: Black
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
The EAW QX566i speaker is perfect for arenas, stadiums, live music venues, dance clubs, cathedrals, concert halls, and performing arts centers. It features high output, broadband pattern control, and exceptional fidelity. With dimensions of 28 in (710 mm) height, 28 in (710 mm) width, and 23.8 in (605 mm) depth, and weighing 149 lbs (68 kg), it's a great addition to any sound setup.
