DiGiCo SD8 MADI-Only Digital Mixing Console - Your Ultimate Sound Solution
Unleash your creativity with the DiGiCo SD8 Digital Mixing Console! With 120 input channels at 48kHz/96kHz, it offers versatile channel processing for both inputs and outputs. Here are its amazing features:
- • Versatile Channel Processing: Enjoy features like Channel Delay, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters at 24dB/octave, and four-band parametric EQ with band curve selection.
- • Powerful Dynamic Processing: Equipped with DiGiCo's DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker). Plus, 190 Dynamic EQ processors, 190 Multiband Compressors, and 190 DiGiTuBes for dynamic processing on each parametric band.

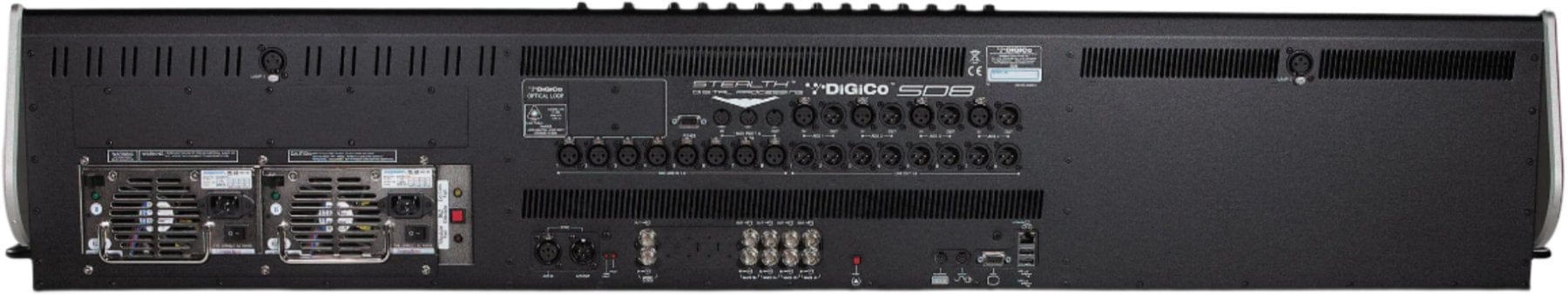

- • Comprehensive Connectivity: Boasts 48 Aux / Sub-Group Busses, LR/LCR/LCRS Master Buss, 16 x 16 Full Processing Matrix, and a wide range of input and output options including 8 x XLR Mic/Line Inputs, 8 x XLR Line Outputs, 4 x XLR AES/EBU Inputs (8 channels), 4 x XLR AES/EBU Outputs (8 channels), 1 x MIDI In/Thru/Out (5 pin DIN), 1 x Word Clock I/O BNC, 2 x Redundant MADI BNC I/O, 1 x XLR AES Sync I/O, 1 x VGA Port (1024 x 768 Resolution), 1 x Ethernet port, 2 x USB 2.0 slots, and 1 x MultiMode Optocore Interface (Optional).
Every channel ensures the same high-quality signal path and feature set, making it a must-have for audio professionals.

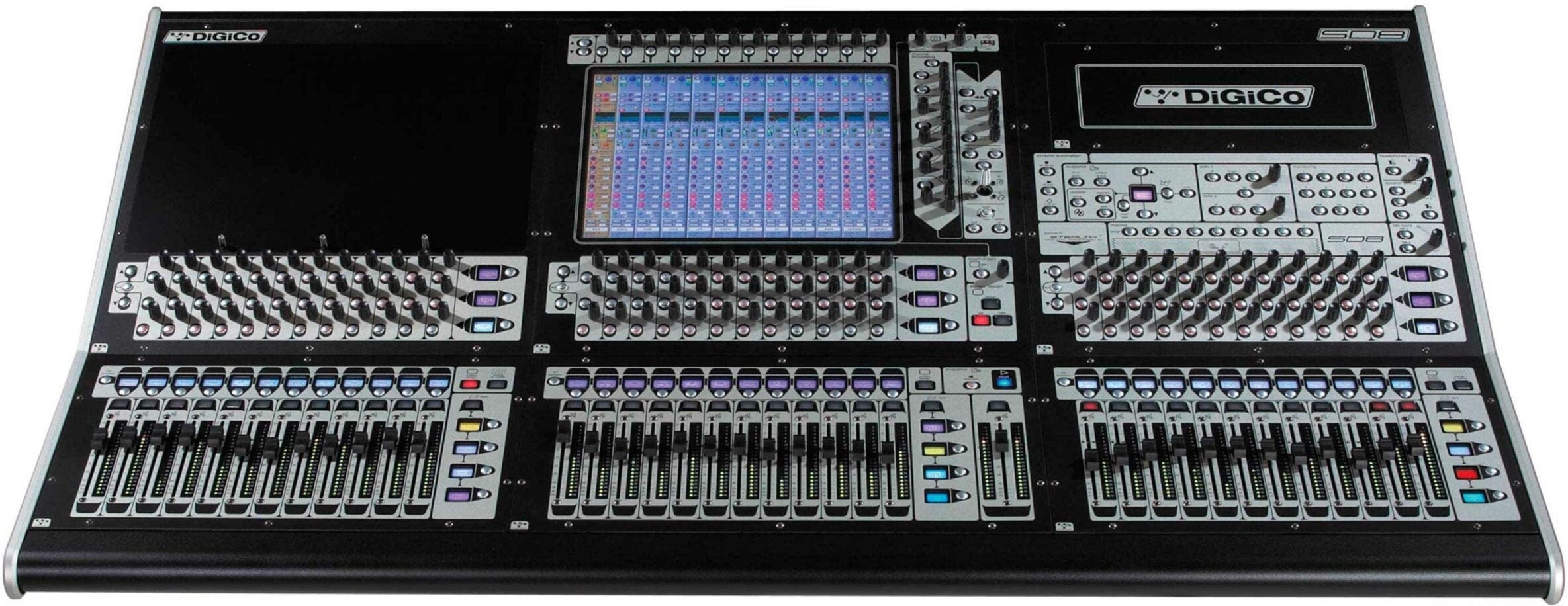

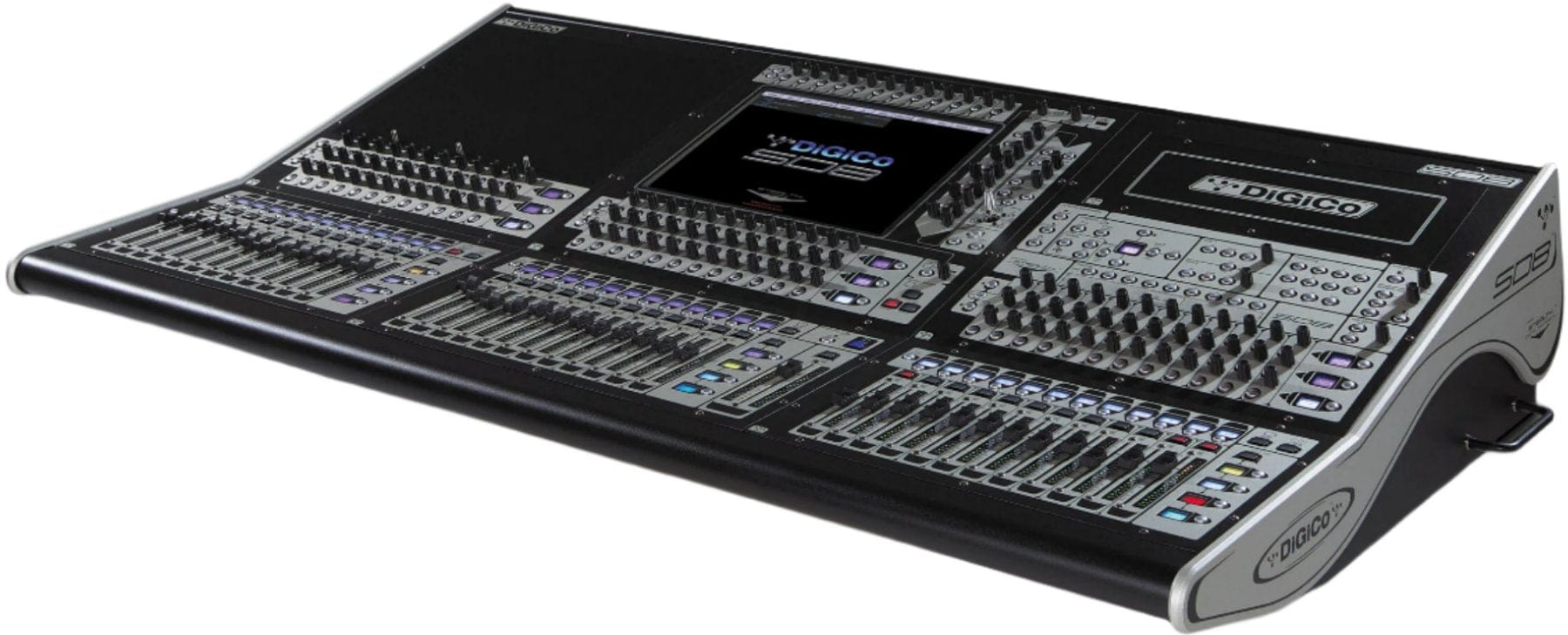

The DiGiCo SD8 Digital Mixing Console is designed for audio professionals in live events, recording studios, and broadcast environments. It offers 120 input channels at 48kHz/96kHz for versatile audio processing. With its compact design and user-friendly interface, it's easy to set up and operate. The console features 37 x 100mm touch-sensitive, motorized faders, a 1 x 15” LCD high-resolution touchscreen, and 38 x 20-segment LED bargraph meters. It has dimensions that are suitable for installation in various setups and weighs in a range that allows for easy transportation and placement.
