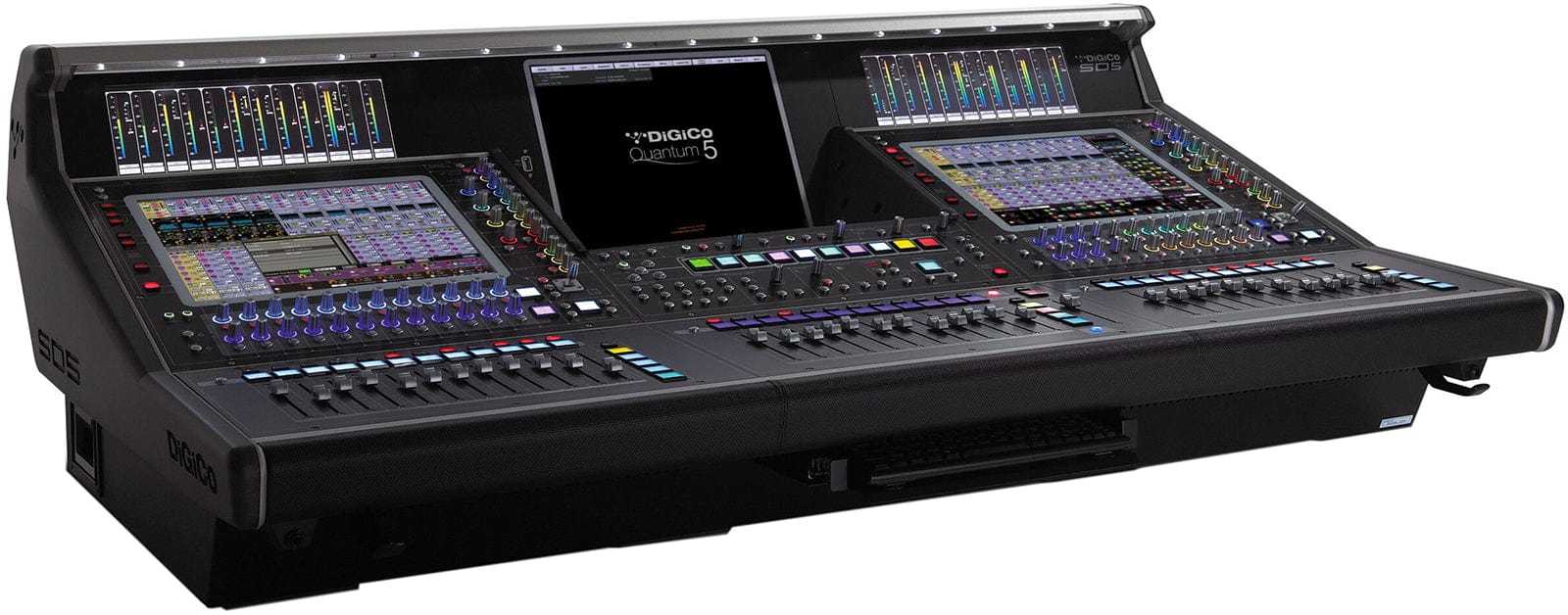

DiGiCo Quantum 5: The Ultimate Digital Mixing Console for Unrivaled Sound
The Quantum 5 offers over 450 processing paths at 96kHz, including 288 channels configurable as 256 inputs and 128 busses, plus a 36x36 matrix. It has four redundant or eight individual MADI ports, two DMI slots, a built-in Waves port, and up to two Optocore loops.
Get the world's most flexible and feature-rich mixing experience with the Quantum 5. Enjoy Channel Delay, DiGiTube, presets, dual insert points, filters, EQ, and dynamics on both inputs and outputs.
Features:
- • Nodal Processing for monitor engineers' creative IEM mixes
- • True Solo for an exact artist-like listening experience, combined with 48 channels of Mustard and 12 Spice Rack slots
- • Mustard processing with two pre-amp modellers, four-band EQ, four compressor models, and a gate/ducker
Specifications:
- • Faders: 37 x 100mm touch-sensitive, motorised
- • Screens: 3 x 15” LCD high-resolution touch screens
- • Meterbridge: 2 x Custom Mounted LCD high-resolution TFT-LCD screens
- • Internal PSU: x 2
- • Processing Channels: Up to 330 (combination of Input Channels / Aux / Solo Group Busses)
- • Busses: Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
- • Matrix: Up to 36 Input / 36 Outputs with full processing
- • Control Groups: Up to 36, selectable for VCA-style, Moving fader, Mute Group
- • Graphic EQ: 32 x 32-band, Gain +/- 12dB
- • Internal FX: Up to 36 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer
- • Local I/O: 8 x mic/line I/O, 8 x AES I/O
- • MADI interfaces: 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
- • Standard Optocore (Dual Loop – Optional)
- • Sampling rates: 48kHz / 96kHz
- • GPIO: 2 x DSub37
- • DMI: 2 x DiGiCo Multichannel Interface
- • Waves: Fitted as Standard
- • Ext Sync: Wordclock, AES, Video, MADI, Optocore
- • Dimensions: 1465mm (w) x 838mm (d) x 458mm (h)
- • Weight: 116Kg / 256lbs (235Kg / 518 lbs. with flightcase)
- • Flightcase Dimensions: 1600mm (w) x 600mm (d) x 1200mm (h)
- • Power Requirements: 90V-260V, 50-60Hz, 790VA
- • Audio Specification Sample Rate: 48kHz or 96kHz
- • Processing Delay: 2ms Typical @ 48k (253 Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @96k
- • Internal Processing: Up to 40-bit, Floating Point
- • A>D & D>A: 24-bit Converter Bit Depth
- • Frequency Response: +/- 0.6dB (20Hz – 20kHz)
- • THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
- • Channel Separation: Better Than 90dB: (40Hz – 15kHz)
- • Residual Output Noise: <90dBu Typical (20Hz – 20kHz)
- • Microphone Input: Better Than -126dB: Equivalent Noise
- • Maximum Output Level: +22dBu
- • Maximum Input Level: +22dBu
- • Processing Channel Specification Input Channel Name: User-Defined / Presets
- • Channel Selection: Mono / Stereo / Multi
- • Input Routing: Main / Alternate Input
- • Analogue Gain: -20 to +60dB
- • Phase: Normal / Reverse
- • Digital Trim: -40 to +40dB
- • Delay: >1 Sec (Coarse + Fine Control)
- • DiGiTuBe: Drive 0.01 – 50.0
- • Bias: 0 – 6
- • LPF: 20 – 20kHz, 24dB/Oct
- • HPF: 20 – 20kHz, 24dB/Oct
- • Insert A: (Pre EQ/Dyn) On/Off
- • Equalisation: 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
- • On/Off Freq: 20 – 20kHz Gain: +/- 18dB Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
- • Dynamic EQ: On/Off Over/Under Band On/Off Threshold: -60 – 0dB Attack: 500us – 100ms Release: 10ms – 10s Ratio: 1:1 – 50:1
- • Dynamics 1: Single or Multiband (3-Band) Compressor: On/Off Threshold: -60 – 0dB Attack: 500us – 100ms Release: 10ms – 10s Ratio: 1:1 – 50:1 Gain: 0 to +40dB with Autogain Option Link: Any Channel/Buss Hi Crossover: 20Hz – 20kHz Lo Crossover: 20Hz – 20kHz Knee: Hard, Med, Soft De-Esser: Threshold: 20us – 20ms Release: 1ms – 100ms Ratio: 1:1 – 50:1 Ess-Band: Listen On/Off Ess-Band Filter Freq / Width: 20Hz – 20kHz
- • Dynamics 2: On/Off Gate / Ducker: Threshold: -60 – 0dB Attack: 50us – 100ms Hold: 2ms – 2s Release: 5ms – 5s Range: 0 – 90dB Key: Any Source Key Listen Freq/Width: 20 – 20kHz Compressor: On/Off Threshold: -60 – 0dB Attack: 500us – 100ms Release: 10ms – 10s Ratio: 1:1 – 50:1 Gain: 0 to +40dB with Autogain Option Link: Any Channel/Buss Hi Crossover: 20Hz – 20kHz Lo Crossover: 20Hz – 20kHz S/C Source: Any Source S/C Listen: On/Off S/C Filter Freq/Width: 20Hz – 20kHz
- • Insert B: (Post EQ/Dyn) On/Off EQ/Dyn order: EQ/Dyn or Dyn/E
The DiGiCo Quantum 5 is a top-of-the-line digital mixing console designed for professional audio engineers and musicians. With its powerful processing capabilities and extensive features, it's perfect for live performances, recording studios, and broadcast applications. It has a compact size of 1465mm (w) x 838mm (d) x 458mm (h) and weighs 116Kg / 256lbs (235Kg / 518 lbs. with flightcase), making it easy to transport and set up. The console offers over 450 processing paths at 96kHz, including 288 channels configurable as 256 inputs and 128 busses, plus a 36x36 matrix. It also has four redundant or eight individual MADI ports, two DMI slots, a built-in Waves port, and up to two Optocore loops. With features like Nodal Processing, True Solo, and Mustard processing, the Quantum 5 provides an unparalleled mixing experience.
