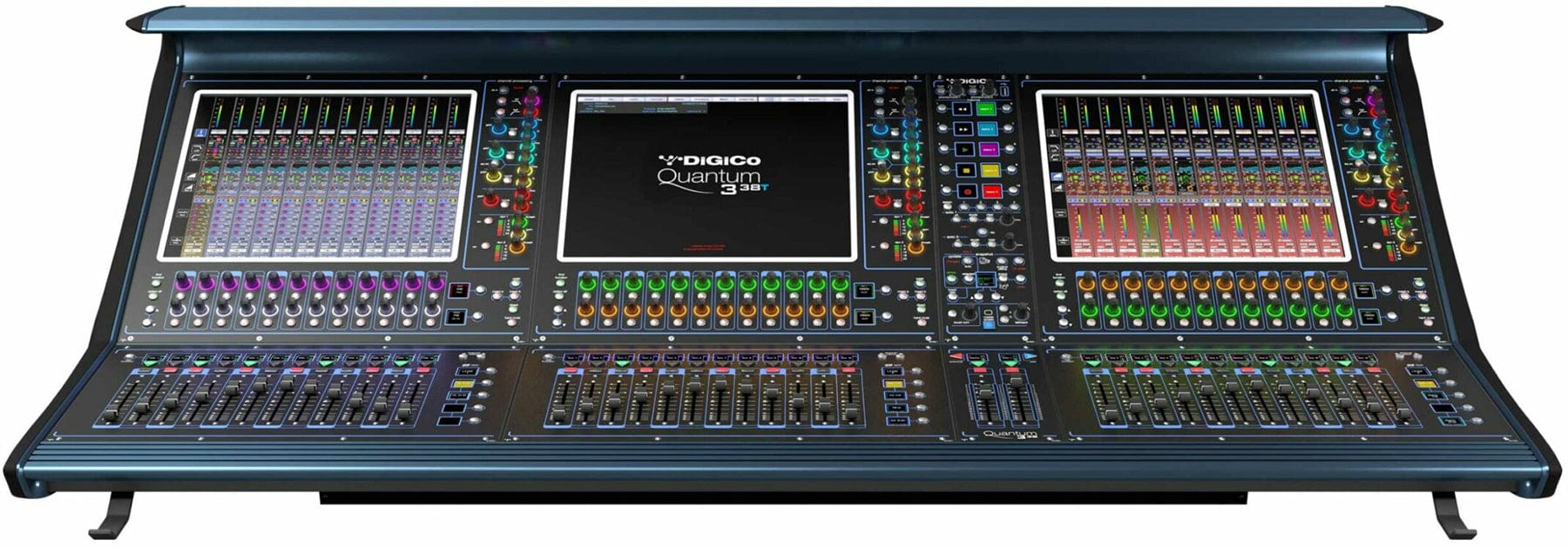

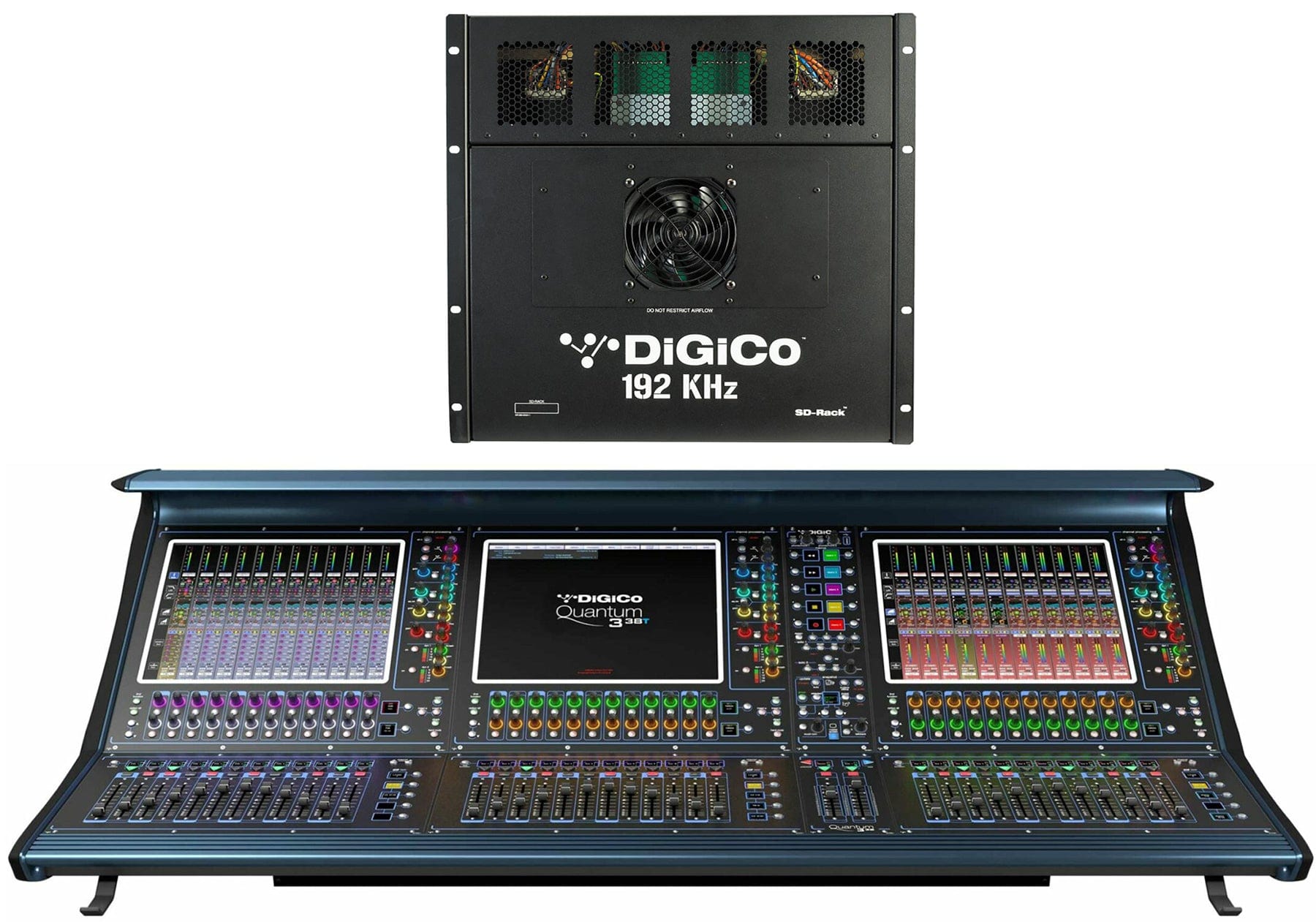

DiGiCo Quantum 338 Digital Mixing Console - The Ultimate SD Package with MADI and Multi-Mode Optics
Unleash your creativity with the Quantum 338! This digital mixing console offers a trio of 17-inch, 1000 nit high brightness multitouch screens, perfect for quick and intuitive operation. With 70 individual TFT channel displays and 38 100mm touch-sensitive faders, you'll have complete control at your fingertips.
Experience superior local audio connectivity and performance with the new 'Ultimate Stadius' 32-bit ADC and DAC conversion. The Quantum 338 comes standard with six single or three redundant MADI connections, dual DMI slots, and a built-in UB MADI USB recording interface.
Features:
- • 128 Input Channels for versatile sound mixing
- • 64 Aux / Sub-Group Busses for flexible signal routing
- • 24 x 24 Full Processing Matrix for advanced audio manipulation
Specifications:
- General Specifications:
- Faders: 38 x 100mm touch-sensitive, motorised
- Screens: 3 x 17” LCD high-brightness, high-resolution touch screens
- Input Channels: 128
- Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1
- Matrix: Up to 24 Input / 24 Outputs with full processing
- Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 24 x 32-band, Gain +/- 12dB
- Internal FX: Up to 24 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
- Spice Rack: 8 mono / 4 stereo Rack Slots
- Mustard Proc: 36 Processing Strips
- Nodal Proc: 64 Nodal Processors
- Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O
- MADI Interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity
- Optocore Interface: Optional (dual loop available)
- Sampling Rates: 48kHz / 96kHz
- GPI/GPO: 16
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Optional
- Ext Sync: Wordclock, AES, MADI, Optocore
- Dimensions (Quantum 338): 1595mm (w) x 805mm (d) x 482mm (h)
- Weight (Quantum 338): 70Kg / 154lbs
- Weight with Flightcase: 198Kg / 437 lbs
- Flightcase Dimensions: 1717mm (w) x 642mm (d) x 1144mm (h)
- Power Requirements: 100V-240V, 50-60Hz, 295VA
- Audio Specifications:
- Sample Rate: 48kHz or 96kHz

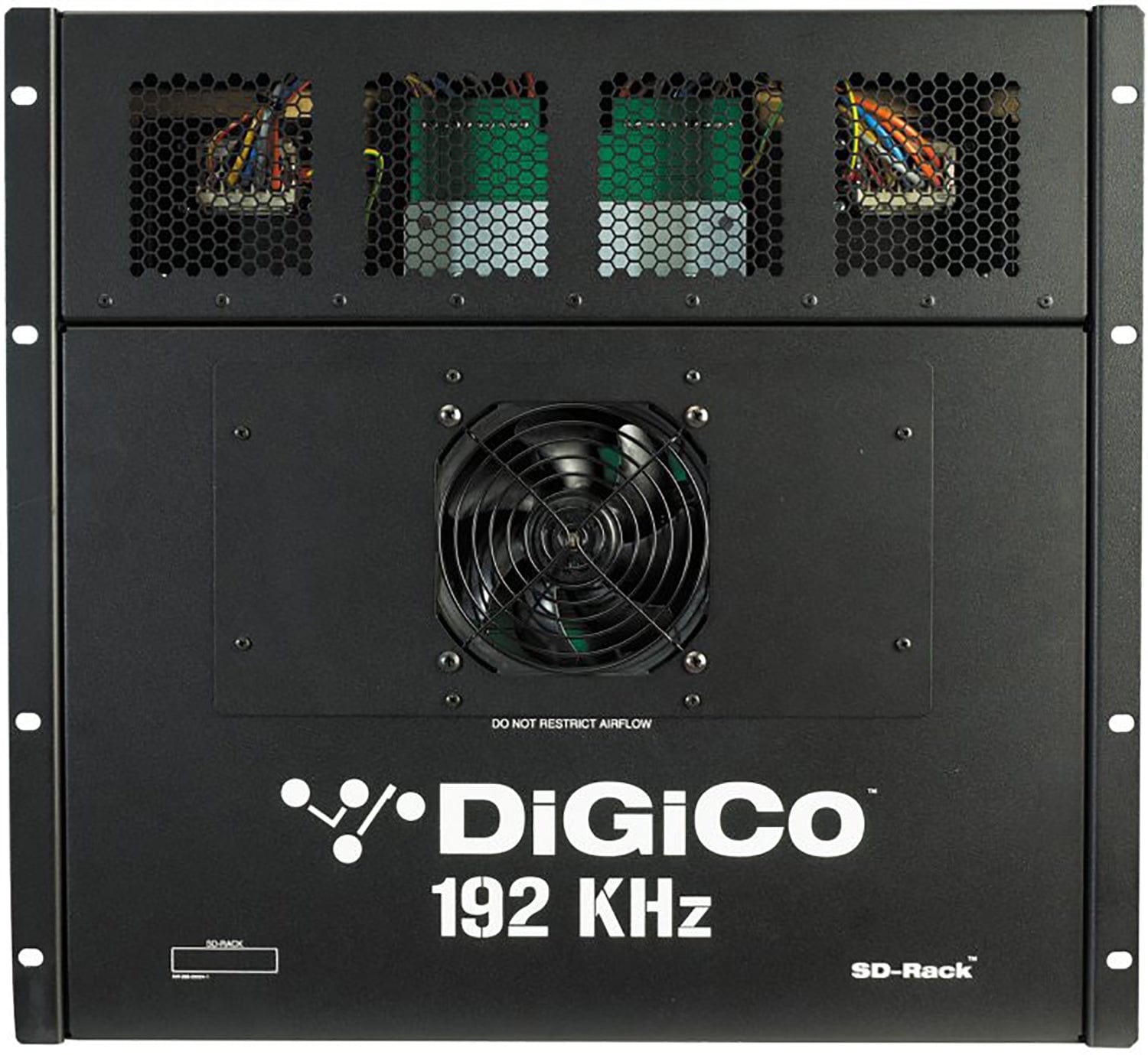

- Processing Delay: 1ms Typical (channel, SD Rack input through L-R Buss to Stage Output @ 96kHz)
- Internal Processing: Up to 40-bit, Floating Point
- A>D & D>A: 32-bit Converter Bit Depth
- Frequency Response: +/- 0.15dB (20Hz – 20kHz)
- THD: <0.002% @ Unity Gain, 0dB Input @ 1kHz
- Channel Separation: Better Than 120dB: (40Hz – 15kHz)
- Residual Output Noise: <100dBu Typical (20Hz – 20kHz)
- Microphone Input: Better Than -128dB Equivalent Noise
- Maximum Output Level: +22dBu
- Maximum Input Level: +22dBu
The DiGiCo Quantum 338 Digital Mixing Console is a powerful tool for professional audio engineers and musicians. Whether you're working in a studio, on stage, or for live events, this console offers the features and performance you need. With its compact size and lightweight design, it's easy to transport and set up. The Quantum 338 has a width of 1595mm, a depth of 805mm, and a height of 482mm. It weighs 70Kg without the flightcase and 198Kg with the flightcase. The flightcase has dimensions of 1717mm (w) x 642mm (d) x 1144mm (h). It operates on 100V-240V, 50-60Hz, and requires 295VA of power.
