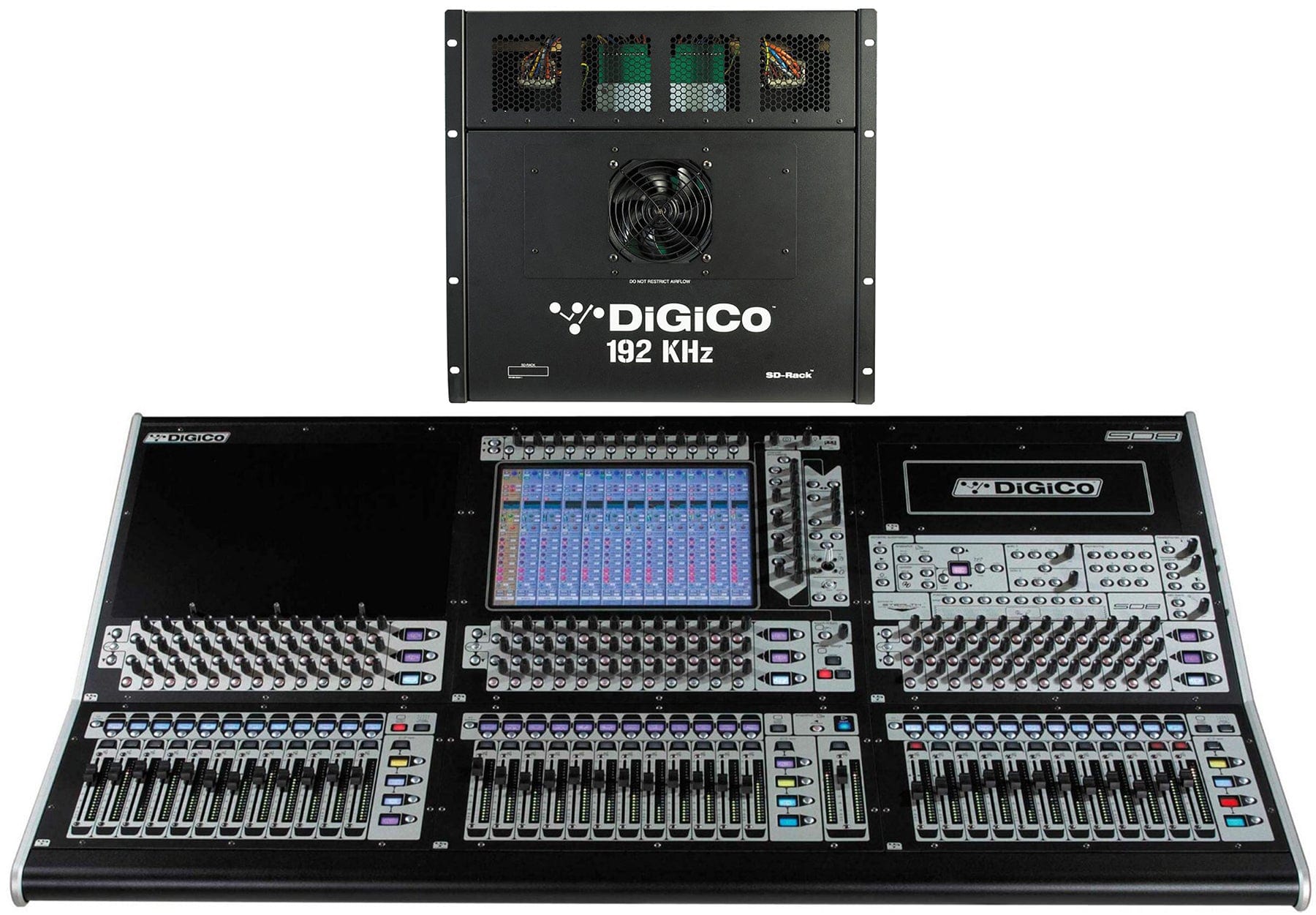

DiGiCo SD8 Digital Mixing Console: Unleash Your Live Performance Potential
Get ready to take your live performances to the next level with the DiGiCo SD8 Digital Mixing Console! This powerful console offers an intuitive workflow and endless expansion possibilities, thanks to its Stealth Digital Processing and floating point Super FPGA technology.
Core Selling Points:
- • 120 Input Channels for comprehensive sound mixing
- • MADI & Multi-Mode Optics HMA for seamless connectivity
- • 48 Aux / Sub-Group Busses for flexible signal routing
Highlights:
- • 16 x 16 Full Processing Matrix for advanced signal manipulation
- • 190 Dynamic Equalizers for precise sound shaping
- • 48/96kHz Sample Rate for high-quality audio

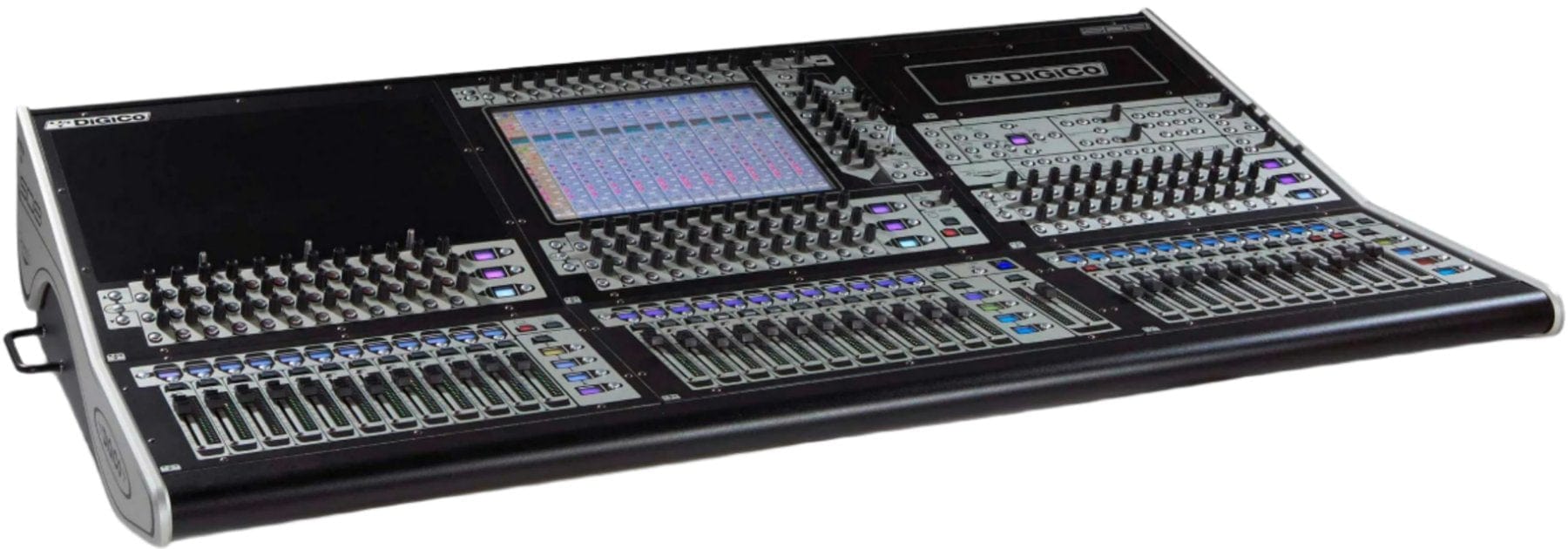

The SD8 is a 120 channel mixing console with 37 physical faders and a 15” LCD high-resolution touchscreen. It's perfect for live sound engineers and musicians who demand top-notch performance and reliability.
Technical Specifications:
- • Faders: 37 x 100mm Touch-Sensitive, Motorised
- • Screens: 1 x 15' (38cm) LCD High - Resolution Touch Screen
- • Meters: 38 x 20-Segment LED Bargraph
- • Input Channels: 120
- • Busses: 48 assignable that can be configured as groups / auxillary busses + LR/LCR/LCRS Master Buss
- • Solo Busses: 2 Stereo Busses
- • Matrix: 16 x 16 Matrix (Additional to Busses Above)
- • Control Groups: 12, Selectable for VCA-style, Moving Fader, Mute Group
- • Graphic EQ: 24 x 32-band, Gain +/- 12dB
- • Internal FX: 16 Stereo FX Processors
- • Local I/O: 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
- • MADI Interface: 2 Redundant Interfaces, 75 Ohm BNC Connectivity
- • Optic Interface: Optocore (Optional Factory Fit Only)
- • MIDI Interface: In / Out / Through
- • VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
- • USB Ports: 3 x USB 2
- • Light Connection: 2 x XLR3 1.2 - 12V
- • Ext Sync: Word Clock, AES, MADI, Optics
- • Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- • Dimensions: 1347mm (w) x 811mm (d) x 251.7mm (h)
- • Weight: 65Kg (155Kg with Optional Flightcase)
- • Flightcase: 1517mm (w) x 1133mm (h) x 452mm (d) (Optional)
- • Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing. 230VA Typical, 295VA Peak (Meters Full, Faders Moving
- • Redundancy: Internal PSU x 2
The DiGiCo SD8 Digital Mixing Console is a must-have for live sound engineers and musicians. With 120 input channels, it can handle all your audio needs during live performances. Its 37 physical faders and 15” LCD high-resolution touchscreen offer an intuitive workflow. The console measures 1347mm (w) x 811mm (d) x 251.7mm (h) and weighs 65Kg (155Kg with optional flightcase). It comes with features like MADI & Multi-Mode Optics HMA for connectivity, 48 Aux / Sub-Group Busses for flexible signal routing, and more. Whether you're on stage or in the studio, the SD8 will help you deliver outstanding sound.
