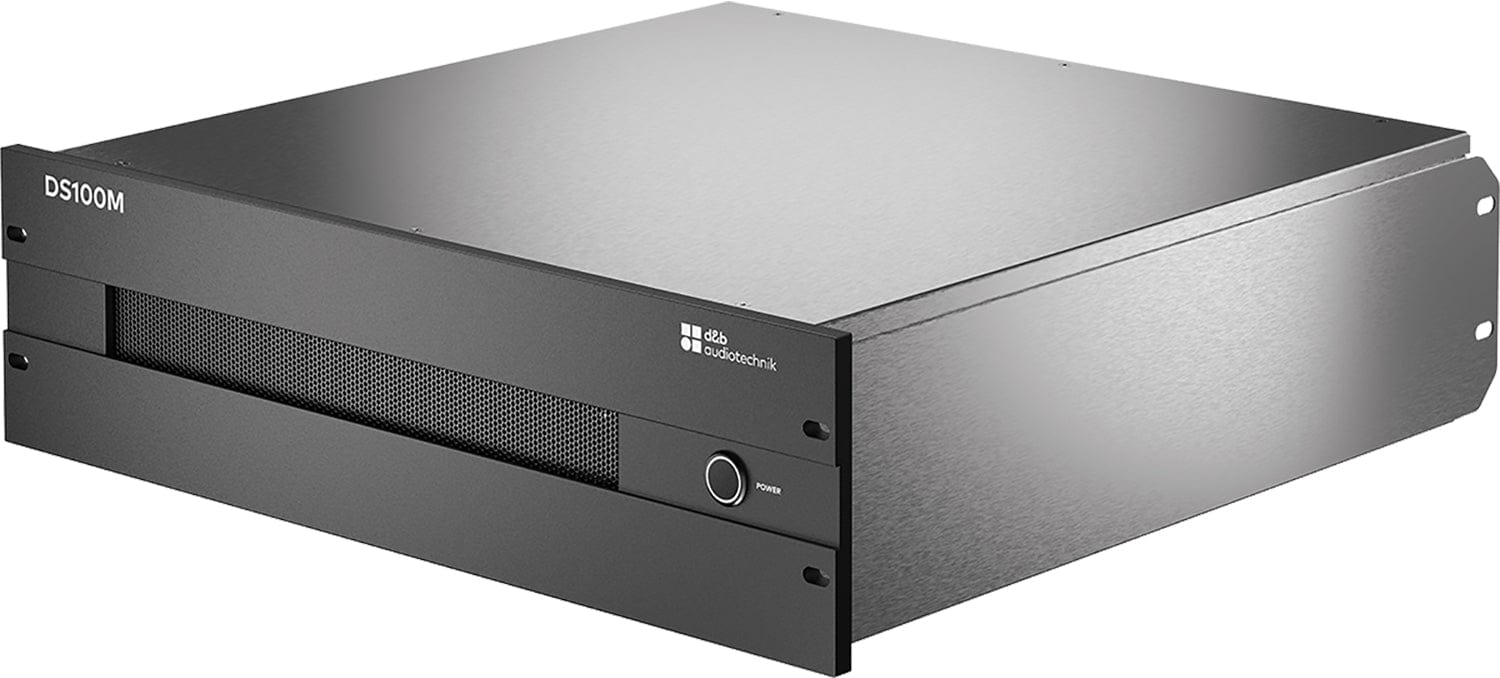

D&B Audiotechnik Z4102.000 DS100M Signal Engine

D&B Audiotechnik Z4102.000 DS100M Signal Engine

• Experience seamless 64 x 64 matrix processing with delay and level control for all crosspoints.
• Enjoy extensive signal processing at all inputs and outputs, supporting sampling rates of 48 or 96 kHz.
• Benefit from integration into the d&b R1 Remote control software, including parameter grouping and scene storage.

Advanced features in ArrayCalc and R1 simplify matrix function integration into d&b loudspeaker setups. Plus, all matrix functions can be controlled via OSC for remote control and automation in complex applications.

Features:

• Processing platform for the d&b Soundscape
• MADI and word clock integration
• I/O processing EQ, gain, delay, polarity
• Milan I/O
• Sampling rate I/O: 48 / 96 kHz

Specifications:

• Digital Signal Processing:
  • Input processing (64 channels):
    • 64 Channels
    • 8-Band PEQ with high/low shelf
    • Gain -120 to +24 dB
    • Delay up to 500 ms
    • Polarity 0° / 180°
    • Mute On/Off
  • Matrix processing (64x64):
    • 64x64 Level+Delay Matrix
    • Crosspoint Level -120 to +10 dB
    • Crosspoint Delay On/Off up to 500 ms
    • Crosspoint Mute On/Off
  • Output processing (64 channels):
    • 64 Channels
    • 16-Band PEQ with high/low shelf
    • Gain -120 to +10 dB
    • Delay up to 500 ms
    • Mute On/Off
  • Latency
• Controls and indicators:

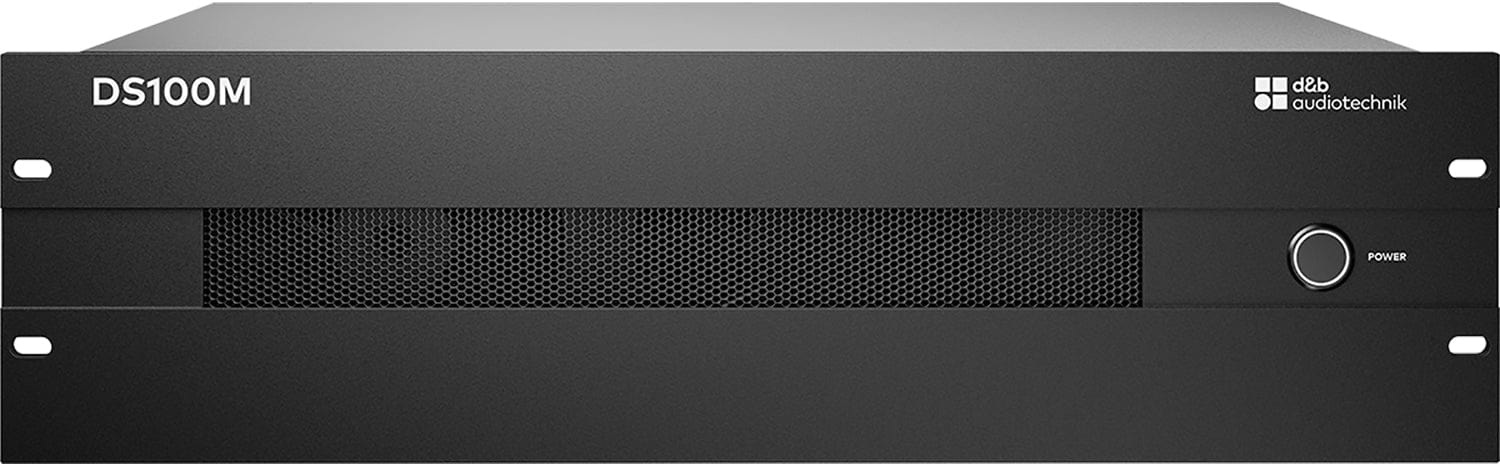

  • POWER:Push-button switch with integrated ring-LED indicator
• Digital inputs:
  • DIGITAL IN: Milan, Madi
  • Sampling: 48 / 96 kHz
• Digital outputs:
  • DIGITAL OUT: Milan
  • Sampling: 48 / 96 kHz
• Operating conditions:
  • Storage temperature:
    • –20 °C to 70 °C
    • –4 °F to 158 °F
  • Temperature range:
    • 0°C to 50°C
    • 32°F to 122°F

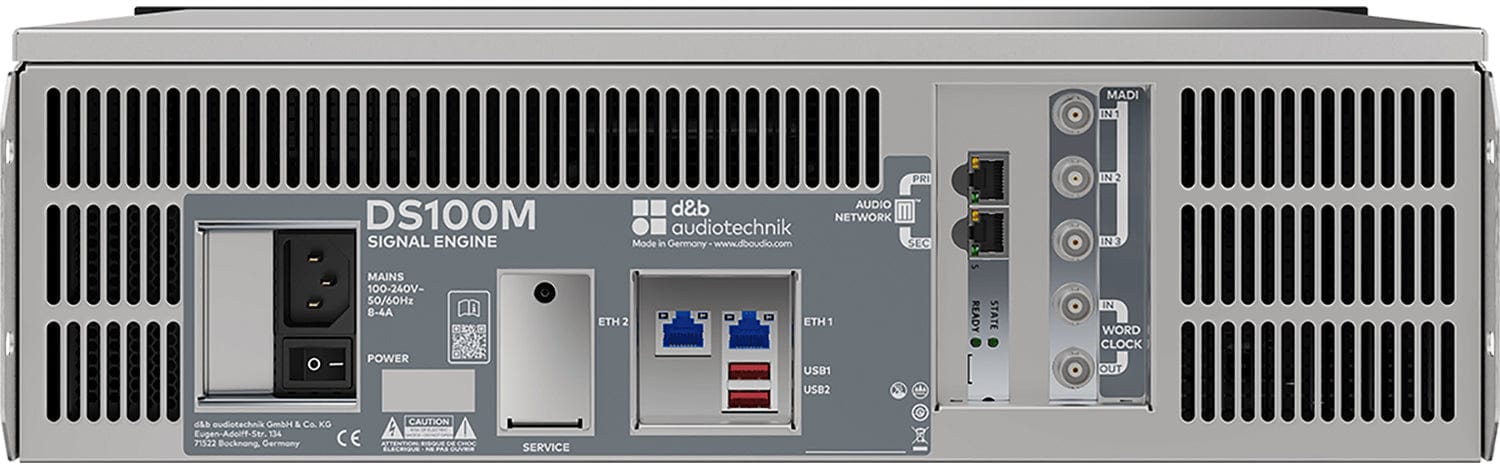

• Connectors:
  • ETHERNET:
  • 1 x RJ45
  • LAN 100/1000 Mbps
  • OCA/AES70, OSC
  • Network:
  • Milan audio network
  • 2 x RJ45 for Milan primary / secondary
  • 2 x USB
• Power supply:
  • Mains connector: IEC type socket
  • Rated mains voltage: 100 to 240 V, 50 – 60 Hz
• Dimensions / weight:
  • Weight (kg/lb): 11 kg / 24.25 lbs
  • Dimensions (H x W x D): 3 RU x 483 mm x 481 mm (3 RU x 19' x 18.93')

This product, the D&B Audiotechnik Z4102.000 DS100M Signal Engine, is perfect for sound engineers and professionals in the audio industry. It's designed to handle complex audio processing tasks. With a weight of 11 kg (24.25 lbs) and dimensions of 3 RU x 483 mm x 481 mm (3 RU x 19' x 18.93'), it's compact yet powerful. Use it in live events, recording studios, or any audio setup where high-quality signal processing is needed.
