D&B Audiotechnik Z4011.000 DS20: The Ultimate Audio Network Bridge
• Connects Milan networks to AES3 digital audio signals effortlessly.
• Distributes Ethernet control data with ease.
• Ideal for both mobile and installation setups!

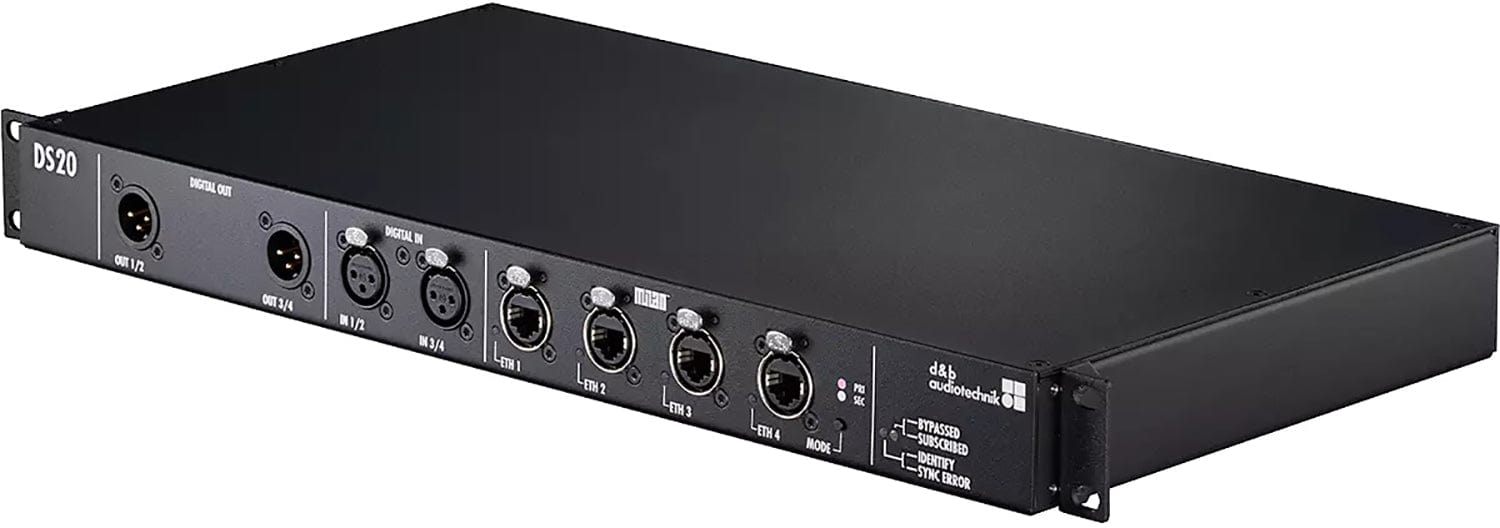

This 1 RU device seamlessly integrates into the d&b system, right in front of the amplifiers in the signal chain. It sends metadata like Milan channel labels and cabling info via the AES3 channel stream to the d&b four channel amplifiers.
With its fully AVB-enabled 5-port switch, it offers a primary and redundant network for the Milan protocol. This gives you extended connectivity to control the d&b amplifiers using the R1 Remote control software via the OCA protocol, all through a single Ethernet cable.

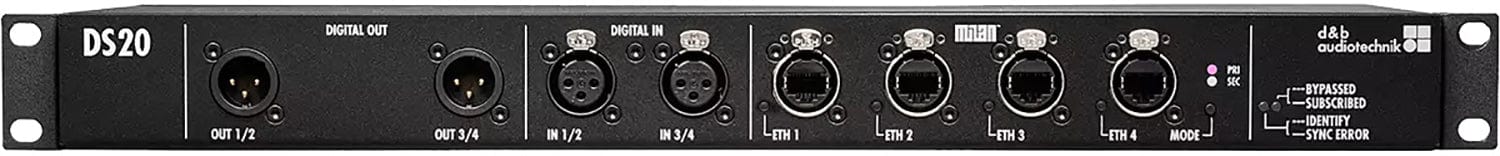

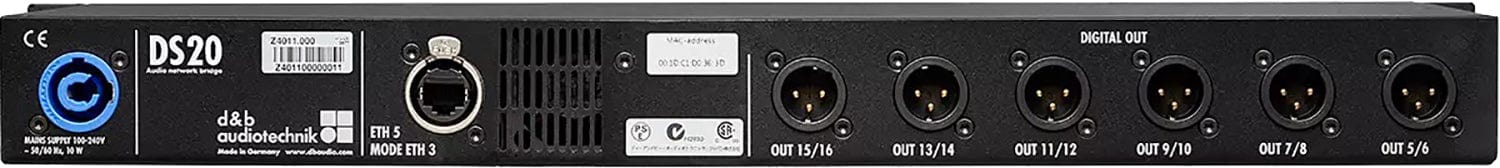

The front panel matches the d&b Touring rack assemblies' I/O panel for easy integration. And it has a power supply suitable for 100 V – 240 V, 50 – 60 Hz mains voltages, with up to 400 V overvoltage protection.
Features:
- • Bridges Milan audio and d&b amplifiers' AES3 inputs via Ethernet.
• Integrated 5-port switch offers extended connectivity and is AVB-enabled.
• Four AES3 input channels for more flexibility.
• Acts as an AES3 distribution device in bypass mode.
• Sends Milan metadata including channel labels through AES3 stream to d&b amplifiers.
Specifications:
- Controls and indicators:
- BYPASSED/SUBSCRIBED (RX Subscription): Green LED.
• IDENTIFY/SYNC ERROR: Red LED.
• Mode: Push-button.
• Switch port modes/Audio loss: RGB LEDs.
- Digital inputs:
- DIGITAL IN:
- 4 channels (2 x AES3), 3 pin XLR female.
• Sampling: 32 - 192 kHz.
• Synchronization: Sampling Rate Converter (SRC).
- Digital outputs:
- DIGITAL OUT:
- 16 channels (8 x AES3), 3 pin XLR male.
• Sampling: 48 / 96 kHz.
• Synchronization: Milan network.
- Network:
- Connectors:
- etherCON, built-in 5-port AVB Ethernet switch, 100/1000 Mbit.
- Operating conditions:
- Humidity (rel.), long term average: 70%.
• Storage temperature: –20 °C... 70 °C / –4 °F... 158 °F.
• Temperature range: 0 °C... 40 °C / 32 °F... 104 °F.
- Power supply:
- Mains connector: powerCON.
• Overvoltage protection: Up to 400 VAC.
• Rated mains voltage: 100 - 240 V, 50 - 60 Hz.
- Dimensions / weight:
- Dimensions (H x W x D):
- 1 RU x 19'' x 232 mm, 1 RU x 19' x 9.1'.
• Weight: 3.8 kg / 8.37 lb.
The D&B Audiotechnik Z4011.000 DS20 Audio Network Bridge is a must-have for audio setups. It's perfect for both mobile and installation environments. Whether you're on the go or setting up a permanent system, this device can handle it. Measuring 1 RU x 19'' x 232 mm (1 RU x 19' x 9.1') and weighing 3.8 kg (8.37 lb), it's compact and easy to install. It interfaces between Milan networks and AES3 digital audio signals, distributing Ethernet control data along the way. With its integrated features, it simplifies audio connectivity and control, making it a great choice for anyone looking to enhance their audio experience.
