D&B Audiotechnik Z1628.100 27S-SUB 15-Inch/12-Inch Dual Passive Subwoofer - Weather-Resistant

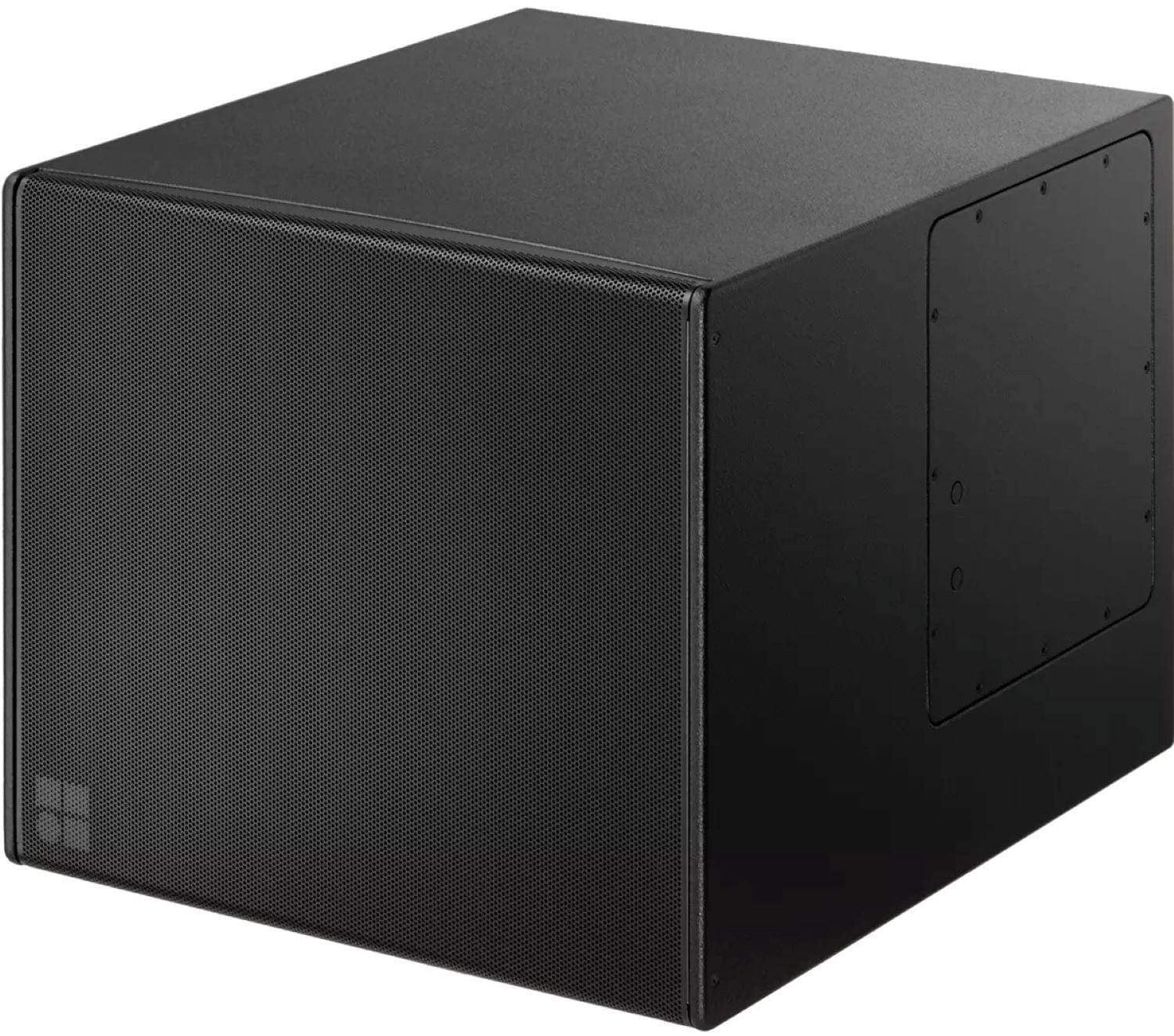

D&B Audiotechnik Z1628.100 27S-SUB: The Ultimate Weather-Resistant Dual Passive Subwoofer

Get ready to experience with the 27S-SUB! This compact high performance cardioid subwoofer, powered by a single amplifier channel, is perfect for use with the xS-Series and xA-Series loudspeakers. Here's what makes it stand out:

• • ，，，xSxA
• • ，，15，12
• • ，，，DIN 18032-3，

The 27S-SUB is not only powerful but also versatile. It can be used stand-alone, stacked or innavidually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block.

Weather resistant (WR): This option is suitable for outdoor use. The cabinets have an impact and weather protected black PCP (Polyurea Cabinet Protection) finish. WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed, as shown in the graphic opposite.

Features:

• Components 15'/12'
• Dispersion Cardioid
• SPLmax 131 dB
• Weight 41 kg / 90 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 40 - 140 Hz
  • Frequency response (-5 dB CUT mode): 40 - 100 Hz
  • Max. sound pressure:
    • with 10D: 128 dB
    • with D20/5D/30D: 131 dB
    • with D40/D80/40D: 131 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Installation specific cardioid subwoofer
  • Nominal impedance: 6 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (h x v): 110° x 55° rotatable
  • Components:
    • 15' driver with neodymium magnet front
    • 12' driver with neodymium magnet rear
  • Connections:
    • Faston connector type 2
• Dimensions / Weight:
  • Dimensions (H x W x D): 490 x 580 x 700 mm / 19.3 x 22.8 x 27.6'
  • Weight: 41 kg / 90 lb

The D&B Audiotechnik Z1628.100 27S-SUB is a great choice for anyone looking for a powerful and versatile subwoofer. It's perfect for use in schools, sports halls, and other outdoor venues. With its compact design and high performance, it's easy to install and use. The 27S-SUB features a 15-inch and 12-inch dual passive subwoofer, providing excellent bass response. It's also weather-resistant, making it suitable for use in outdoor environments. The enclosure is constructed from marine plywood with an impact resistant black paint finish, ensuring durability. The dimensions of the subwoofer are 490 x 580 x 700 mm (H x W x D), and it weighs 41 kg (90 lb).
