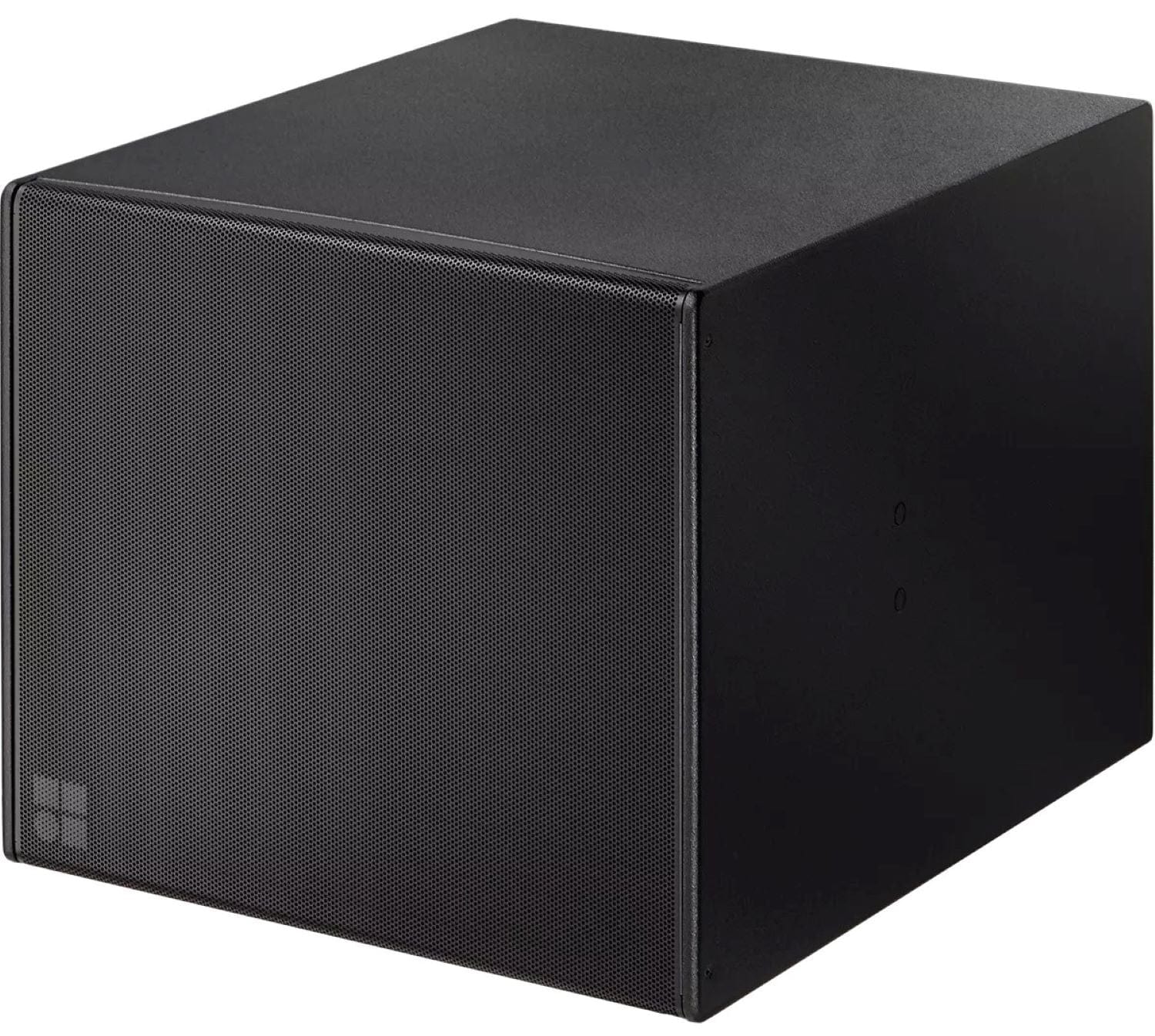

D&B Audiotechnik Z1626.100 18S-SUB 18-Inch Passive Subwoofer - Weather-Resistant
The 18S-SUB is a compact high performance subwoofer for use with the xS-Series and xA-Series loudspeakers. • Compact and high performance for a powerful audio experience. • Weather-resistant for outdoor use. • Versatile installation options.
Weather resistant (WR): This option is suitable for outdoor use. The cabinets have an impact and weather protected black PCP (Polyurea Cabinet Protection) finish. WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed, as shown in the graphic opposite.
Features:
- Components 18'
- Dispersion Omni directional
- SPLmax 132 dB
- Weight 32 kg / 71 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 37 - 140 Hz
- Frequency response (-5 dB CUT mode): 37 - 100 Hz
- Max. sound pressure:
- with 10D: 129 dB
- with D20/5D/30D: 132 dB
- with D40/D80/40D: 132 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Installation specific compact subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 400/1600 W
- Nominal dispersion angle (h x v): 110° x 55° rotatable
- Components: 18' driver with neodymium magnet
- Connections:
- Dimensions / Weight:
- Dimensions (H x W x D): 490 x 580 x 700 mm / 19.3 x 22.8 x 27.6'
- Weight: 32 kg / 71 lb
The D&B Audiotechnik Z1626.100 18S-SUB is a great choice for those looking to enhance their audio experience in various settings. It's perfect for both indoor and outdoor use, whether it's for schools, sports halls, or other venues. With its compact size of 490 x 580 x 700 mm and weight of 32 kg, it's easy to install and move around. This subwoofer is designed to work with the xS-Series and xA-Series loudspeakers, providing a powerful and versatile audio solution.
